The details

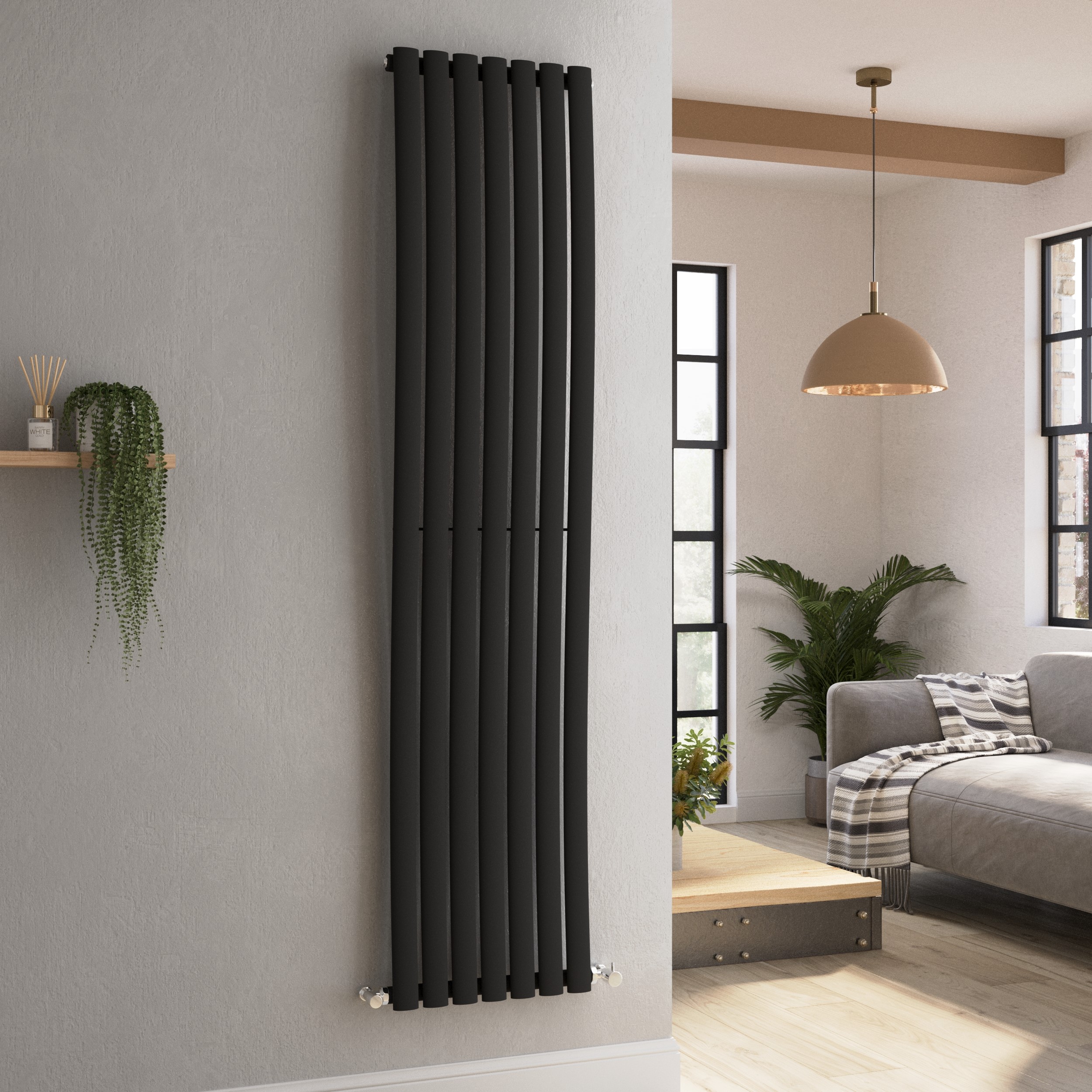

Elevate the style and comfort of your home with our Onda range of stylish Wave Single Panel Vertical designer radiators. The elegantly eye-catching design and graceful finish add a sophisticated touch to any space.
These radiators feature sleek, fluid lines that create a striking visual impact while providing efficient and high-performance heating. The slim, Vertical form fits seamlessly into any room, from living areas to bedrooms.
Onda Vertical designer radiators are engineered to provide exceptional heating output, ensuring your space is always warm and inviting, even in the coldest months. Available in different sizes designed to meet various heating needs.
Crafted from premium steel, these elegant wave-shaped oval tube radiators are designed for durability and long-lasting performance. Each radiator features a resilient coating that protects against wear and tear, ensuring easy maintenance and adding a contemporary element to your décor. Designed for central heating systems, Onda wave-shaped oval tube radiators ensure consistent and reliable warmth throughout your home, while adding a touch of refined elegance.
Key features

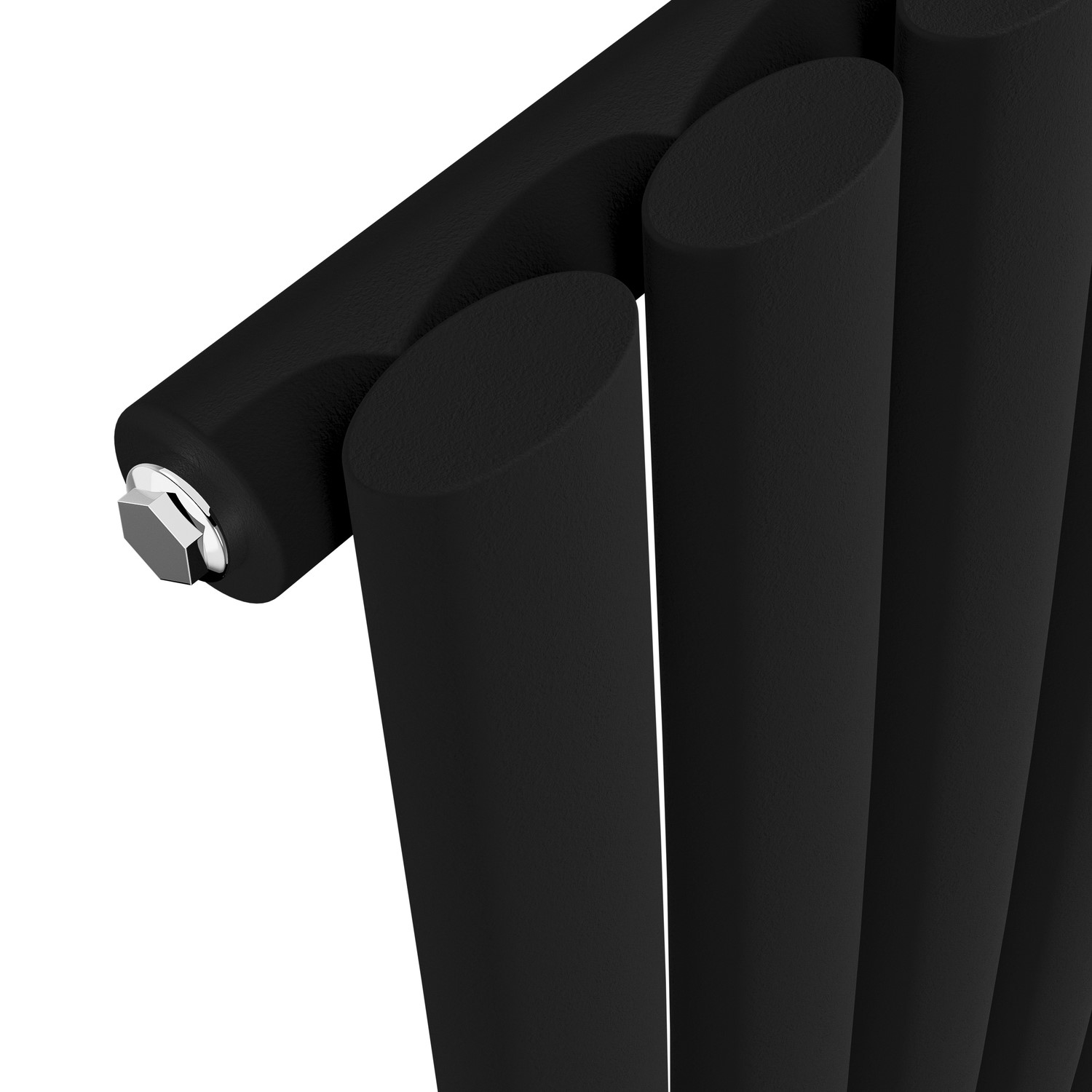

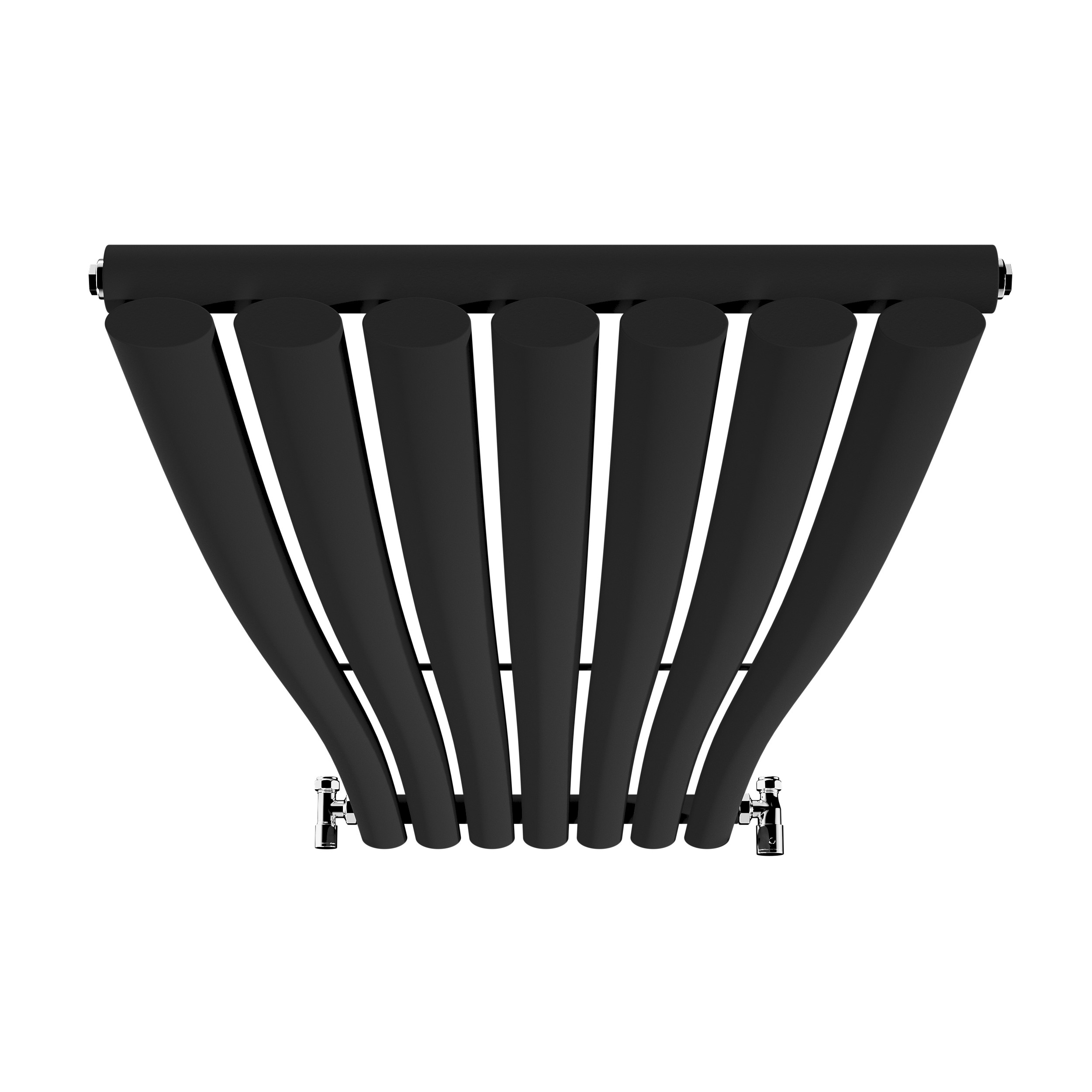

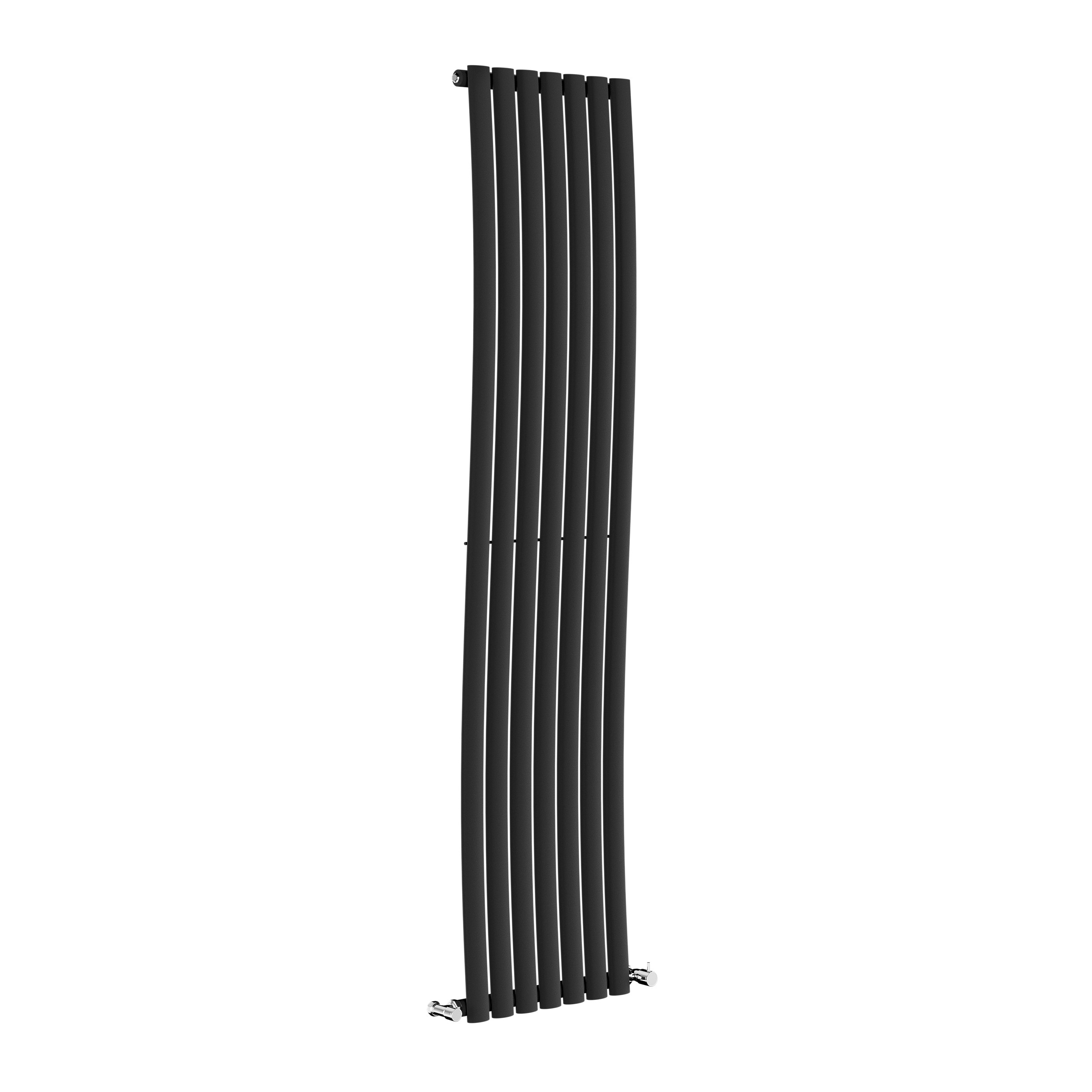

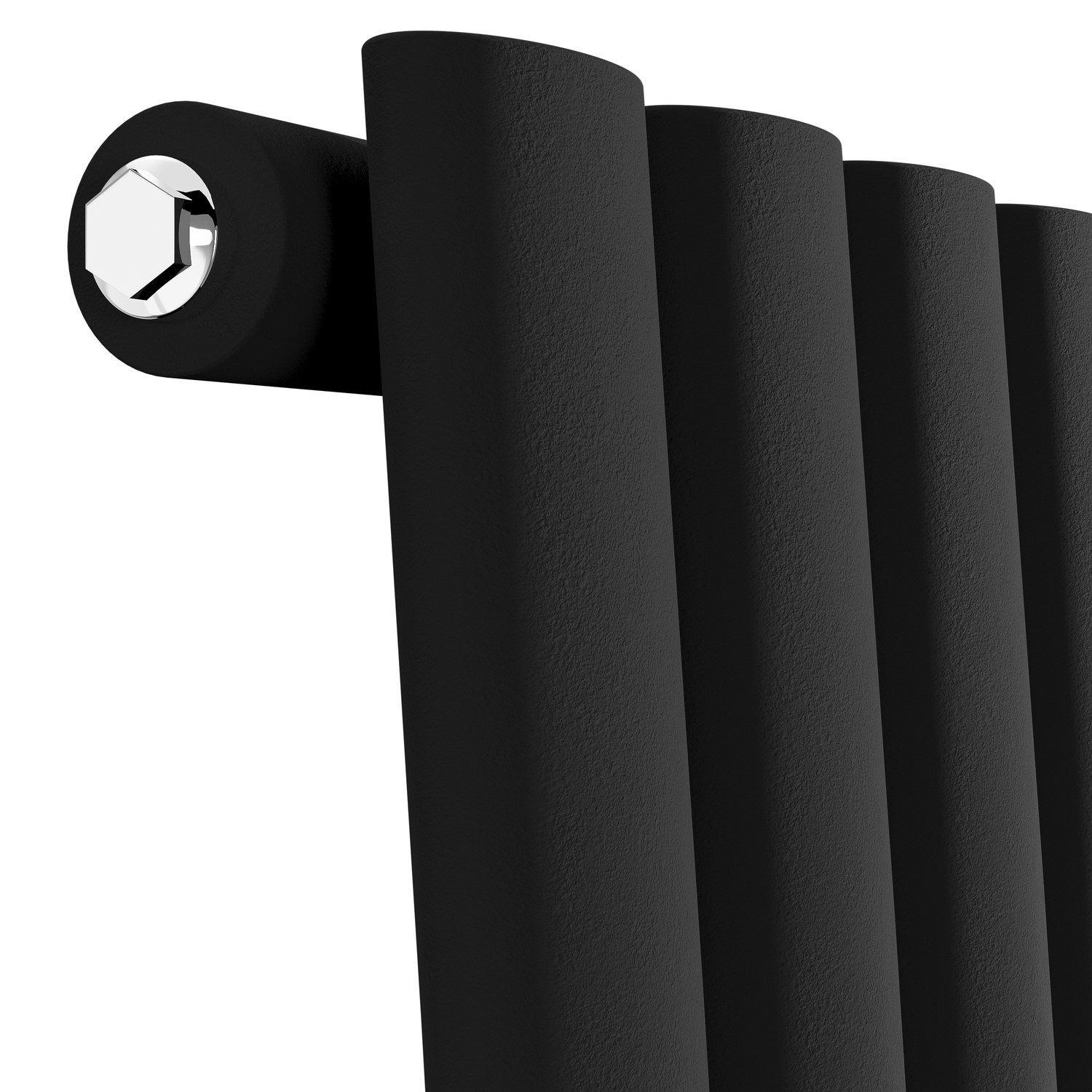

- Sleek vertical single-panel radiator with 7 wave-shaped oval bars, perfect for both modern and classic interiors
- Slim and space-saving with enhanced thermal efficiency
- 3735 BTU / 2926 BTU (Delta T60 / T50) heat output
- Durable construction with a high-quality finish for long-lasting use
- Easy to maintain – can be cleaned repeatedly without affecting quality or finish
- Powder-coated steel – resistant to scratches, stains, impacts, chemicals, acids, and UV-resistant
- A variety of colours to suit different designs
- Compatible with all central heating systems
- Approx. Wall to Radiator Face (mm): 103 mm
- Approx. Wall to Pipe Centre: 63 mm
- Approx. Pipe Centre to Pipe Centre: 493 mm
- Built to Last: 1.5mm thick steel for guaranteed durability
- Tested and certified by a notified body to CE/ BS EN 442 Standards
- CE Marked and Declaration of Performance provided (DOP)
- ISO 9001:2015 / GB/T19001-2016 Registered Manufacturer
- Includes User Manual, Wall fixings, Wall plugs, Blanking and Bleed plug
Specifications
- Wall Mounted: Yes
- Colour: Midnight Black RAL: 9005
- Net Size (HxWxD): 180x41.3x9 cm
- Gross Size (HxWxD): 187x47.8x11 cm
- Net Weight: 22.5 kg
- Gross Weight: 25.15 kg
- Panel Type: Single
- Columns per panel: 7
- Shape: Oval Waved
- Direction: Vertical
- Max Operation Pressure: 9 bar
- Max Operation Temperature: <95°C
- Connection Size: ½ inch BSP
- Water Content: 10.22 litres
Please note: Valves are not included but can be added to your order separately. Please note that all measurements are approximate. We recommend purchasing radiators and valves before fitting the pipework.
Choose this Wave Single Panel Vertical Radiator with graceful, fluid lines from the Onda range to give your home a modern look while enhancing its style and comfort.
