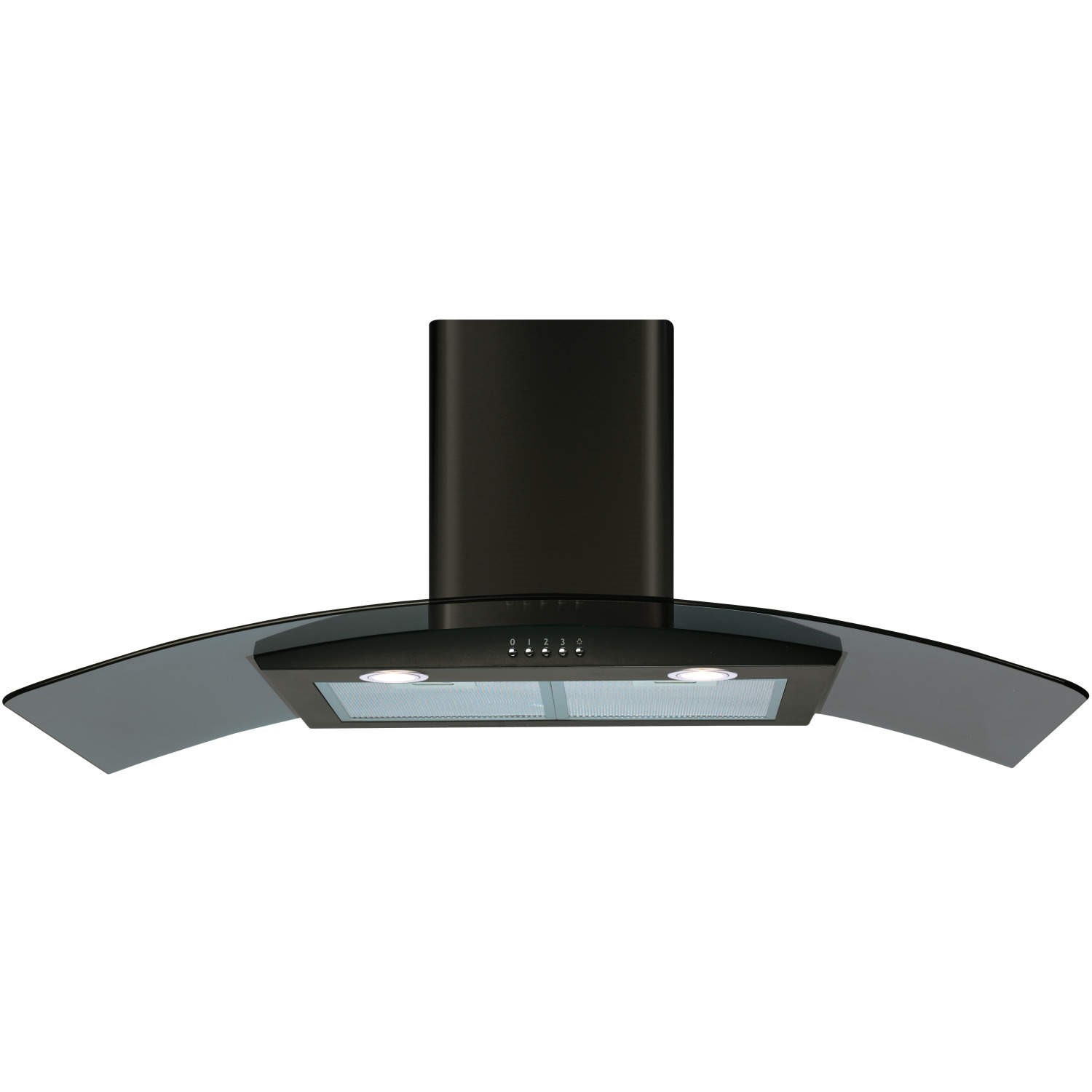

The ECP102BL is a 100cm wide chimney hood in black with a curved smoked glass canopy from CDA.
This model has 3 speeds selected by push button controls and aluminium grease filters. There are two 20 Watt halogen lights to illuminate your hob. The motor gives you a good extraction rate of 377 cubic metres per hour, which is ideal for kitchens up to 47 cubic metres, and a relatively low noise level at 61 decibels.
As a wall-mounted extractor the ECP102BL can be installed to re-circulate the air into the kitchen or to be ducted outside. If you are choosing to re-circulate you'll need a charcoal filter and if you're ducting out you'll need a ducting kit.
CDA guarantee their appliances for 5 years on the parts and 2 years on the labour. Please ensure you register your appliance to receive this.
Features
- Ducted or recirculating modes
- 3 speeds
- Push button control
- Aluminium grease filter
- 2 x 20 W halogen lights

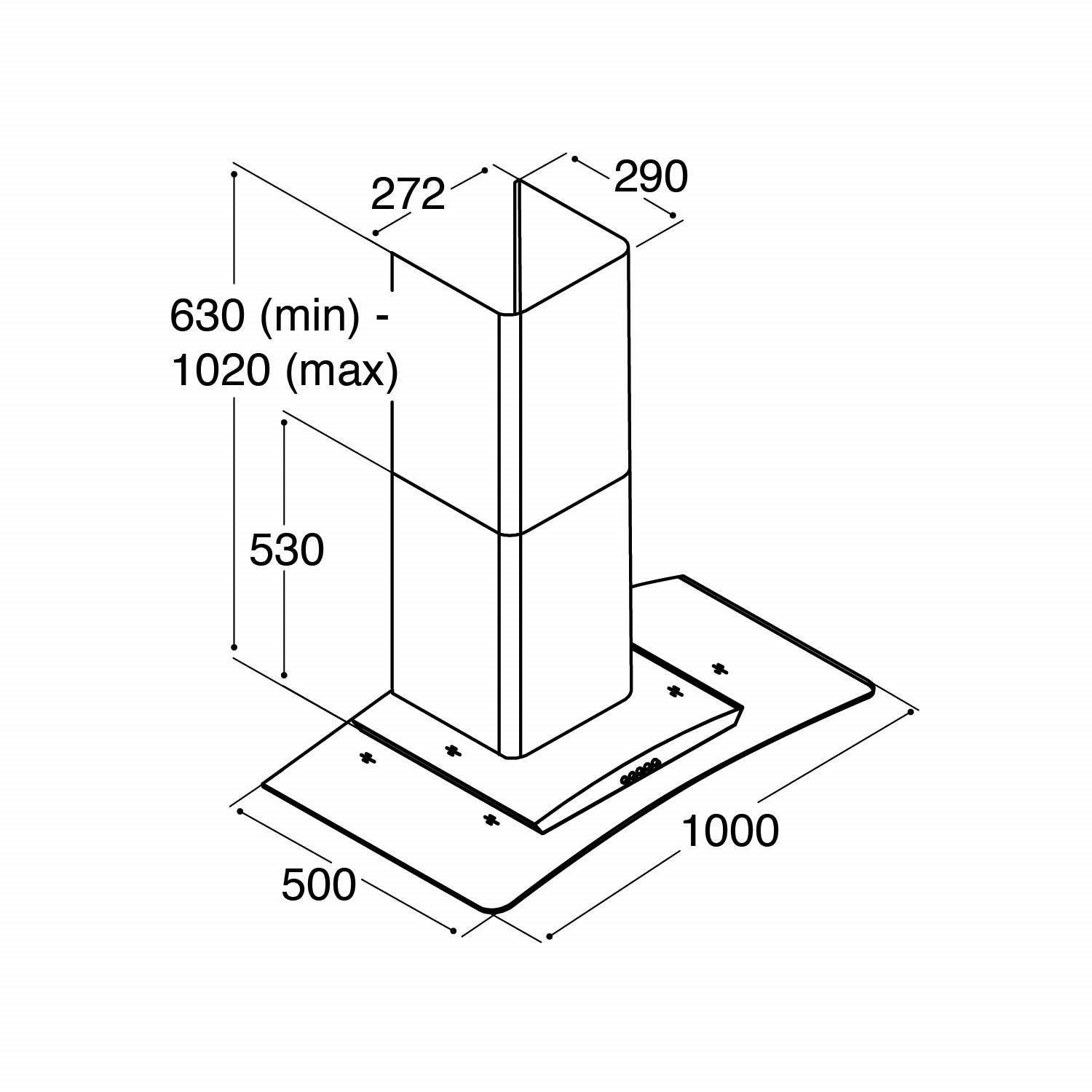

Technical Specifications
- Required height over gas hob: 700 mm (min)
- Required height over electric hob: 600 mm (min)
- Outlet diameter: 150 mm
- Noise level: 61 dBA
- Extraction rate: 391 m³/hr
- Rated electrical power: 100 W
- Power supply required: 3 amps
Fitting note: Please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
Back to top
Question from Susan: Asked on 26/12/2013 Hi what is included with this hood ???? Do I need to buy filter and hose ??? Or that is included and it it only as extra ???
You would need to purchase either need a filter or a hose.
if recirculating in in your kitchen you need the filter: CHA12
if you are ducting out we do the following kits:
AED51 - 1Meter Kit
AED53 - 6 Meter Kit
Question from CDA ECP 102BL curved glass 100mm chiney hood: Asked on 14/05/2013 CDA ECP 102BL CHIMNEY HOOD - HOW DO I SPECIFY I REQUIRE 800mm & NOT 430mm between ceiling and unit
