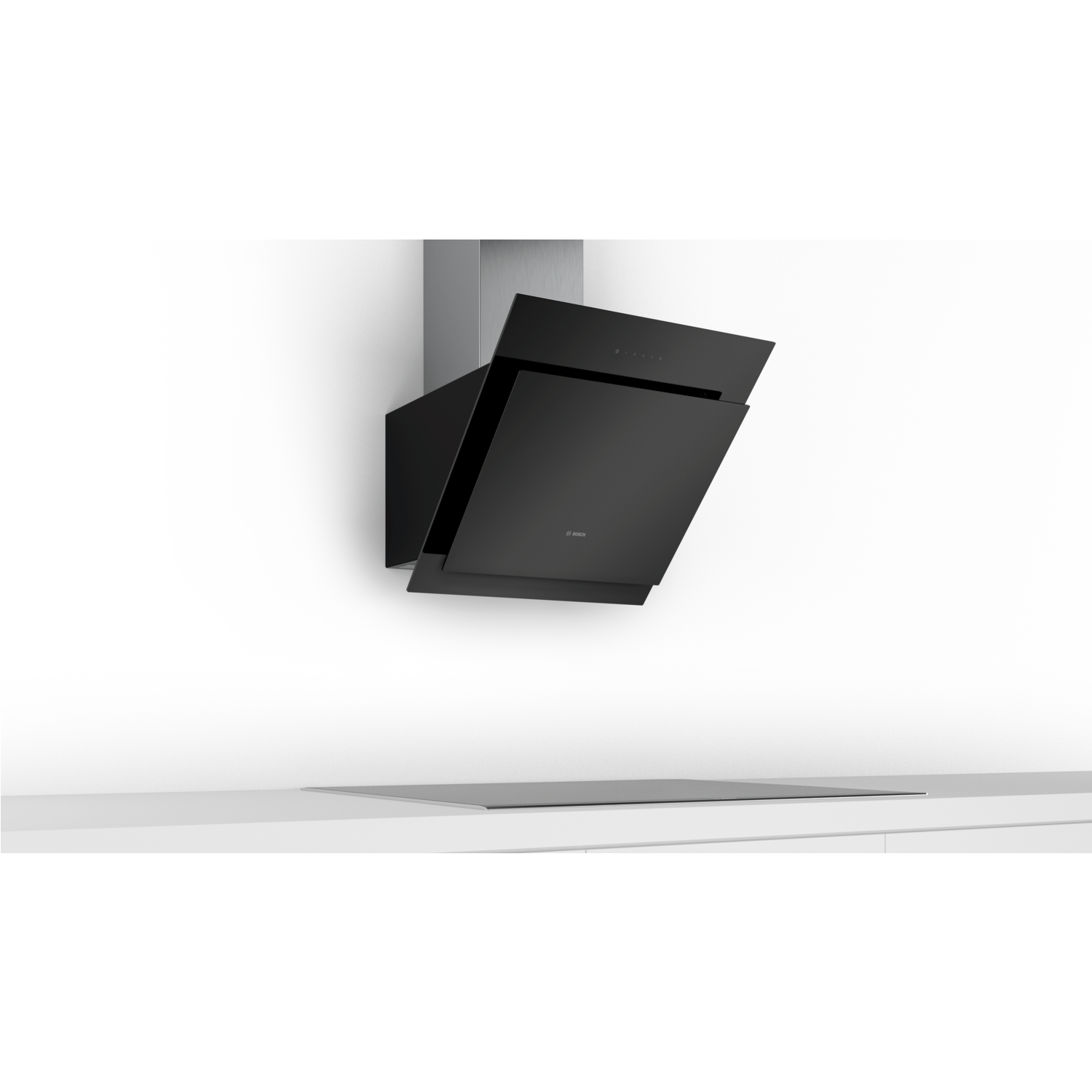

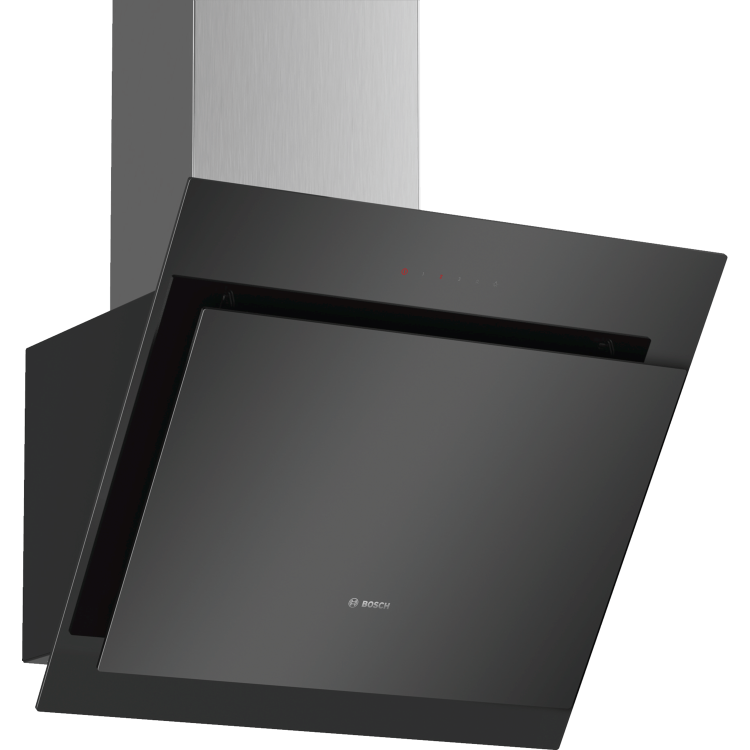

Bosch Series 4 60cm Touch Control Angled Chimney Cooker Hood - Black

Angled hood: perfect for keeping an eye on your pots and pans

TouchControl - control at your fingertips
Set the exact power level with a single touch thanks to TouchControl and DirectSelect. It's easy to operate: simply select the right power level or turn on the lights and away you go.

Effective extraction of cooking smells with power boost
Thanks to power boost, your hood can handle even strong cooking smells and boosts the extraction rate at the touch of a button.

The optimum air volume for kitchen of all sizes
No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.

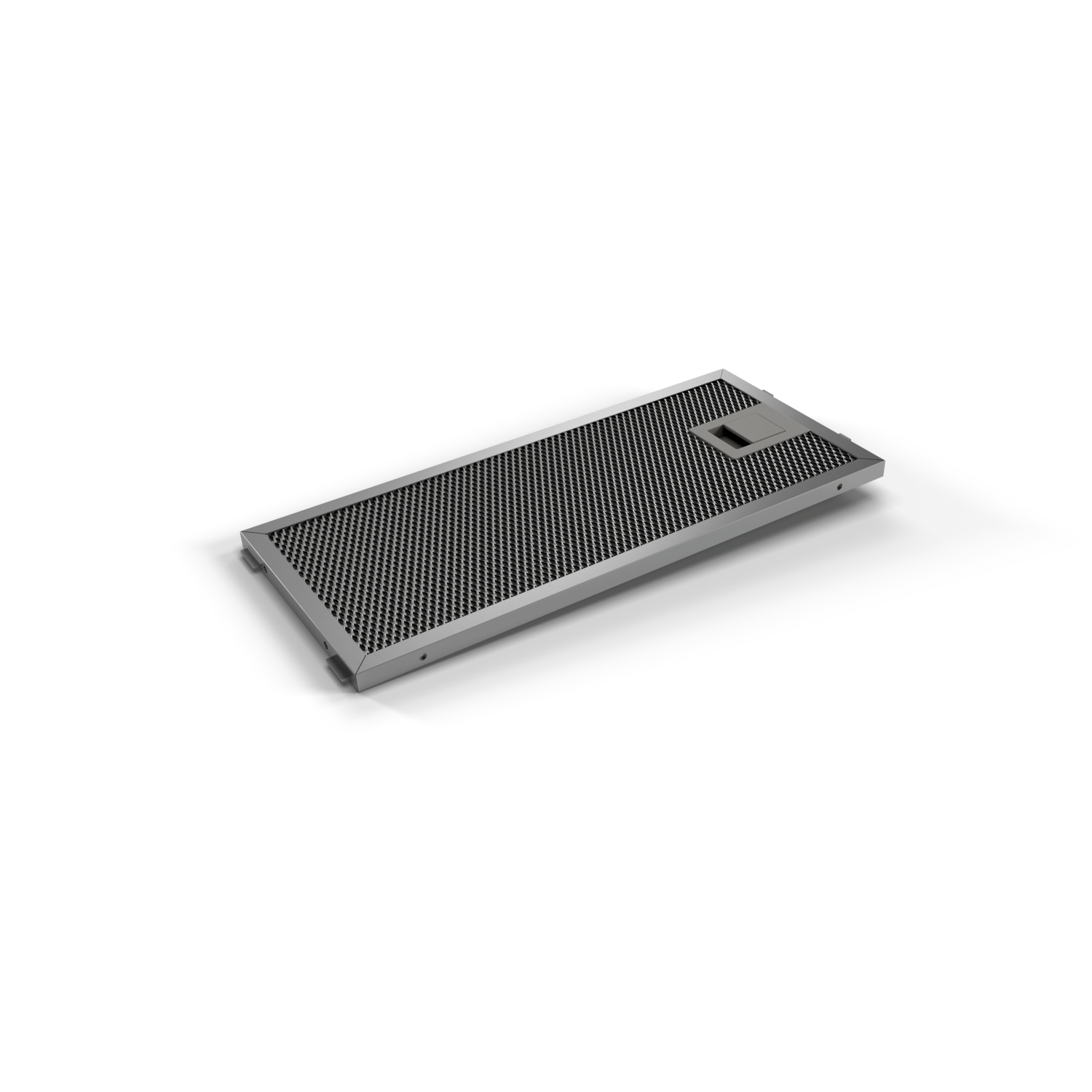

Metal grease filter
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.

Key Features

• Especially silent: maximum extractor performance with minimal noise
• An impressive extraction rate of 700 m³/h ensures this hood will have your kitchen odour free in no time
• TouchSelect control: quick touch-control selection of desired settings and light
• Easy-to-clean interior: hidden screws and cables along with rounded edges make cleaning easy

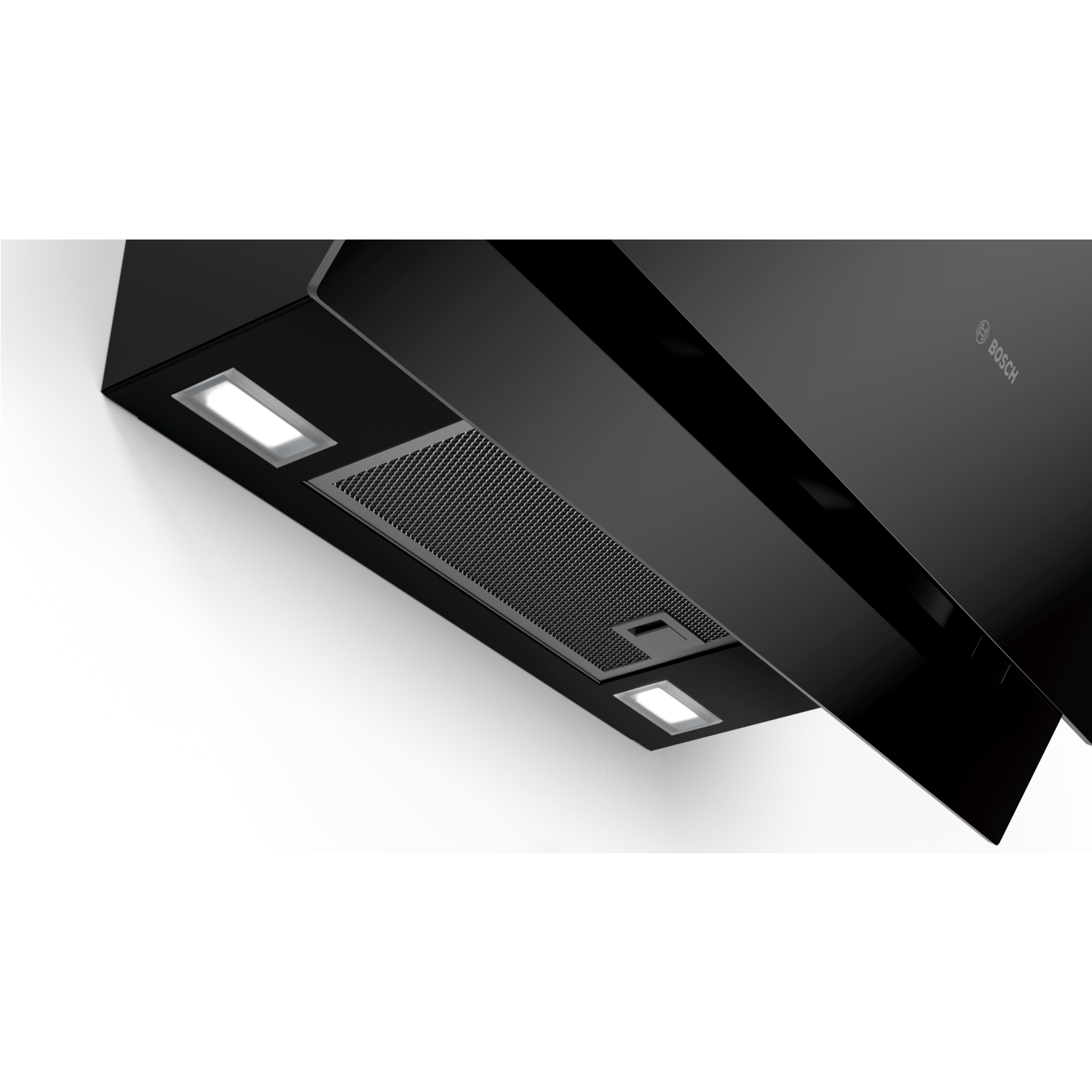

• Illumination: The energy-saving lighting provides bright and clear lighting for the hob area

Key performance features

• Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
• Extraction rate according to EN 61591 ø 15 cm:
• max. Normal use 416 m³/h
• Intensive 700 m³/h
• Noise max. Normal Level: 58 dB*

Special Features

• TouchControl with electronic display
• 3 power levels and intensive setting
• 2 x 1.5W LED light
• Colour Temperature: 3500 K
• Automatic intensive revert (6mins)
• 2 removable metal grease filter cassettes
• easy to clean Inner frame

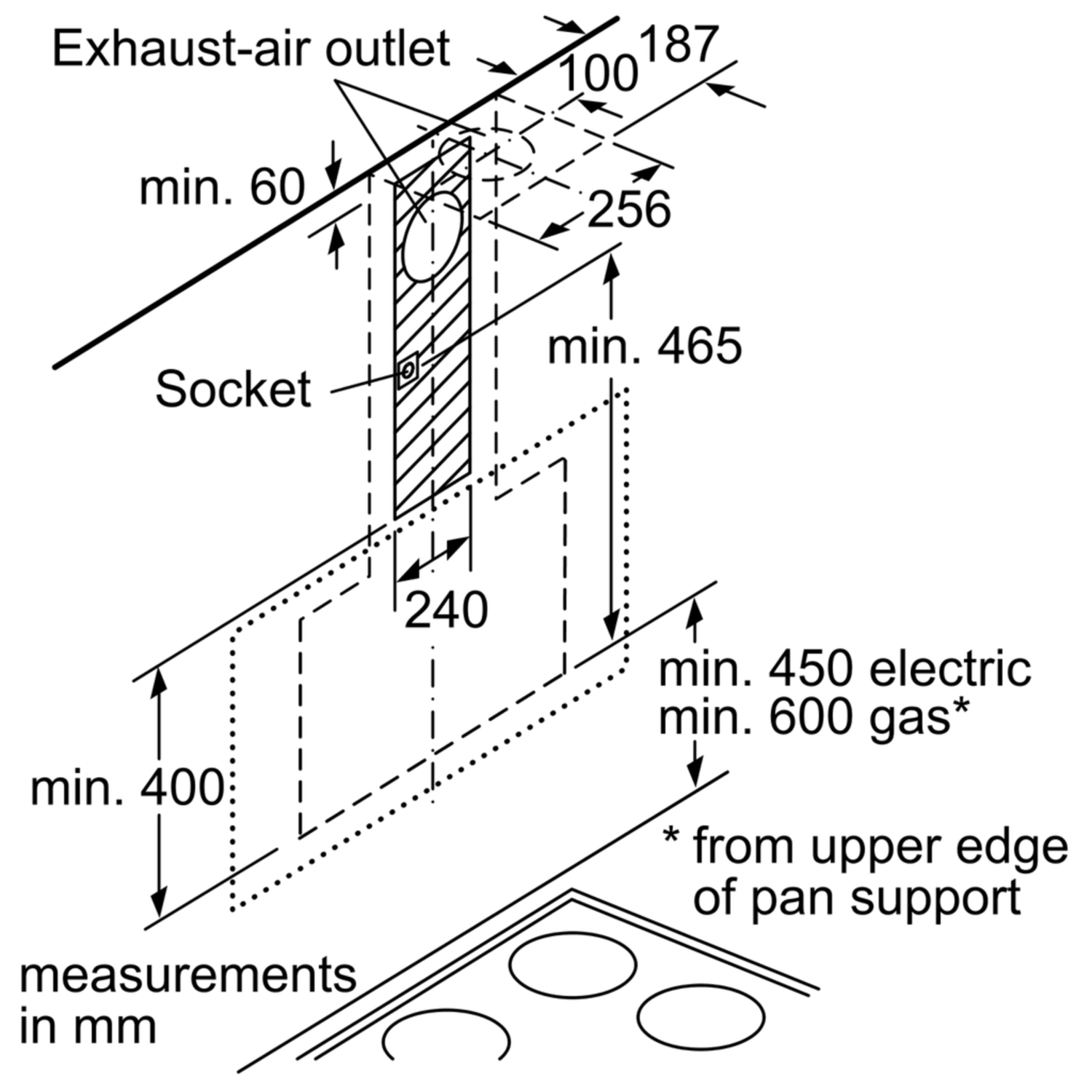

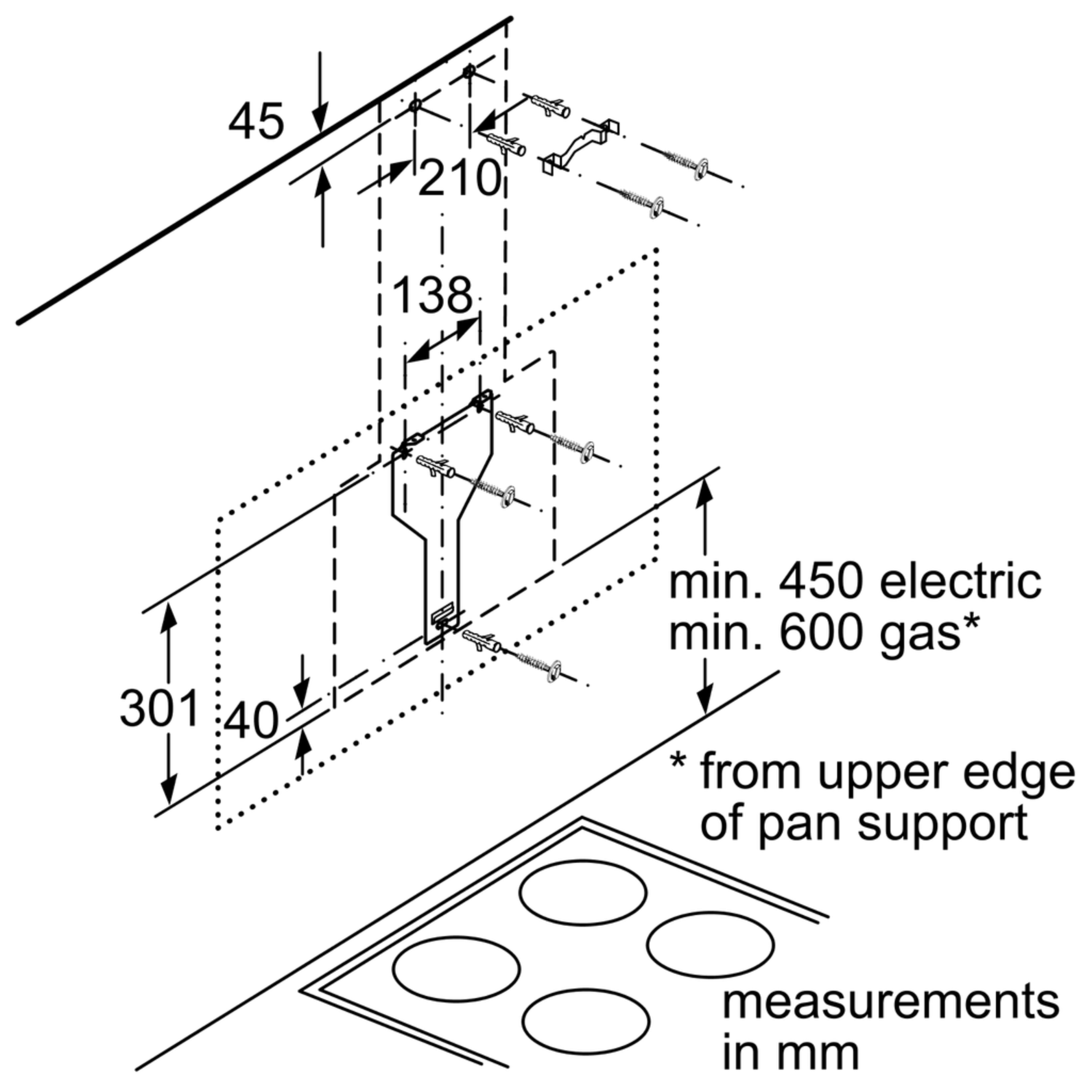

• Designed for wall mounted installation
• Rim ventilation

Design

• Black glass canopy
• Angled glass design
• Chimney extractor hood
• TouchControl
• Electronic control

Performance/technical information

• Suitable for ducted or recirculating operation
• For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed

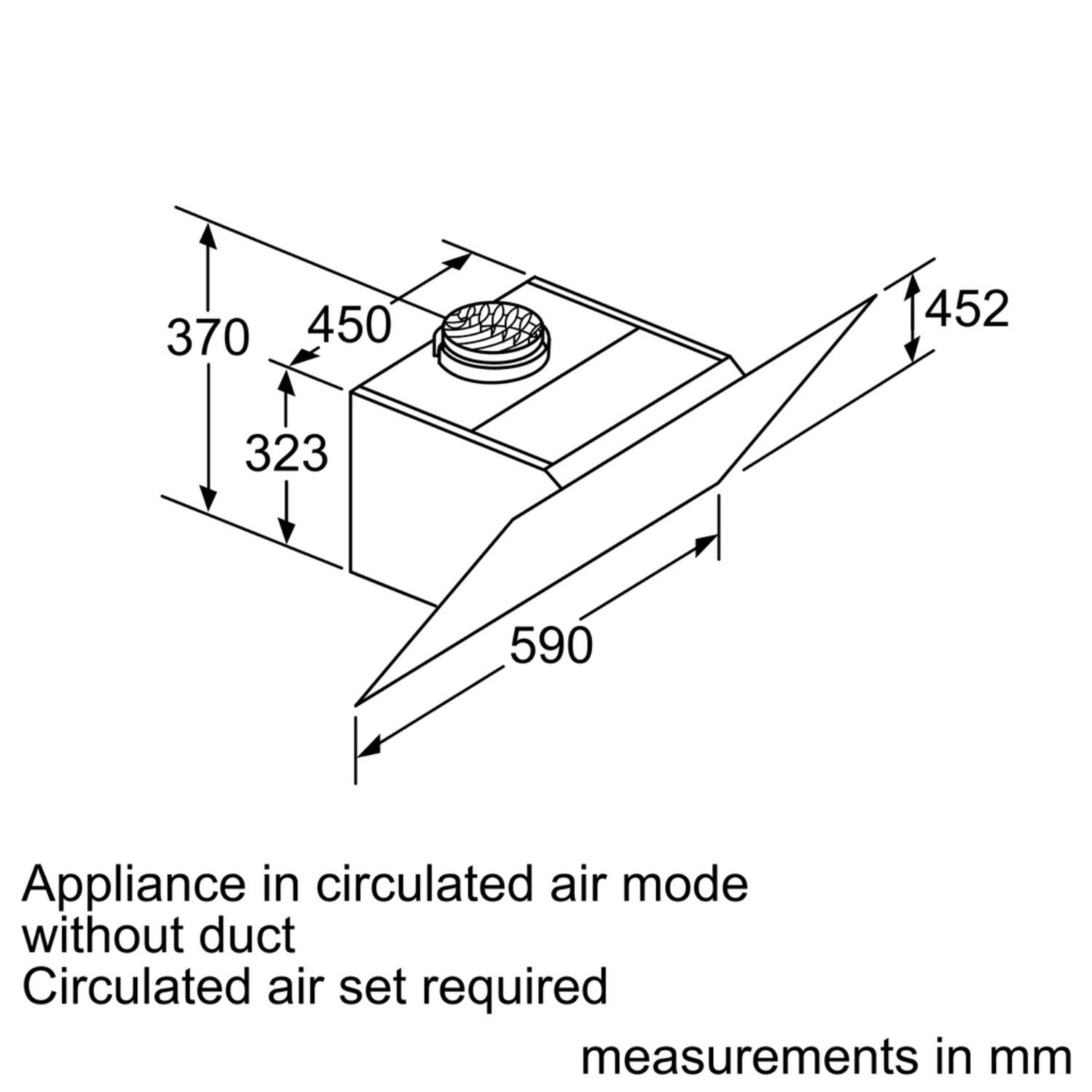

• In recirculation operation chimless use possible
• Easy installation system
• Extraction rate according to EN 61591 ø 15 cm:
• max. Normal use 416 m³/h
• Intensive 700 m³/h
• Extraction rate according to EN 61591 max. 416 m³/h
• Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 58 dB(A) re 1 pW (45 dB(A) re 20 µPa sound pressure)
• Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
• Max. normal use: 58 dB(A) re 1 pW (45 dB(A) re 20 µPa sound pressure)
• Intensive: 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
• Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 58 dB (A) re 1pW
• Noise max. Normal Level: 58 dB*
• Power rating: 263 W
• Light Intensity: 100 lux
• Colour Temperature: 3500 K
• Electrical cable length 1.3 m
• Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

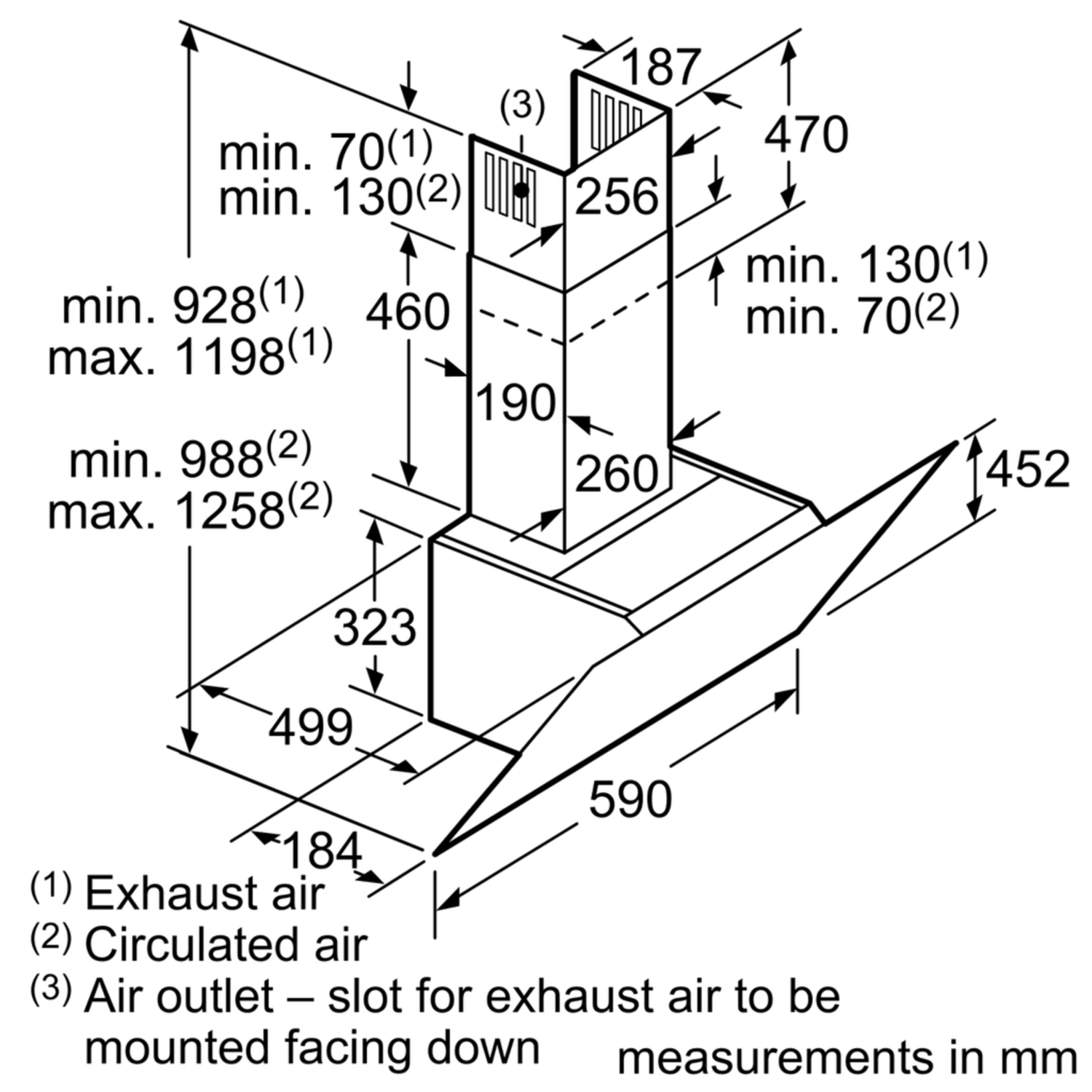

• Dimensions exhaust air (HxWxD): 928-1198 x 590 x 499 mm
• Dimensions recirculating (HxWxD): 988-1258 x 590 x 499 mm
• Dimensions recirculating with CleanAir module (HxWxD):
• 1118 x 590 x 499 mm - mounting with outer chimney
• 1188-1458 x 590 x 499 mm - mounting with telescopic chimney
• Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
• Blower Efficiency Class: B
• Lighting Efficiency Class: B
• Grease Filtering Efficiency Class: C
• Average Energy Consumption: 56.6 kWh/year
