High Extraction Rate
An impressive extraction rate of 350 m³/h ensures this hood will have your kitchen odour free in no time.
LED Lighting

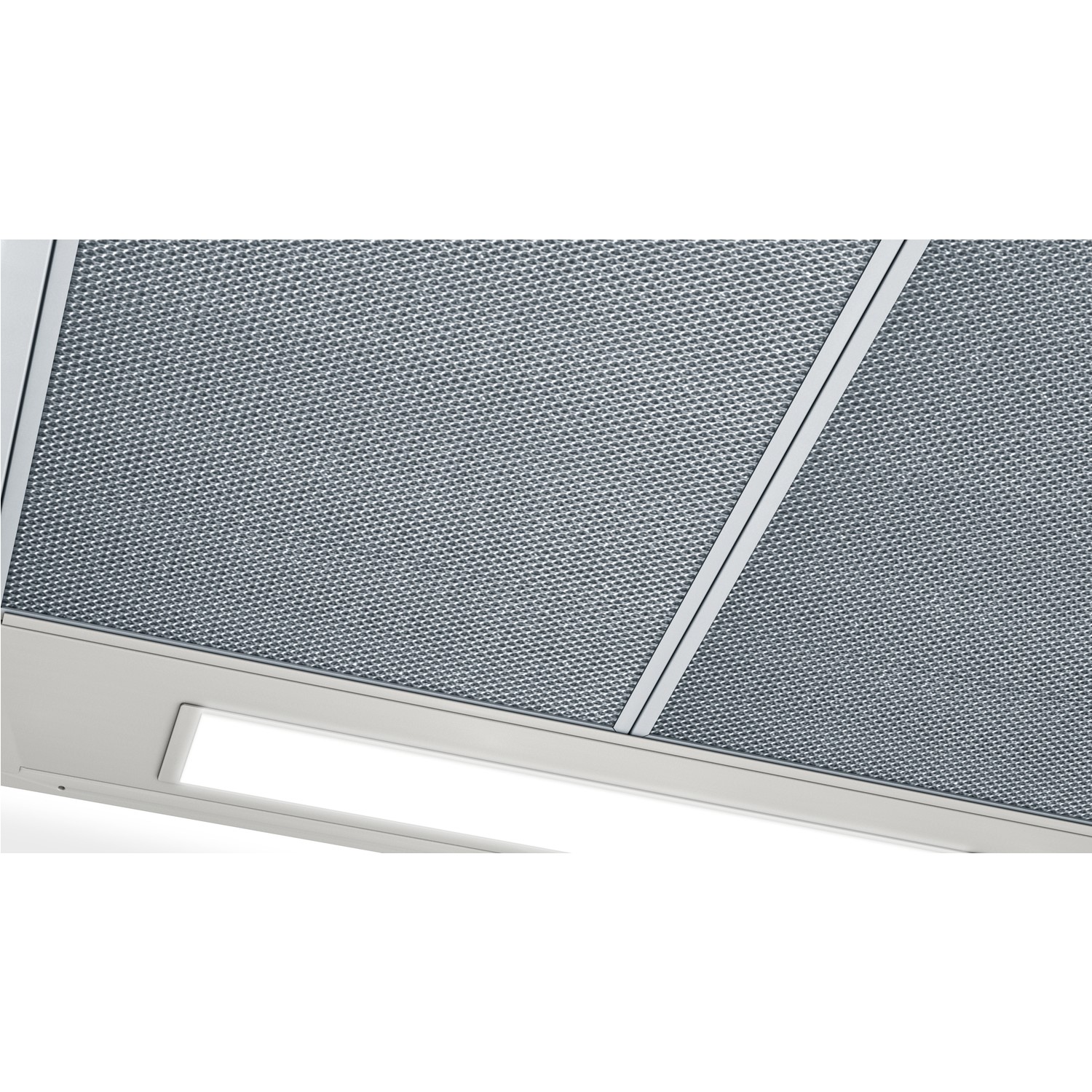

LED lighting is highly energy efficient and provides attractive, white and even lighting for the hob area.
Key performance features:
- Energy Efficiency Class: D*
- Maximum extraction 350 m³/h
- Noise max. Normal Level: 72 dB*
Features

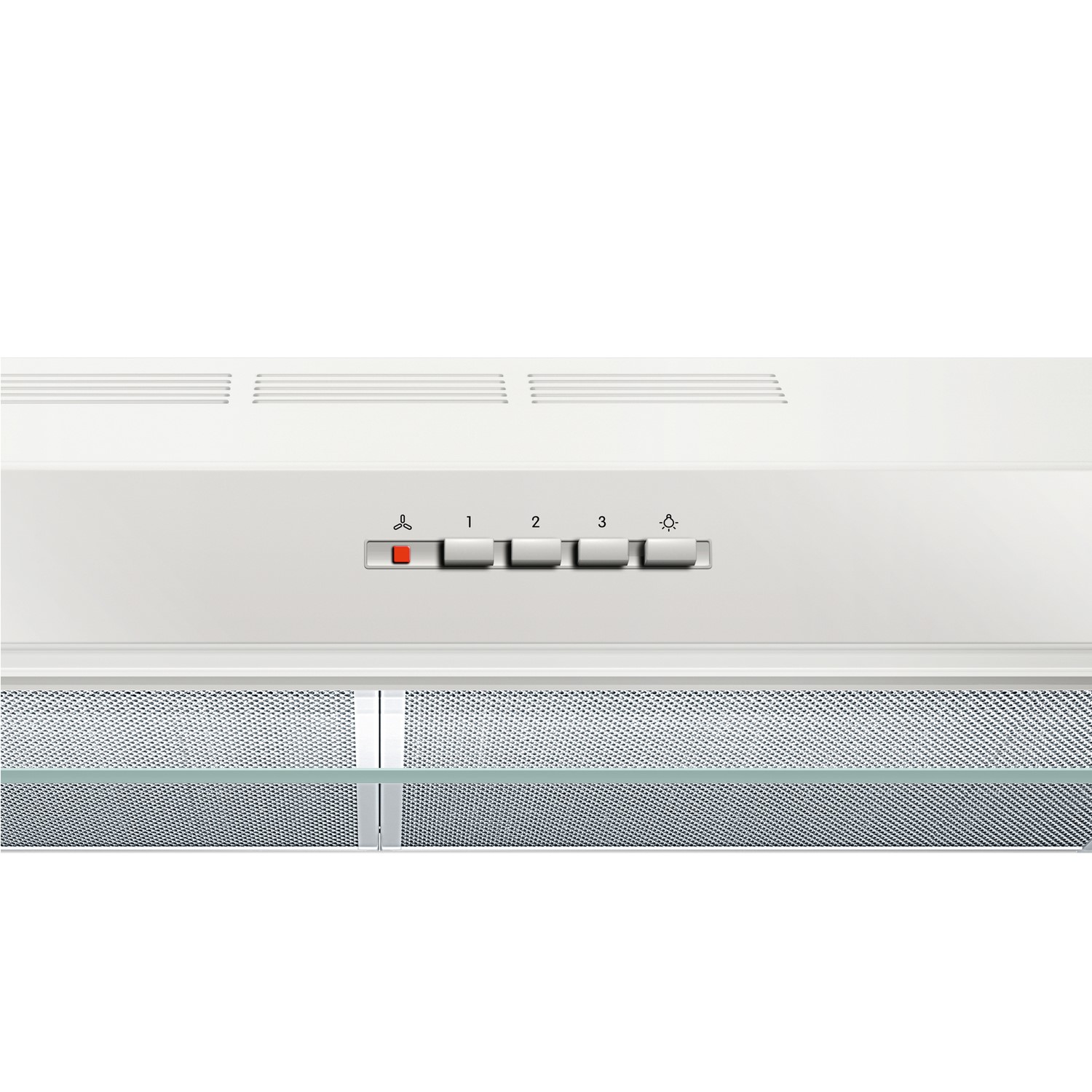

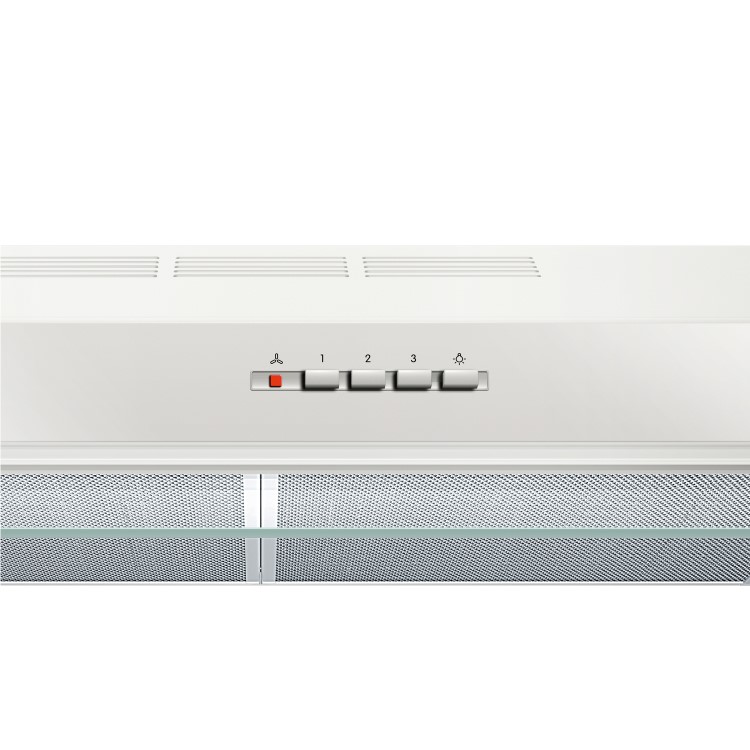

- Push button control for extractor speeds and light
- 3 power levels
- 2 x 4W LED light
- Colour Temperature: 3000 K

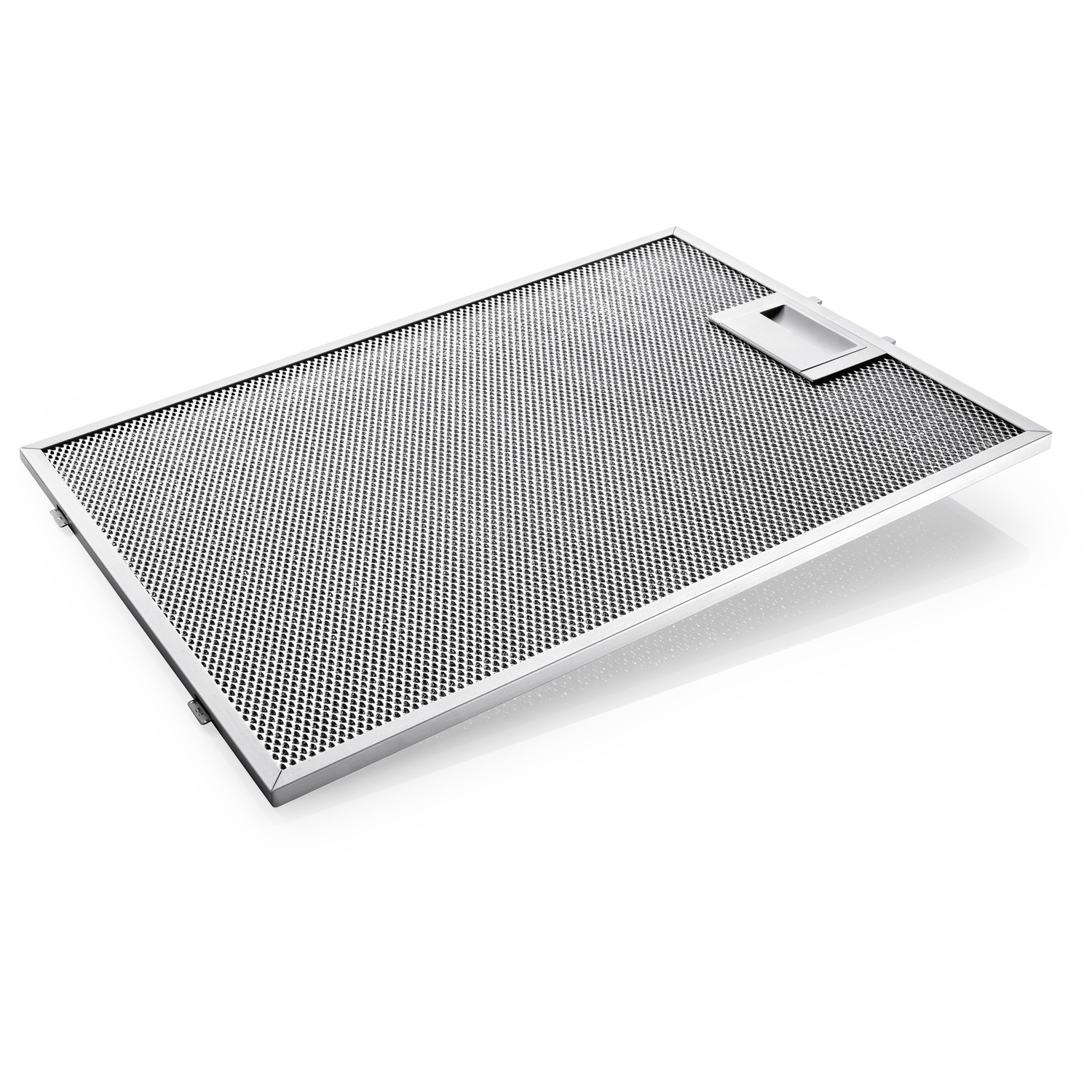

- 2 removable metal grease filter cassettes
- Adjustable glass visor

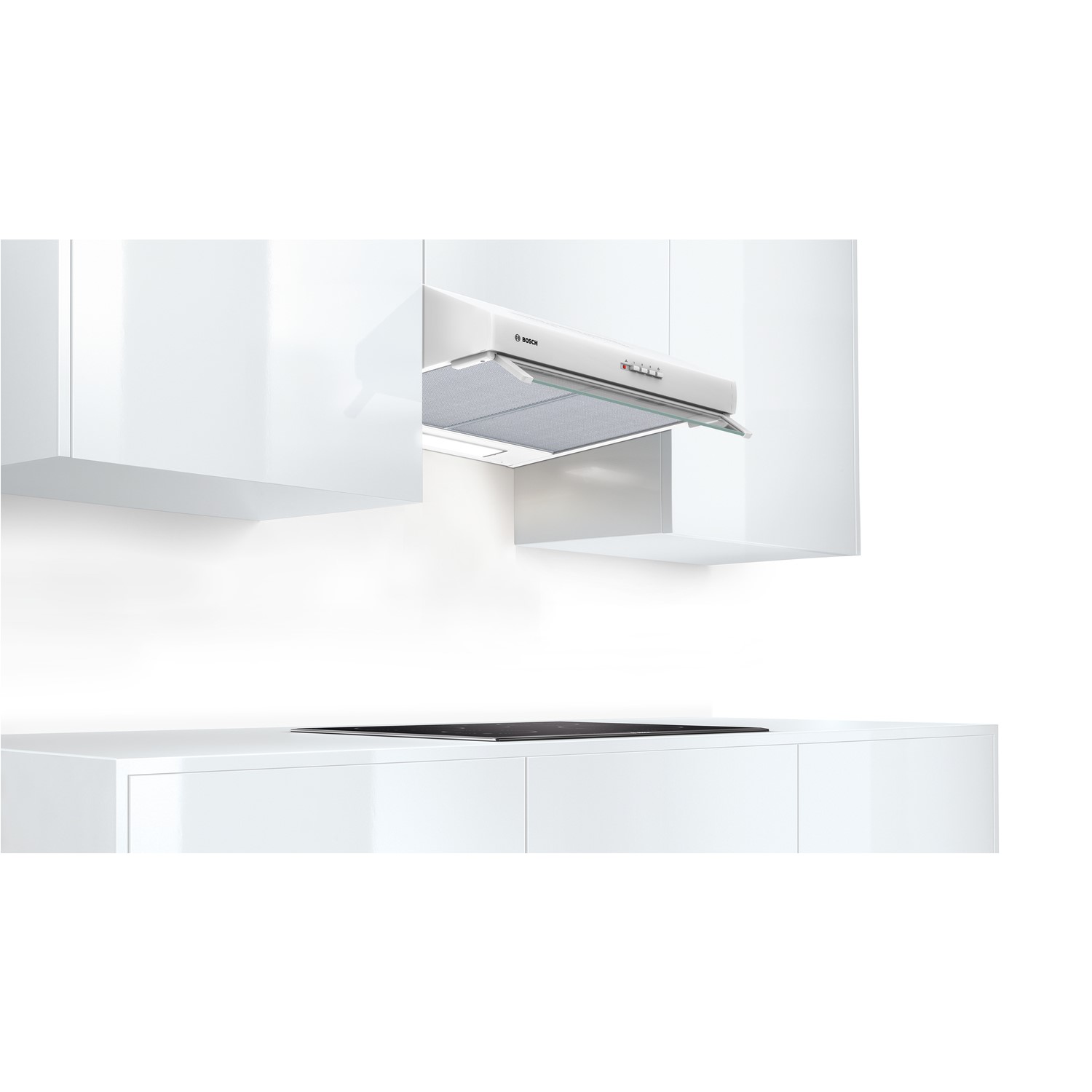

- Designed for wall mounted installation or suspended beneath a reduced height wall cupboard
Design
- White
- Built under conventional hood
- Push button control
- Mechanical
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction charcoal filter (accessory) needed
- Maximum extraction 350 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 72 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 72 dB (A) re 1pW
- Noise max. Normal Level: 72 dB*
- Power rating: 146 W
- Light Intensity: 45 lux
- Colour Temperature: 3000 K
- Electrical cable length 1.45 m

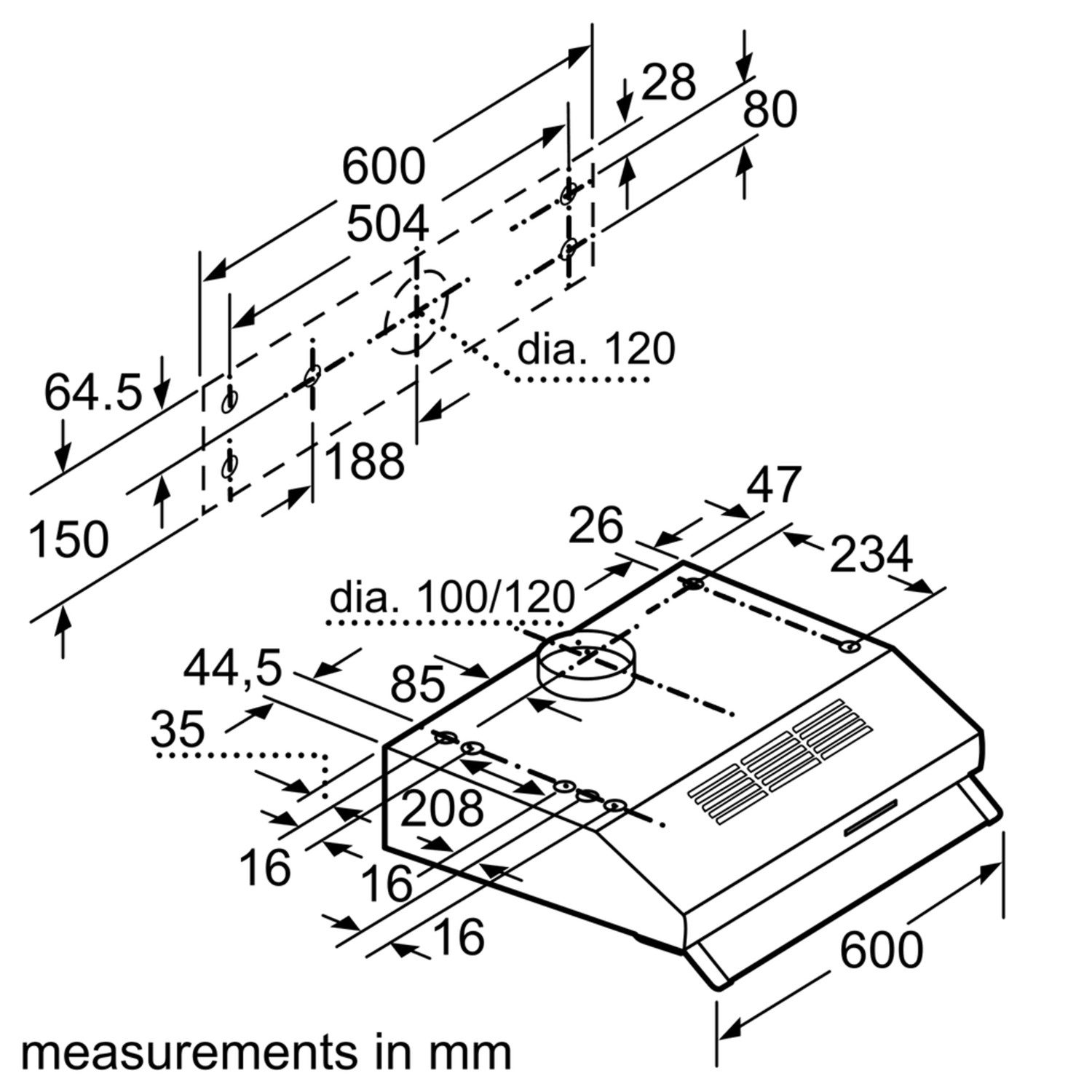

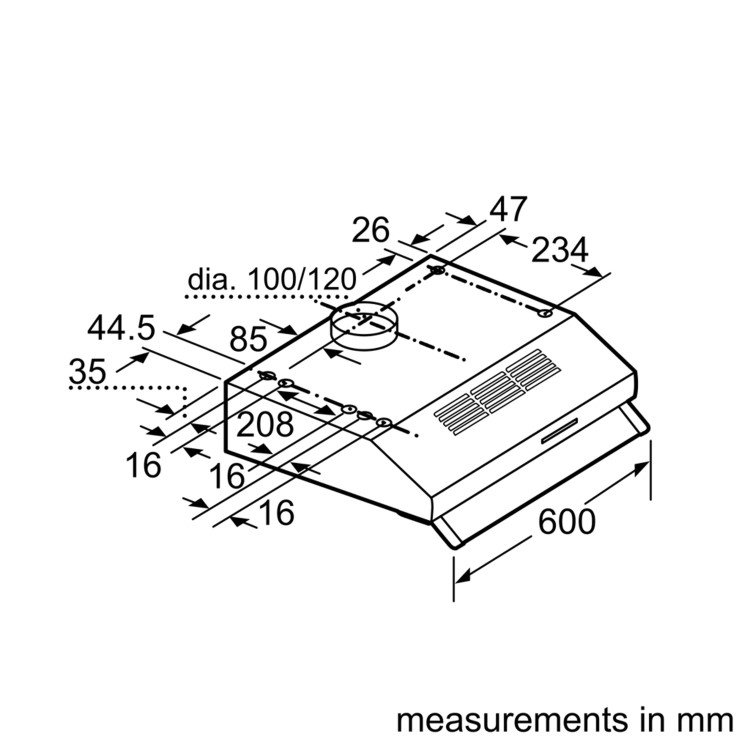

- Diameter pipe Ø 120 mm (Ø 100 mm enclosed)

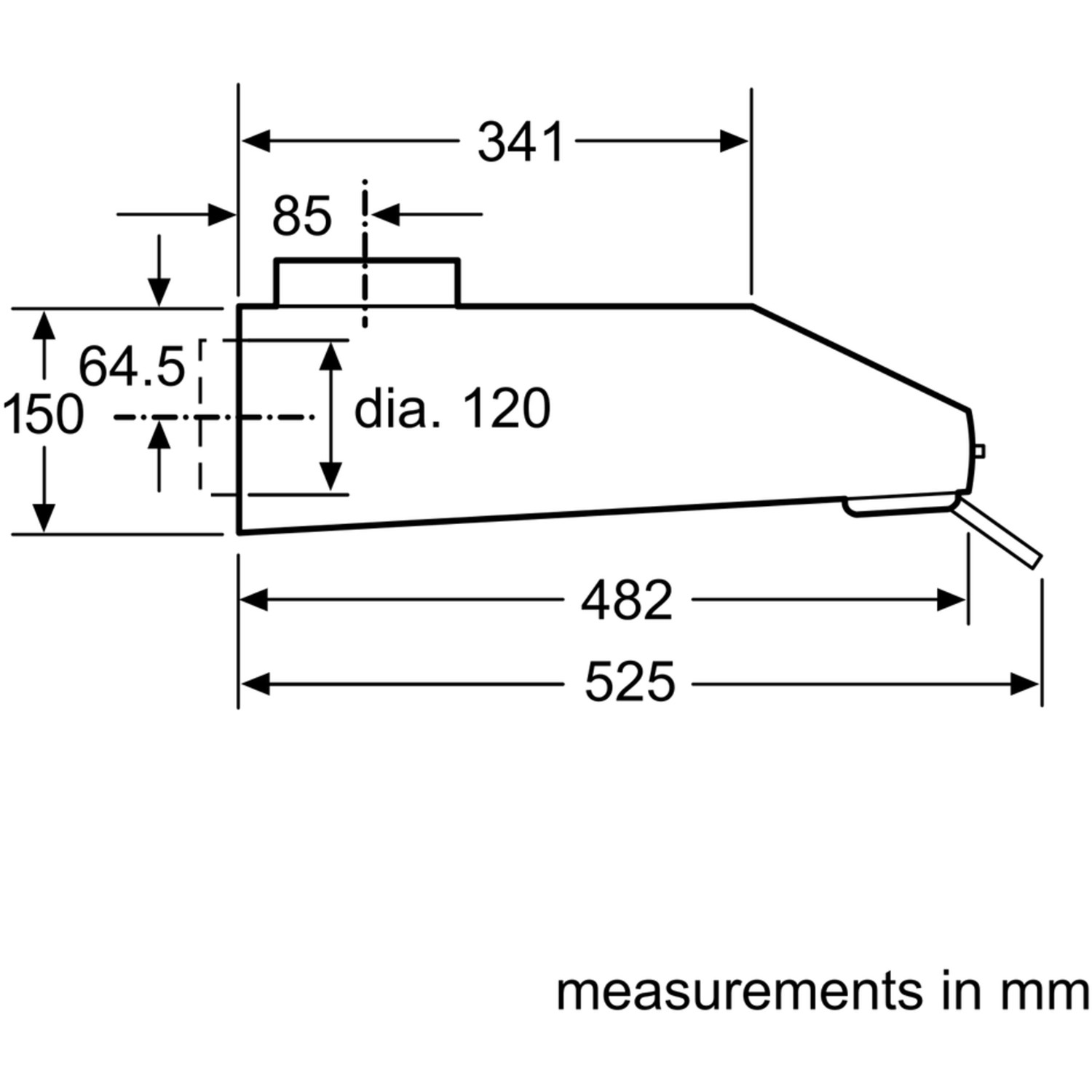

- Dimensions exhaust air (HxWxD): 150-150 x 600 x 482 mm
- Dimensions recirculating (HxWxD): 150-150 x 600 x 482 mm
- Energy Efficiency Class: D*
- Blower Efficiency Class: E*
- Lighting Efficiency Class: E*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 93.6 kWh/year*
