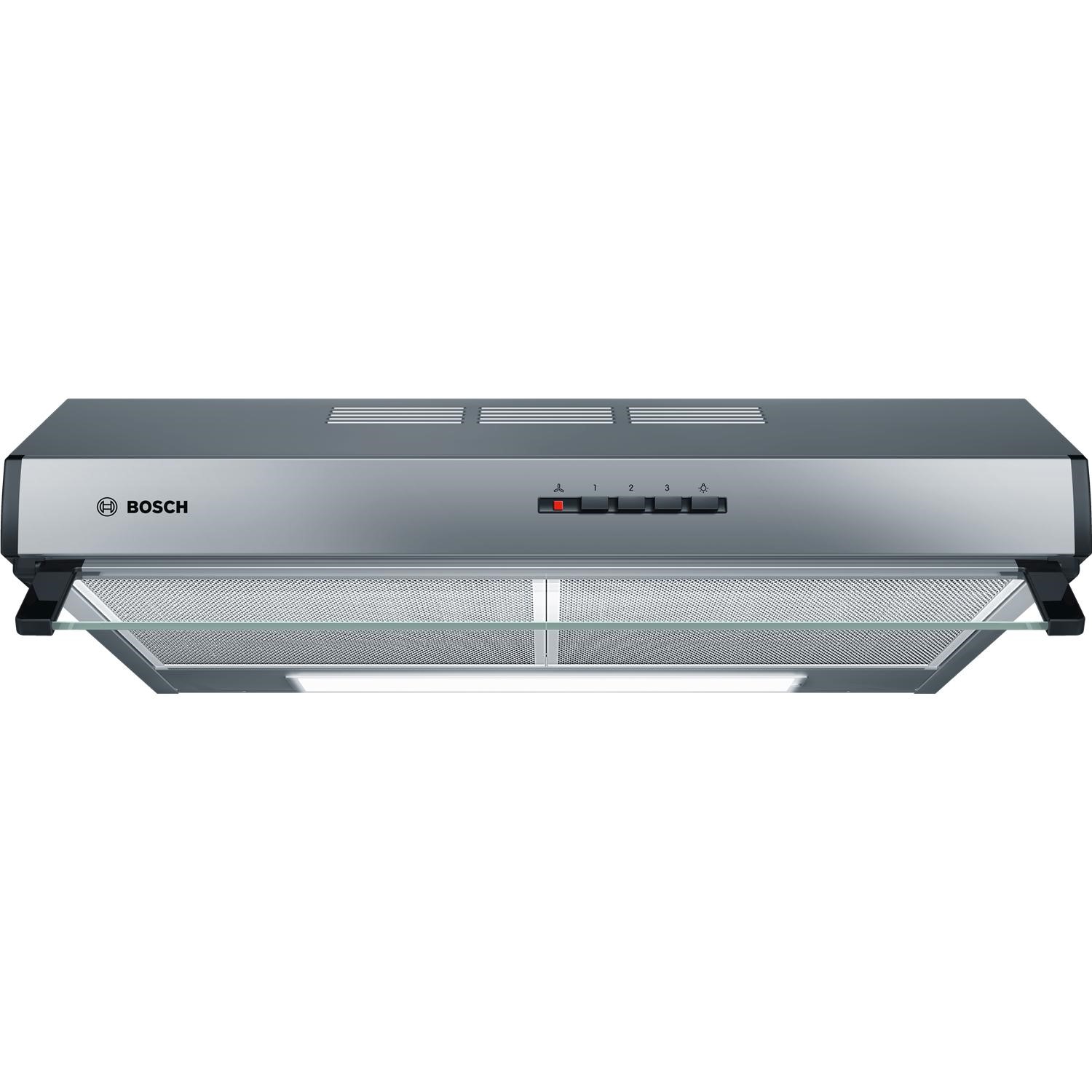

Conventional cooker hoods are mounted under cabinets and always visible, allowing you to keep your storage space.
Key performance features:
- Max. extraction rate: 350m³/h
- Max. noise level: 72dB
- Energy Efficiency Class: D
Features
- Push button control for extractor speeds and light
- 3 power levels
- 2 x 4W LED light
- Colour Temperature: 3000 K

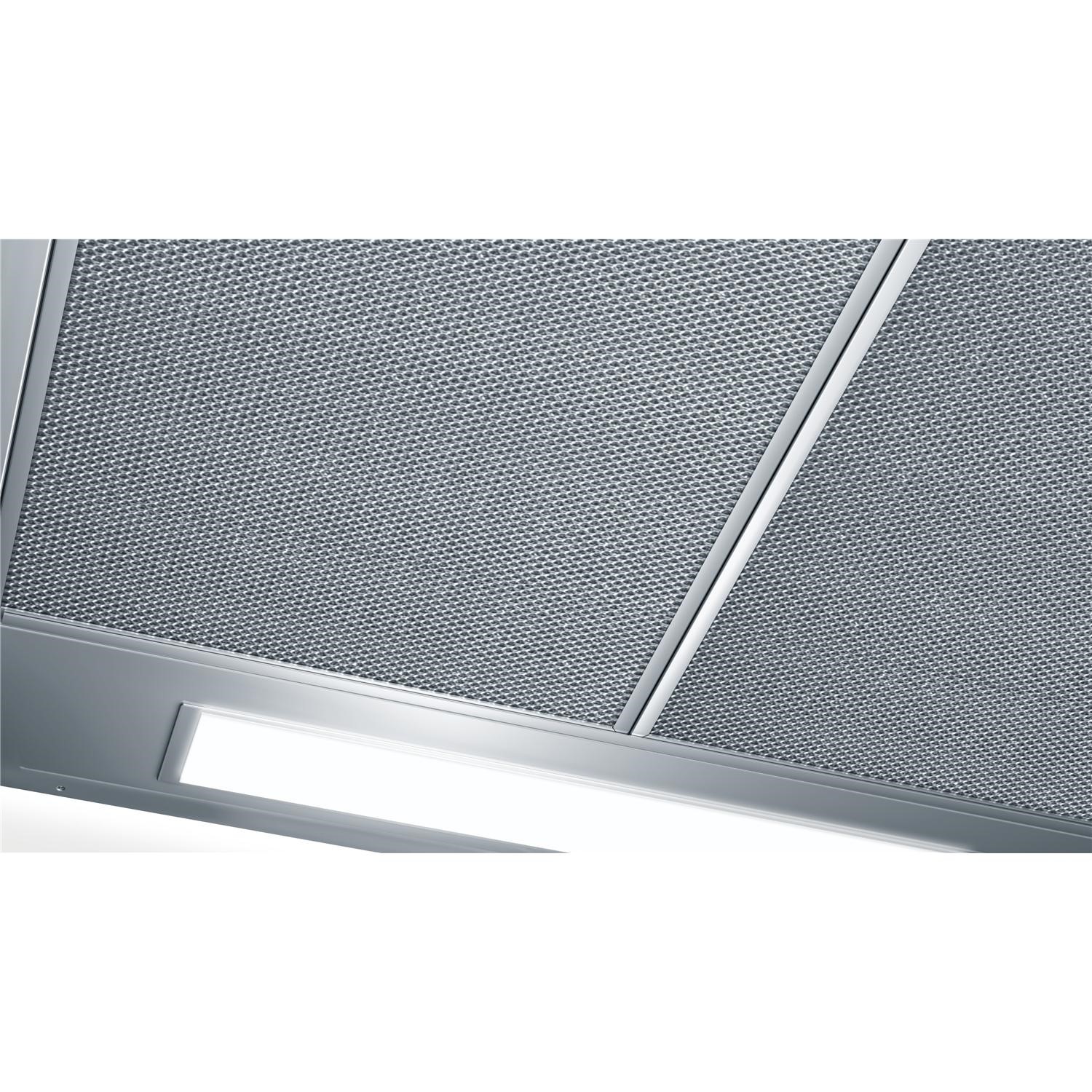

- 2 removable metal grease filter cassettes
Design
- Built under conventional hood
- Installation: Wall or under hang-up cupboard
- Adjustable glass visor

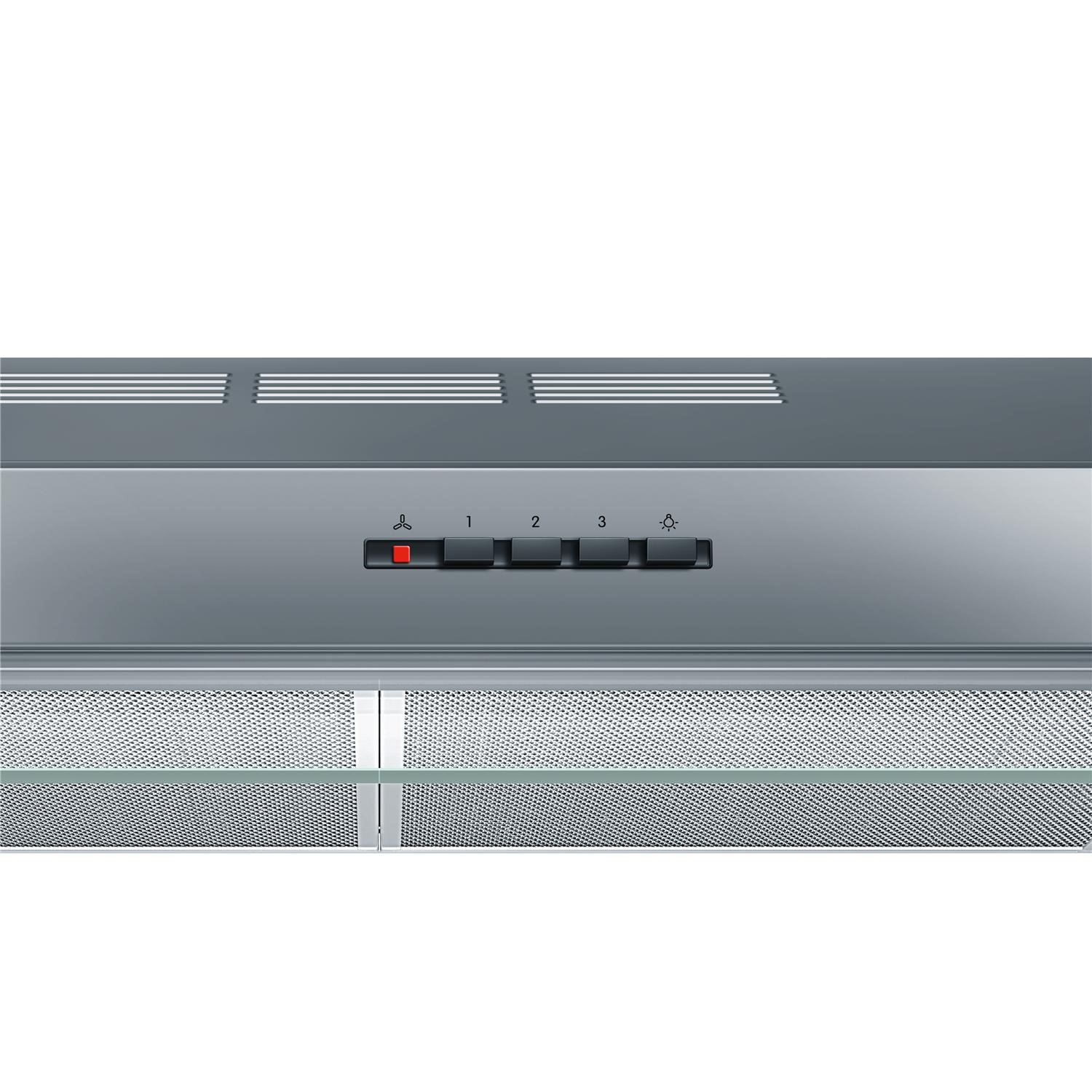

- Push button control
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction charcoal filter (accessory) needed
- Noise level at maximum setting: extraction rate: 72dB
- Power rating: 146 W
- Light Intensity: 45 lux
- Electrical cable length 1.45 m
- Blower Efficiency Class: E
- Lighting Efficiency Class: E
- Grease Filtering Efficiency Class: C
- Average Energy Consumption: 93.3 kWh/year

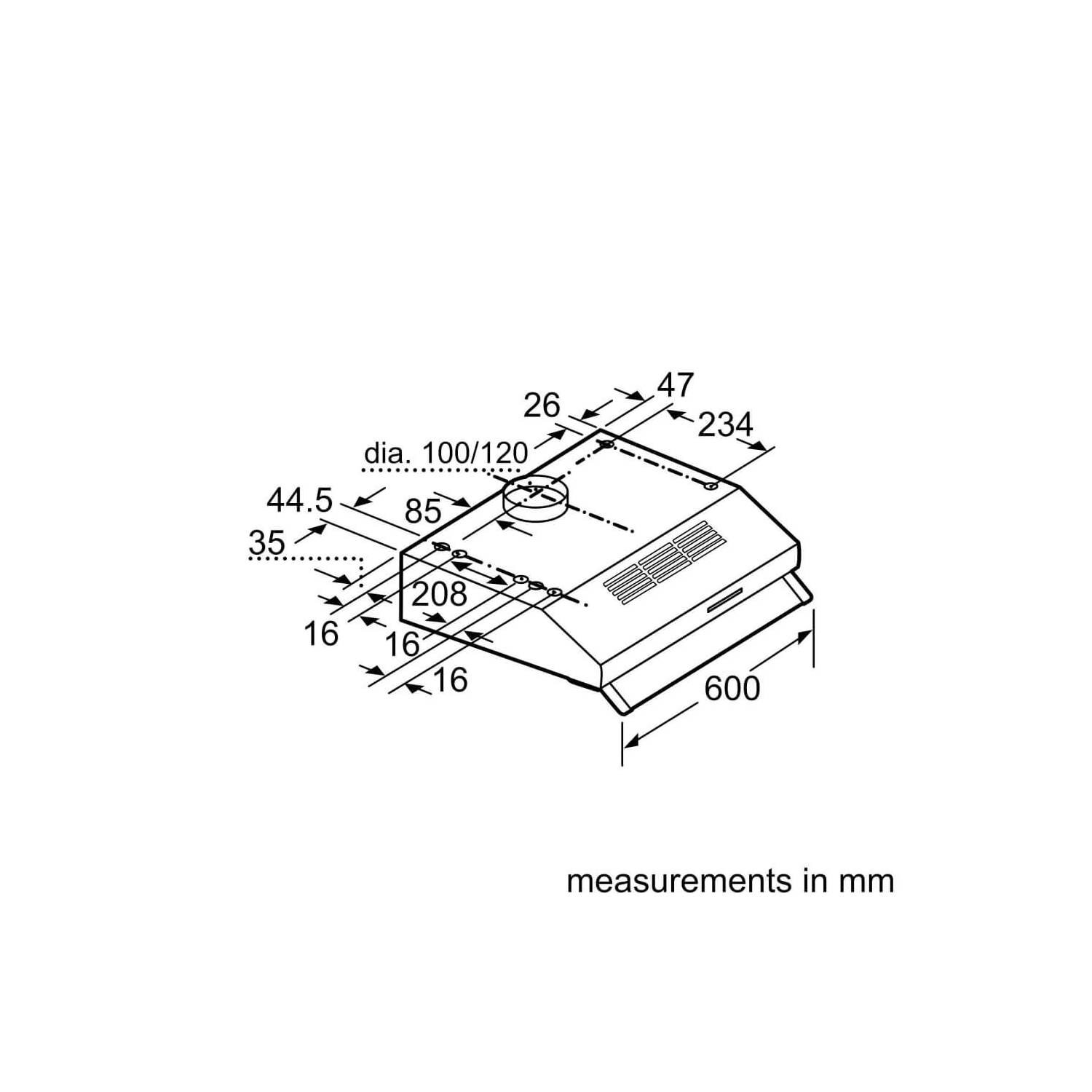

- Diameter pipe Ø 120 mm (Ø 100 mm enclosed)
- Dimensions exhaust air (HxWxD): 150-150 x 600 x 482 mm
- Dimensions recirculating (HxWxD): 150-150 x 600 x 482 mm
Optional accessories
- Recirculating kit DHZ2701
Question from COOKER HOOD: Asked on 27/11/2025 HOW BIG IS THE REAR VENT AND IS IT ROUND FOR PIPE GOING THROUGH WALL
Hi, The Bosch Series 4 60?cm Visor Hood (model DUL63CC50B) has a rear vent option that allows ducting through a wall. The vent is circular, with a diameter of 120?mm (or 100?mm if using the enclosed option), making it suitable for standard round ducting.
Thank you.
Question from Macha: Asked on 25/11/2025 Is this rear vented
Hi Macha, this cooker hood can be installed as a rear-vented unit, allowing the exhaust to be directed out through the back. It is also compatible with top-vented or recirculating installation, giving flexibility depending on your kitchen's ducting setup. Thank you.
Question from Kelly Brady: Asked on 07/11/2025 Is the rear vent circle or rectangular shape as I seen some in a rectangular shape which doesn't suit me
Hi Kelly, this cooker hood has a circular rear vent. Thank you.
Question from G R White: Asked on 31/10/2025 Is an adapter included to connect the ducting to the outside unit for outside extraction for the Bosch extractor priced at £149?
Hi,The Bosch Series 4 60 cm Visor Hood (DUL63CC50B) supports both recirculation and external extraction. However, the adapter or ducting kit needed to connect the hood to an outside vent is not included and must be purchased separately.Thanks!
Question from John V: Asked on 29/10/2025
Bosch Series 4 60cm Visor Hood - Stainless Steel
Can the unit be wall.mounted at the back as no unit above
Hi John,Yes, the Bosch Series 4 60?cm Visor Hood (model DUL63CC50B) can be wall-mounted, even if there’s no unit above it, as it supports both rear and top venting. Before installation, ensure the wall is strong enough to support the hood, plan a suitable route for the ducting, maintain the recommended clearance above your hob, and use the correct duct size to ensure optimal performance. Properly seal any external vent to prevent backdrafts or water ingress.Thanks!
Question from Lynn Clark: Asked on 20/09/2025 (model number DUL63CC50B) is the cable entry point on the left or the right of the cooker hood
Hi Lynn,The Bosch DUL63CC50B visor cooker hood has a 1.45 metre power cable that is pre-fitted with a plug, and the fixed cable entry point is located on the left side of the unit.Thanks!
Question from Peter: Asked on 07/01/2021 Am I correct in assuming the extraction vent is at the rear of the unit and not on the top panel
This cooker hood has the option to vent from either the top or the rear of the unit.
I hope this helps
Regards,
-Matthew
