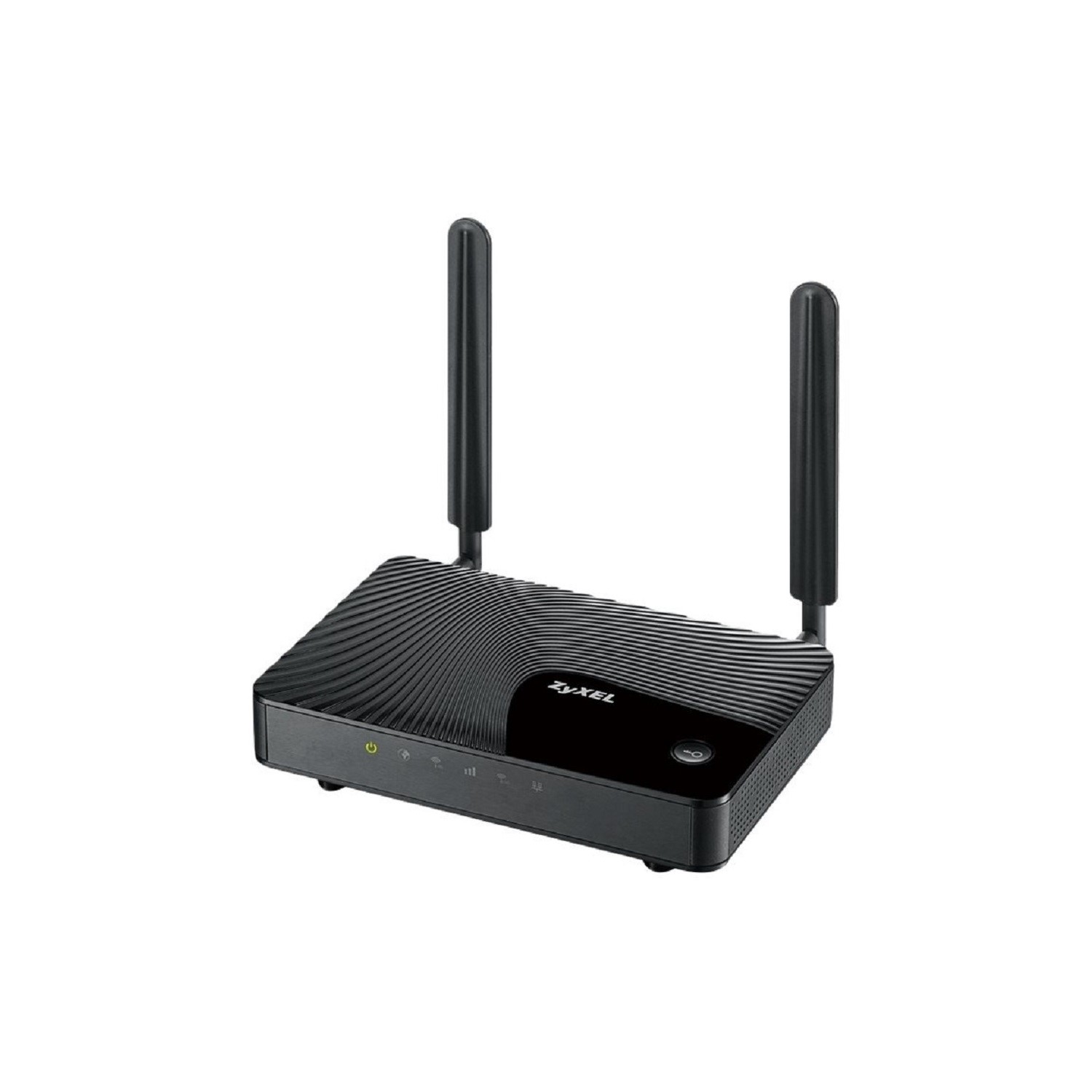

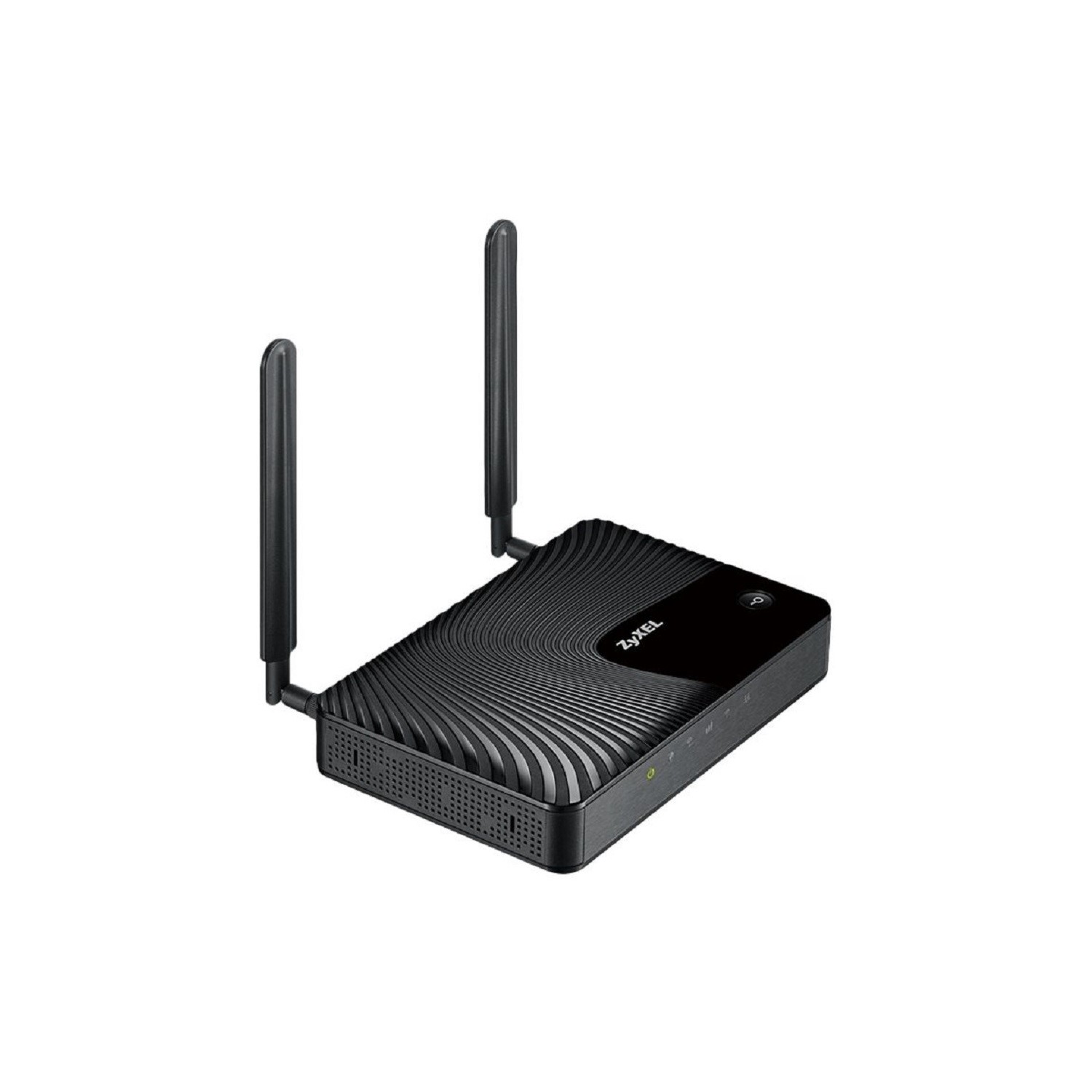

The LTE3301-M209 employs LTE to deliver incredible data rates. With bridge and router modes embedded, the LTE3301-M209 is adaptive to all kinds of devices/gateways for seamless integration, in a simple yet complete way to meet your needs.
Maximum freedom of mobility
The LTE3301-M209 supports single- and multi-mode functionality so you can stay connected even of there is only 3G or 2G services. The flexibility of LTE3301-M209 keeps you online around the world with the maximum freedom of mobility.
Embedded bridge/router mode for all devices/gateways
For network integration, Zyxel embeds both bridge and router modes into the LTE3301-M209. Users can take advantage of the built-in routing functions in all typical applications. With the two built-in modes, the LTE3301-M209 can be easily integrated with all kinds of devices/gateways.
High-speed Wi-Fi
The LTE3301-M209 comes with 802.11n Wi-Fi compatibility, so you can enjoy high-speed Wi-Fi. With the true wireless connection provided by the LTE3301-M209 of indoor router, there's no cabling needed for either LTE WAN or wireless LAN.
IP Networking
- Support IPv4/ and IPv6 dual stack
- DHCP dynamic and fixed IP address assignment on LAN side
- VPN pass through firewall
- NAT/NAPT
- Port forwarding DMZ
- DNS/DDNS
- Support NAT router mode
- Support bridge mode (IP pass-through)
WiFi Security
- WEP: 64/128-bit
- WPA/WPA2
- Support WPA2 primarily, and automatic fallback to WPA for clients that do not support WPA2
- WPA/WPA2-PSK
- MAC address filter with 32 addresses supported
Management
- APN management
- SIM PIN management
- SMS management
- Secure remote management via WebGUI/SSH
- Over-the-Air (PTA) firmware upgrade: TR-069/WebGUI support
- IPv4/and IPv6 dual stack
WiFi Air Interface
- IEEE 802.11 b/g/n 2.4 GHz, data rates up to 300 Mbps
- WiFi enabled device#: up to 32
- WiFi antenna: 2 internal antennas up to 3 dBi

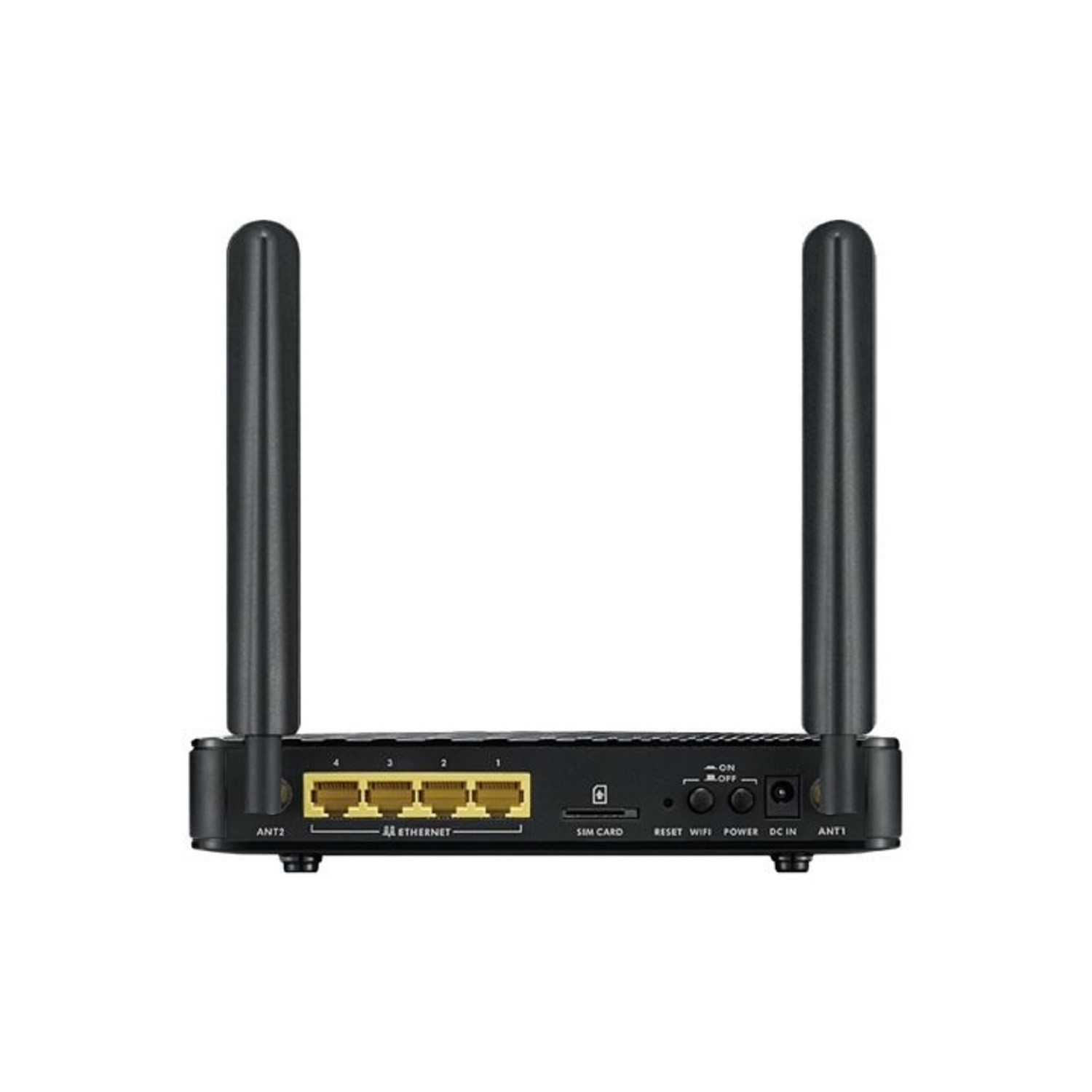

Hardware Interface
- Four (4) 10/100 Mbps Ethernet RJ45 LAN ports
- One (1) 2FF mini SIM card socket
- One (1) reset to default button
- One (1) power on/off button
- One (1) WiFi on/off button
- One (1) DC power jack
- One (1) WPS button
- Two (2) external LTE antenna (up to 3 dBi)

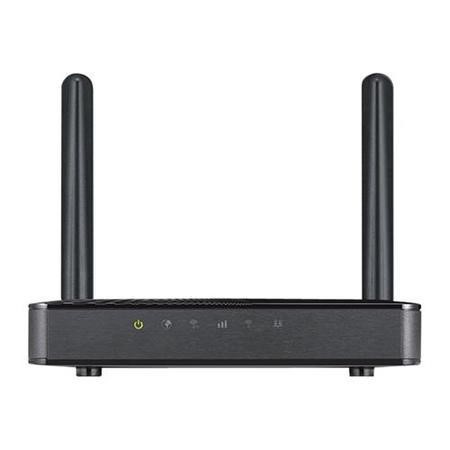

LED Indicators
- Power status
- Internet status
- LTE signal strength
- WiFi status
- LAN status
