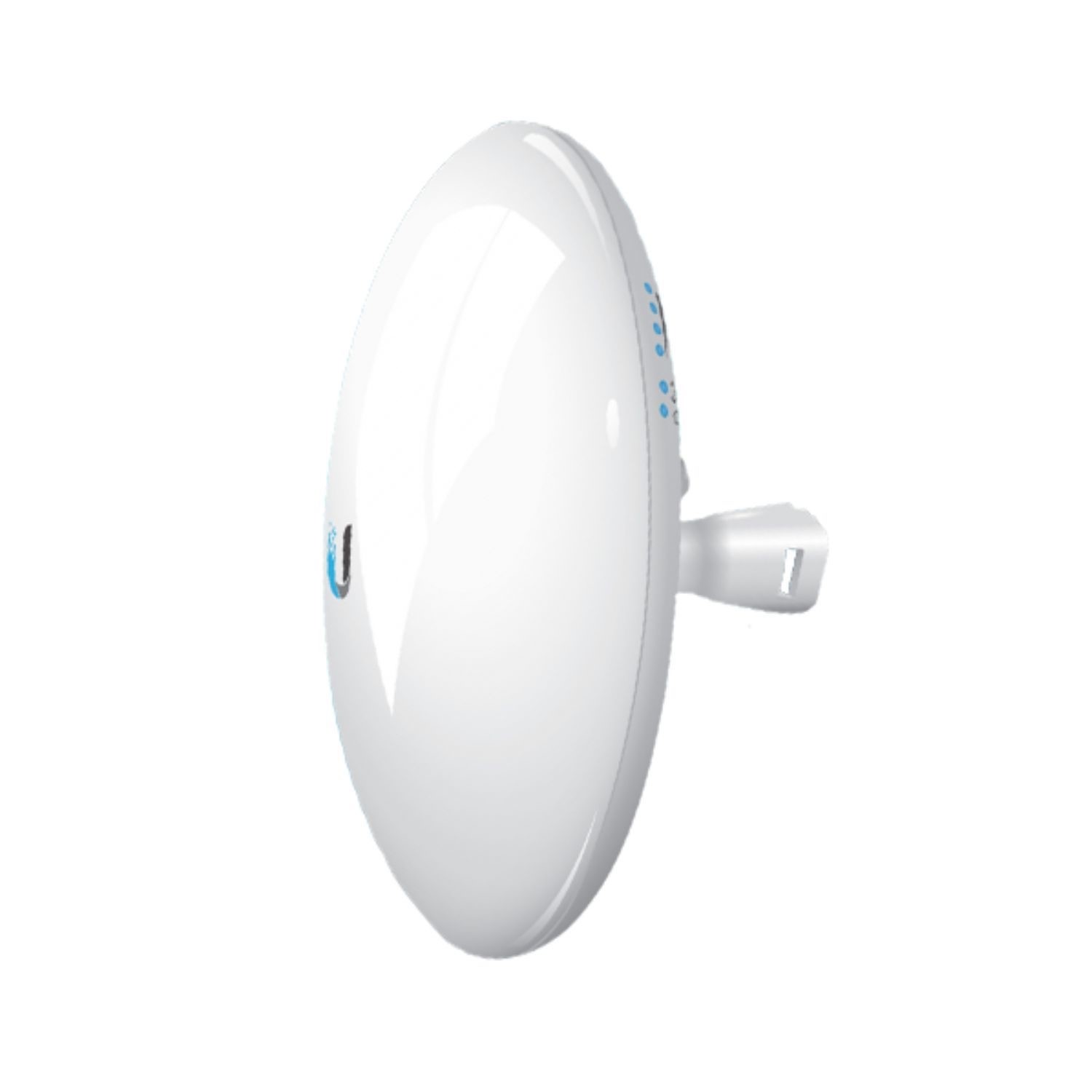

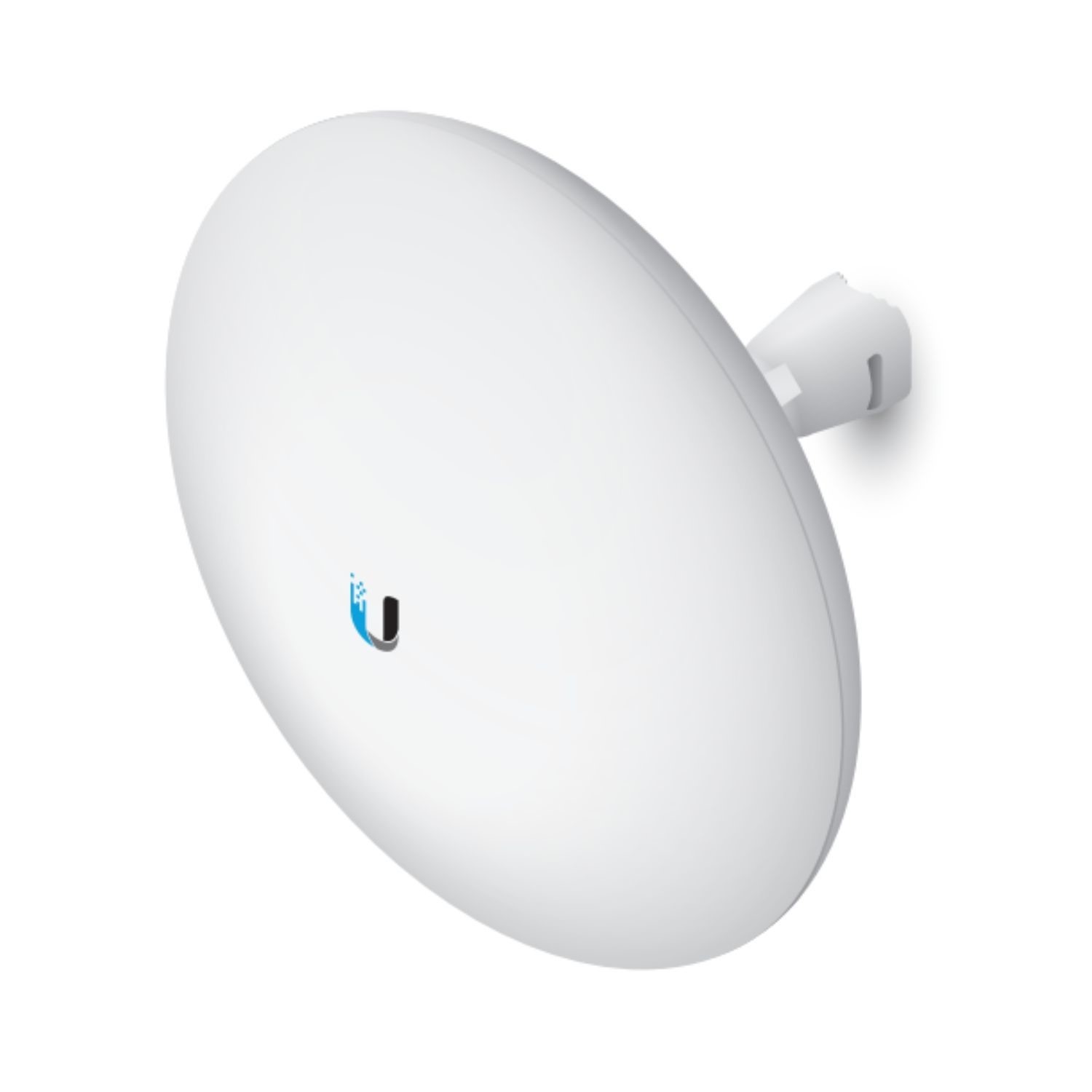

Ubiquiti NBE-2AC-13 NanoBeam AC 2.4GHz 13dBi WiFi 5 Bridge Link
The Ubiquiti NBE-2AC-13 NanoBeam AC Outdoor 2.4GHz 13dBi WiFi 5 CPE Link directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint. Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.
Key Features:
- Up to 330+ Mbps throughput and dedicated WiFi radio for management.
- Uniform Beamwidth Maximises Noise Immunity.
- airMAX ac Processor for Superior Performance.

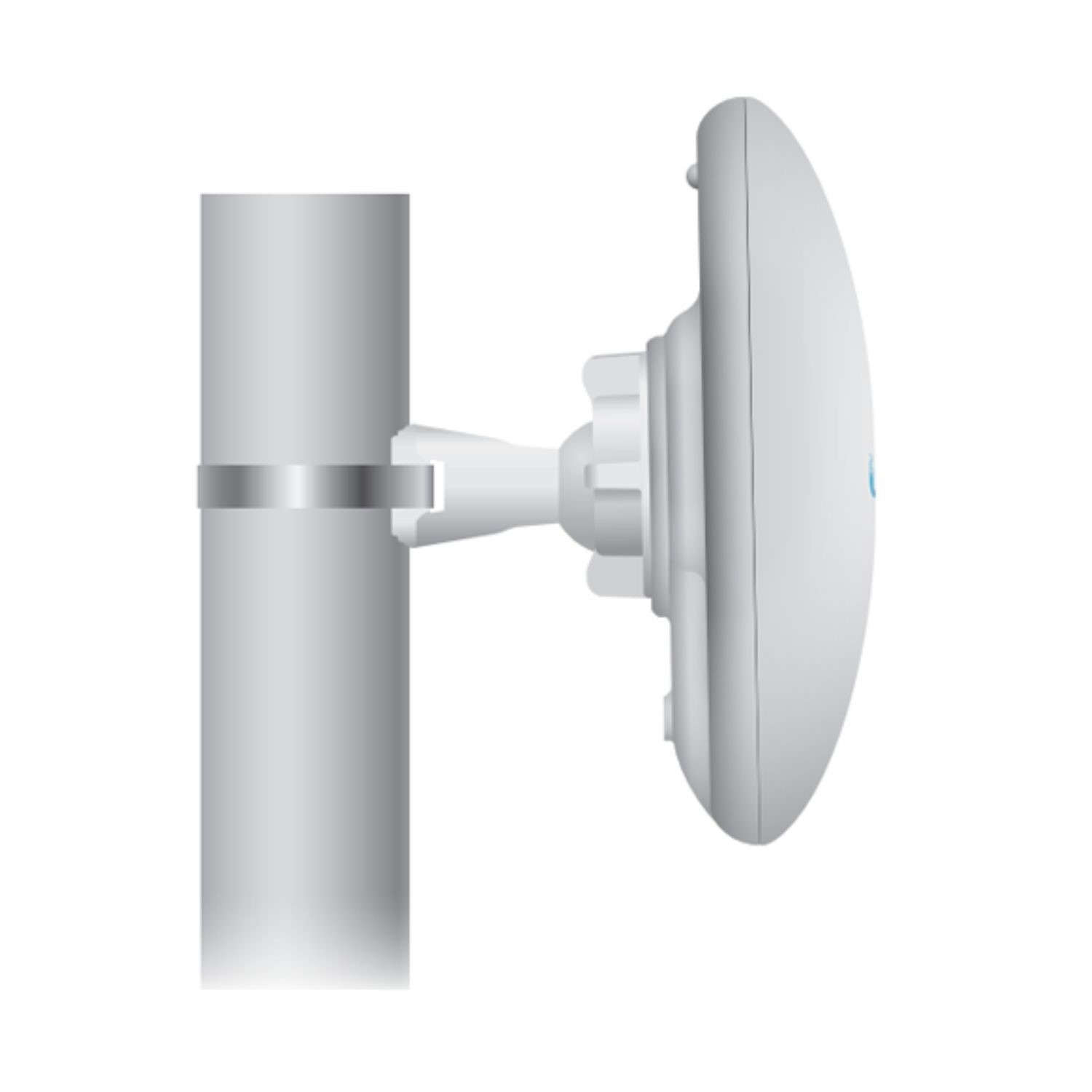

- Quick Installation: No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.

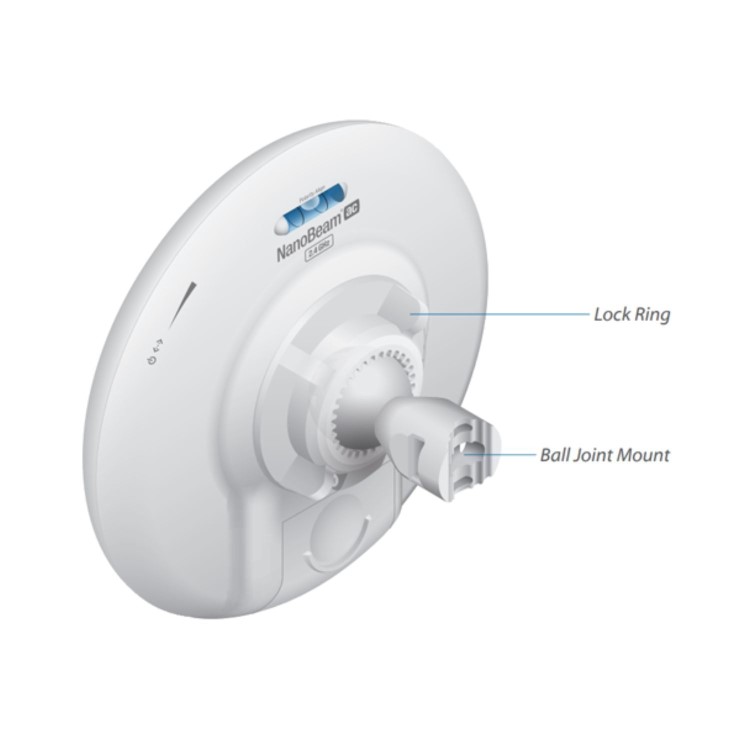

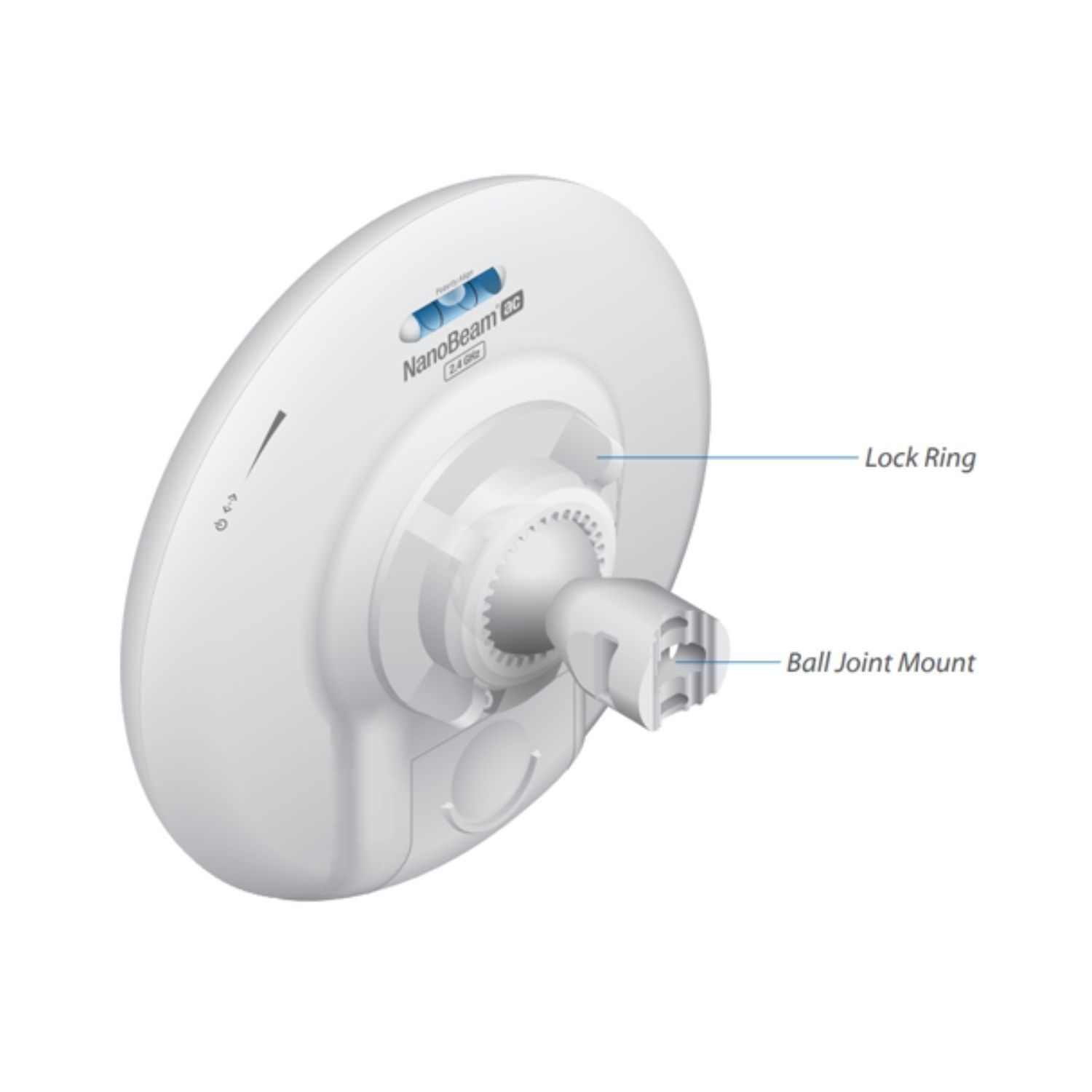

- Convenient Alignment: The NanoBeam 2AC pivots on its ball joint mount for easy aiming.
- Efficient Footprint: The radio and antenna are combined into a single body that takes up minimal space. The form factor features the highest gain for its size.
- Aesthetics: The NanoBeam 2AC is small enough to blend discreetly into the background at a customer's location.
- Versatile Mounting: The NanoBeam 2AC can be mounted in almost any position needed for line of sight.
Advanced RF Analytics
airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyses the full 2.4 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.
Real-Time Reporting
airOS 8 displays the following RF information:
- Persistent RF Error Vector Magnitude (EVM) constellation diagrams.
- Signal, Noise, and Interference (SNI) diagrams.
- Carrier to Interference-plus-Noise Ratio (CINR) histograms.
Spectral Analysis
airView allows you to identify noise signatures and plan your networks to minimise noise interference. airView performs the following functions:
- Constantly monitors environmental noise.
- Collects energy data points in real-time spectral views.
- Helps optimise channel selection, network design, and wireless performance.
airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level. airView provides powerful spectrum analyser functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.
Accessing airOS via WiFi
The UNMS (Ubiquiti Network Management System) app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UNMS allows you to set up, configure, and manage the NanoBeam 2AC and offers various configuration options once you're connected or logged in. Unlike standard WiFi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximises airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
What's in the box?
- Ubiquiti NanoBeam 2AC NBE-2AC-13
- Pole mount, wall mounting kit
