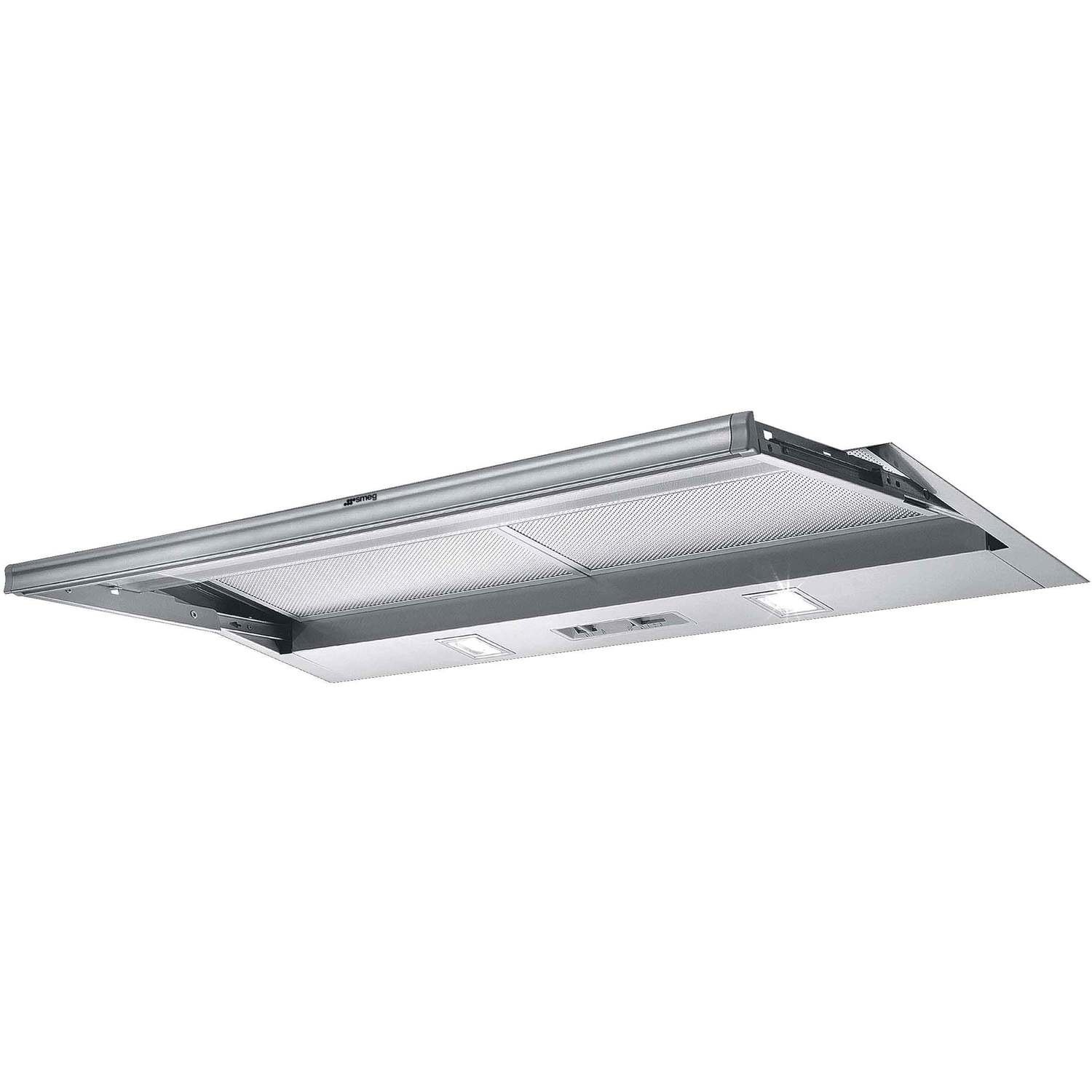

56cm Telescopic Hood In Stainless Steel
Key Features
- 3 Speeds settings with a maximum extraction rate of 255m³/hr
- Space saving integrated telescopic design
- Easy to use slider controls
- 2x 2.5 W LED lights to illuminate your hob when cooking
- Extraction range: 100-255 m³/hr
- Noise level: 48-66 dB(A)
AESTHETICS
- Colour: Stainless steel
- Finishing: Brushed
- Material: Stainless steel
- Type of steel: Brushed
- Glass Type: Clear
CONTROLS
- Control setting: Slider
PROGRAMME / FUNCTIONS
- No. of speeds: 3
TECHNICAL FEATURES
- Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen.
- No. of lights: 2
- Light type: LED
- Light power: 2.5 W
- Light color temperature scale (°K): 3500 °K
- Free outlet maximum capacity: 265 m³/h
- Motor power: 115 W
- No. of filters: 1
- Anti-grease filters: Aluminium
- Minimum distance from GAS hob: 650 mm
- Minimum distance from ELECTRIC hob: 500 mm
- Vent outlet: 120 mm
- Non return valve: Yes
PERFORMANCE / ENERGY LABEL
- Fluid Dynamic Efficiency class (FDEC): E
- Grease Filtering Efficiency Class (GFEC): D
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 68 kWh/a
- Fluid Dynamic Efficiency (FDE): 8.7
- Lighting Efficiency (LE): 28.1 lux/W
- Grease Filtering Efficiency (GFE): 66 %
- Air flow at minumum speed (Qmin): 100 m³/h
- Maximum extraction rate: 255 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 66 dB(A)
- Time increase factor (F): 1.7
- Energy Efficiency Index per first cavity: 90.6
- Measured air flow rate at best efficiency point (Qbep): 155 m³/h
- Measured air pressure at best efficiency point (Qbep): 210 Pa
- Measured electric power input at best efficiency point (Wbep): 104 W
- Normal Power of the light system (Wl): 5 W
- Average illumination of the light on the cooking surface (Emiddle): 141 lux
- Sound power level at highest setting (Lwa): 66 dB(A)
ELECTRICAL CONNECTION
- Nominal power: 120 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
SPEED 1
- Extraction rate IEC 61591: 100 m³/h
- Noise level IEC 60704-2-13: 48 dB(A)
- Power: 52 W
SPEED 2
- Extraction rate IEC 61591: 135 m³/h
- Noise level IEC 60704-2-13: 52 dB(A)
- Power: 77 W
SPEED 3
- Extraction rate IEC 61591: 255 m³/h
- Noise level IEC 60704-2-13: 66 dB(A)
- Power: 125 W

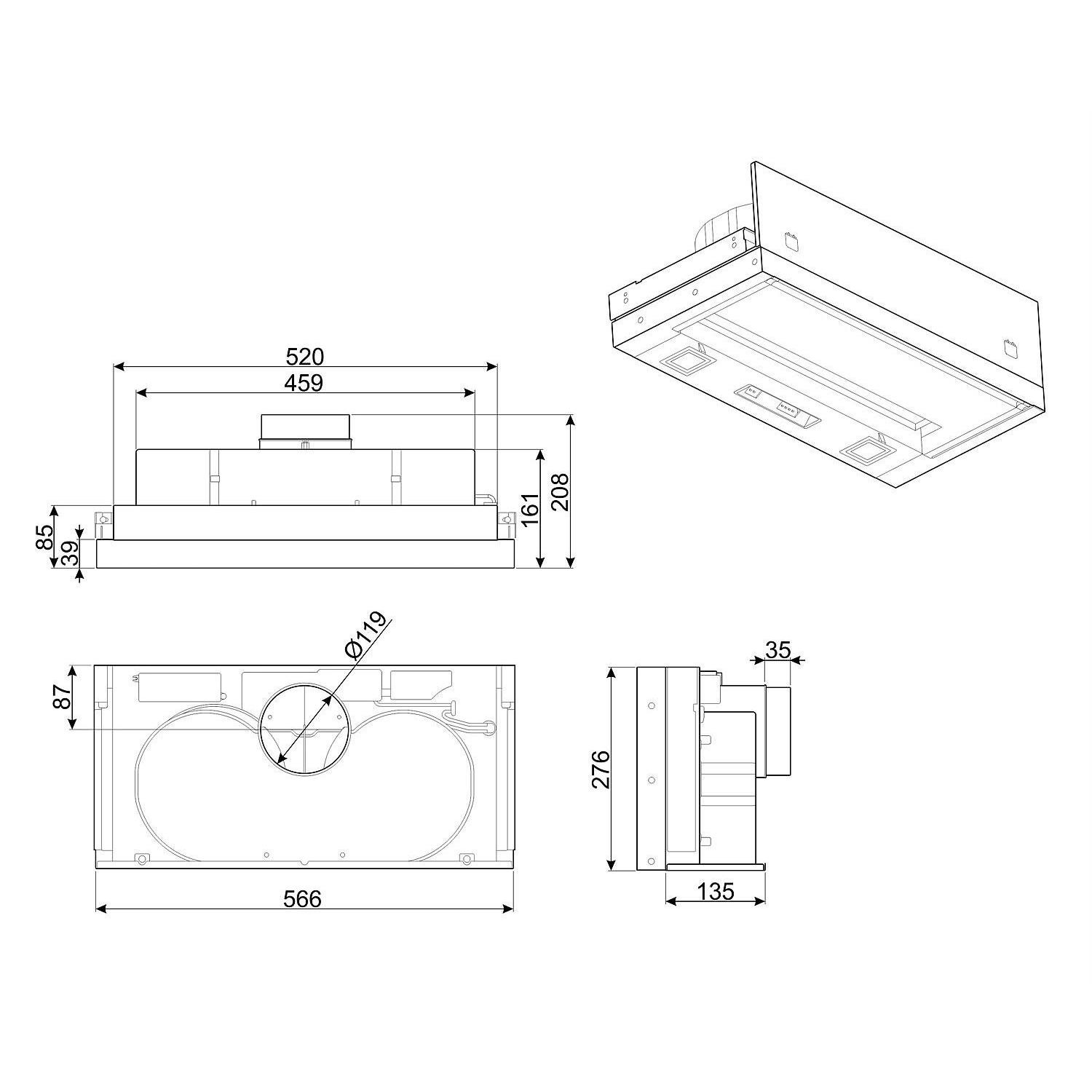

DIMENSIONS
- Width: 566 mm
- Depth (mm): 276 mm
- Product Height (mm): 208 mm
