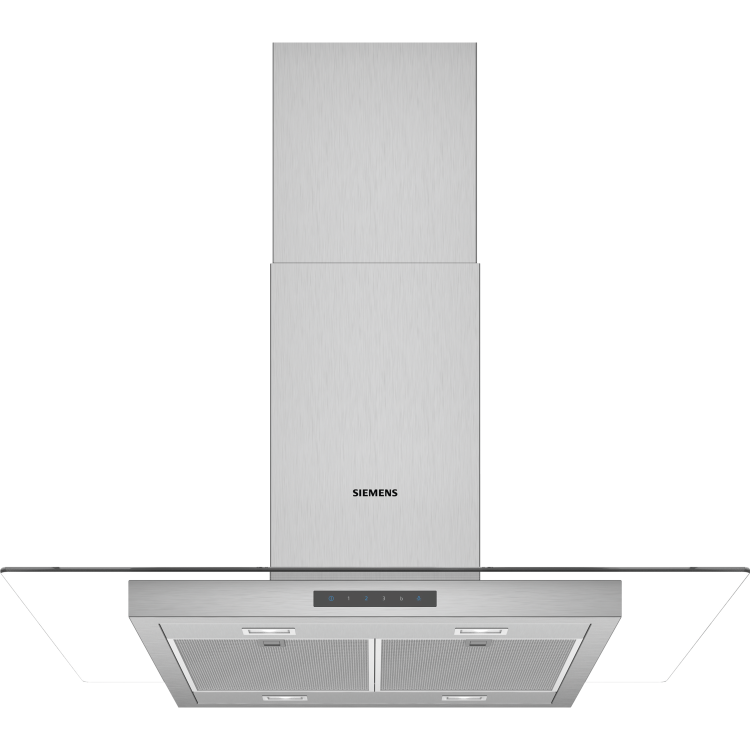

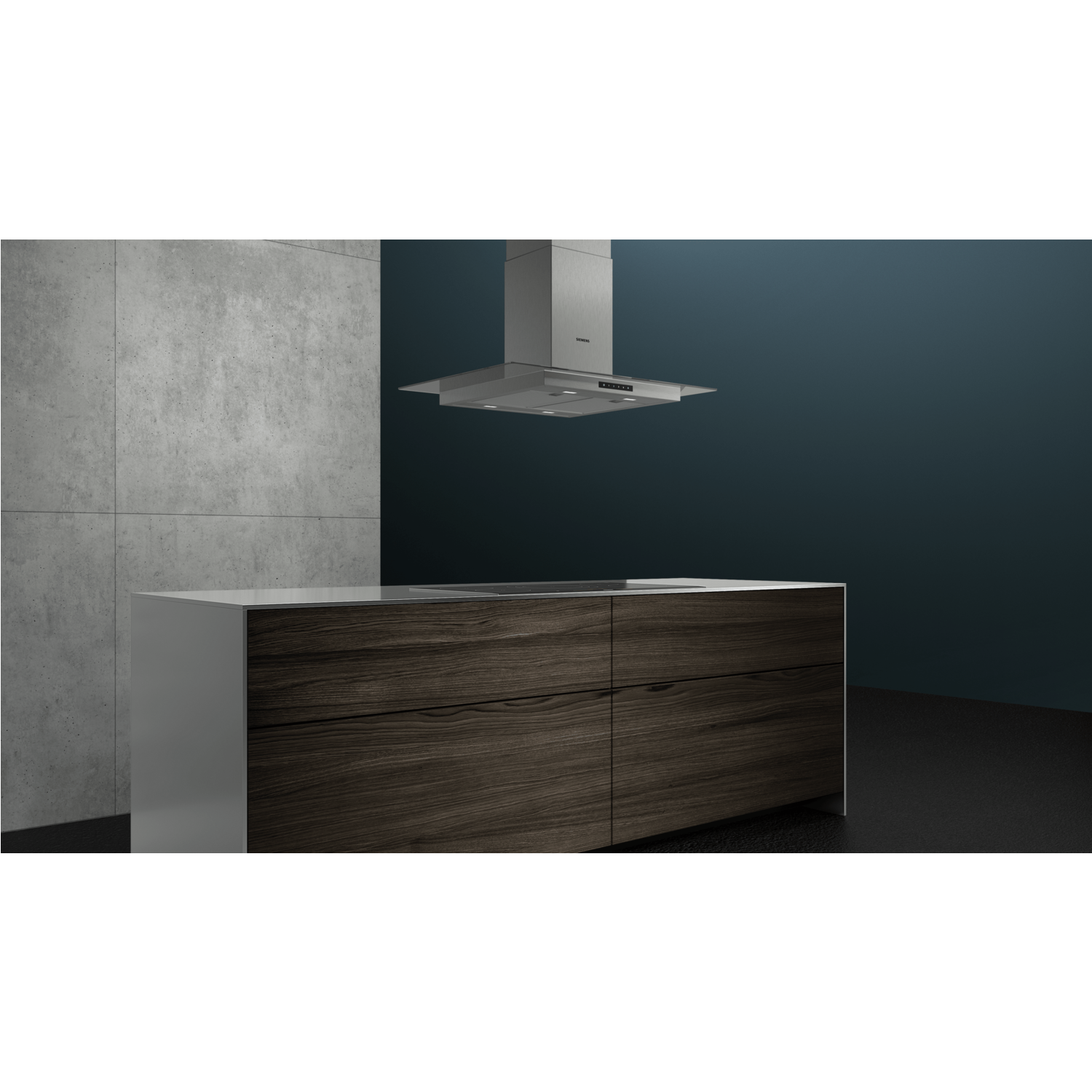

The island hood features an efficient extraction rate in a distinctive Siemens design
Intensive setting with automatic after revert setting
The intensive setting temporarily increases the extraction rate when kitchen vapour is especially intense, with automatic revert after 6 minutes.
Key Features
- Effective extraction thanks to the powerful motor with a high extraction rate (732 m³/h)

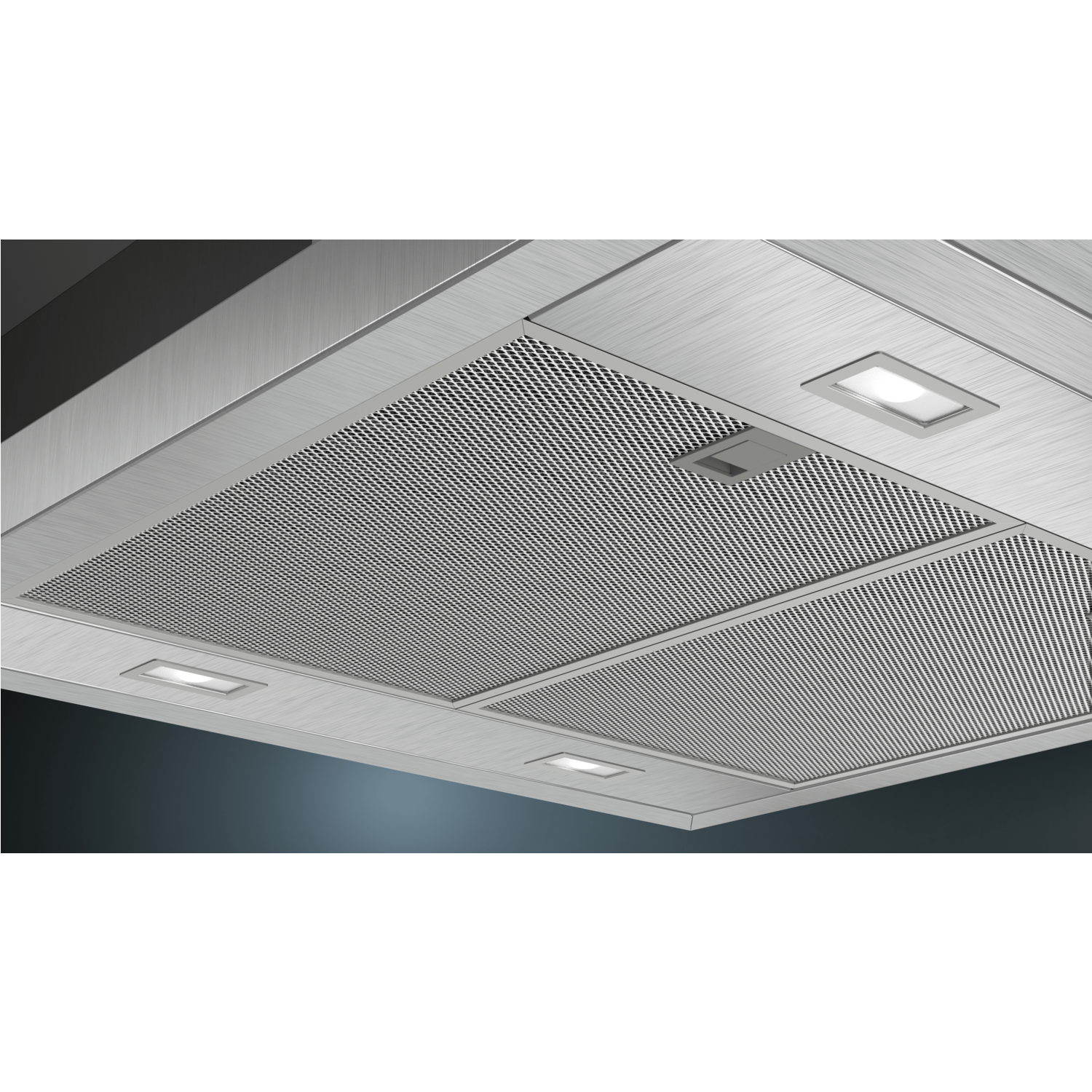

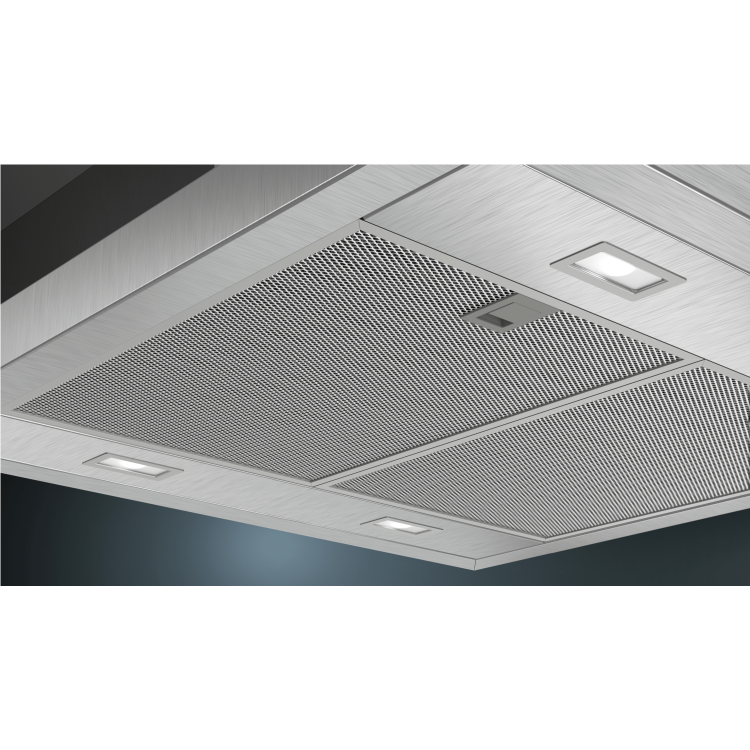

- LED lights: For optimal visibility and ambience when cooking
- Designed to be pleasantly quiet when being used (60 db(A))
- The intensive setting temporarily increases the extraction rate when cooking vapour is especially intense, with automatic revert after 6 min
- Thanks to touchControl the power level and the LED lights can be selected with ease
- 2 year warranty for peace of mind

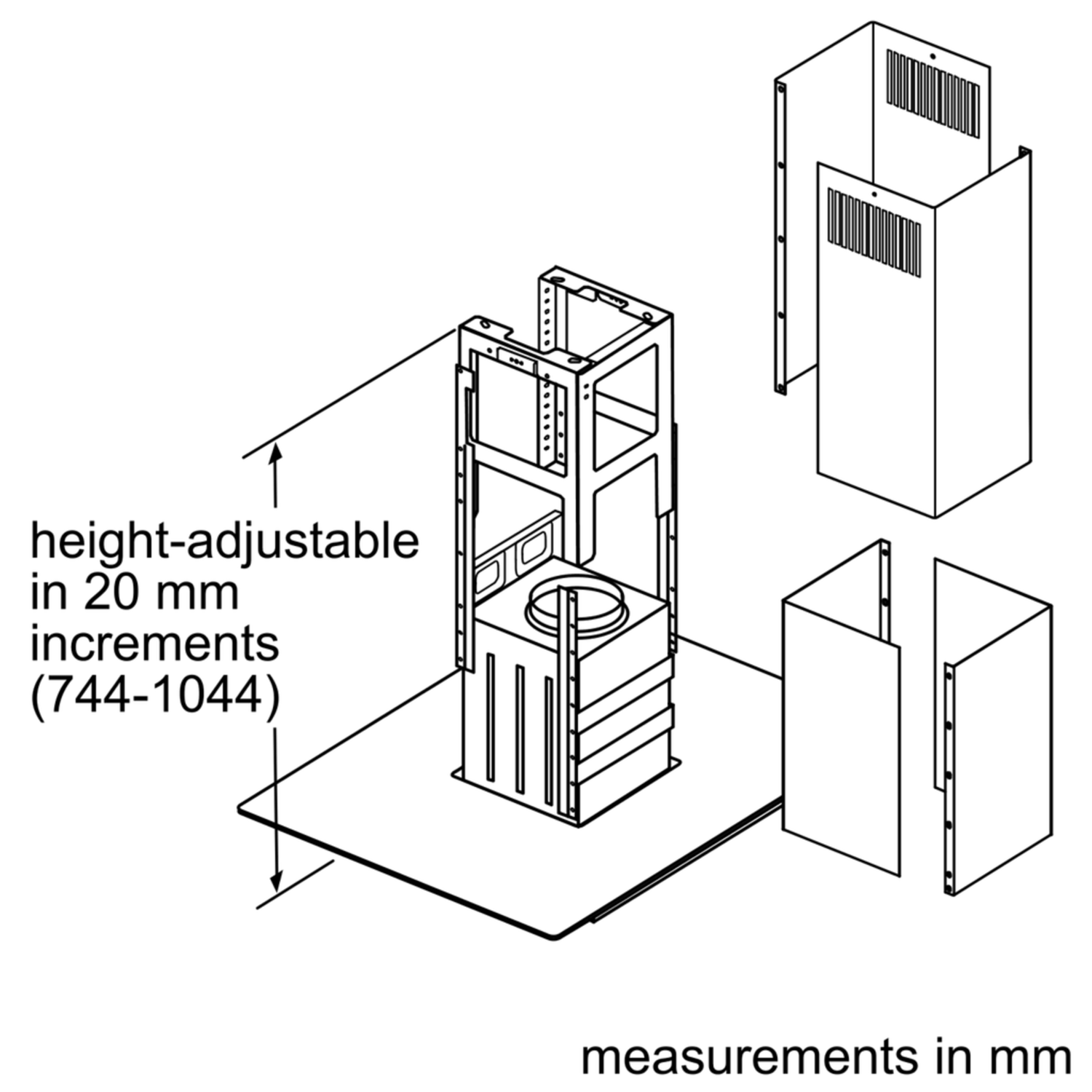

- Dimensions (mm): H744-1044 x W898 x D678
Key performance features
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 Èû 15 cm:
- max. Normal use 429 m³/h
- Intensive 732 m³/h
- Noise max. Normal Level: 60 dB*
Features

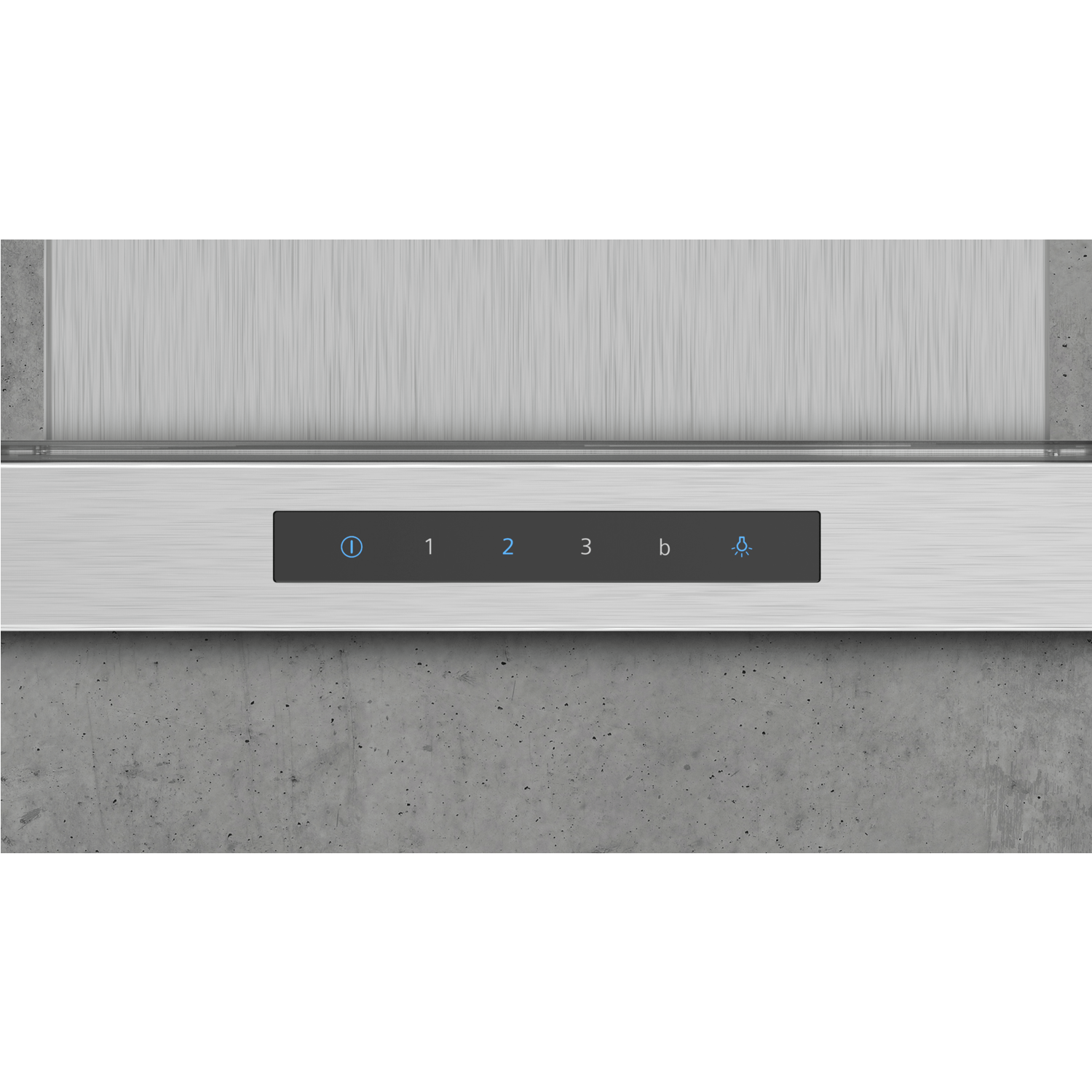

- touchControl with electronic display
- 4 x 1.5W LED
- 3 power levels and intensive setting
- Automatic intensive revert (6mins)
- Steel filter cover

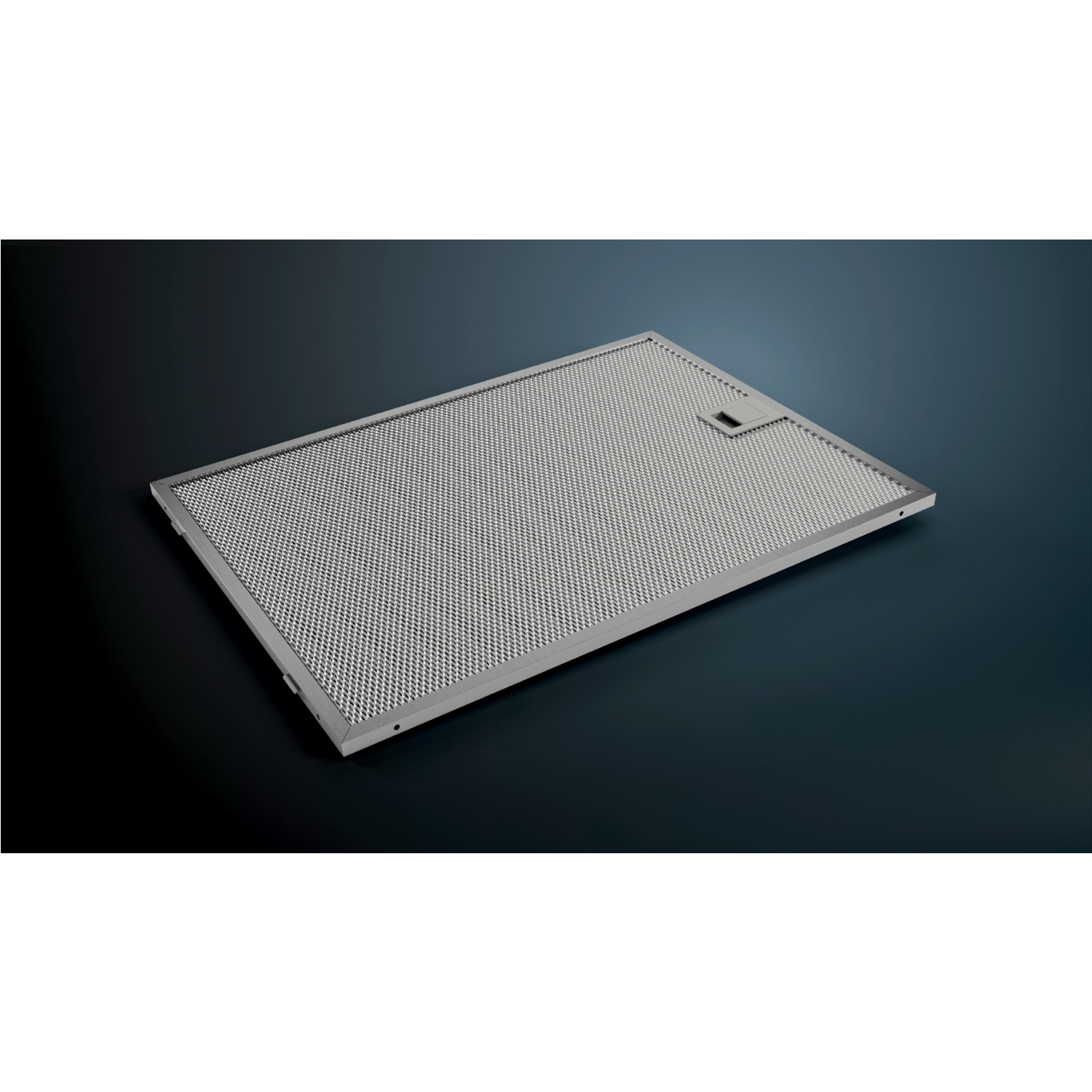

- 2 x metal grease filter cassettes - dishwasher safe
Design
- 90 cm
- Stainless Steel

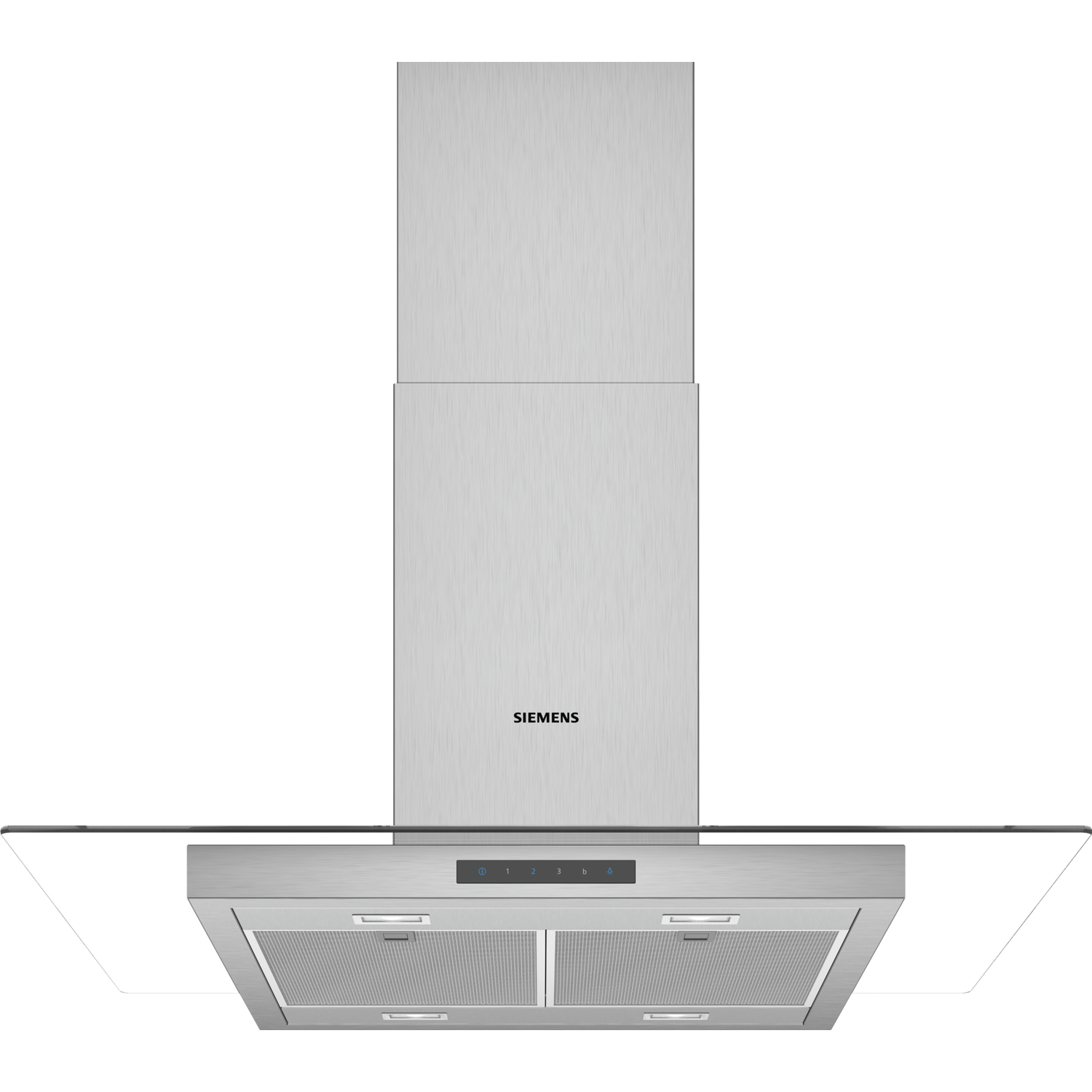

- Stainless steel hood with glass canopy
- For ceiling mounted installation
- Electronic control
Performance/technical information
- Suitable for ducted and re-circulating operation
- For recirculated extraction a recirculating kit or a CleanAir recirculation kit (accessory) is needed
- Max. extraction rate: 732 m³/h
- Extraction rate according to EN 61591 Èû 15 cm:
- Extraction rate in recirculation mode:
- Noise max. Normal Level: 60 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 60 dB(A) re 1 pW (47 dB(A) re 20 µPa sound pressure)
Intensive: 71 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure) - Noise levels in recirculation mode:
Max. normal use: 73 dB(A) re 1 pW (60 dB(A) re 20 µPa sound pressure)
Intensive: 77 dB(A) re 1 pW (64 dB(A) re 20 µPa sound pressure) - Power rating: 256 W
- Light Intensity: 502 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m

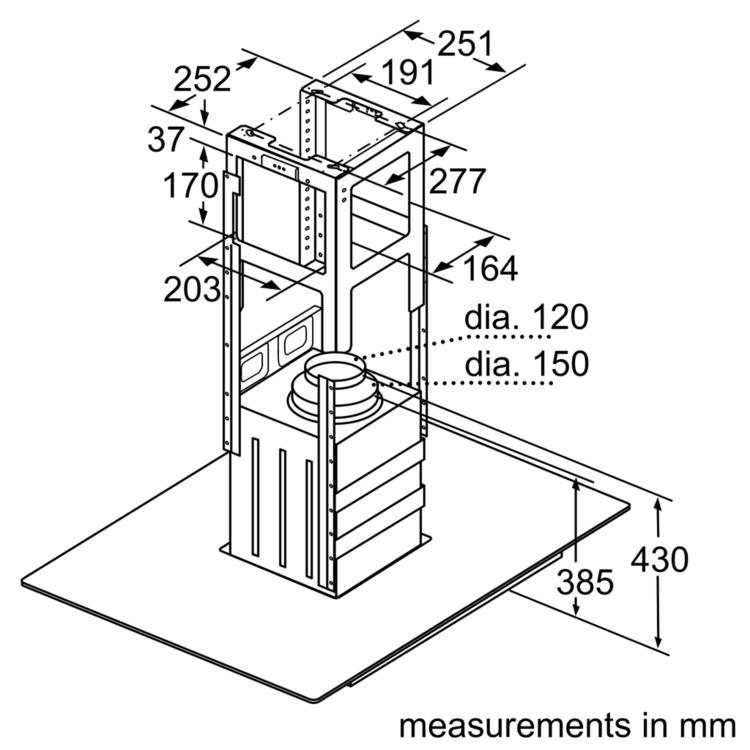

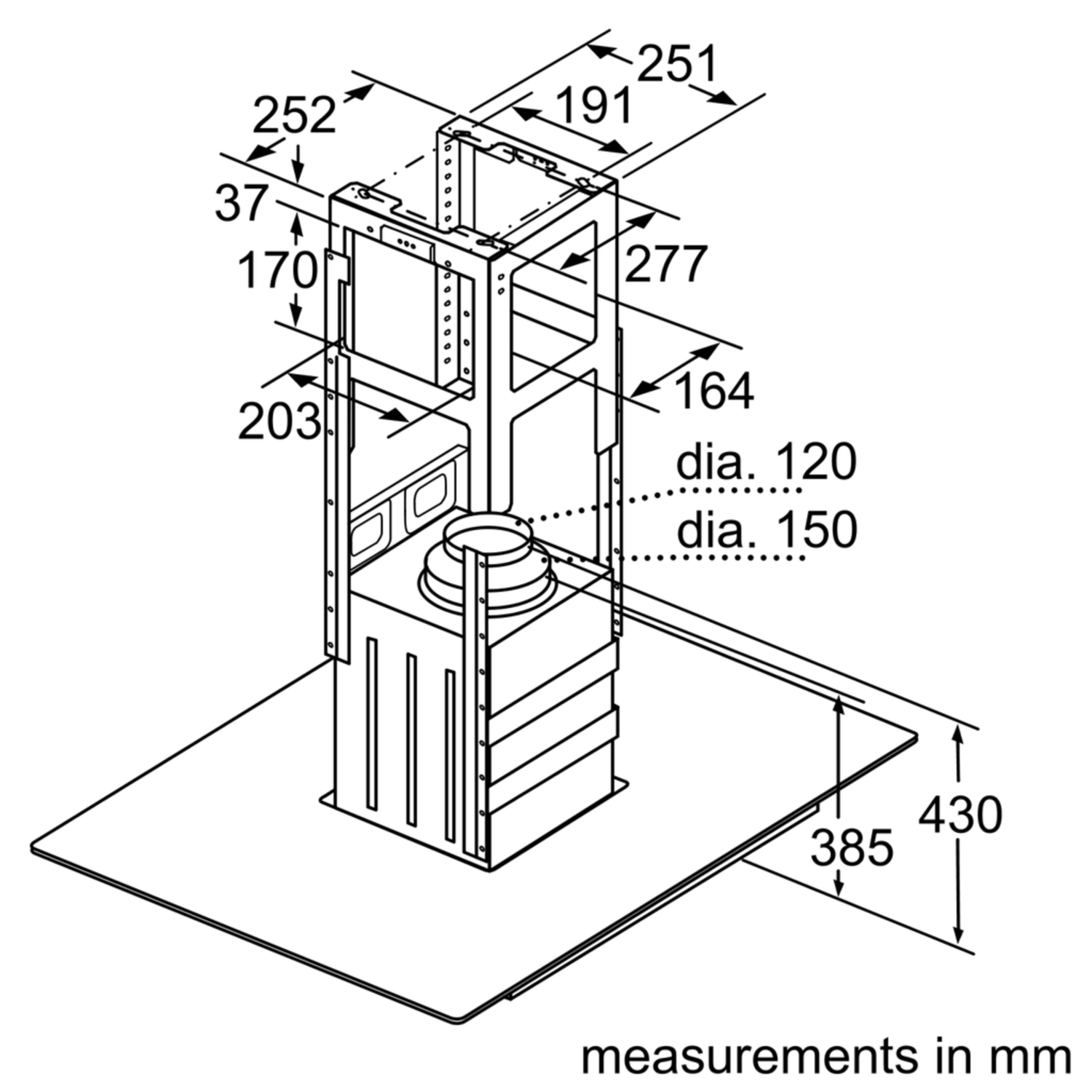

- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

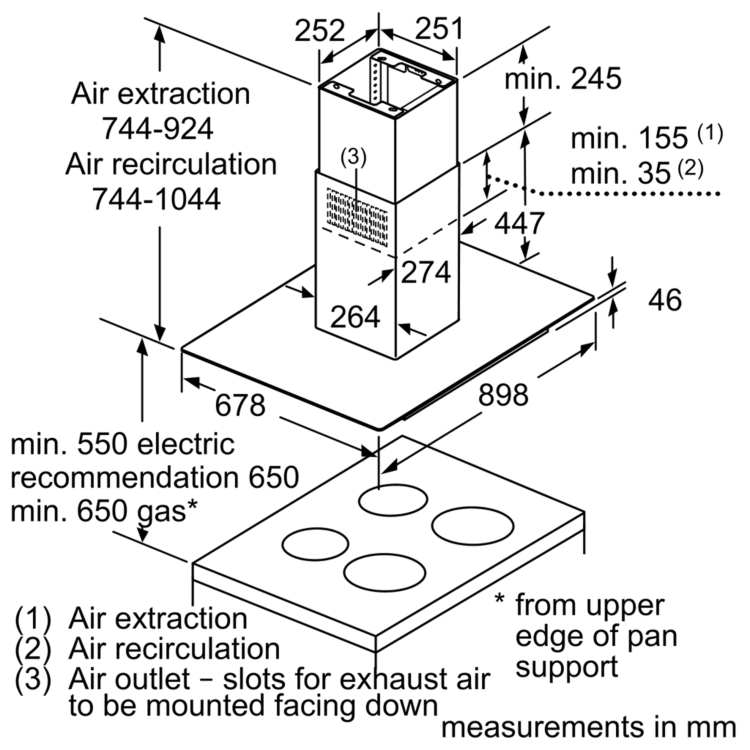

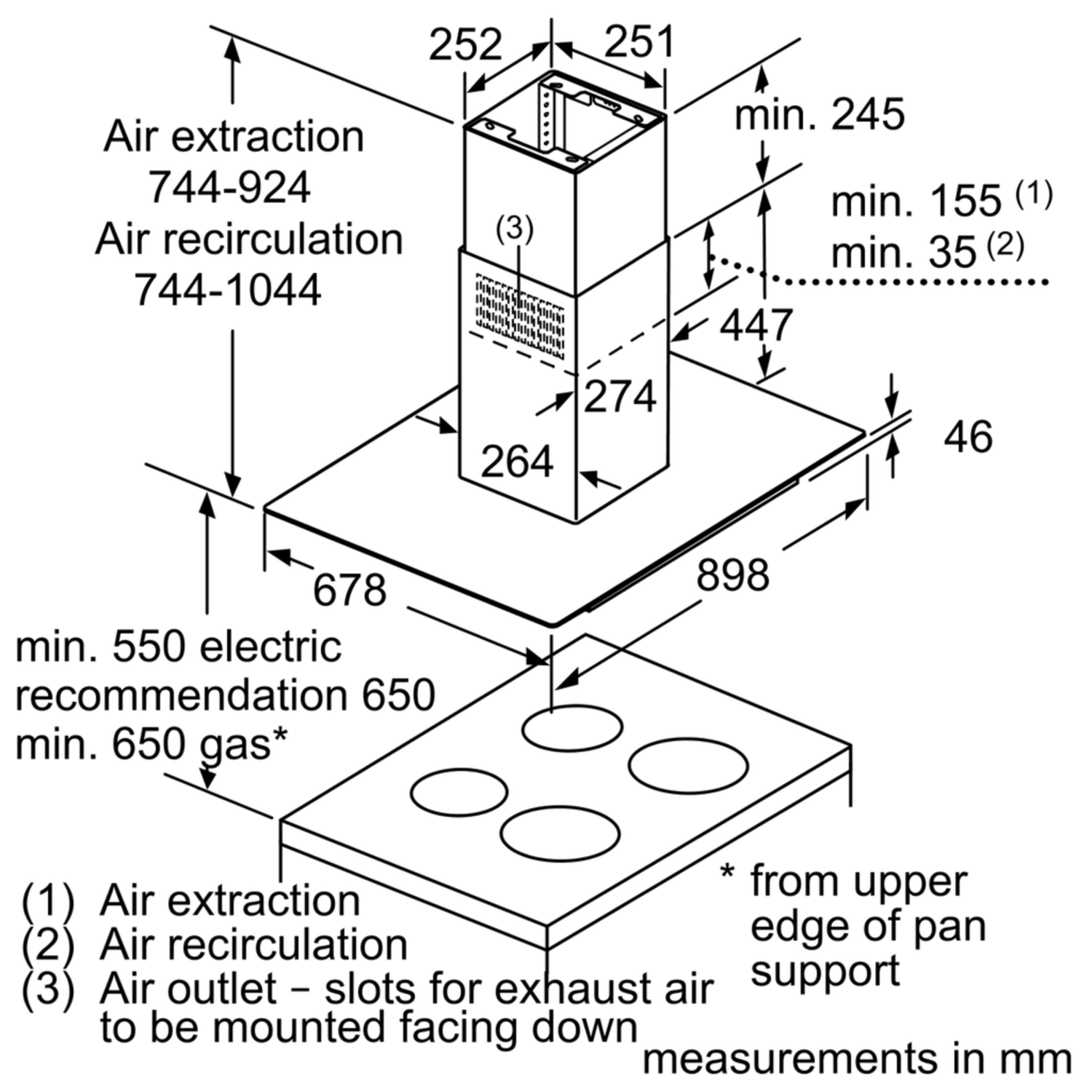

- Dimensions exhaust air (HxWxD): 744-924 x 898 x 600 mm
- Dimensions recirculating, chimney (HxWxD): 744-1044 x 898 x 600 mm
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 71.3 kWh/year*
max. Normal use 429 m³/h
Intensive 732 m³/h
Max. normal use: 315 m³/h<
Intensive: 384 m³/h<
