Features
- For ceiling mounted installation
- 7 segment LED display
- 4 x 1W LED lights
- 3 metal grease filter cassettes
- Stainless steel filter cover, metal grease filter
- Interval operation
- 3 speeds plus intensive
- Autonatic revert after 10 minutes.
- Rim ventilation
Design
- Stainless steel
- Stainless steel with glass canopy
- 90 cm wide
- Ceiling mounted hood
- Soft touch control
- Electronic controls
- Light Colour: warm white
Performance/technical information
- Suitable for ducted extraction and recirculation
- For recirculated extraction CleanAir recirculating kit (accessory) needed
- Twin channel high performance fan motor
- In recirculation operation chimless use possible
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 570 m³/h
- Intensive 780 m³/h
- Power rating: 279 W
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 64 dB (A) re 1pW
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 64 dB(A) re 1 pW (50 dB(A) re 20 µPa sound pressure)
- Intensive: 71 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure)
- Noise max. Normal Level: 64 dB*
- Light Intensity: 673 lux
- Colour Temperature: 4000 K
- Electrical cable lenght 1.3 m
- Diameter pipe Ø 150 mm (Ø 150 mm enclosed)

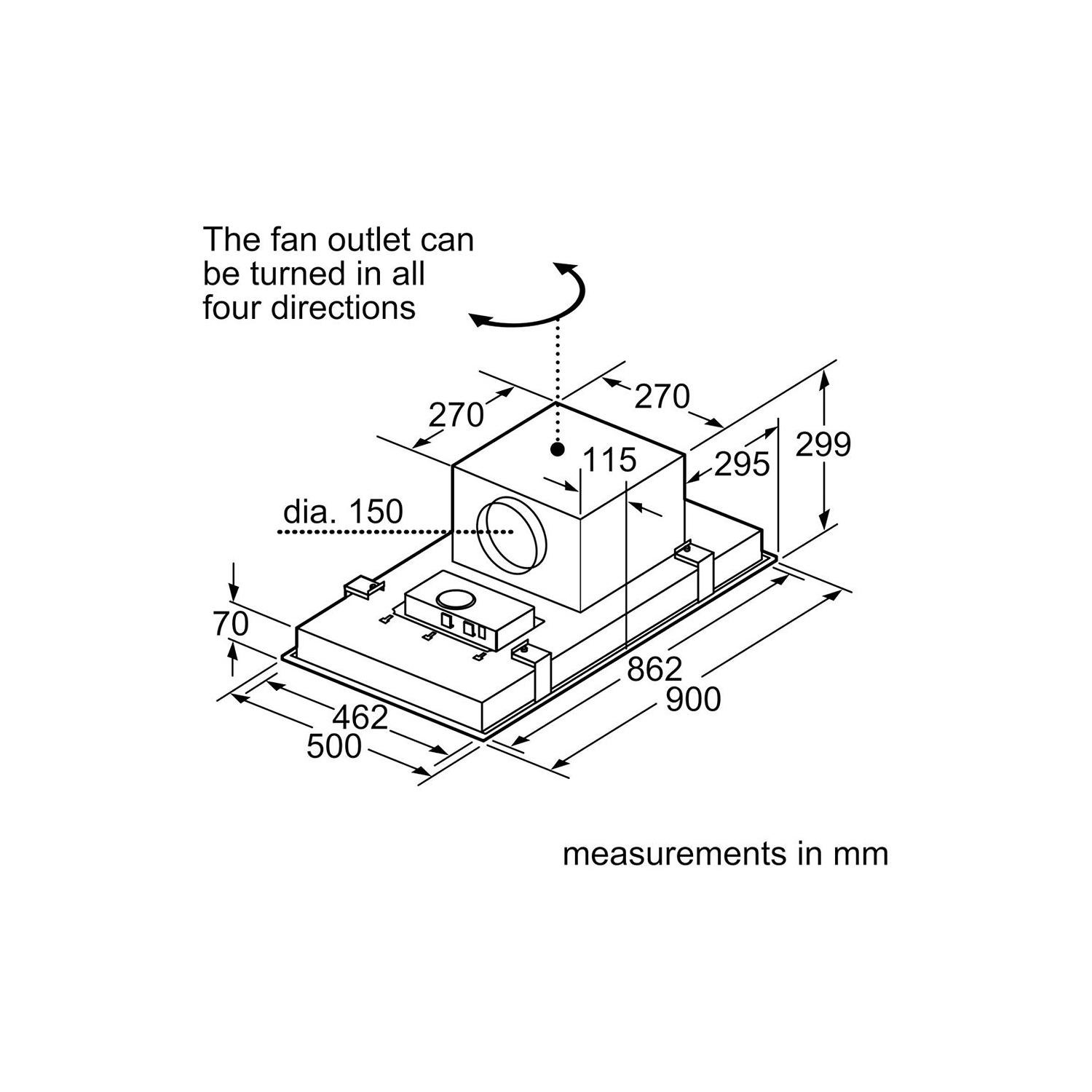

- Dimensions exhaust air (HxWxD): 299-299 x 900 x 500 mm

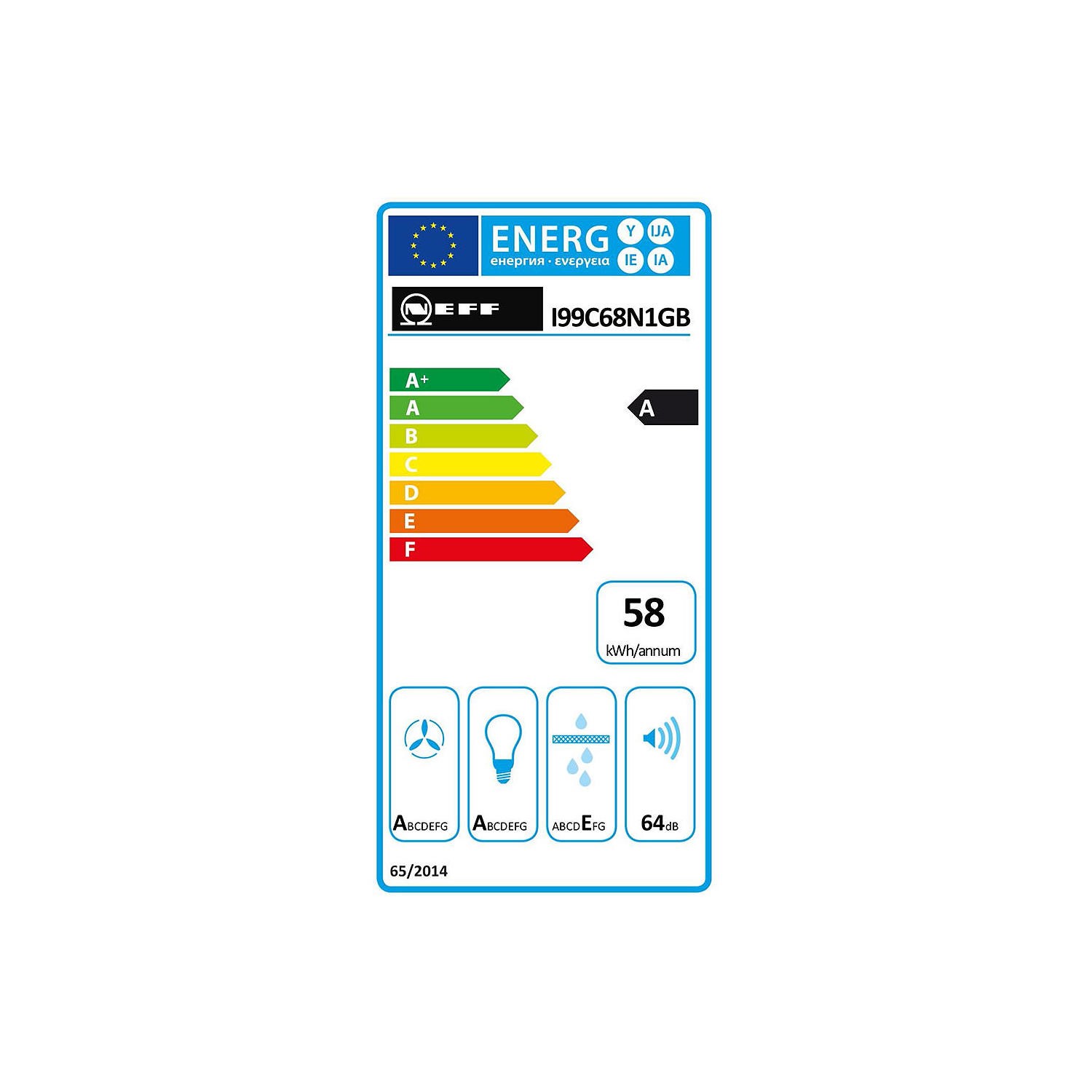

- Energy Efficiency Class: A*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: E*
- Average Energy Consumption: 58.2 kWh/year*
- Optional accessories
- Recirculating kit Z5170X1
