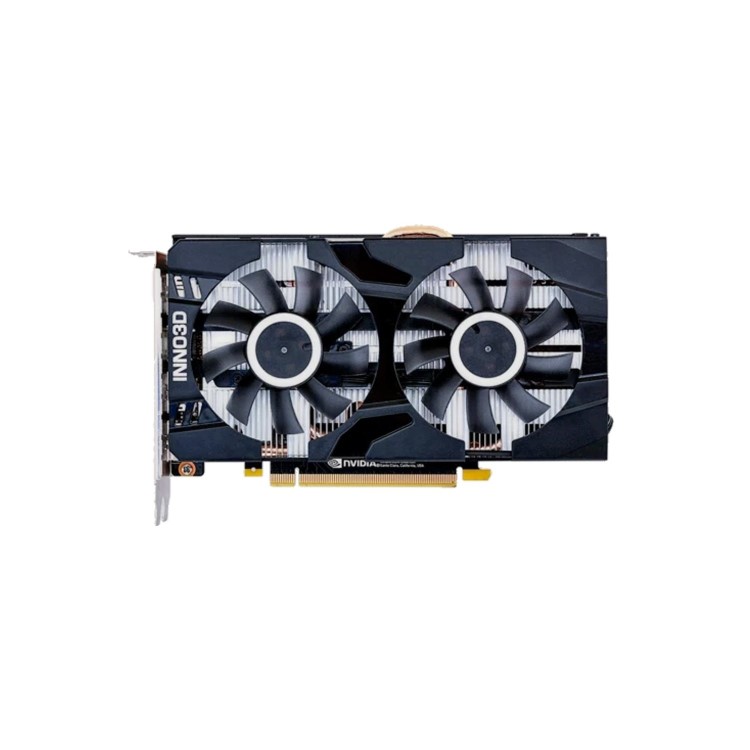

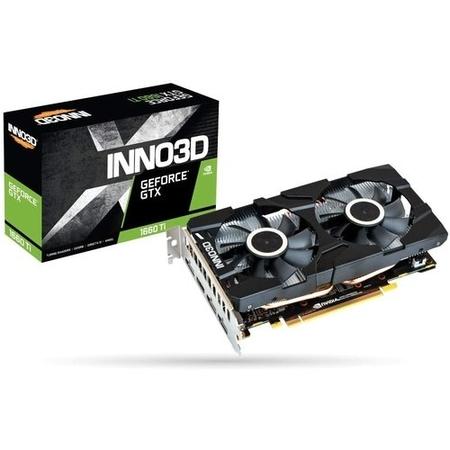

At the heart of the GeForce GTX 1660 Ti is the TU116 graphics chip based on the Turing GPU architecture. This is fabricated in a 12nm process, which, in combination with the Turing architecture, allows for increased efficiency and higher clock rates over Pascal. This model comes with 6GB of GDDR6 video memory and is NVIDIA GeForce GTX VR Ready certified.
Technical details:
- Dimensions: 196 x 41 x 113 mm (W x H x D)
- Height: 2-Slot
- GPU: GeForce GTX 1660 Ti
- Chip: TU116
- Production: 12 nm
- GPU clock: 1,550 MHz
- Boost clock: 1,770 MHz
- CUDA-Cores (shaders): 1.536
- Memory size: 6.144 MB
- Memory clock: 6,000 (12,000) MHz
- Type: GDDR6
- Memory connection: 192 bits
- Memory bandwidth: 228 GB / s
- Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
- 3x DisplayPort 1.4
- 1x HDMI 2.0b
- Power supply: 1x 8-pin PCIe
- TDP: 120W
