GRADE A1
A space-saving solution

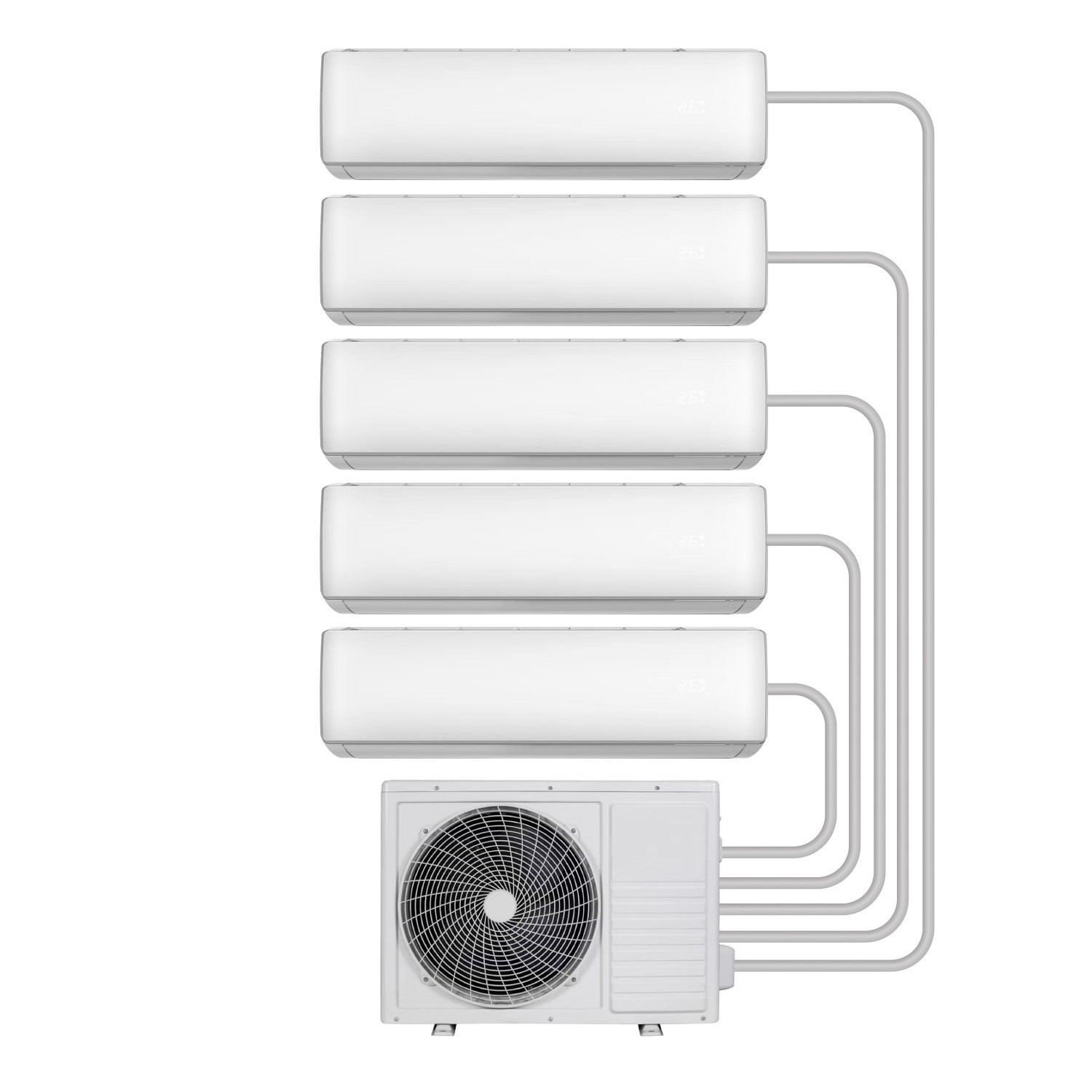

Unlike conventional split air conditioners that require a separate outdoor compressor unit for every room, this advanced multi-split air conditioner system is designed to power five rooms from a single outdoor compressor.
This saves on expensive installation and running costs and keeps the outside of your property attractive and clutter-free. Plus, each indoor unit has a separate remote control, allowing for individual control of each indoor unit.
Cooling & heating, all year round
The electriQ iQool Multi-split range offers versatile climate control for both winter & summer, featuring heating and cooling modes.
The built-in dehumidifier helps to remove excess moisture from the air for better air quality and extra comfort, and it's great for drying your laundry when it's raining out.
This electriQ multi-split air con system also has an impressive 5-year warranty for your peace of mind.
Unrivalled performance
This cost-effective, energy-efficient system will economically cool or heat rooms up to 120 sqm in size, and is perfect for both homes & offices. It boasts the very latest Inverter technology that will reduce or increase the compressor speed according to fluctuation in temperature dependent on your required heating and cooling levels, saving you between 40% - 60% on your energy bill when compared with a non-inverter equivalent which has fixed compressor speed. It also has the added advantage of being exceptionally quiet so you'll forget it's even there.
Customise your comfort & save energy
Don't waste energy heating unoccupied spaces with central heating. Create different temperature zones within your home for truly personalised, efficient cooling & heating that's optimised for the areas in your home that you use the most. Heating by heat pump is up to 4 times more efficient than electric heating. It's also exceptionally quiet, so you'll forget it's even there.
This wall-split AC operates at an average cost of about 85p per hour. However, thanks to its variable compressor speed, it can potentially use as little as 16p.
Specification
- Smart WiFi control
- 24-hour timer
- Super DC Inverter with Panasonic compressor
- Easy Fit with 5m pipe & cable kit supplied as standard (Optional 10m pipe kit available - See Recommended Accessories)
- Ultra Quiet Operation
- Remote control for each indoor unit
- Digital LED temperature and function display
- Cooling capacity (Single unit): 3.5 kW
- Heating capacity (Single unit): 3.5 kW
- Cooling capacity (Total 5 units): 3.3 - 13.1 kW
- Heating capacity (Total 5 units): 3.3 - 13.1 kW
- SEER: 6.1 A++ / SCOP: 4.0 A+
- Warranty: 2 years parts & labour + 3 years parts
Dimensions
- L x W x H: 777 x 201 x 250mm (Per indoor unit)
- L x W x H: 990 x 340 x 910mm (Per outdoor unit)
- Weight (Net/Gross): 8kg/10.5kg (Indoors)
- Weight (Net/Gross): 73kg/85kg (Outdoor)
What's in the box
- 5 x Indoor Units
- 1 x Outdoor Unit
- Indoor wall brackets
- 5m Copper pipe & Electrical cable
- Remote controls
*Wall brackets for outdoor units can be purchased separately
Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gassed and sealed and they come with a pre-flared pipekit enabling the qualified fitter to install them easily. The indoor units should be fitted to the wall using the mounting plate supplied in the box. The condenser should be fixed on the ground or wall-mounted on the outside of the wall with the optional wall-mounting bracket. The unit is supplied with a 5-metre copper pipe that will reduce the need to purchase additional parts. It is also supplied with an electrical cable.
Useful information
The unit must be installed by a F-Gas qualified AC engineer. Please ensure the qualified fitter reads the user manual in full before installing. These units contain a gas governed by F-Gas regulations. The gas must be handled by qualified F-Gas pe
