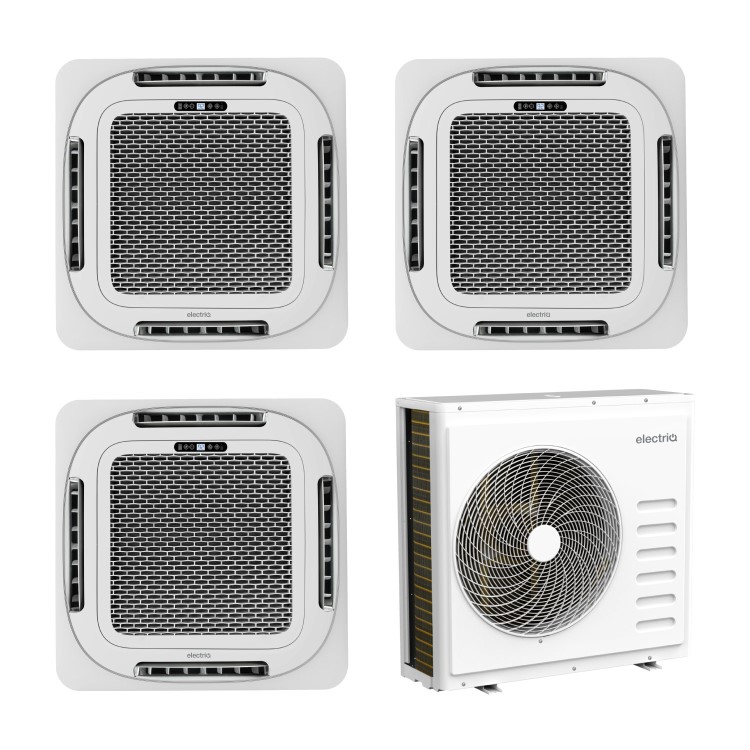

electriQ Iqool Multi-Split 2x 18000 BTU & 1x12000 BTU Smart cassettes Heat Pump Air Conditioner Bundle - Three Indoor Units Single Outdoor Unit and Pipe Kits Included

SKU: iQool-C3MSC5SPM Quickfind Code: 1931270
Was: €2722.37     You save: €135.4
€2586.97
Energy Label
Product Options
Cooling Power (BTU)
Number of Indoor Units
Why buy me
  • Powerful & quiet cooling & heating for areas up to 105 sqm in homes & offices
  • 2-Way Split - Control the climate of 2 rooms with a single outdoor unit
  • 2 x 18000 BTU and 1 x 12000 BTU indoor units.
  • 3-in-1: Cool | Heat | Dehumidify
  • Smart - Control from your phone or home assistant. Smart scheduling saves energy
  • A++/A+ rated for efficient cooling & heating all year round. Air Conditioning is up to 4 x more efficient than electric heating
  • I Feel - "Follow Me" function adjusts temperature based on the location of your remote. Keep the remote nearby for personalised cooling
  • Easy Fit with 5m pipe and cable kit supplied as standard (Optional 10m pipe kit available - See Recommended Accessories)
click

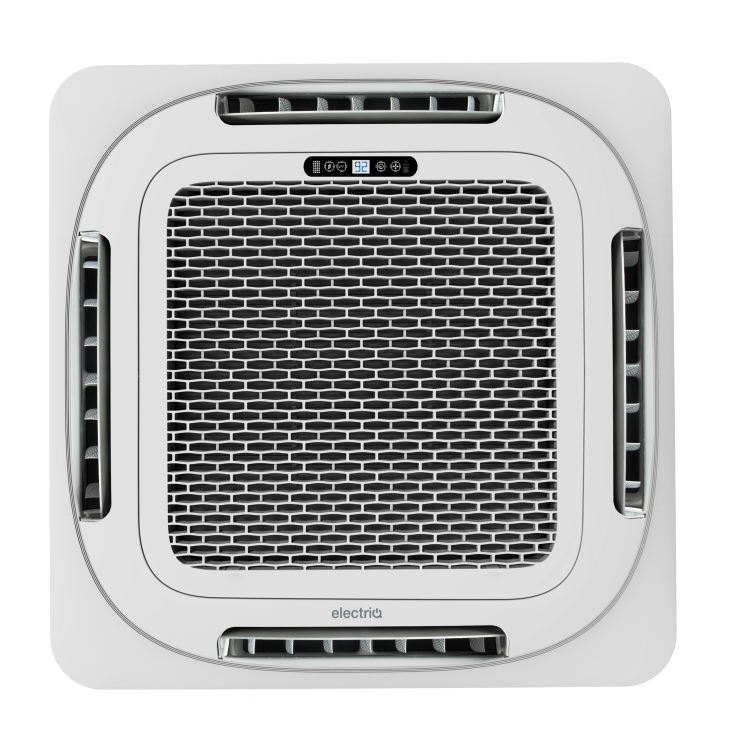

SUPER-SLIM & SPACE-SAVING

The super slim electriQ iQool-C3MSC5SPM ceiling cassette air conditioner is an ideal solution for offices or areas requiring efficient, space-saving air conditioning. By freeing up wall space and fitting seamlessly into standard ceiling tiles, it ensures a quick and easy installation which keeps install costs down.

This unit is perfect for spaces with limited ceiling voids, such as offices, and it's super quiet so you’ll hardly notice it’s on. Unlike conventional split air conditioners that need a separate outdoor compressor unit for each room, this advanced multi-split system can power three rooms from a single outdoor compressor which reduces install costs, running costs and keeps the outside of your property clutter-free.



HEATING & COOLING ALL-YEAR-ROUND

This air conditioner isn't just for cooling; it’s a true all-year-round unit that both cools and heats. While other units only have two air outlets, this has four outlets that allow the air to flow out over 360 degrees ensuring maximum efficiency and making sure the air is distributed throughout the entirety of your space. It doesn't just keep your environment at a stable temperature, it does so using an A++ ultra energy efficient super DC inverter ensuring that your energy bills stay low. The outer unit guarantees fresh air intake so that if you have a room with no windows you'll never have stale air. The electriQ multi-split ceiling cassette air conditioner comes with an impressive 5 year warranty for peace of mind.



Features

  • Controls the climate of 3 rooms from just a single outdoor unit
  • Outputs 2x18,0000 Btu/h and 1x12,000 Btu/h (variable speed inverter) cooling and heating
  • A++/A+ Rating
  • Cooling, Heating & Dehumidifying
  • Easy Fit with 5-metre pipe and cable kit supplied as standard (optional 10-metre pipe kit available)

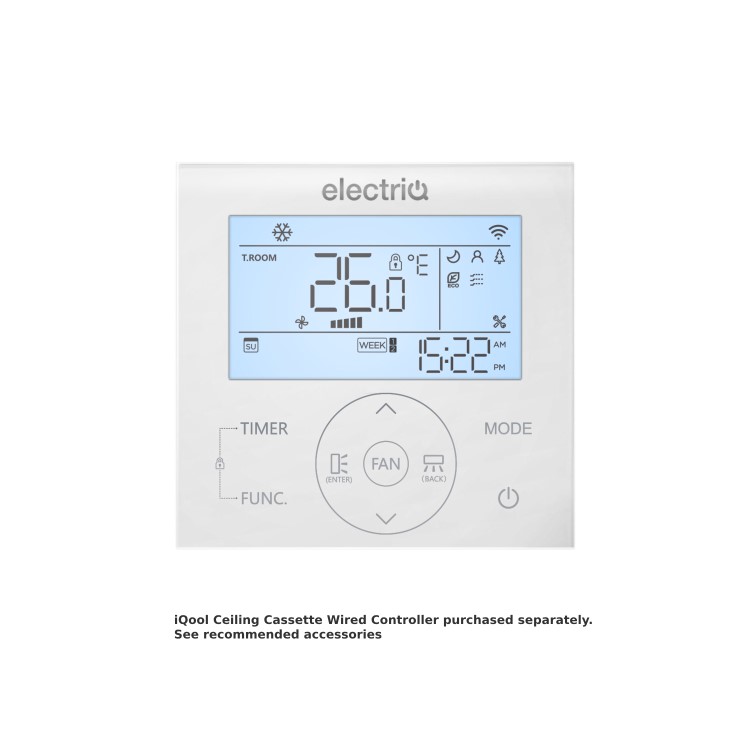

  • Wired controller can be purchased separately
  • Energy Saving Inverter Technology
  • Heat Pump for efficient heating
  • Ultra Quiet Operation
  • Cooling capacity (total 3 units): 13.1 kW
  • Heating capacity (total 3 units): 13.1 kW
  • SCOP: 4.0 A++ / SEER: 6.1 A+
  • Warranty: 2 years parts & labour+3 years parts
  • 24 Hour Timer
  • Self-diagnostic function
  • Sleep Mode
  • Auto Restart

Dimensions:

  • L x W x H: 71.8 x 31.1 x 65.7 cm (12k indoor unit)
  • L x W x H: 71.8 x 31.1 x 65.7 cm (per 18k indoor unit)
  • L x W x H: 99x 34 x 91 cm (outdoor)
  • Net/Gross Weight: 13 / 18 kg (12k indoor unit)
  • Net/Gross Weight: 13 / 18 kg (per 18k indoor unit)
  • Net/Gross Weight: 73 / 85 kg (outdoor unit)

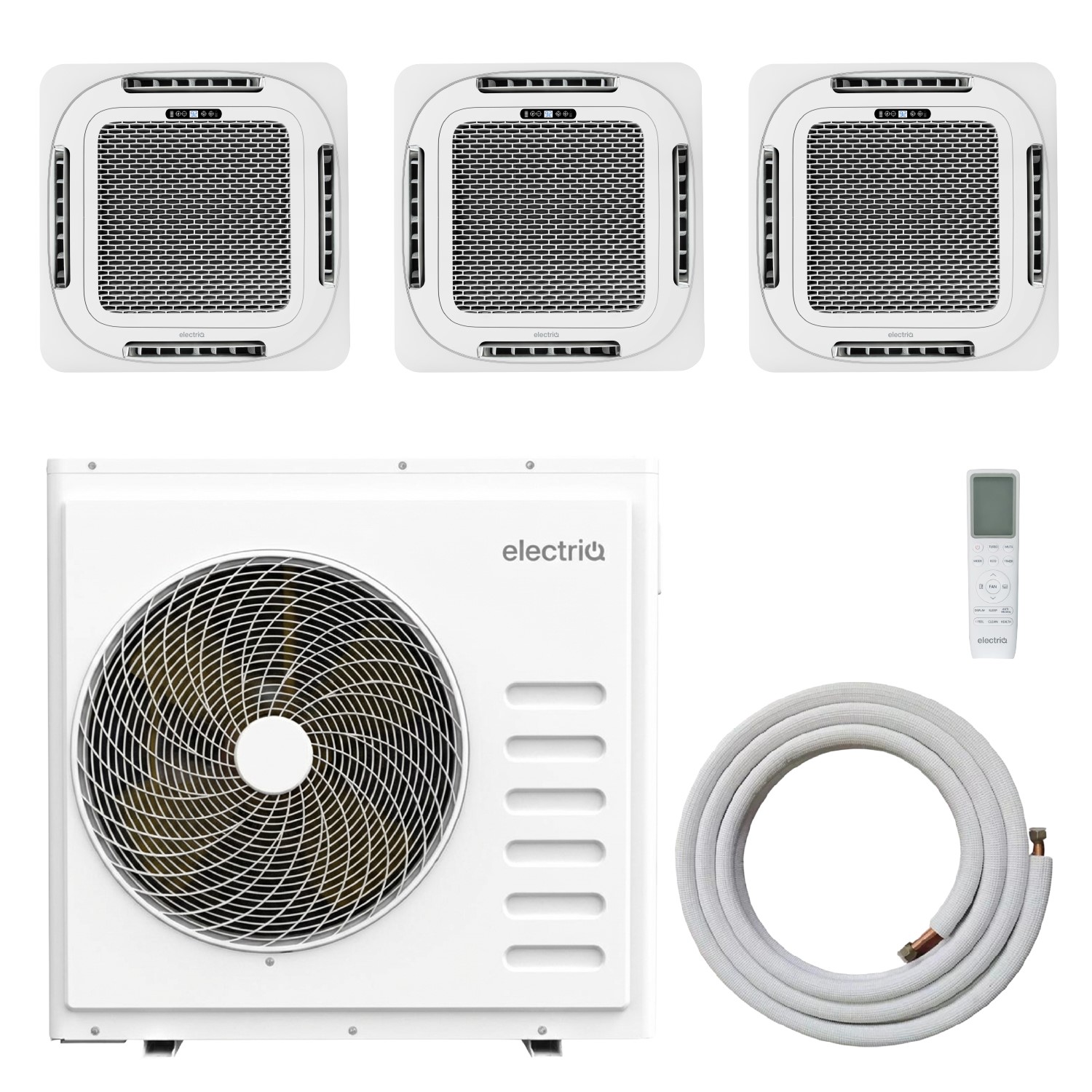

What's in the box?

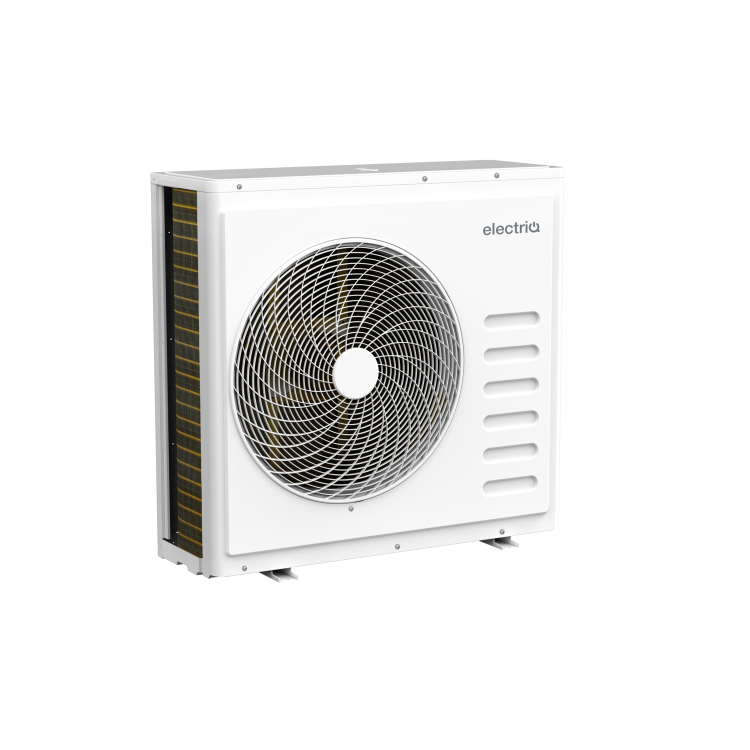

The iQool-C3MSC5SPM is an easy Install DC Inverter and is comprised of 4 main units (3 indoor units 1 * iQool-CMS12KIN + 2 * iQool-CMS18KIN & 1 outdoor unit iQool-C3MSC5SPMEX). There are three internal units which are mounted on the wall of the room/ rooms you wish to cool supplied with indoor wall brackets, and then the corresponding external unit (called the condenser) which sits on the ground or on a wall bracket (can be purchased separately if required ) on the outside. Also in the box is a 5 meter coil of interconnecting copper pipe, electrical cable and a remote control.

How to Install

Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gased and sealed and they come with a pre-flared pipekit enabling the qualified fitter to easily install them. The indoor units should be fitted to the wall using mounting plate supplied in the box. The condenser should be fixed on the ground or wall mounted on the outside of the wall with the optional wall-mounting bracket. The unit is supplied with a 5 metre copper pipe that will reduce the need to purchase additional parts. It is also supplied with electrical cable. The unit must be installed by a F-Gas qualified AC engineer. Please ensure the qualified fitter reads the user manual in full before installing.

How does it work?

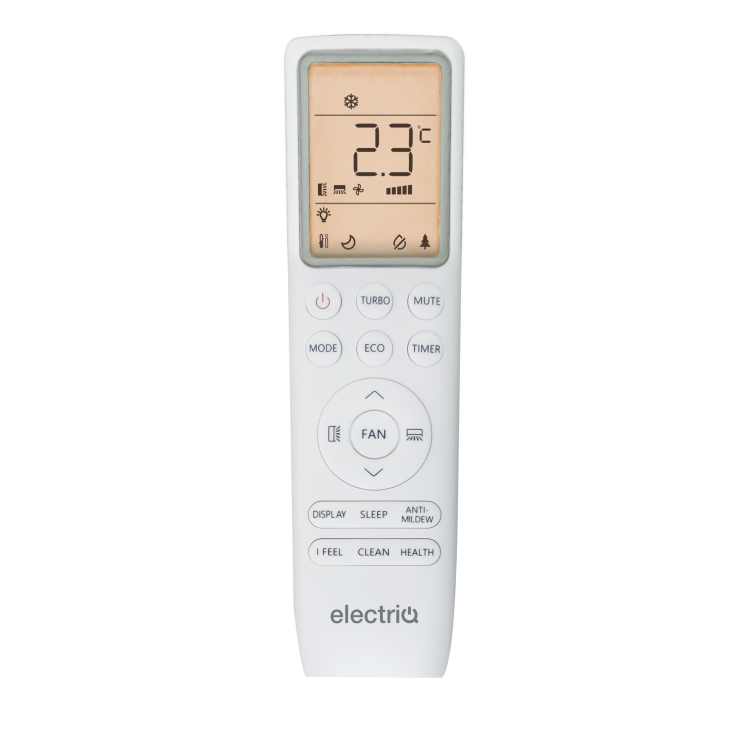

The outside unit takes the heat from the room, along with any condensation that may have built up in the system, and dissipates it outside. The iQool-C3MSC5SPM internal units set the room cooling and heating temperature to your exact requirements. You can use the supplied remote control to set your desired temperature and then let the air conditioner automatically regulate the heat throughout the day at a maintained level, without having to change settings yourself. Many of our customers are now installing these super inverter air conditioners for their impressive heating ability as well the cooling.

*These units contain a gas governed by F-Gas regulations. The gas must be handled by qualified F-Gas personnel. 2 year warranty is subject to commissioning by qualified F-Gas engineers. 5 years extended parts warranty is subject to annual service.

What is a BTU?

1 BTU is the amount of heat required to raise the temperature of one pound of liquid water by one degree from 60° to 61° Fahrenheit at a constant pressure of one atmosphere. As a general rule we advise you to buy an Air Conditioner with a minimum 3,000BTUs as this is the minimum required to cool a small room (10sq/m) on a hot day. Medium rooms (24sq/m) need around 10,000BTUs and larger rooms and office spaces (36sq/m) require around 15,000BTUs.

* Note: In order to reduce the Global Warming Potential, the outdoor unit footprint and provide extra energy savings; our outdoor units have a rating lower than the sum of indoor units BTU. Please note this will not affect the cooling or heating in individual rooms as those units are variable cooling inverters and they balance the cooling or heating power among the indoor units to achieve the target temperature in the shortest time. Please make sure you size the rooms as per our guidance or call for tech support.


Features
Timer 24 hours
Heating Function
Heat pump for efficient heating, perfect for year round use
Control Type Electronic
Smart
Can be operated or scheduled using your smart phone or tablet.
WiFi Built-in
Dehumidifies
Removes moisture from the air in your home, for a more comfortable humidity level. Reduces mould and mildew.
Key Information
Brand electriQ
Type Ceiling Cassette
Maximum Cooling Area 105sqm
Cooling Power (BTU)
The maximum cooling power of your air con in British Thermal Units. The greater the BTU, the larger the space the unit can cool.
42,000
Cooling Power (kW)
The maximum cooling power of your air con in kilowatts. The greater the kW, the larger the space the unit can cool.
13.1kW
Power Supply (V/hz) 220-240V/50hz
Energy Rating A++/A+
Colour White
Condition New
Suitable For
Office
Server Room
Industrial Space
