Seamless Ventilation, Elevated Design

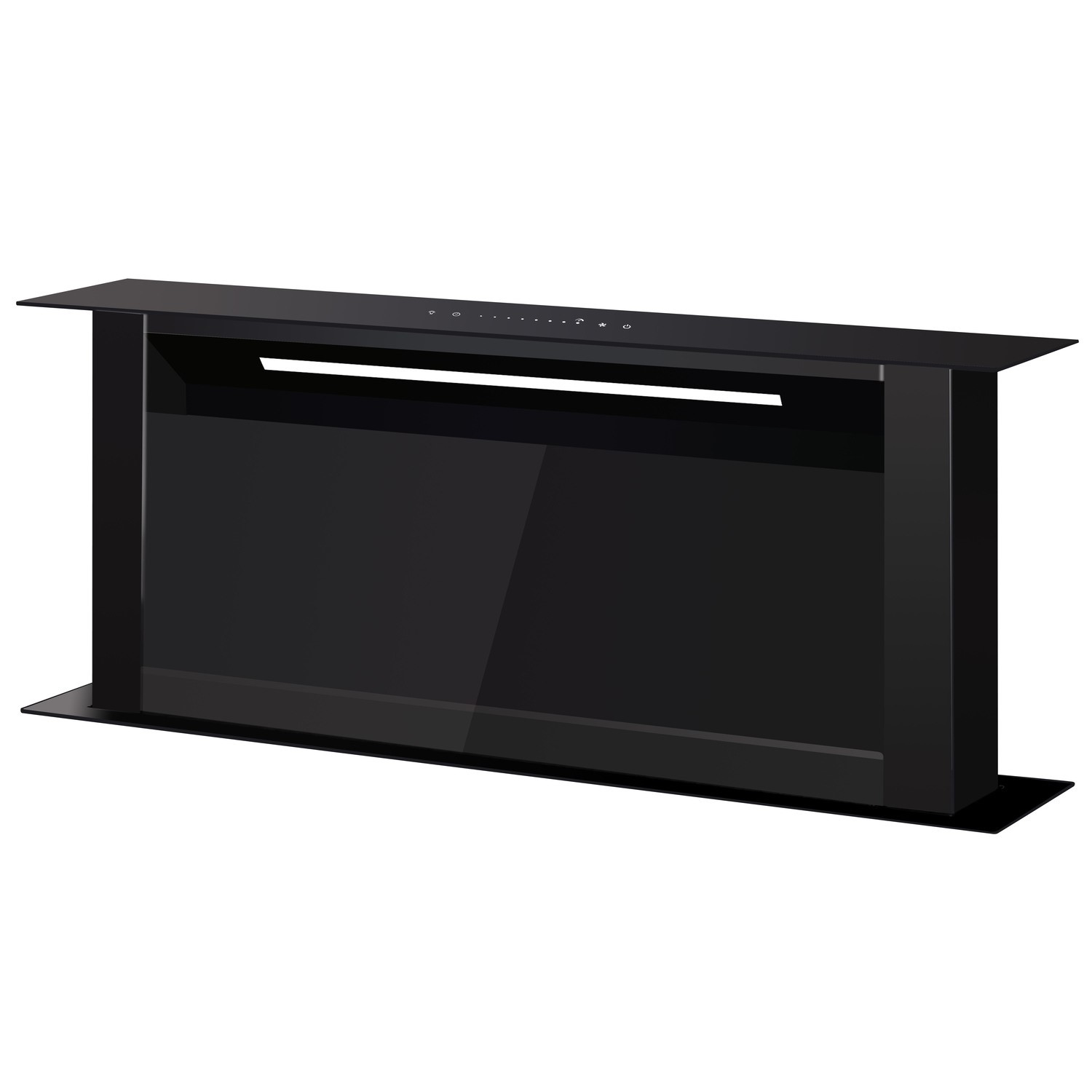

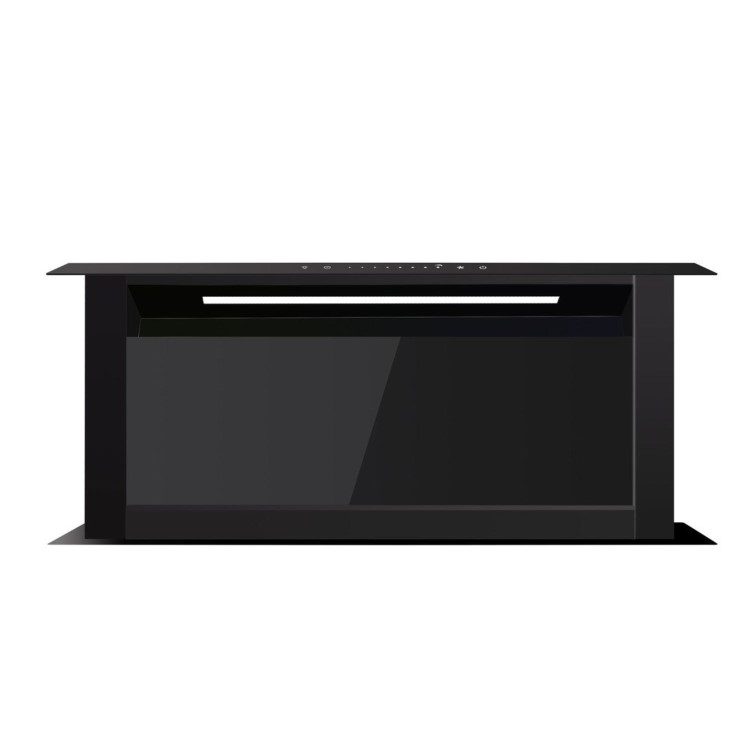

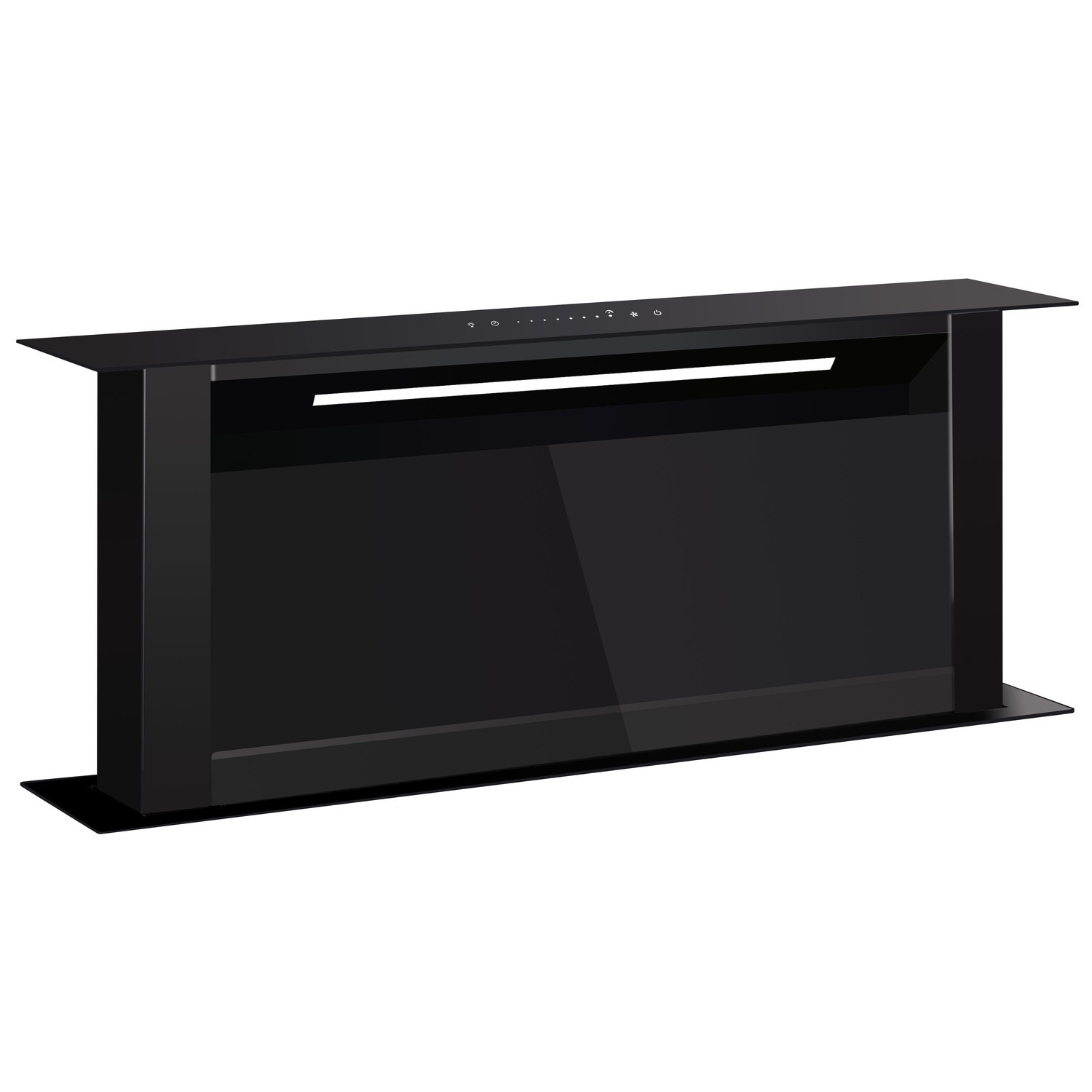

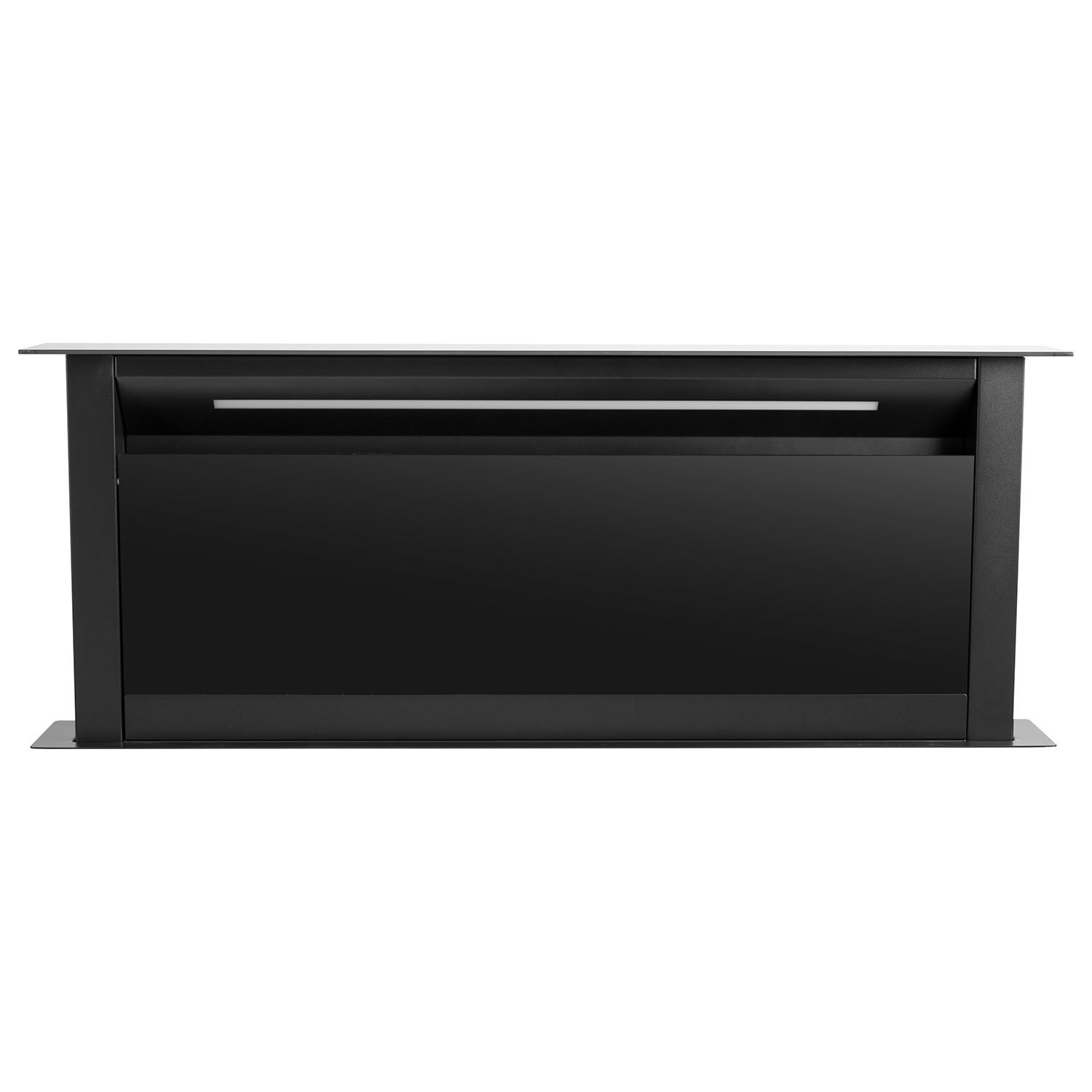

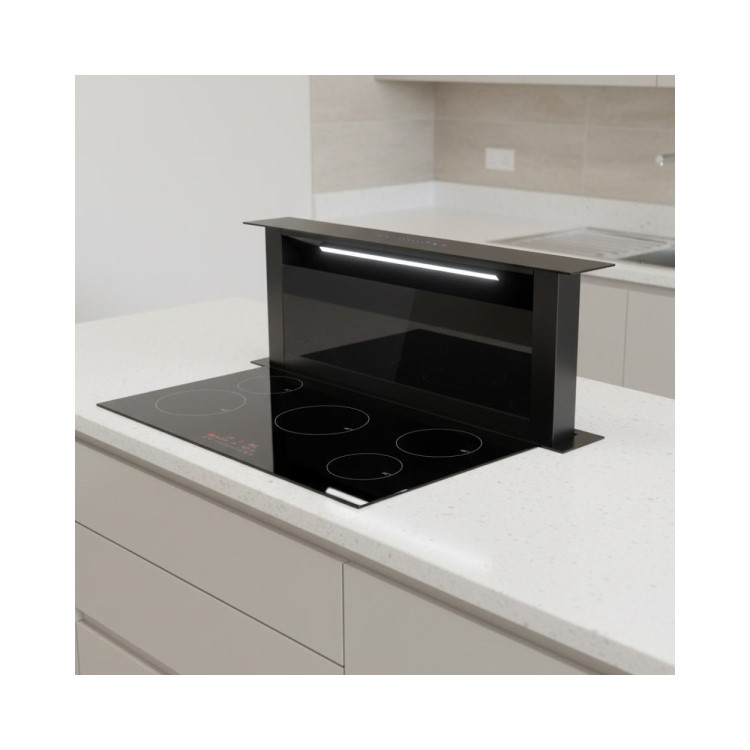

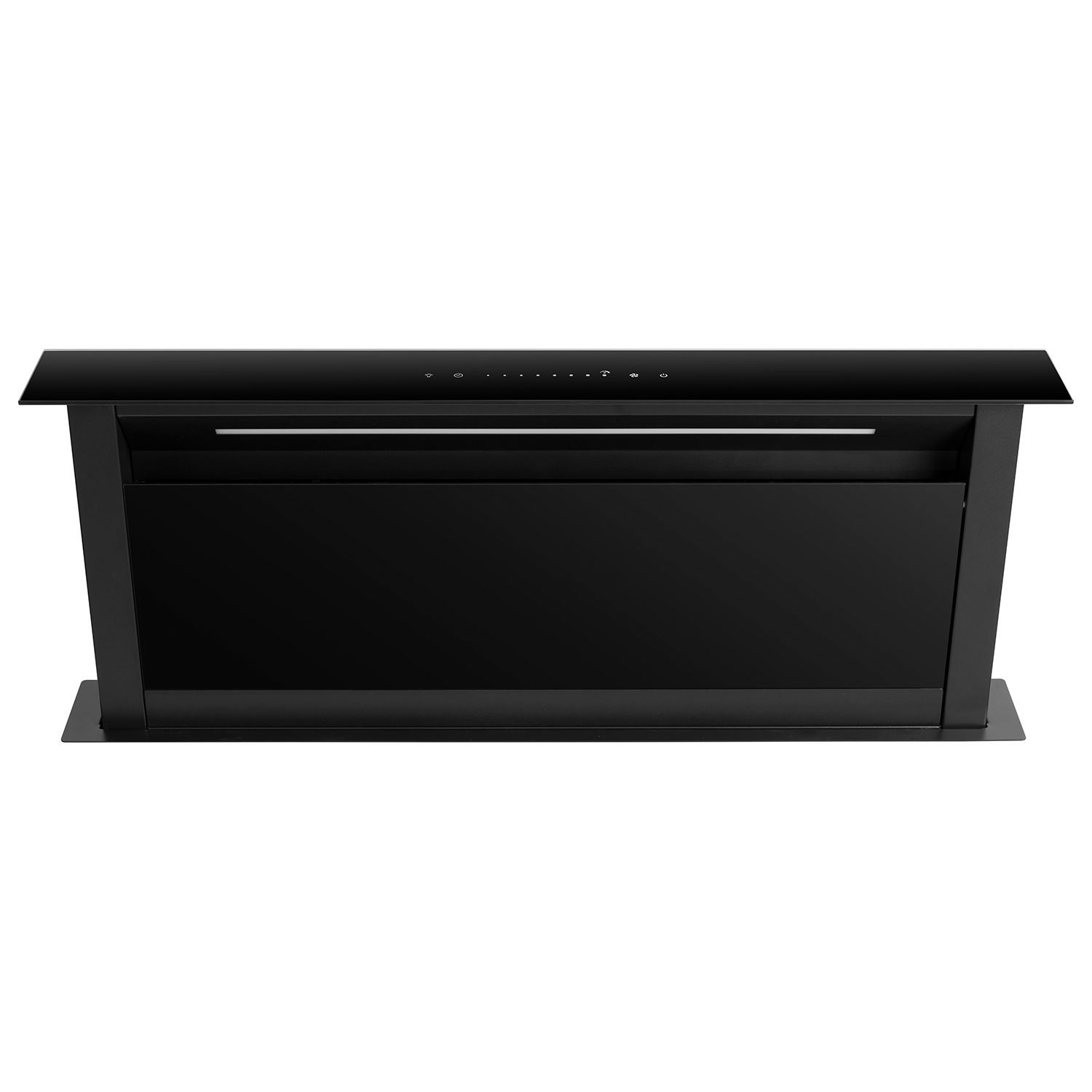

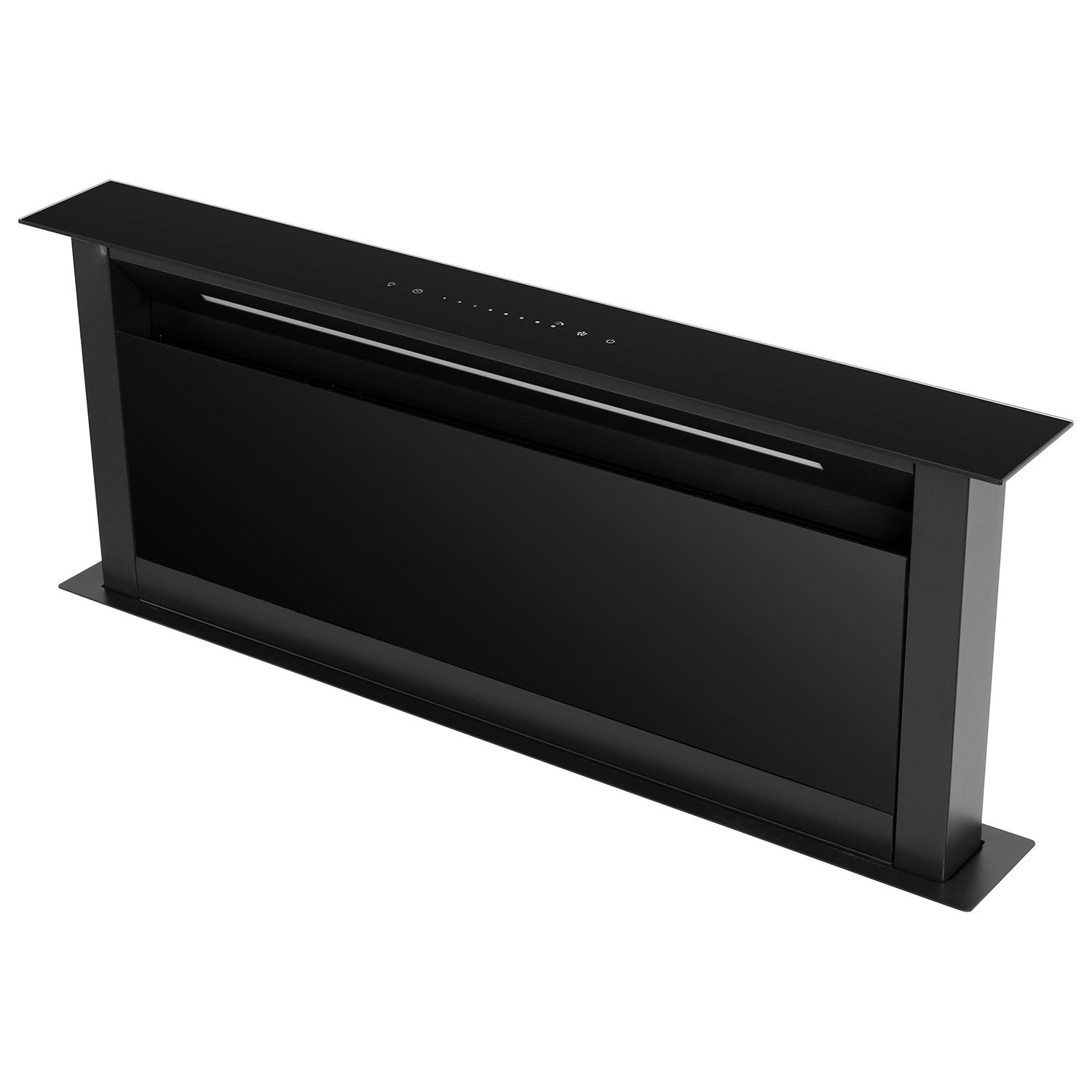

Bring intelligent functionality and modern elegance to your kitchen with this sleek downdraft extractor from electriQ. Perfect for island installations and compact spaces, it stays hidden within your worktop until needed — then rises smoothly at the touch of a button to deliver powerful, efficient ventilation without disrupting your kitchen’s clean lines.
What Stands Out
• Discreet & Space-Saving – Sits flush within your worktop and rises 330 mm only when in use, maintaining a clutter-free aesthetic.
• Flexible Power Control – Choose from 8 fan speeds or activate the boost mode for rapid air clearance when cooking intensively.
• Efficient Extraction – Offers a strong extraction rate of 604 m³/h with low noise levels, keeping your kitchen fresh and clear.
• Smart Delayed Shutdown – Continues ventilating after cooking, then automatically switches off and lowers back into the counter.
• Sleek, Unbranded Finish – Coordinates seamlessly with any kitchen style or appliance suite.
Description

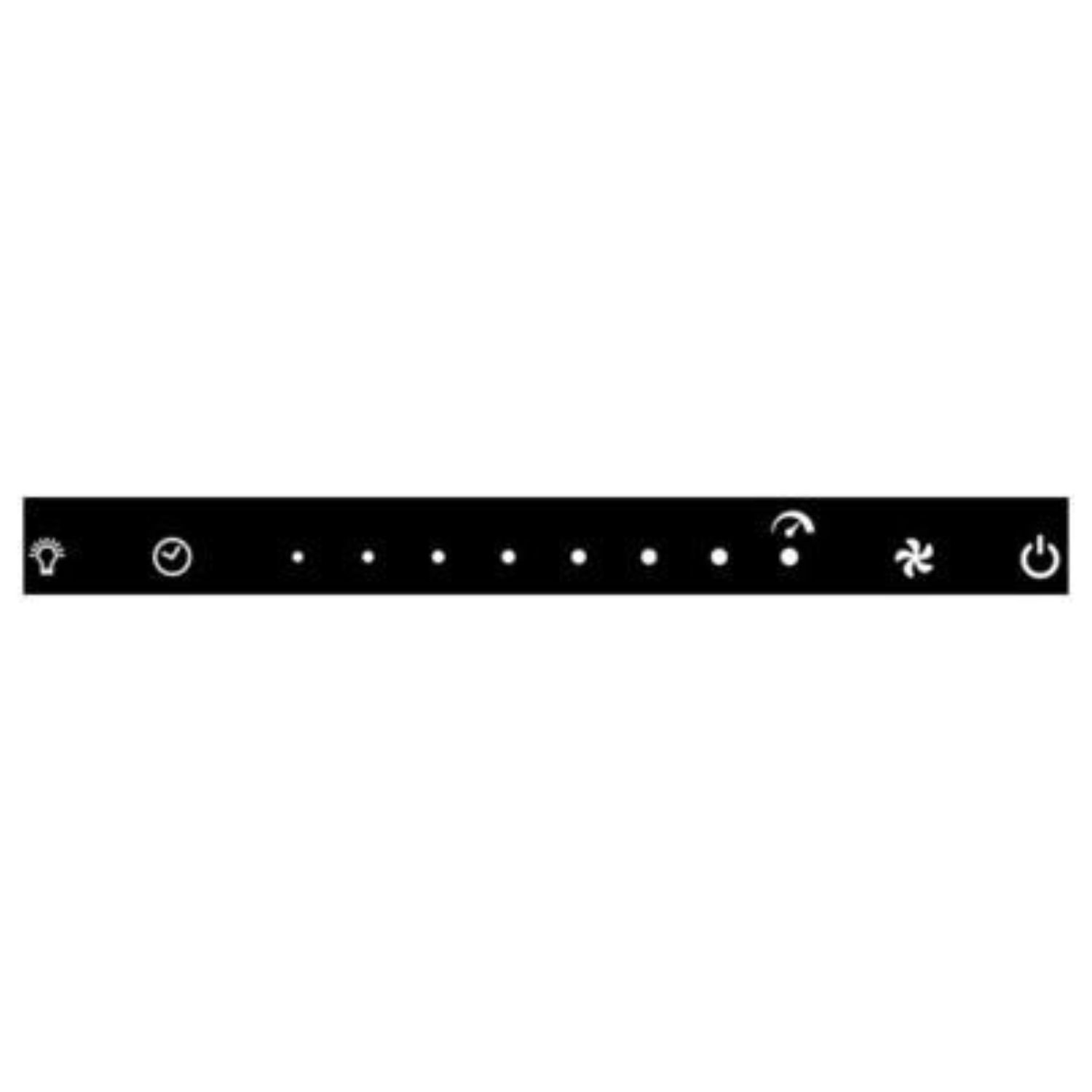

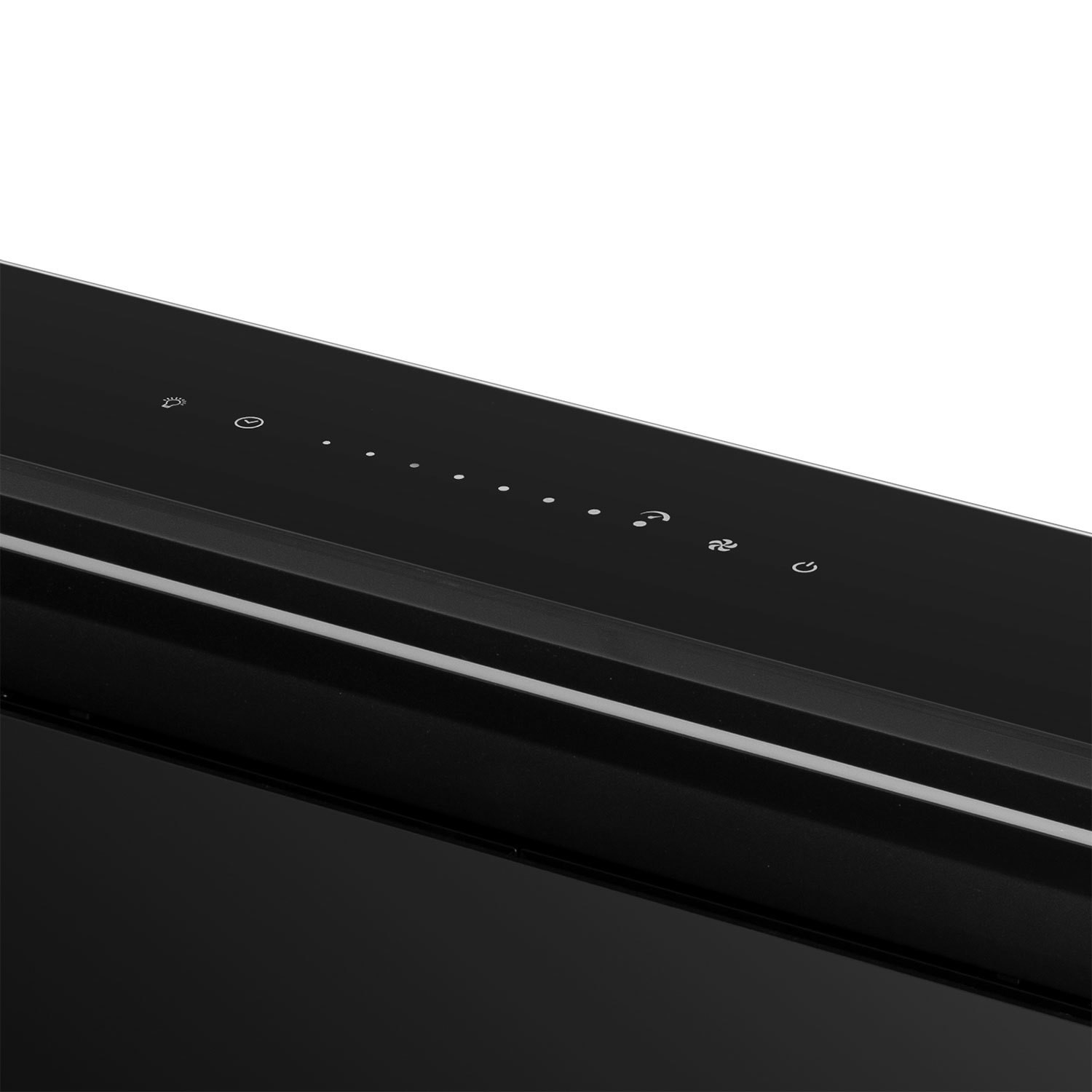

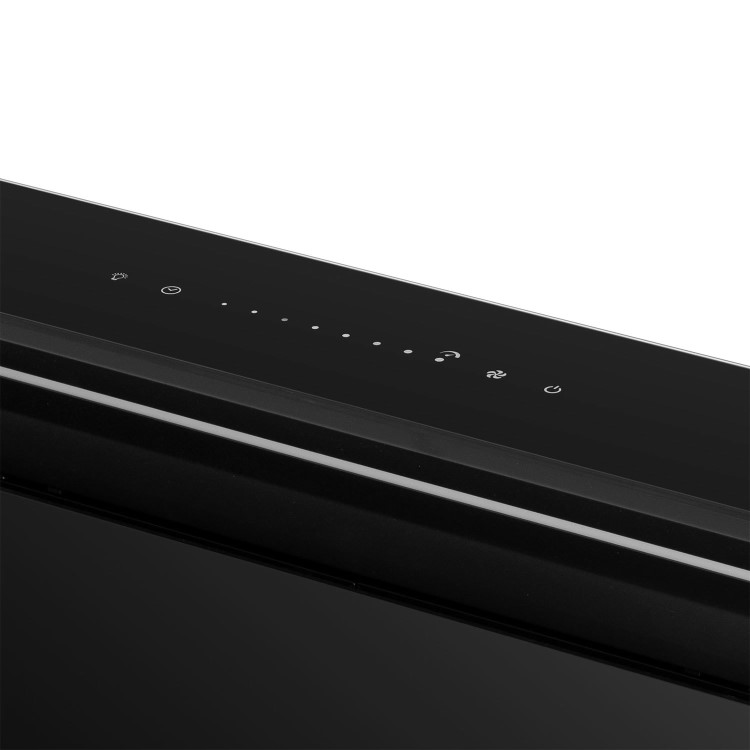

This downdraft extractor combines minimalism and performance to give your kitchen a truly refined finish. It rises quietly and efficiently at the touch of a button, ready to clear the air from steam, smoke, and odours while you cook. The touch and slider controls let you fine-tune the fan speed to suit your needs, while a boost setting provides extra power when needed.
When you're finished, simply let the delayed shutdown function do the rest — it will continue ventilating for a short period, then automatically switch off and glide back into the worktop, leaving your kitchen looking sleek and uncluttered.
The unit can be installed to either recirculate or extract air, depending on your kitchen layout. With its unbranded black finish, this extractor pairs effortlessly with any modern or traditional kitchen scheme.
Specifications
• Fan Speeds: 8 + Boost
• Extraction Rate: 604 m³/h
• Lighting: 1 × 4 W LED
• Max Noise Level: 68 dB

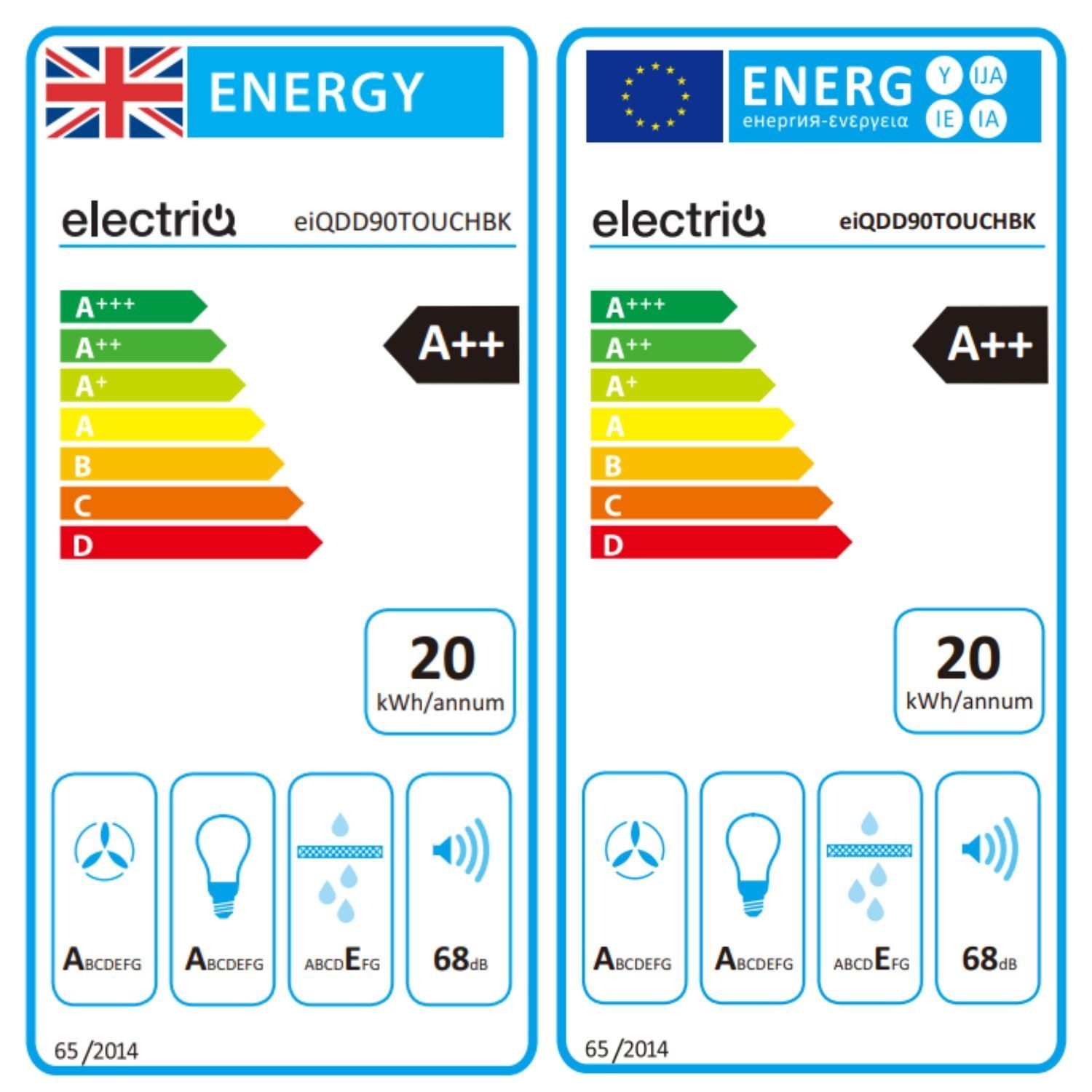

• Energy Rating: A++

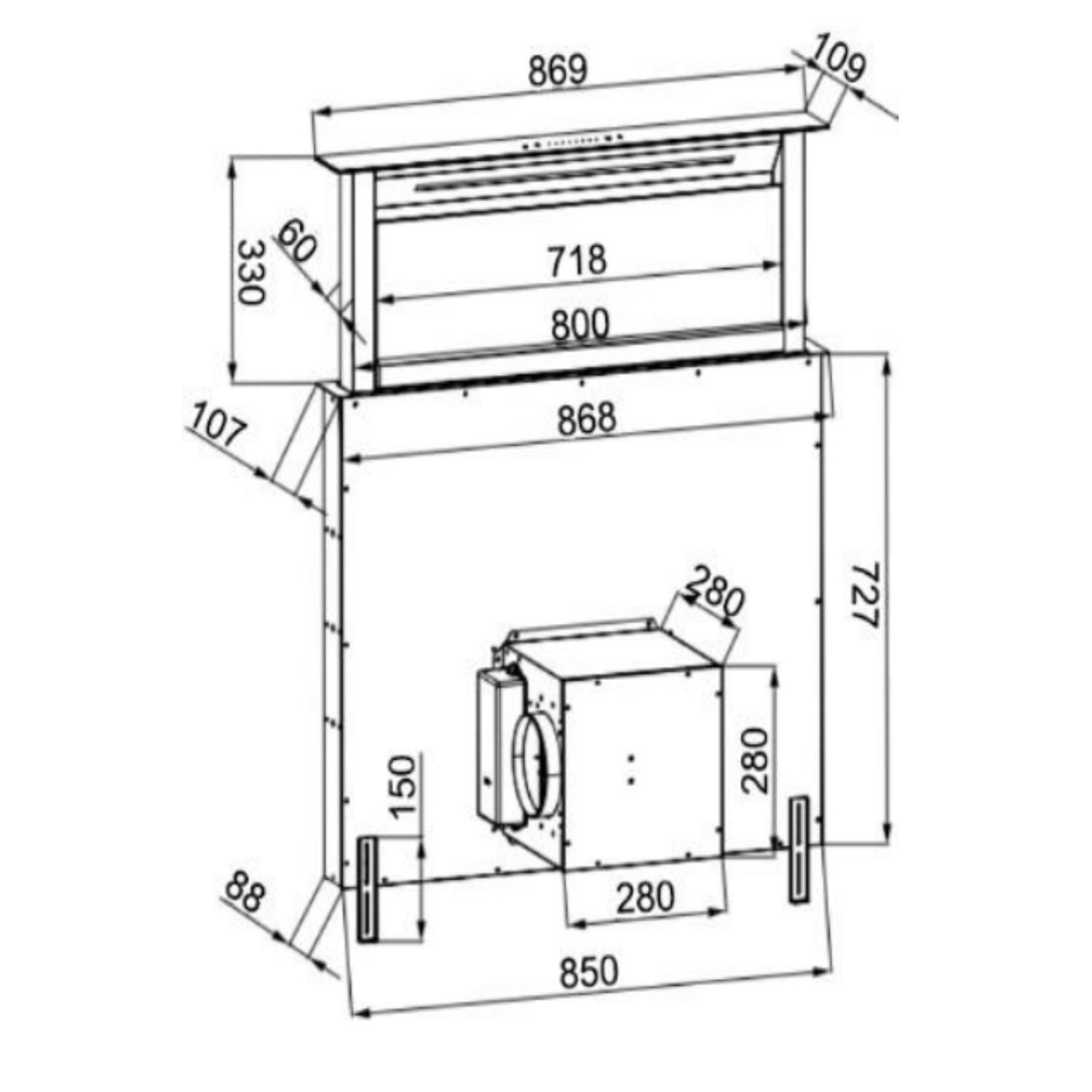

• Max Dimensions: H1057 × W869 × D389 mm
• Visible Dimensions: H330 × W869 × D109 mm
• Cut-Out Dimensions: H727 × W860 × D95 mm
• Voltage: 220–240 V
• Frequency: 50/60 Hz
• Air Outlet Diameter: 150 mm
• Plug Type: BS Plug

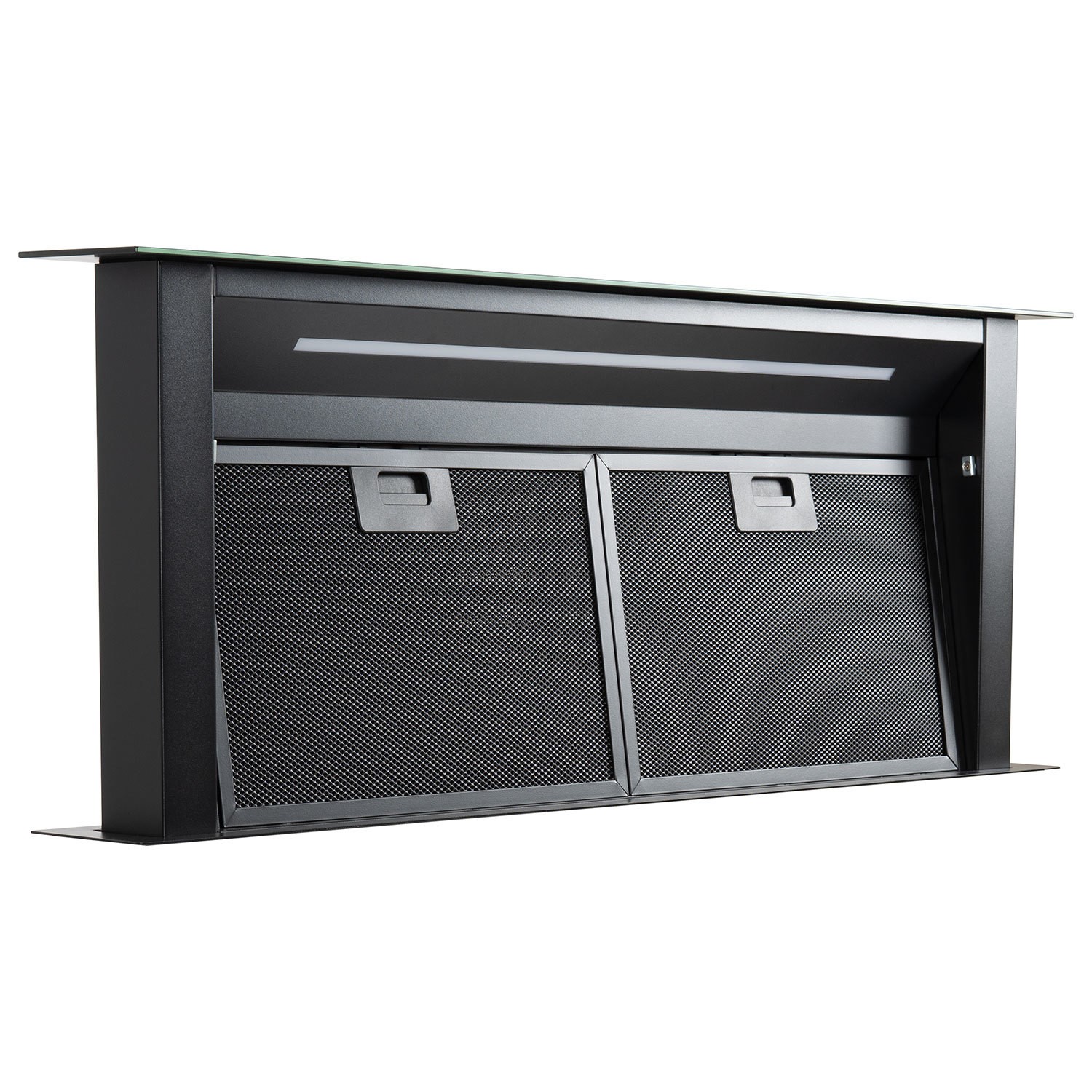

• Grease Filters: 2 × eiQGFD47069 (dishwasher safe)
• Carbon Filter (Optional): eiQCFA40143 × 1 (for recirculation mode)
Question from Roderick Carmichael: Asked on 25/10/2025 What is the recommended external vent when using the rectangular flat channel?
Hi,For the electriQ 90cm Downdraft Cooker Hood (model eiQDD90TOUCHBK), it's recommended to use a rectangular flat channel ducting kit to connect the hood to an external vent with a rectangular outlet (usually around 150mm x 90mm). This ensures efficient venting, allowing the air to be expelled properly through the wall or floor. Be sure to choose a vent that matches the duct size and supports the hood's airflow requirements, and consider a non-return valve to prevent cold air from entering.Thanks!
Question from Darren Smith: Asked on 21/10/2025 Can it be installed next to a gas hob?
Hi Darren,The Electriq EIQDD90TOUCHBK downdraft extractor can be installed next to a gas hob, as long as the proper safety guidelines and clearances are followed. Ensure the unit is positioned at the recommended height and distance from the hob, complies with local regulations, and has adequate ventilation to handle the cooking fumes effectively. It’s also important to ensure proper installation of both gas and electrical connections, so consulting a professional is recommended for safety and compliance.Thanks!
Question from E Leahy: Asked on 19/10/2025 Recirculating mode: is that effectively the equivalent of charcoal in more conventional extractor fans?
Thanks in advance
Hi, Yes, when the electriQ 90cm Downdraft Cooker Hood (model eiQDD90TOUCHBK) is installed in recirculating mode, it operates using an activated carbon filter — which is functionally equivalent to the charcoal filters used in conventional extractor fans. This means that instead of venting air outside, the cooker hood filters the air to remove grease and odours, then recirculates it back into the kitchen.
Thank you.
Question from Barry: Asked on 17/10/2025 What side is the motor please - front or back?
I have a draw pack underneath my induction hob so the motor ideally needs to be at the back

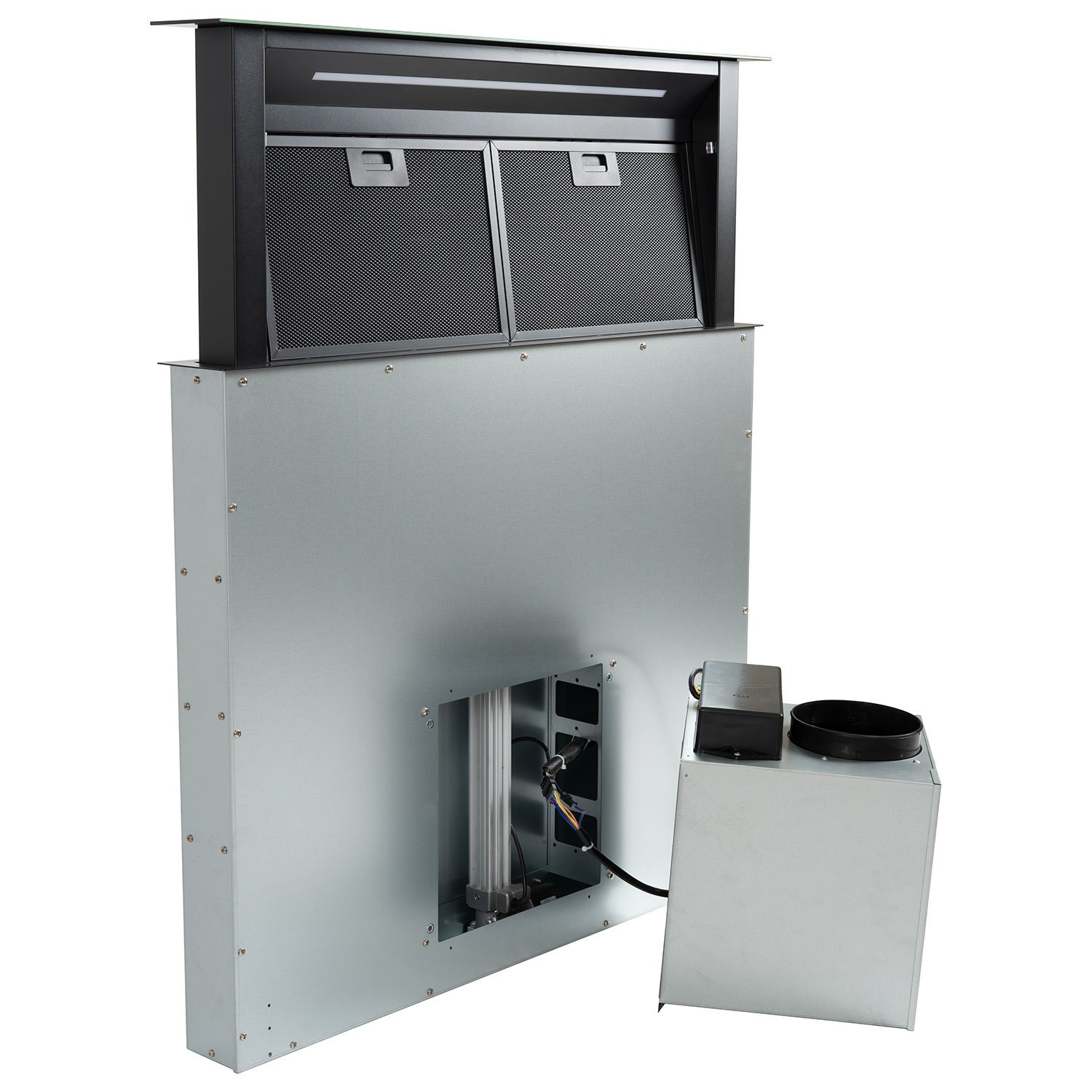

Hi Barry,The motor on the ElectriQ EIQDD90TOUCHBK downdraft extractor is located at the back of the unit. This design makes it ideal for installations with a drawer pack beneath the induction hob, as the rear-mounted motor won’t interfere with the drawer space.Thanks!
Question from Paris: Asked on 09/10/2025 Hi is this compatible with different branded jobs, for example the Samsung hob, and can a oven be placed underneath it, thank you
Hi Paris, this downdraft extractor is compatible with other hob brands, including Samsung, as long as the hob is 90?cm wide. An oven can be placed underneath, but proper ventilation, weight support, and safe electrical/gas connections must be ensured. Please refer to your local installer for further safety and installation concerns. Thank you.
Question from Electriq 90cm downdraft cooker hood: Asked on 03/10/2025 Is this appliance suitable for a gas hob
Hi, The electriQ 90cm Downdraft Cooker Hood (model eiQDD90TOUCHBK) is suitable for use with a gas hob. It can be installed in either ducted (extraction) or recirculating mode, providing effective ventilation with multiple fan speeds.
Thank you.
