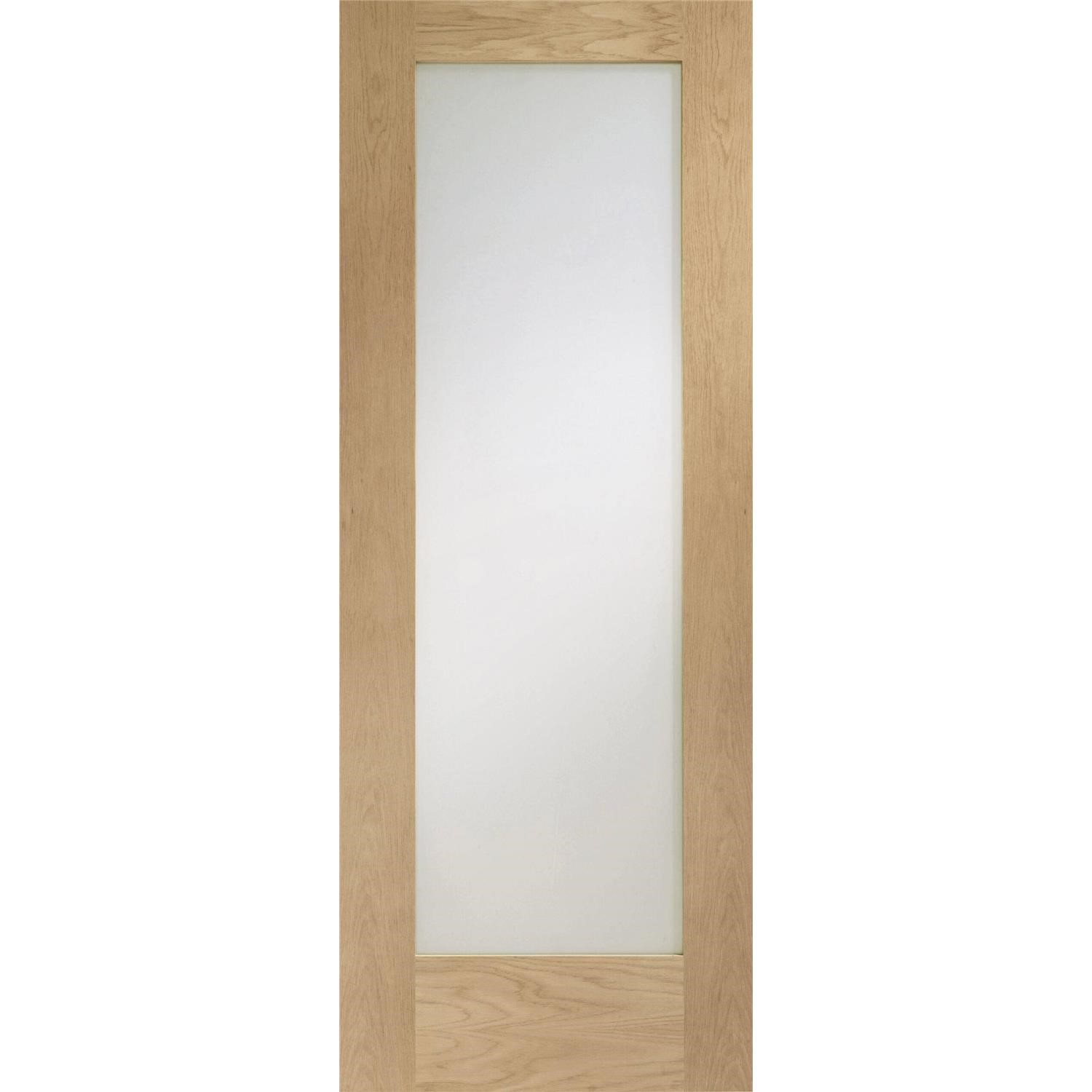

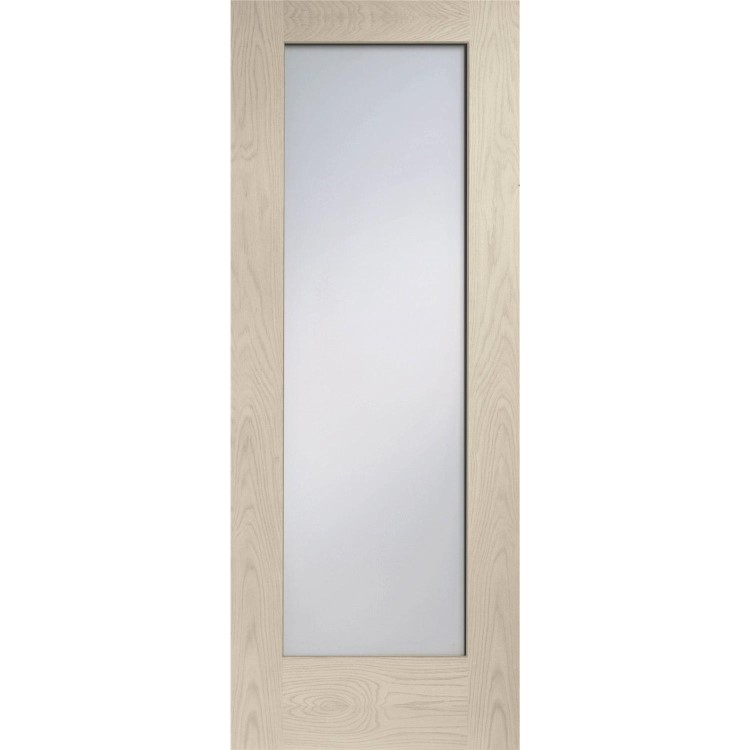

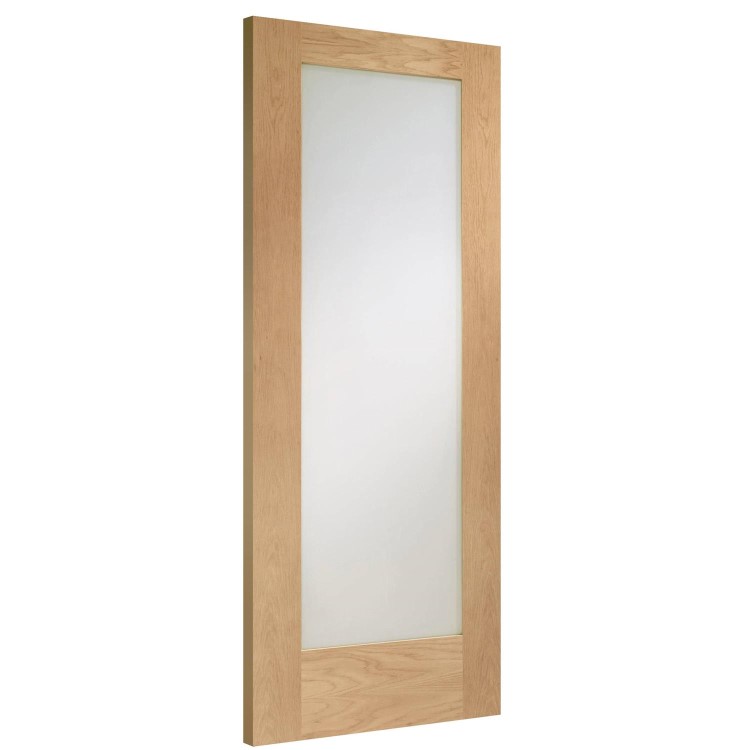

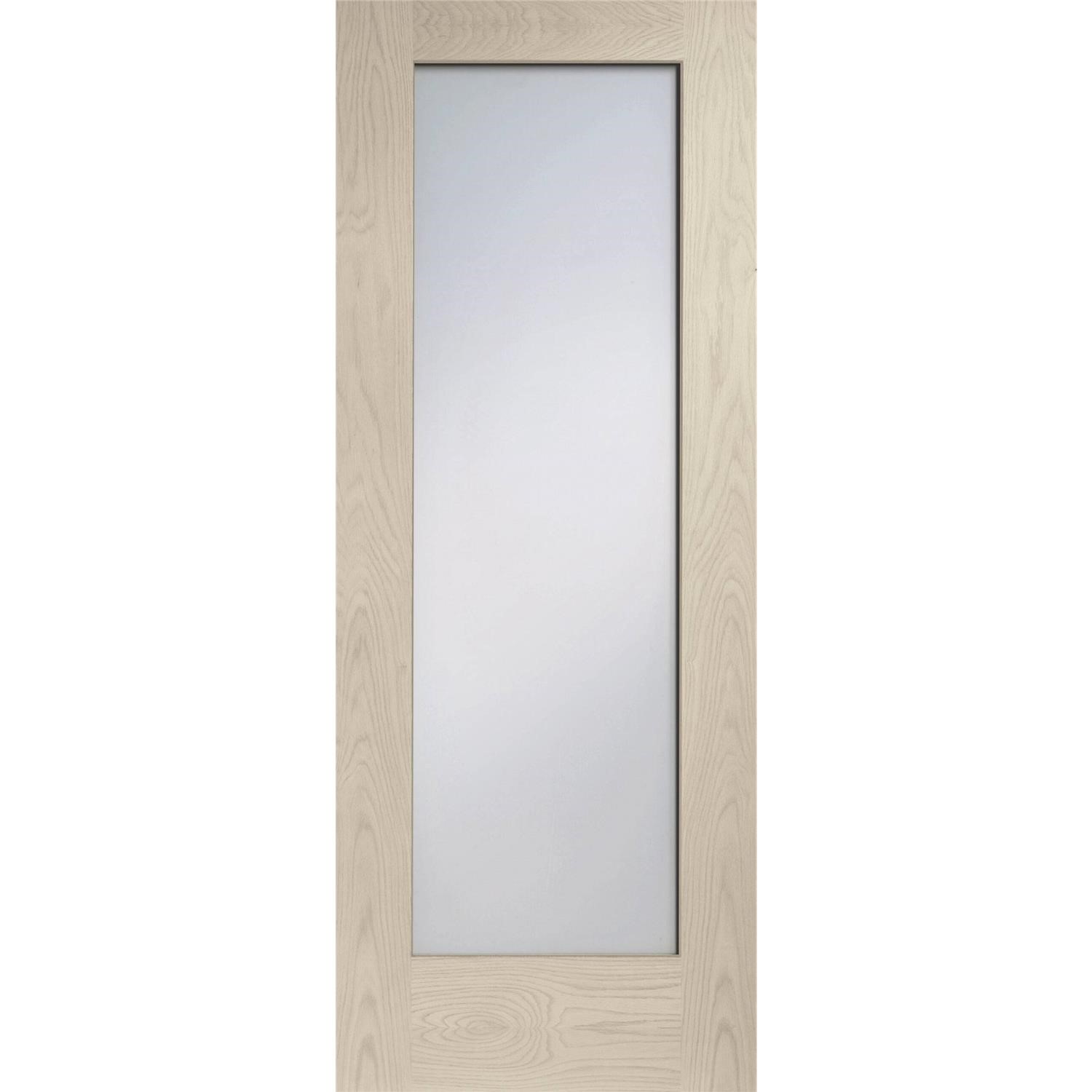

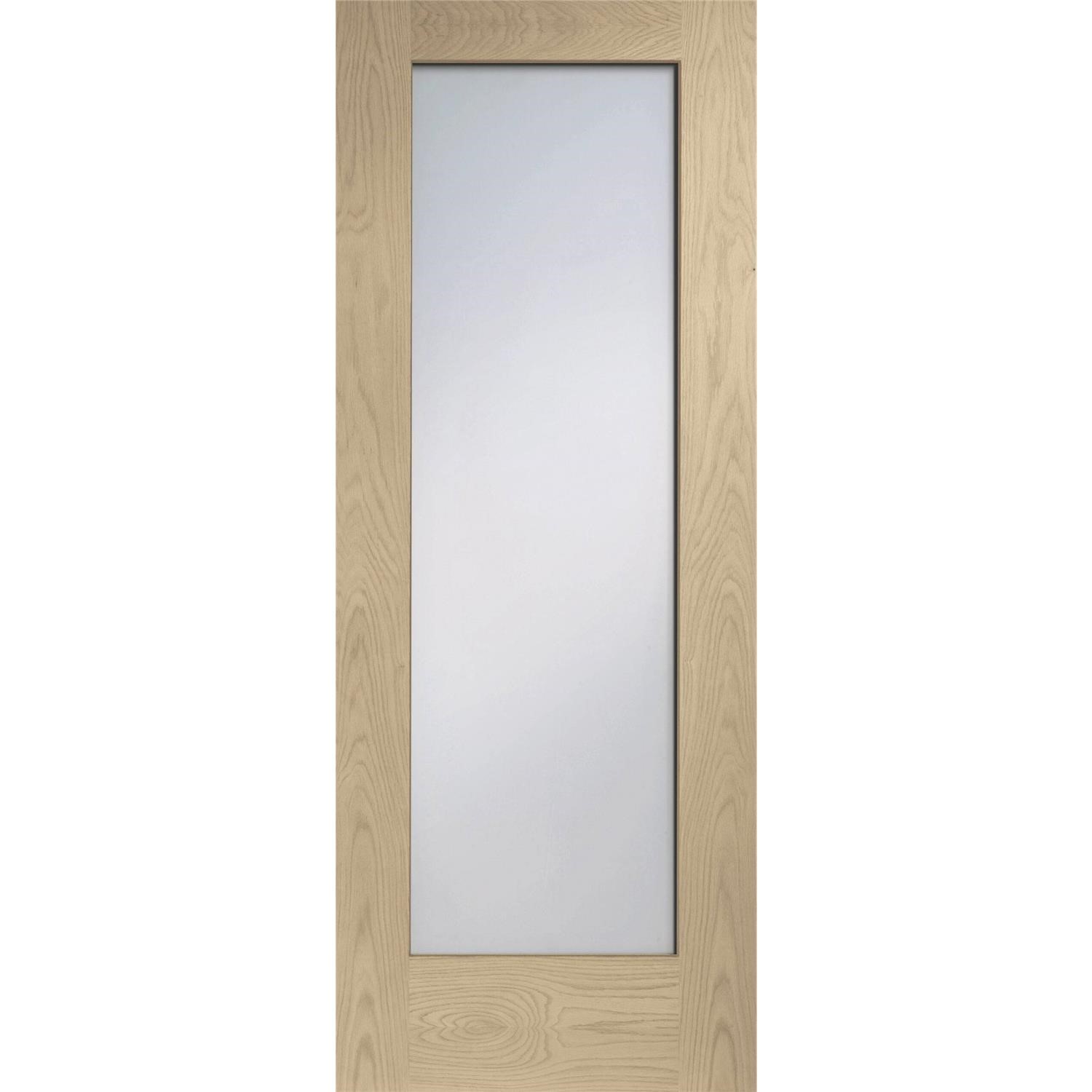

Internal Oak Fully-Glazed FD30 Fire Door with Clear Glass - Unfinished - 1981 x 686 x 44mm - Pattern 10 - XL Joinery

SKU: GOSHAP1027C-FD Quickfind Code: 2023588
SAVE 11%

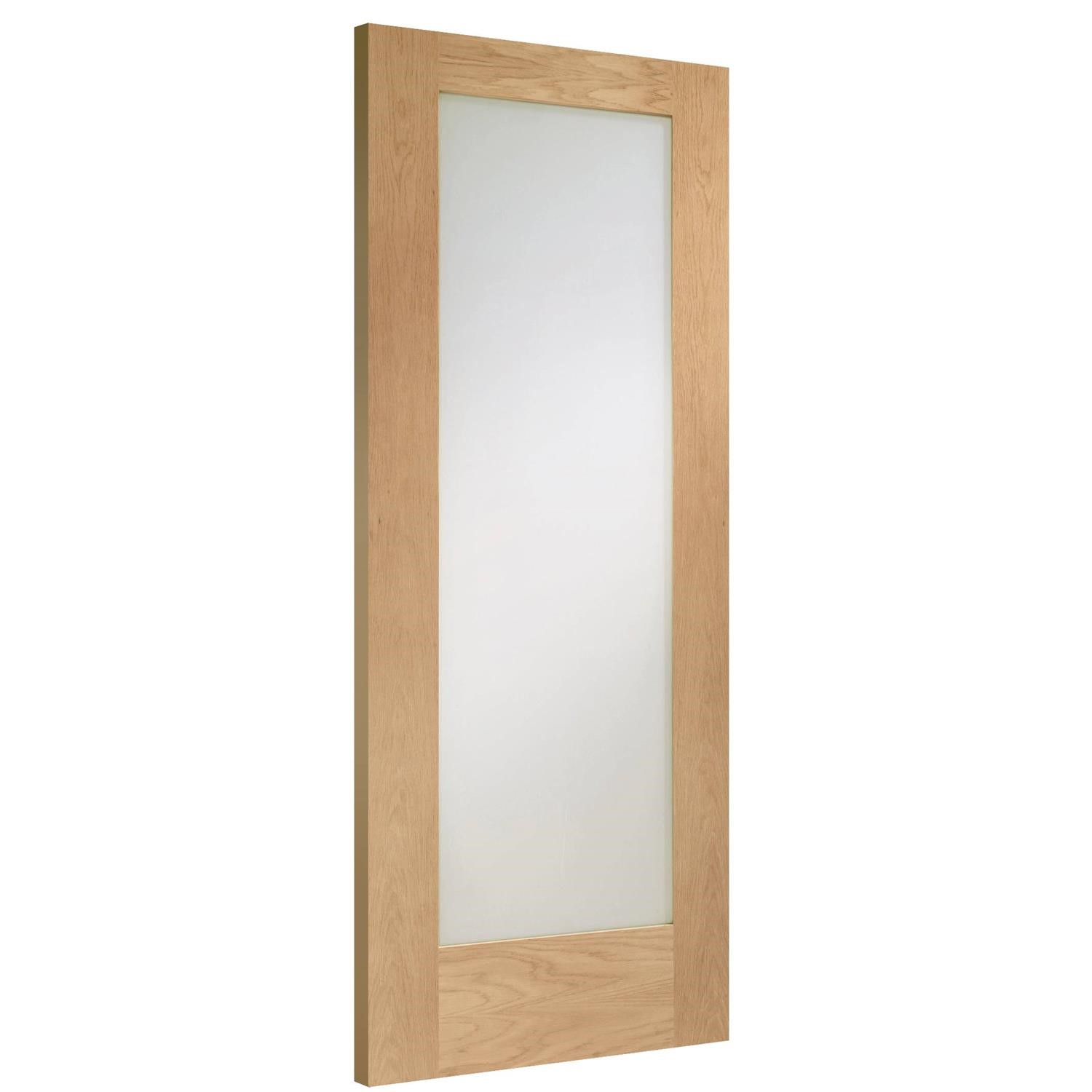

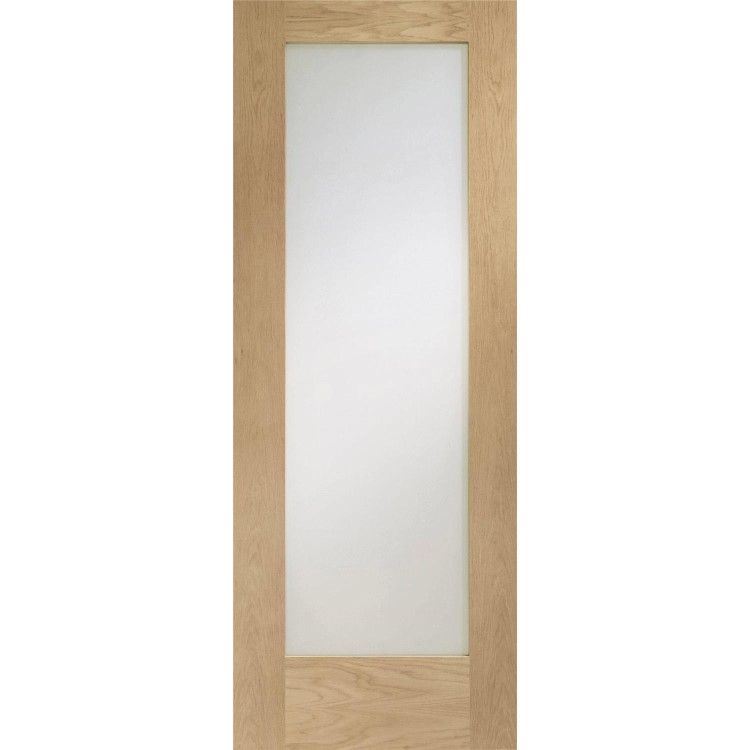

Internal Oak Fully-Glazed FD30 Fire Door with Clear Glass - Unfinished - 1981 x 686 x 44mm - Pattern 10 - XL Joinery
Internal Oak Fully-Glazed FD30 Fire Door with Clear Glass - Unfinished - 1981 x 686 x 44mm - Pattern 10 - XL Joinery
Internal Oak Fully-Glazed FD30 Fire Door with Clear Glass - Unfinished - 1981 x 686 x 44mm - Pattern 10 - XL Joinery
Internal Oak Fully-Glazed FD30 Fire Door with Clear Glass - Unfinished - 1981 x 686 x 44mm - Pattern 10 - XL Joinery
You save: €101.62
€825.97

Product Options

Choose Your Size

Why buy me

  • Engineered construction for added strength, stability and performance
  • Product supplied unfinished, ready to paint or stain
  • A-Grade American White Oak Veneer
  • FSC Certified product with full chain of custody
  • Real Oak Lipping allowing for 2mm to be trimmed off all edges of the door
  • WxDxH - 686mm x 44mm x 1981mm
click

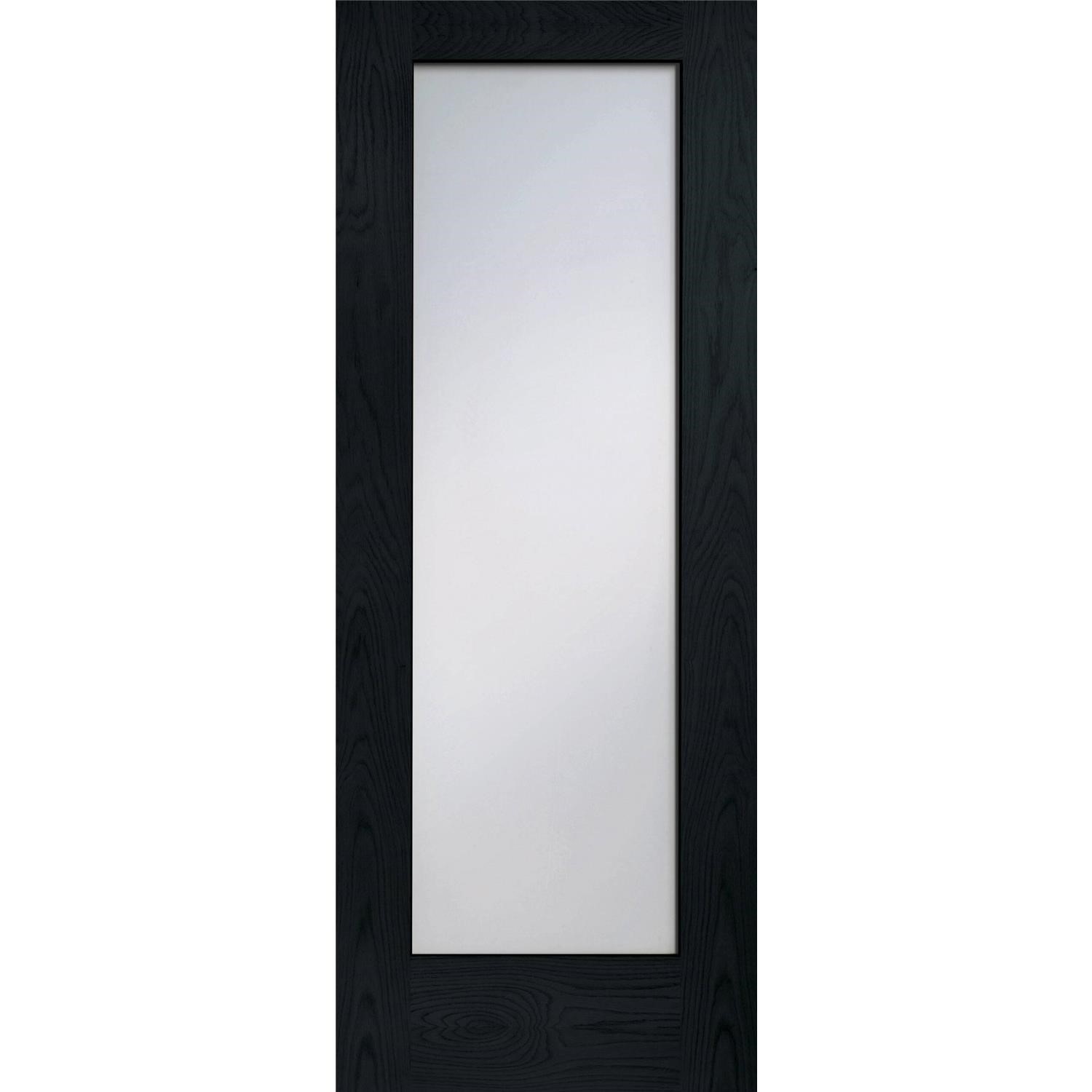

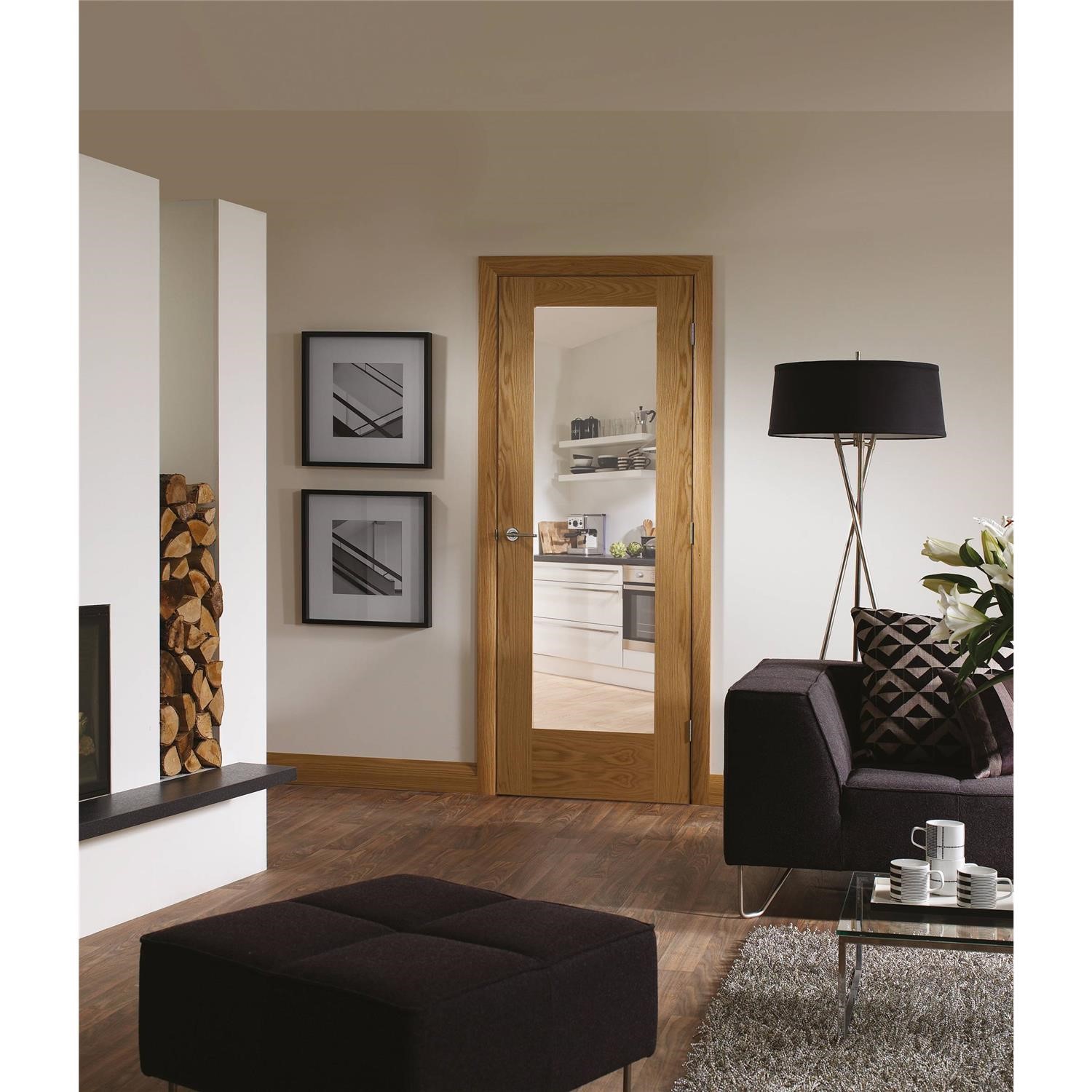

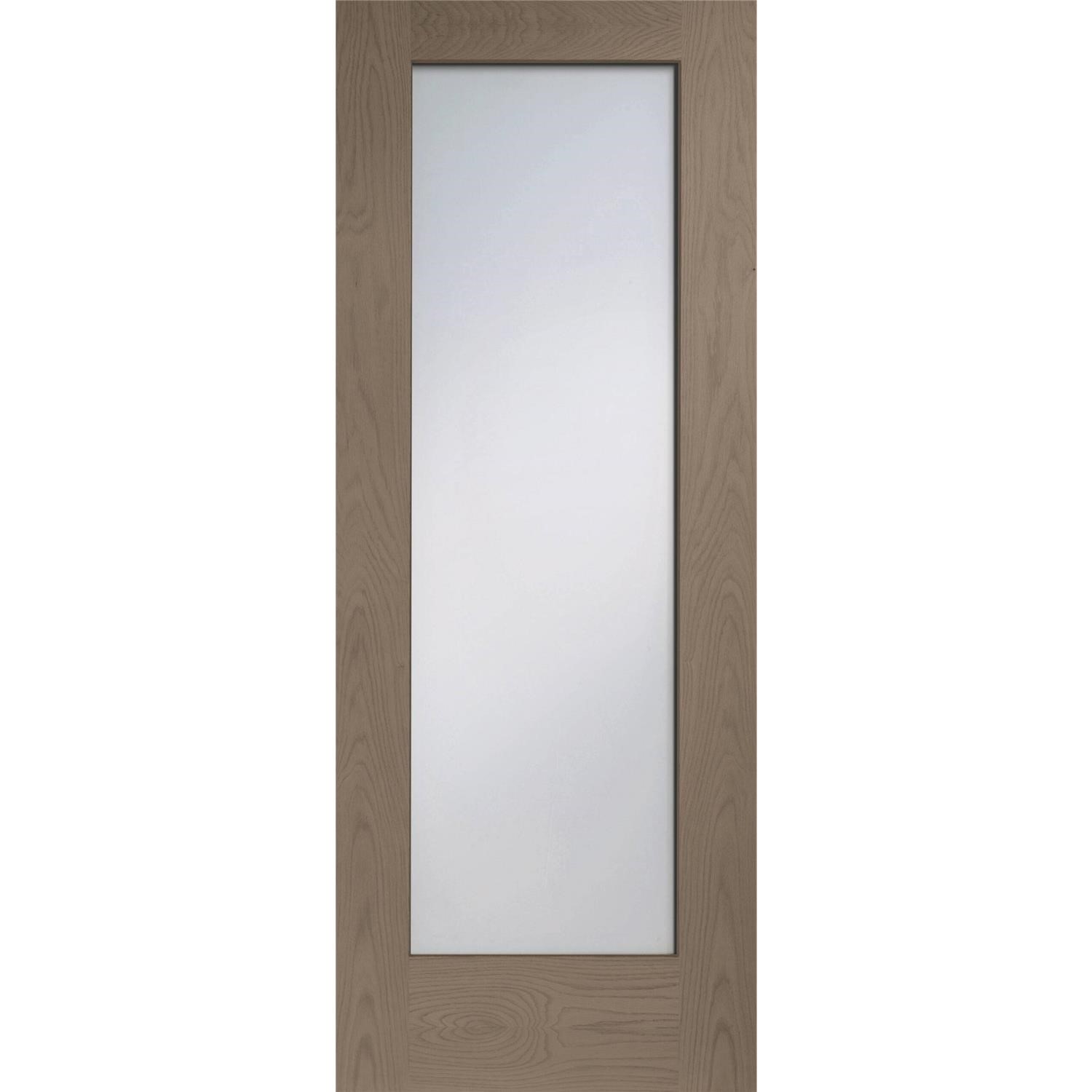

This half hour rated door allows for the maximum amount of light to flow between rooms through it's large central pane of clear glass. A genuinely flexible option that not only complements the rest of the Pattern 10 range but also any internal oak door due to the simplistic nature of the design. The Pattern 10 door is available in a range of colours, including grey and black.


Need To Know
Brand XL Joinery
Range Pattern 10
Door type Fire Doors
FD Rating FD30
Use Internal

Construction
Material Oak
Finish Unfinished
Veneer
Veneer Material American White Oak (Grade A)
Veneer Thickness 6MM
Texture Woodgrain
Lipping Material (Edges) Oak
Core Type Solid Core

Glazing
Glazing Type Glazed Doors
Transparency Clear glass
Glass Shape fully glazed
Glass Cut Flat Glass
Specification Toughened 6mm Safety Glass
Compliance British Standard BS EN 12150

Design
Door Style Modern
Panel Count 1-Panel
Colour Brown

Dimensions & Weight
Height 1981mm
Width 686mm
Thickness 44mm
Lippings 11mm
Weight 30KG

Installation
Hinge Type Required 4 Inch Butt Hinge
Number of Hinges 3 required
Trimming Allowance - Top 2mm
Trimming Allowance - Bottom 2mm
Trimming Allowance - Each Side 2mm
