UTC Vandal Resistant 20M IR Dome Camera 520TVL 3.5-8mm Varifocal UTC-DSIRHRV

Quickfind code: 505894
BIDie Sale Banner Product Page
Was: €133.07     You save: €66.1
€66.97

See all delivery & collection options
Enter delivery postcode for options and prices:

We want your delivery to be as easy as possible which is why we offer a service to suit you!

click to close
Why buy me
  • Type Color/Monochrome
  • Signal System NTSC/PAL
  • Pick Up Device 1/3" Sony Color High Resolution CCD
  • Picture Elements NTSC: 811H 508V PAL: 795H 596V
  • Resolution 520 TV Line
  • Min Illumination 0Lux (36 Pieces IR LED ON)
  • Vertical Frequency NTSC:60Hz PAL:50Hz
  • Horizontal Frequency NTSC:15.734KHz PAL:15.625KHz
More Info »
click
Valid promotions & discounts
Price match

If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 1520 932 633 and we will try and price match where possible! Terms & Conditions apply.

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options
click

Popular Bundles

Product Information

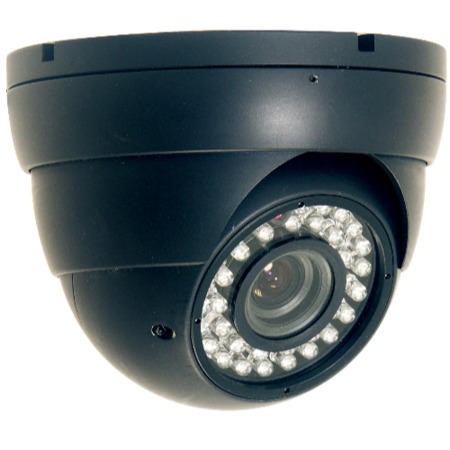

Designed for areas that are prone to attack, the UTC-DSIRHRV is enclosed in a vandal resistant and weatherproof housing. The robust design of the UTC-DSIRHRV makes it a highly visible camera that can act as a deterrent in hostile environments.

This high-resolution ball dome comes complete with 36 in-built IR LEDs and CDS sensor. Amongst a wide array of functions, the UTC-DSIRHRV features an external zoom/focal adjustment for ease of setup.

  • Type Color/Monochrome
  • Signal System NTSC/PAL
  • Pick Up Device 1/3" Sony Color High Resolution CCD
  • Picture Elements NTSC: 811H 508V PAL: 795H 596V
  • Resolution 520 TV Line
  • Min Illumination 0Lux (36 Pieces IR LED ON)
  • Vertical Frequency NTSC:60Hz PAL:50Hz
  • Horizontal Frequency NTSC:15.734KHz PAL:15.625KHz
  • Clock Frequency NTSC:28.636MHz PAL:28.375MHz
  • Scanning System 2:1 Interlace
  • S/N Ratio >50d
  • Electronic Shutter NTSC:1/60-1/100,000S PAL:1/50-1/100,000S
  • Lens 3.5-8mm Fixed Iris Lens
  • White Balance AUTO Tracking
  • Back Light Compensation ON
  • Auto Gain Control ON
  • GAMMA 0.45
  • Video Out-put 1V p-p, 75Ohm
  • Power Supply DC12V ±10%
  • Current Consumption 340mA(MAX)
  • IR Effect Distance 25m (Outdoor)
  • Dimension 120)dia)x100m
  • Weight 950g
  • Storage Temperature -30º+60°
  • Operating Temperature -30º+40°
