The Details
Experience the next level of smart home automation with this high-precision Radar Human Presence Sensor. Utilizing advanced 5.8G radar technology, it detects even the slightest micro-movements, ensuring lights or climate control remain active while you are reading, working, or sleeping. With its integrated illuminance sensor, it intelligently blends motion detection with light intensity to create the ultimate automated environment tailored to your lifestyle.
Key Features
- Precision Presence Detection: Advanced 5.8G radar technology detects presence beyond simple motion, eliminating the frustration of lights turning off while you are still in the room
- Built-in Illuminance Sensor: Real-time light intensity monitoring (up to 3000 Lux) allows for sophisticated automation, such as only turning on lights when the room is dark
- Customizable Sensitivity: Features 0–6 sensitivity levels and a 90° detection angle to minimize false triggers from pets or curtains
- Smart Home Synergy: Fully compatible with the Tuya/Smart Life ecosystem; seamlessly triggers smart switches, curtains, or sirens based on occupancy
- IVoice Integration: Supports Amazon Alexa and Google Assistant for hands-free status checks and automated routines
Technical Specifications

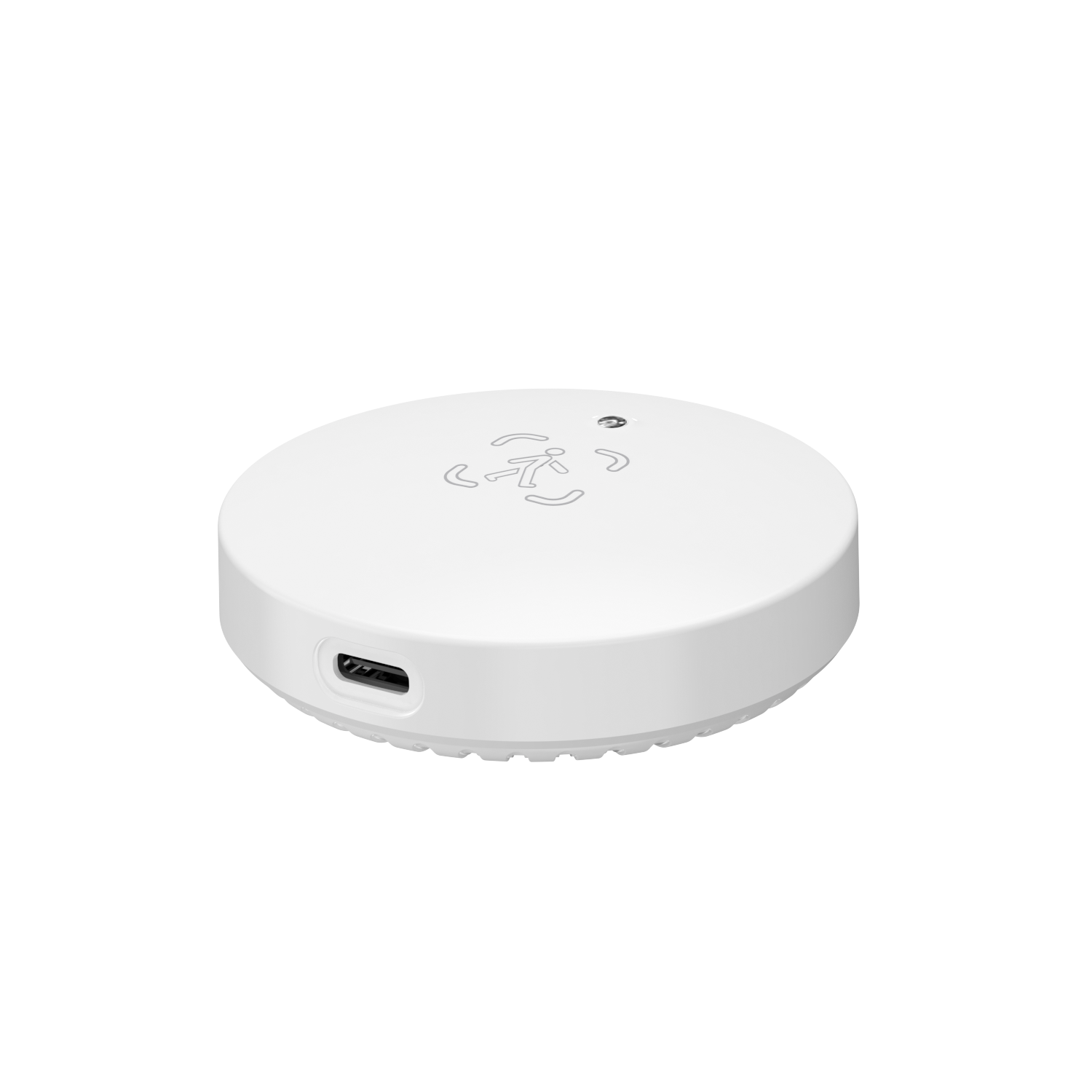

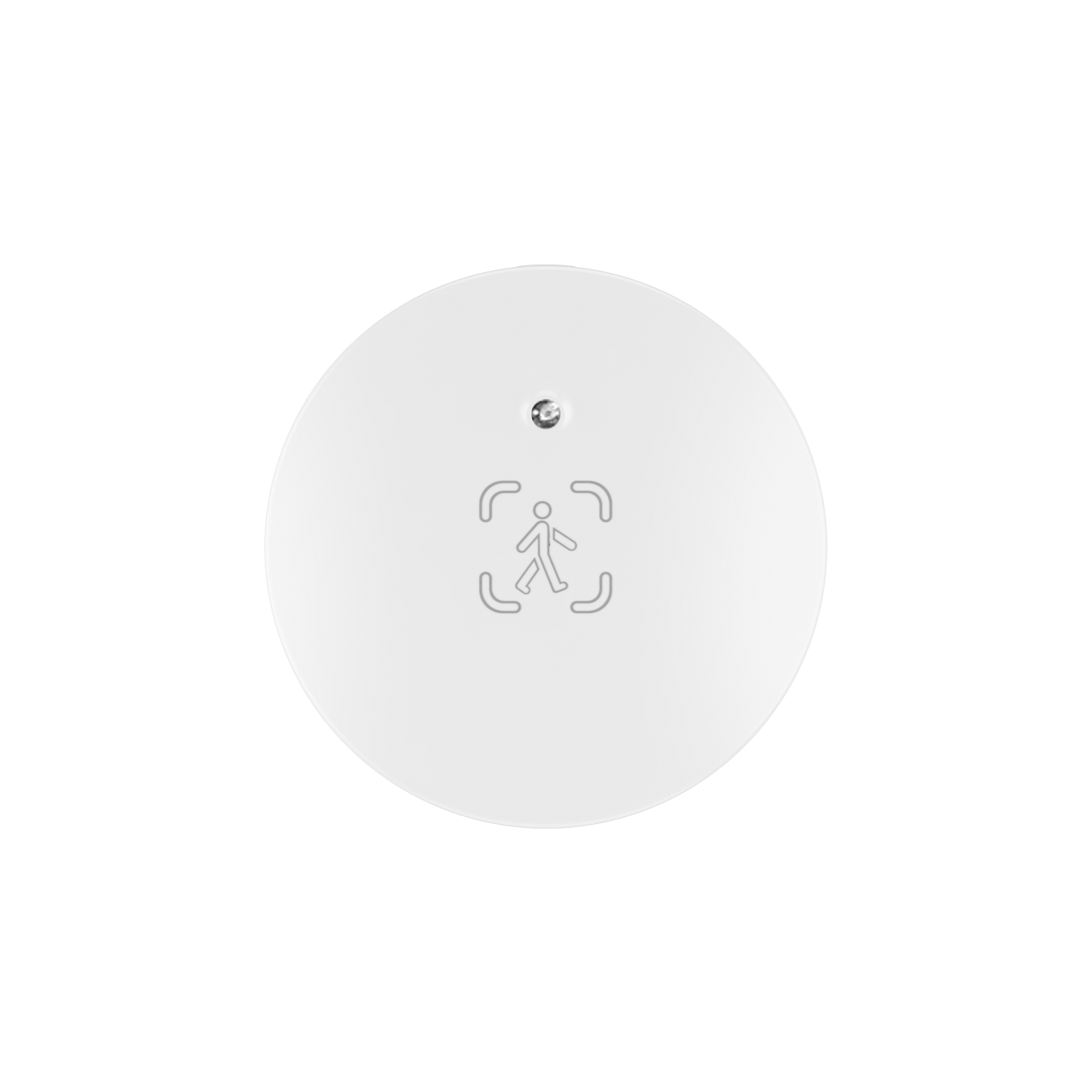

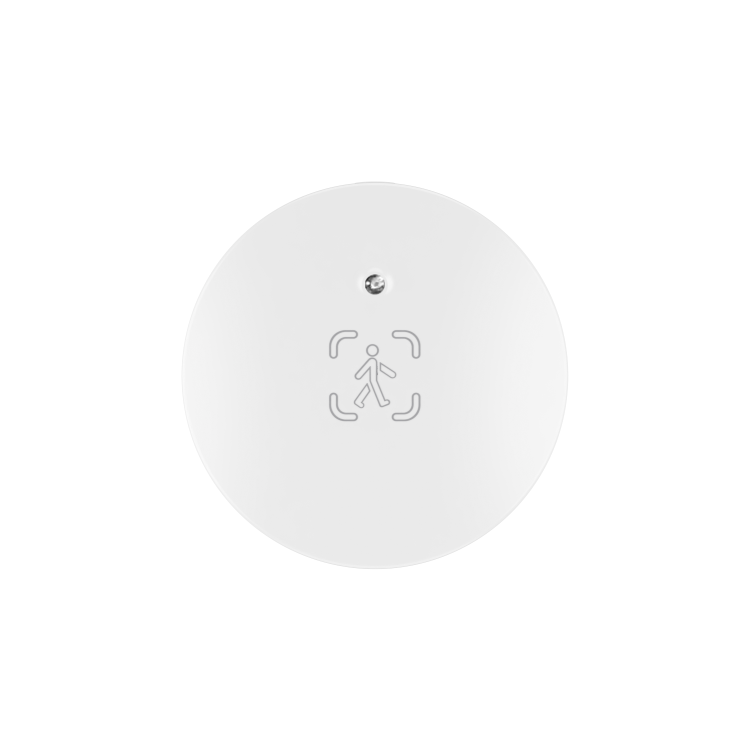

- Product dimensions: Φ65 x 20.5 mm
- Net Weight: 24.5g
- Input: DC 5V/1A (USB Power)
- Radar Frequency: 5.8 GHz
- Detection Range: 0 – 6 meters
- Detection Angle: > 90°
- Illuminance Range: 0 – 3000 Lux
- Working Temperature: -10°C – 55°C
Quick Start Guides
- Optimal Placement: For best results, mount the sensor at a height of 1.5–2 meters or on the ceiling, ensuring it faces the area where presence detection is most critical.
- Material Penetration: Note that 5.8G radar signals can penetrate thin walls or glass; adjust the sensitivity (0–6) to fine-tune the detection zone.
- Stable Power: Use a consistent 5V/1A power source to ensure the radar maintains continuous monitoring without interruption.
