  • TP-Link TL-SG1024D 24-Port Unmanaged Gigabit Desktop/Rackmount Switch TL-SG1024D

    Quickfind code: 559806
    Was: €128.09     You save: €49.82
    €78.27

    See all delivery & collection options
    Enter delivery postcode for options and prices:

    We want your delivery to be as easy as possible which is why we offer a service to suit you!

    click to close
    Why buy me
    • 24 10/100/1000Mbps ports
    • Innovative energy-efficient technology saves power up to 25%
    • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
    • Plug play design
    • Innovative energy-efficient technology saves power up to 25%
    • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
    • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
    • 48Gbps Switching Capacity
    More Info » Tech Spec »
    click
    Valid promotions & discounts
    Price match

    If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 1520 932 633 and we will try and price match where possible! Terms & Conditions apply.

    click
    Ways to pay

    Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

    payment options
    click

    Popular Bundles

    Product Information

    -
    • 24 10/100/1000Mbps ports
    • Innovative energy-efficient technology saves power up to 25%
    • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
    • Plug & play design
    -

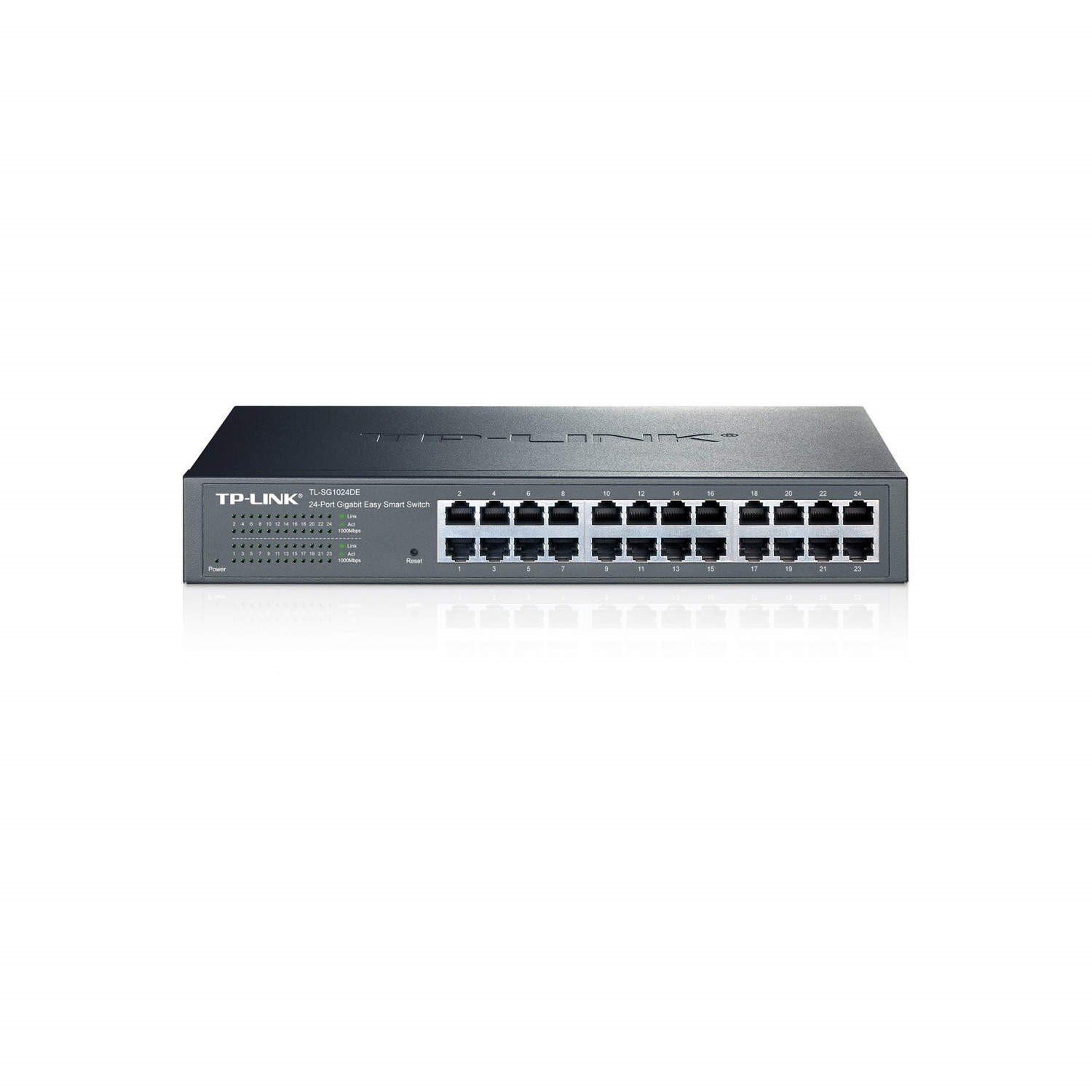

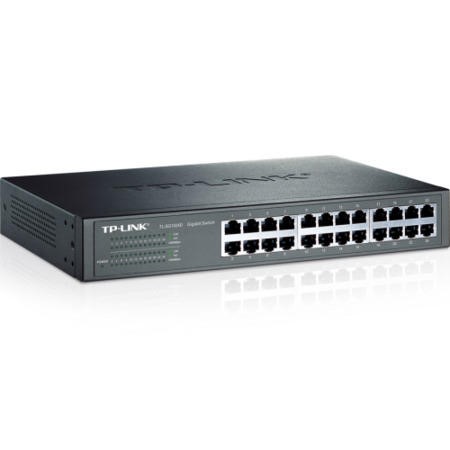

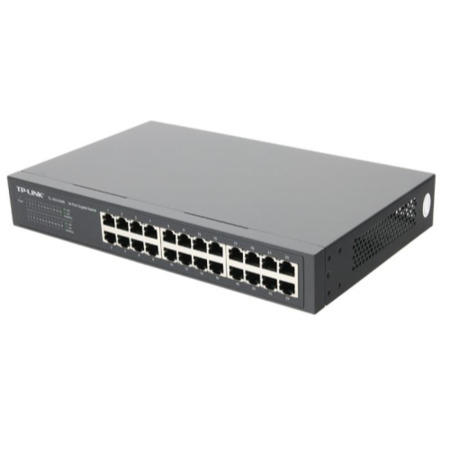

    24-Port Gigabit Desktop/Rackmount Switch

    The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 25% of the power consumption and 80% of the packaging material can be recycled, making it an energy-efficient solution for your business network.

    -
    Green Tech

    TP-LINK Green Technology

    This TL-SG1024D Gigabit Switch features energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.


    ports

    High Performance

    All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput.

    With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1024D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.


    award

    Easy to Use

    The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.



    Features

    • Innovative energy-efficient technology saves power up to 25%
    • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
    • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
    • 48Gbps Switching Capacity
    • 10K Jumbo frame improves performance of large data transfers
    • Auto-MDI/MDIX eliminates the need for crossover cables
    • Supports MAC address auto-learning and auto-aging
    • Store and forward Switching scheme
    • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
    • Desktop and Rack-mountable design
    • Plug and Play design simplifies installation


    Tech Spec

    Data transmission
    Jumbo Frames support
    MAC address table 8000 entries
    Maximum data transfer rate 1 Gbit/s
    Store-and-forward
    Supported data transfer rates 10/100/100 Mbps
    Switching capacity 48 Gbit/s
    Design
    Certification FCC, CE
    Colour of product Grey
    Rack mounting
    Management features
    Switch layer -
    Switch type Unmanaged
    Networking
    10G support
    Auto MDI/MDI-X
    Flow control support
    Full duplex
    Networking standards IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
    Performance
    Stackable
    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity 24
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    DC-in jack
    Gigabit Ethernet (copper) ports quantity 24
    SFP ports quantity 0
    SFP+ ports quantity 0
    Power
    Energy Star certified -
    Power consumption (typical) 14.6 W
    Power Over Ethernet (PoE)
    Power over Ethernet (PoE) Support
    Protocols
    Supported network protocols CSMA/CD, TCP/IP
    Operational conditions
    Operating relative humidity (H-H) 10 - 90 %
    Operating temperature (T-T) 32 - 104 °F
    Operating temperature (T-T) 0 - 40 °C
    Storage relative humidity (H-H) 5 - 90 %
    Storage temperature (T-T) -40 - 70 °C
    Other features
    Bandwidth 48 Gbit/s
    Connectivity LEDs
    Connectivity Technology Wired
    Dimensions (WxDxH) 294 x 180 x 44 mm
    Networking features Gigabit Ethernet
    Power requirements 100 - 240V, 50/60Hz
    Power supply type AC
