TP-Link 5 port Desktop Gigabit Switch TL-SG1005D

Quickfind code: 557380
Was: €50.19     You save: €32.22
€17.97

See all delivery & collection options
Enter delivery postcode for options and prices:

We want your delivery to be as easy as possible which is why we offer a service to suit you!

click to close
Why buy me
  • Power down Idle Ports When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1005D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use
More Info » Tech Spec »
click
Valid promotions & discounts
Price match

If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 1520 932 633 and we will try and price match where possible! Terms & Conditions apply.

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options
click

Popular Bundles

Product Information

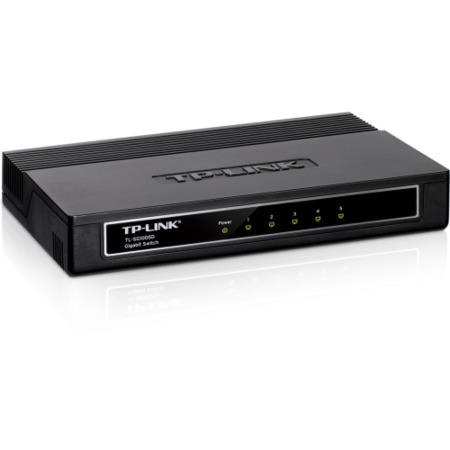

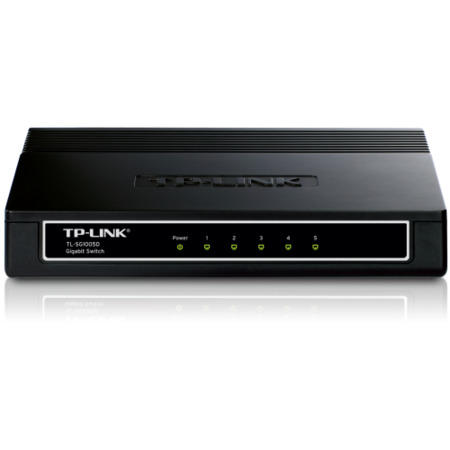

TP-Link 5 port Desktop Gigabit Switch

The TP-Link 5-Port Gigabit desktop switch TL-SG1005D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1005D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1005D can save up to 70%* of the power consumption, making it an eco-friendly solution for your home or office network.

Featured with 5 10/100/1000Mbps ports, TL-SG1005D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1005D 5-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

  • Power down Idle Ports When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1005D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use
  • Power Budget According to Cable Length Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Features and Specifications of the TP-Link 5 port Desktop Gigabit Switch

  • Innovative energy-efficient technology saves power up to 70%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 16Gbps Switching Capacity
  • 9K Jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
  • Fanless design ensures quiet operation
  • Desktop or wall-mounting design
  • Plug and Play design simplifies installation
  • Interface:
    5 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
  • External Power: Supply 100~240VAC, 50/60Hz
  • Dimensions (W X D X H): 6.5 x 4.3 x 1.1 in. (165 x 108 x 28 mm)
  • Transmission Method: Store and Forward
  • Advanced Functions:
    Green Technology, saving power up to70%
    802.3X Flow Control, Back Pressure
    Auto-Uplink Every Port
  • Certification: FCC, CE, RoHs
  • Package Contents:
    5-Port Gigabit Desktop Switch TL-SG1005D
    Power Adapter
    User Guide
  • System Requirements:
    Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7
    MAC® OS, NetWare®, UNIX® or Linux.
  • Environment:
    Operating Temperature: 0°C~40°C (32°F~104°F)
    Storage Temperature: -40°C~70°C (-40°F~158°F))
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing

* Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.



Tech Spec

Data transmission
Jumbo Frames support
MAC address table - entries
Maximum data transfer rate 1 Gbit/s
Store-and-forward
Supported data transfer rates 10/100/1000 Mbit/s
Switching capacity 16 Gbit/s
Design
Certification FCC, CE, RoHS
Colour of product Black
Rack mounting
Management features
Switch layer -
Switch type Unmanaged
Networking
10G support
Auto MDI/MDI-X
Flow control support
Full duplex
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Performance
Stackable
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
DC-in jack
Gigabit Ethernet (copper) ports quantity 5
SFP ports quantity -
SFP+ ports quantity -
Power
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Energy Star certified -
Power consumption (typical) 3 W
Power Over Ethernet (PoE)
Power over Ethernet (PoE) Support
Operational conditions
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Other features
Connectivity Technology Wired
Dimensions (WxDxH) 165 x 108 x 28 mm
Ethernet LAN (RJ-45) ports 5
Networking features Gigabit Ethernet
