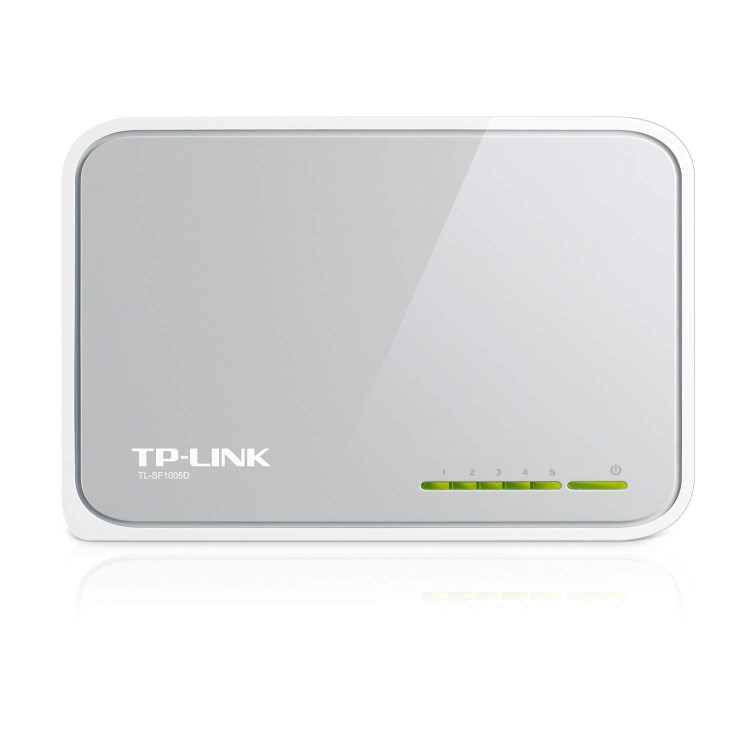

TP-Link 5 Port 10/100M Mini Desktop Switch TL-SF1005D

Quickfind code: 556593
Was: €24.57     You save: €11.6
€12.97

See all delivery & collection options
Enter delivery postcode for options and prices:

We want your delivery to be as easy as possible which is why we offer a service to suit you!

click to close
Why buy me
  • Up to 200Mbps full duplex bandwidth for high-speed data processing
  • Innovative energy-e¤cient technology saves up to 60% of power consumption
  • Plug and play design simpli¤es installation
  • Auto MDI/MDIX eliminates the need for crossover cables
  • IEEE 802.3x ¤ow control provides reliable data transfer
  • Auto-negotiation ports provide smart integration between 10Mbps and 100Mbps hardware
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Protocol: CSMA/CD
More Info » Tech Spec »
click
Valid promotions & discounts
Price match

If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 1520 932 633 and we will try and price match where possible! Terms & Conditions apply.

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options
click

Popular Bundles

Product Information

TP-Link 5-Port 10/100Mbps Desktop Switch

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support Auto MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 60% of power consumption, making it an eco-friendly solution for your home or office network.

Features and Specifications of the TP-Link 5-Port 10/100Mbps Desktop Switch

  • Up to 200Mbps full duplex bandwidth for high-speed data processing
  • Innovative energy-e¤cient technology saves up to 60% of power consumption
  • Plug and play design simpli¤es installation
  • Auto MDI/MDIX eliminates the need for crossover cables
  • IEEE 802.3x ¤ow control provides reliable data transfer
  • Auto-negotiation ports provide smart integration between 10Mbps and 100Mbps hardware
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Protocol: CSMA/CD
  • Interface:
    5 10/100Mbps Port, Auto-negotiation, Auto MDI/MDIX
    Half and Full Duplex
  • Switching Features:
    MAC Address Learning
    10Gbps Backplane Bandwidth
  • Forwarding Rates
    10BASE-T: 14880pps/port
    10BASE-TX: 148800pps/port
  • Data Rates:
    10/100Mbps at Half Duplex
    20/200Mbps at Full Duplex
  • LEDs: Power 1, 2, 3, 4, 5
  • Transfer Method: Store and Forward
  • Power Supply: External Power Adapter
  • Certi¤cations: CE, FCC
  • Environment:
    Operating Temperature: 0°C~40°C (32°F~104°F)
    Storage Temperature: -40°C~70°C (-40°F~158°F)
    Operating Humidity: 10% ~ 90%, non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Dimensions: 4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm)


Tech Spec

Data transmission
MAC address table 1000 entries
Maximum data transfer rate 0.1 Gbit/s
Store-and-forward
Supported data transfer rates 10/100 Mbps
Switching capacity 1 Gbit/s
Design
Certification FCC, CE
Colour of product White
Rack mounting
Management features
Switch layer -
Switch type Unmanaged
Networking
Flow control support
Full duplex
Networking standards IEEE 802.3u,IEEE 802.3x
Performance
Stackable
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Copper ethernet cabling technology 100BASE-TX,10BASE-T
DC-in jack
Power
Power consumption (typical) 3 W
Power Over Ethernet (PoE)
Power over Ethernet (PoE) Support
Protocols
Supported network protocols CSMA/CD, TCP/IP
Operational conditions
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Other features
Connectivity LEDs
Dimensions (WxDxH) 140 x 87 x 27.5 mm
