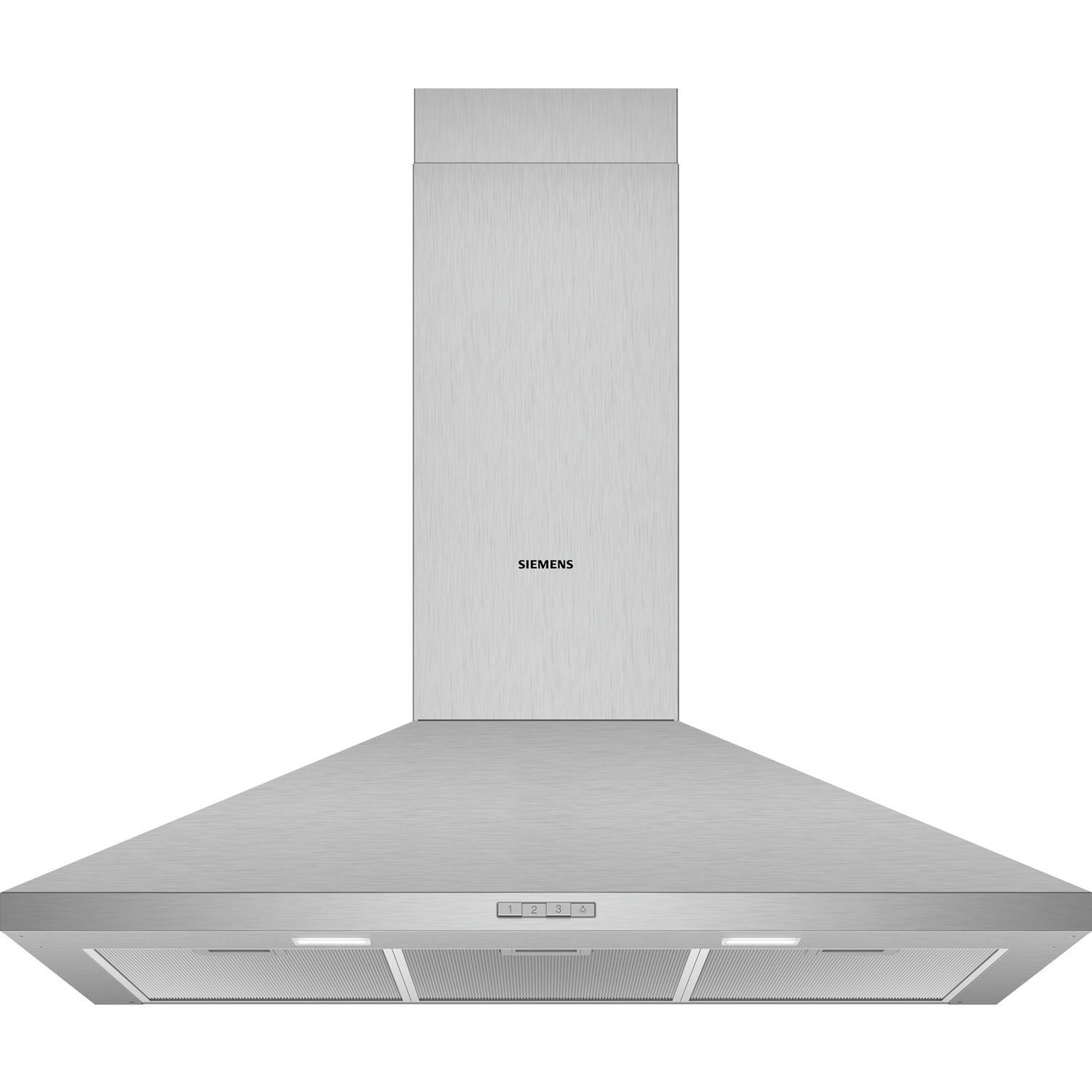

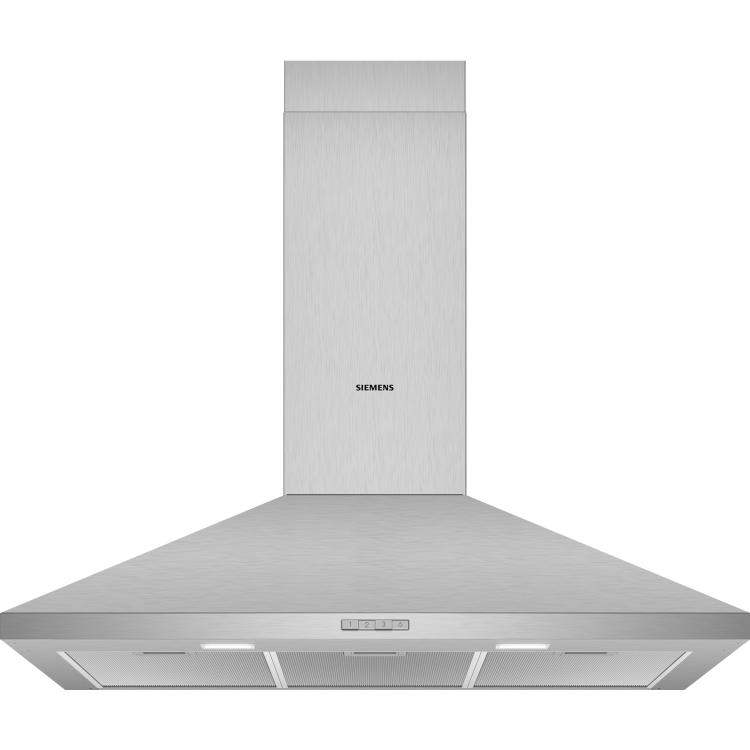

Siemens iQ100 90cm Pyramid Style Chimney Cooker Hood - Stainless Steel

SKU: LC94PBC50B Quickfind Code: 1270217
Energy rating C
407.97
Energy Label
Why buy me
  • Dimensions: (H)77cm x (W)90cm x (D)50cm
click
Key performance features:
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
  • Max. extraction rate: 360 m3/h
  • Noise max. Normal Level: 65 dB*
Features

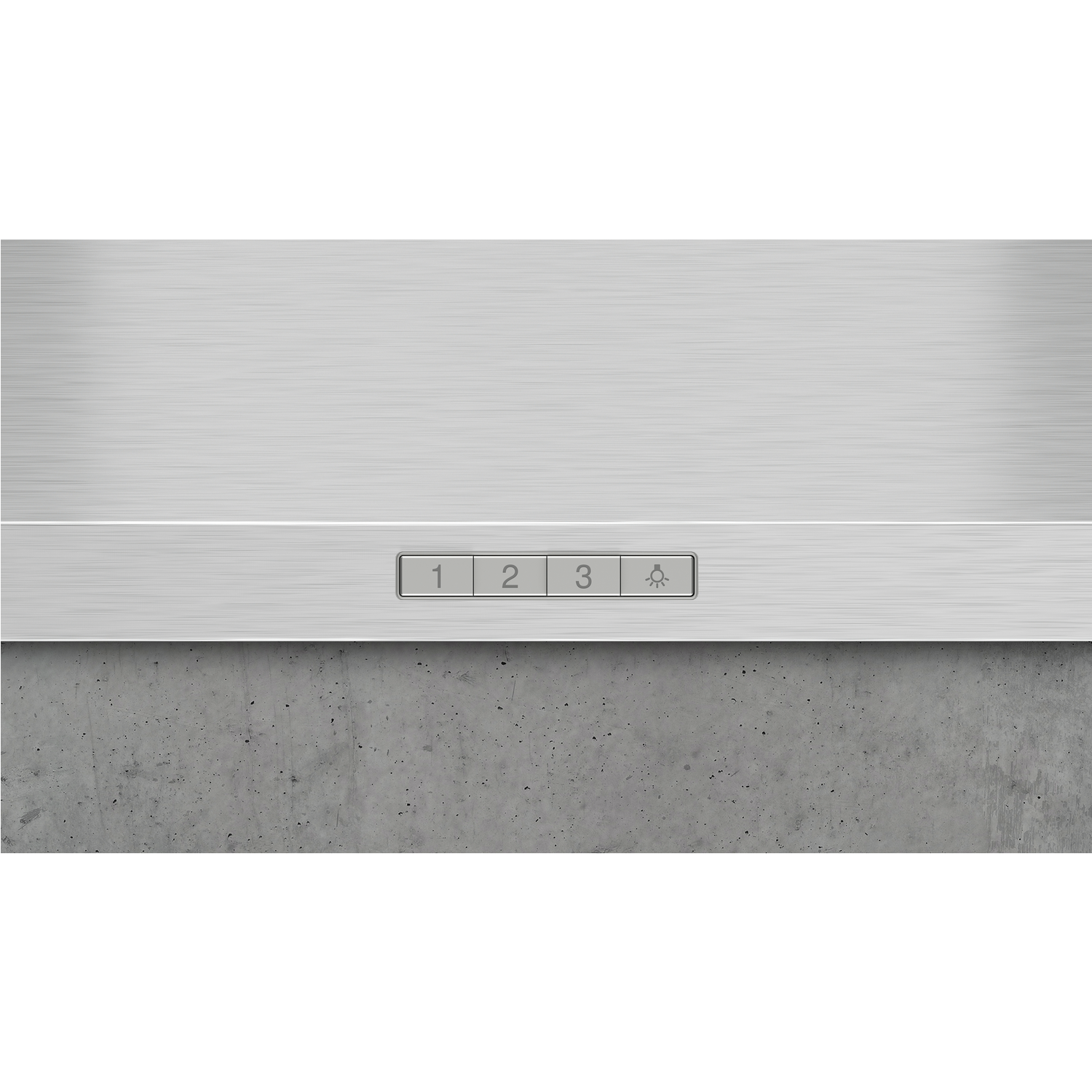

  • Push button control for extractor speeds and light
  • 3 x power levels
  • Twin channel high performance fan motor
  • 2 x 1.5W LED
  • Colour Temperature: 3500 K

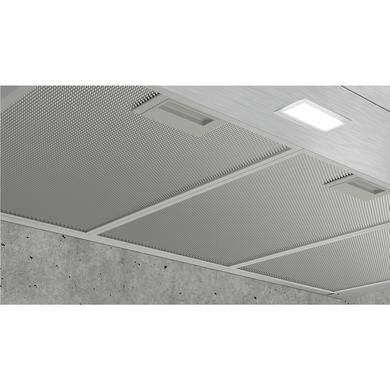

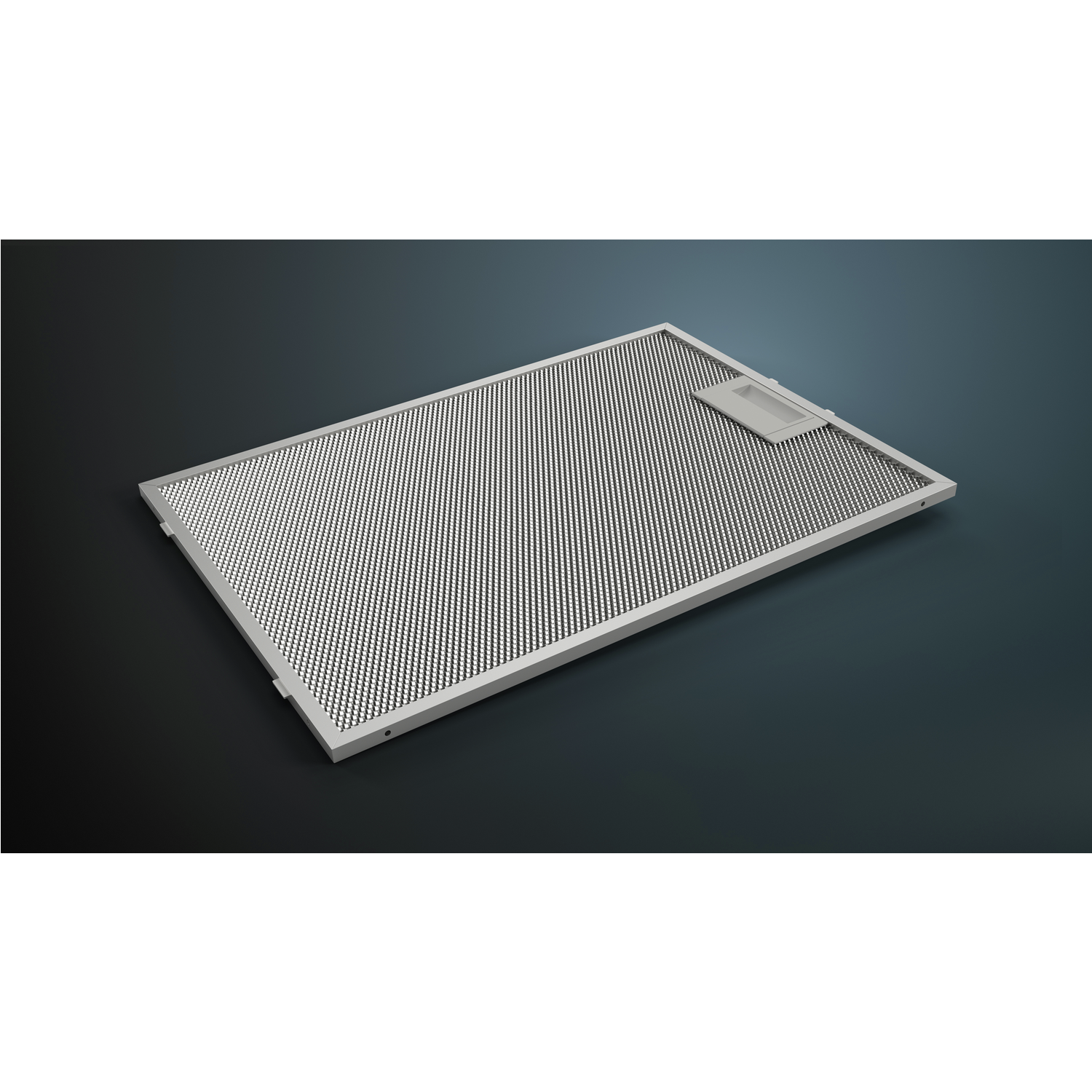

  • 3 x metal grease filter cassettes - dishwasher safe

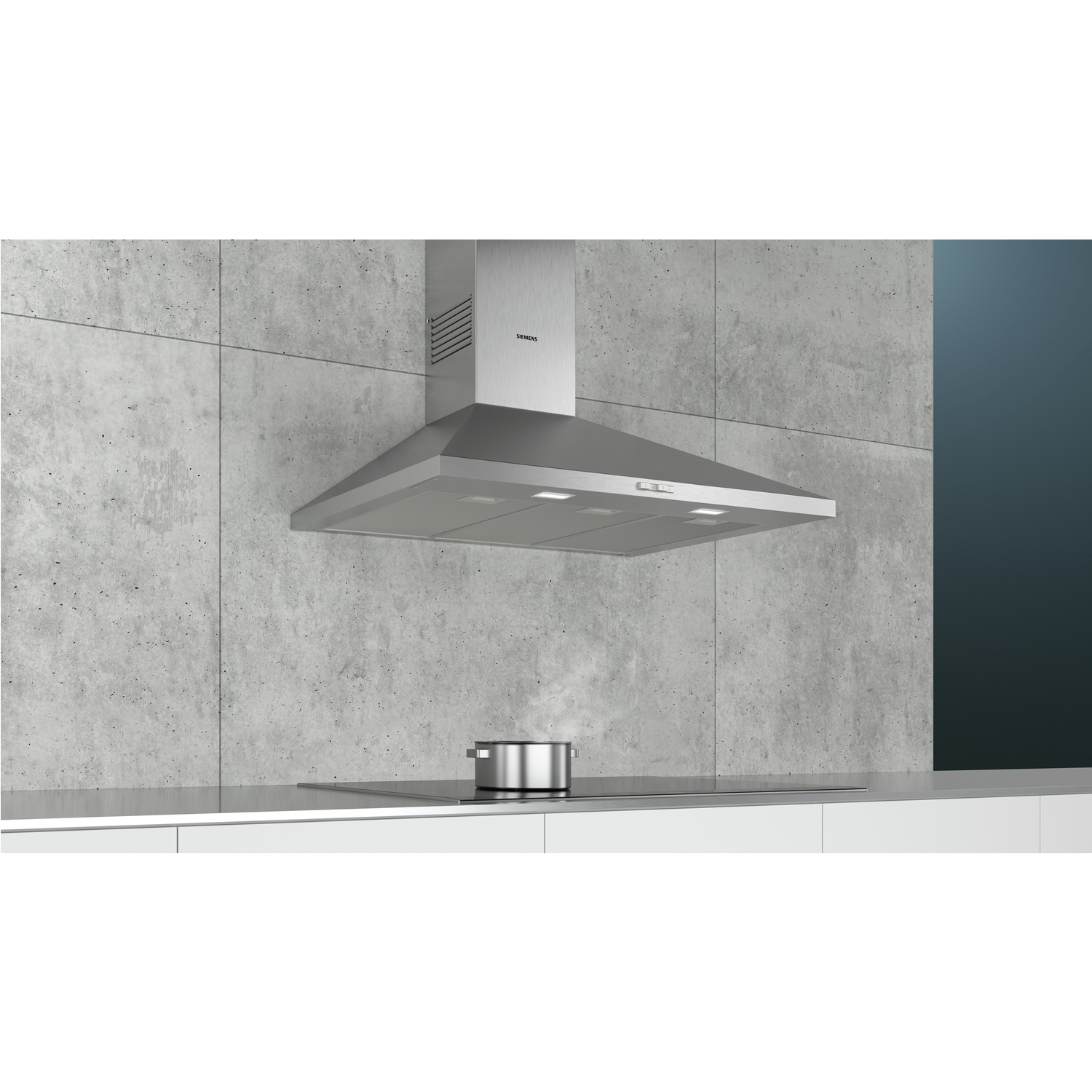

  • For wall mounted installation
Design
  • Pyramid
  • Chimney hood
  • Mechanical
Performance/technical information
  • Suitable for ducted and re-circulating operation
  • For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
  • Max. extraction rate: 360 m3/h
  • Maximum extraction rate exhaust air 360 m³/h according to EN 61591
  • Extraction rate in recirculation mode:
  • Max. normal use: 200 m³/h
  • Noise max. Normal Level: 65 dB*
  • Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 65 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)
  • Noise level in recirculation mode:
  • Max. normal use: 67 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
  • Power rating: 100 W
  • Light Intensity: 94 lux
  • Colour Temperature: 3500 K
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

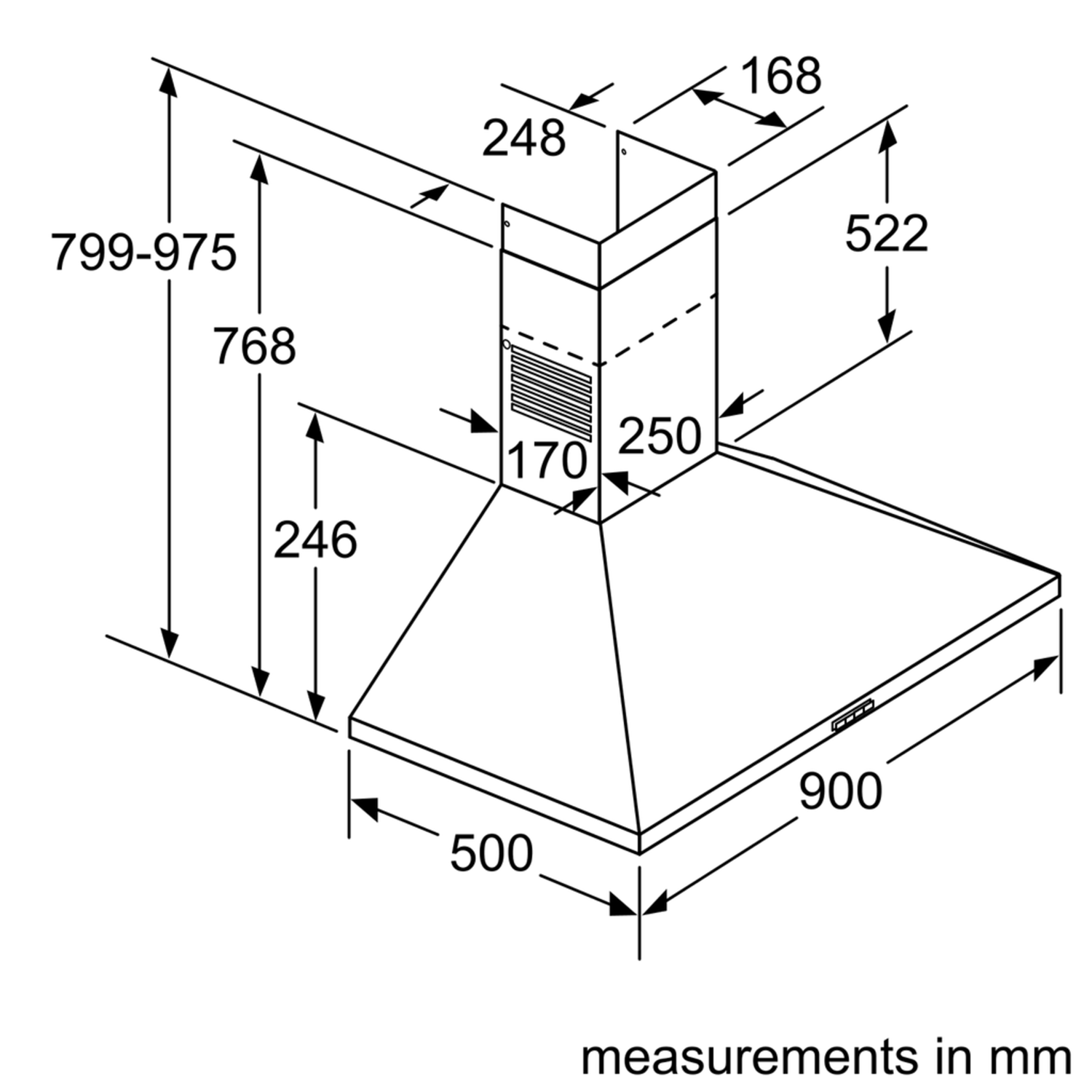

  • Dimensions exhaust air (HxWxD): 799-975 x 900 x 500 mm
  • Dimensions recirculating, chimney (HxWxD): 799-975 x 900 x 500 mm
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
  • Blower Efficiency Class: E*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: D*
  • Average Energy Consumption: 51.3 kWh/year*
Optional accessories
  • Recirculating kit

General information
Brand Siemens
Range iQ100
Cooker Hood Type Chimney Hoods
Colour Stainless steel
Air Extraction Type Extraction & recirculation
Control Type Push Button Control
Number of lights 2
Type of lamps used LED
Grease filter material Washable aluminium
Warranty 2 year warranty
Performance
Speed Settings
The number of fan speeds that can be set allowing you to control the level of extraction.
3
Minimum Extraction Rate 190m³/hr
Maximum Extraction Rate 360m³/hr
Maximum Noise Level 65dB
Annual energy consumption 51.3kWh
Installation

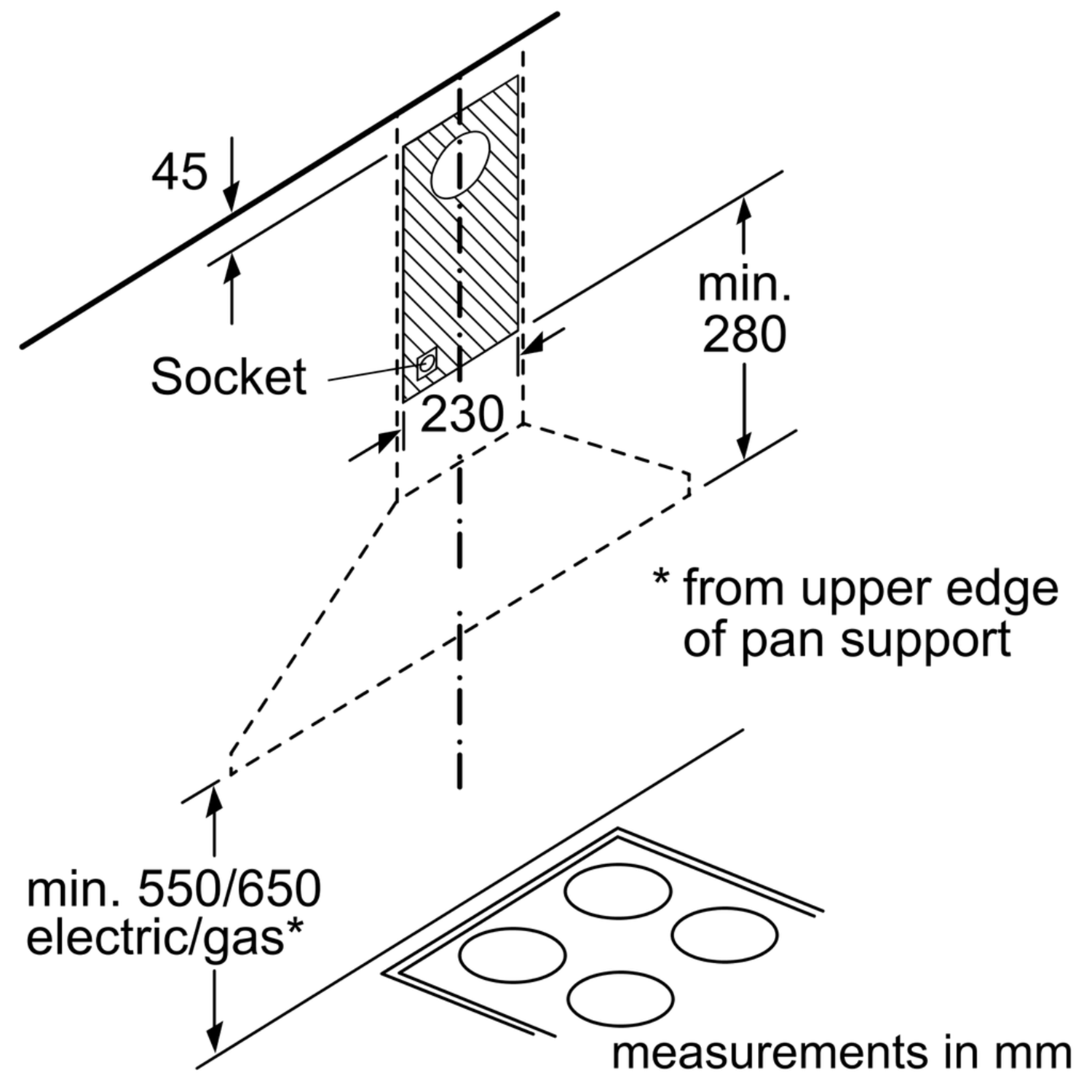

Installation Type Wall-mounted
Vent Location Top
Plug type GB plug
Cable length 130
Connected load 100W
Efficiency Information
Fluid dynamic efficiency class E
Grease filtering efficiency class D
Lighting efficiency class A
Energy Rating C
Dimensions & Weight
Maximum height 975mm
Minimum Height 799mm
Height 77cm
Width 90cm
Depth 50cm
Weight 10.0Kg
Diameter of Air Outlet
This is the diameter of the outlet that connects to ducting if extracting to an external vent.
120mm
