Intensive setting with automatic after revert setting
The intensive setting temporarily increases the extraction rate when kitchen vapour is especially intense, with automatic revert after 6 minutes.
Key performance features:
- Energy Efficiency Class: B (at a range of energy efficiency classes from A++ to E)*
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 450 m³/h
- Intensive 710 m³/h
- Noise max. Normal Level: 65 dB*
Features

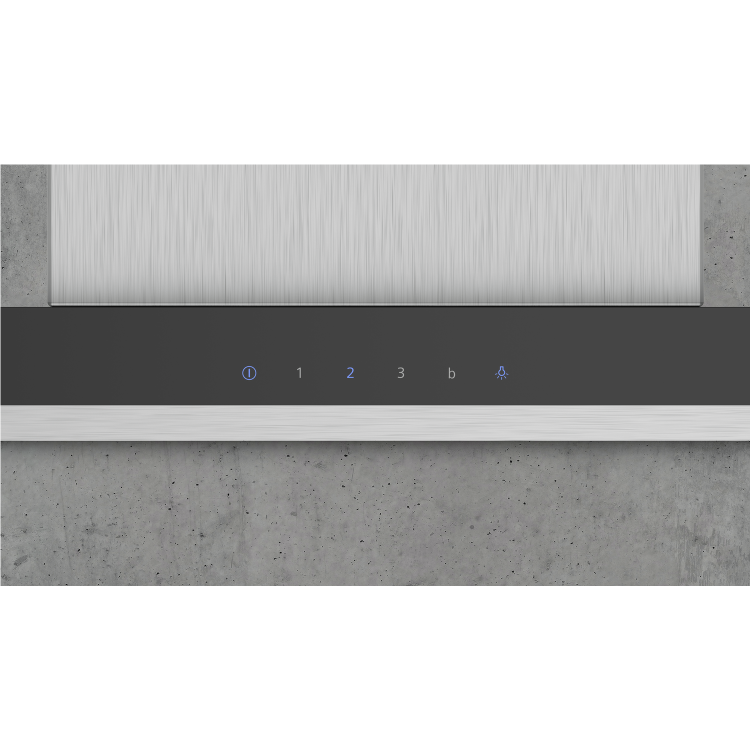

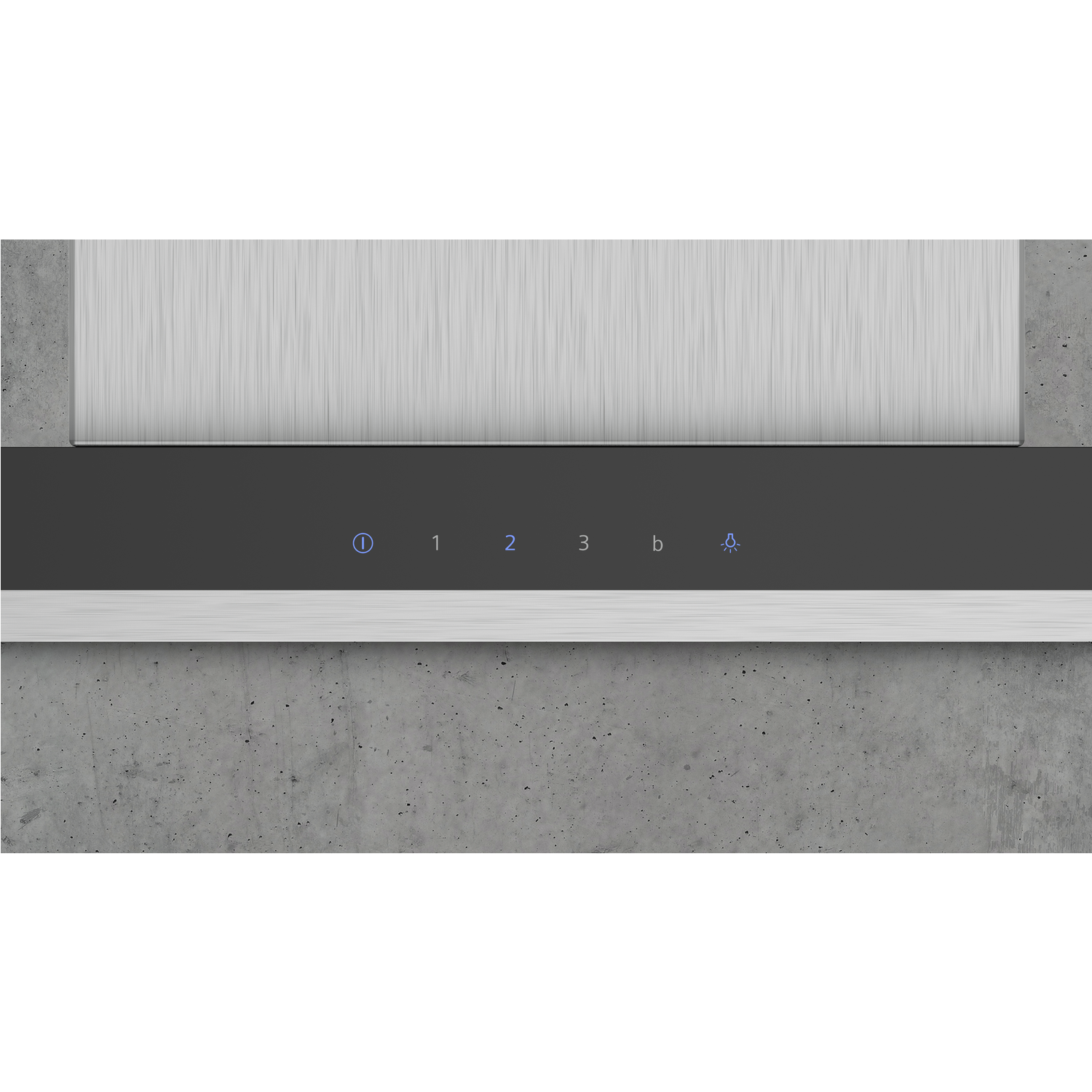

- touchControl for extractor speeds and light
- touchControl with Electronic display
- 3 x power levels plus intensive setting
- Twin channel high performance fan motor
- 2 x 1.5W LED
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)

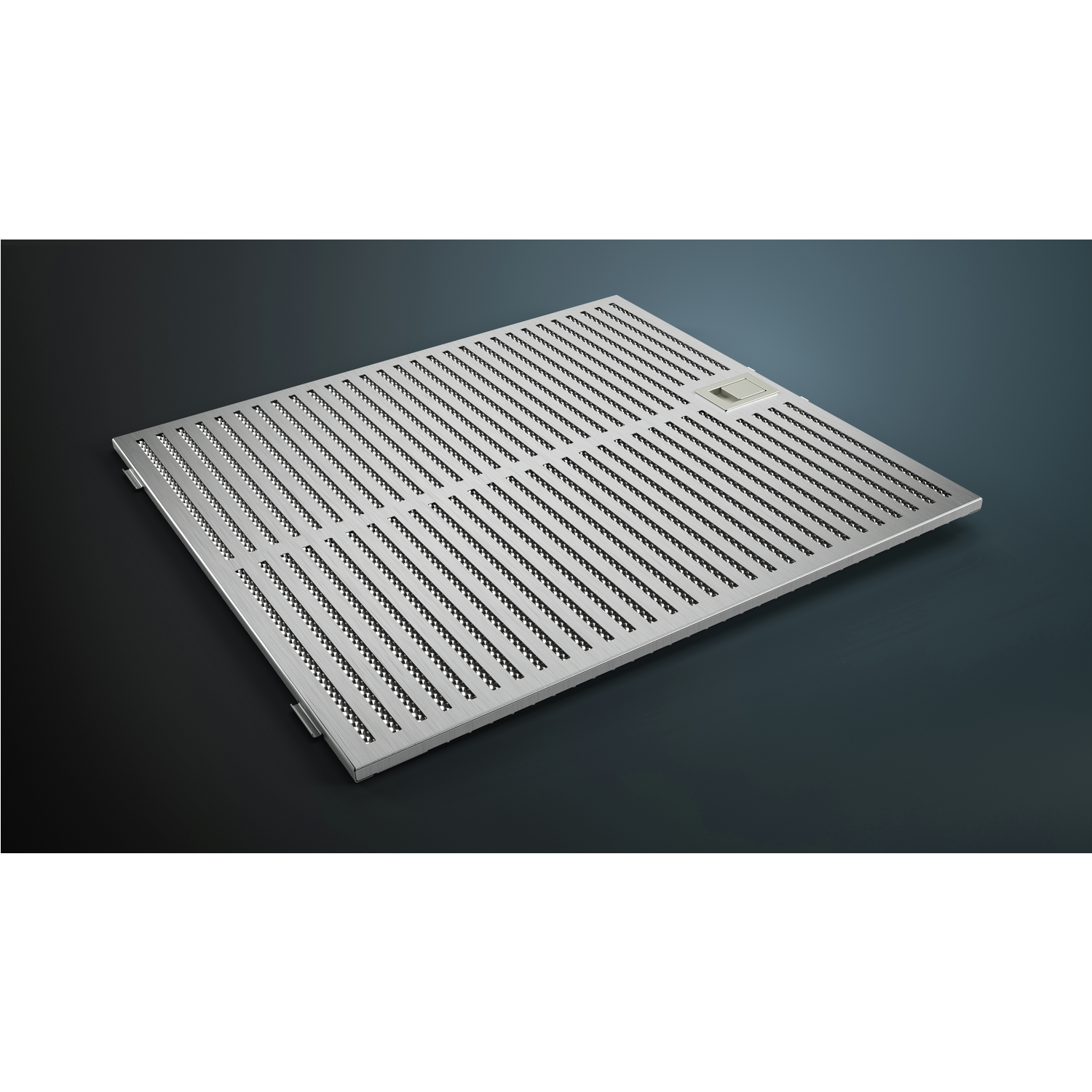

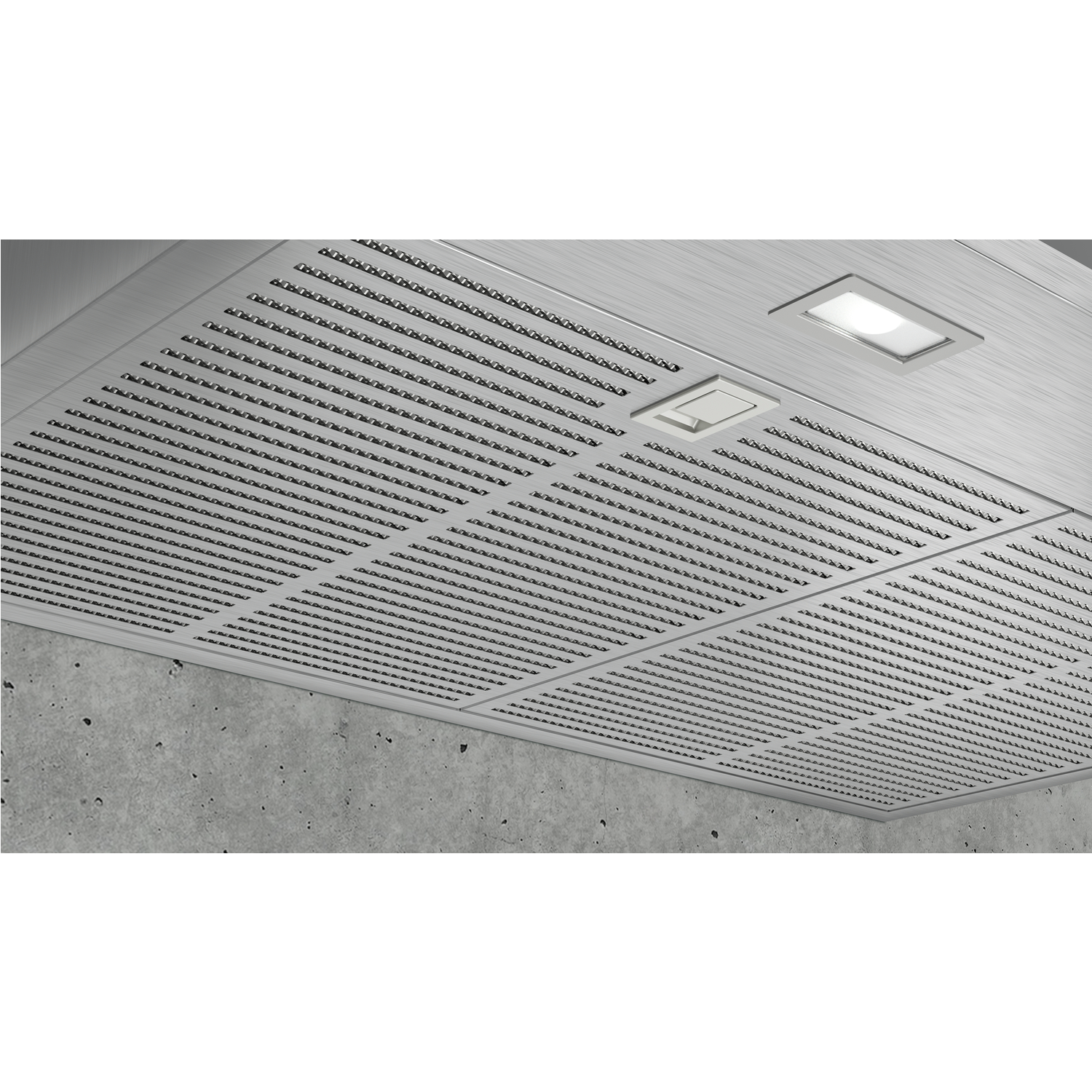

- 2 x metal grease filter cassettes
- Steel filter cover
- For wall mounted installation
Design
- Box design
- Chimney hood
- Electronic control
Performance/technical information
- Suitable for ducted and re-circulating operation
- For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
- Max. extraction rate: 710 m3/h
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 450 m³/h
- Intensive 710 m³/h
- Extraction rate in recirculation mode:
- Max. normal use: 320 m³/h
- Intensive: 370 m³/h
- Noise max. Normal Level: 65 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 65 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)
- Intensive: 74 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
- Noise levels in recirculation mode:
- Max. normal use: 74 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
- Intensive: 77 dB(A) re 1 pW (65 dB(A) re 20 µPa sound pressure)
- Power rating: 255 W
- Light Intensity: 221 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 635-965 x 750 x 500 mm
- Dimensions recirculating, chimney (HxWxD): 635-1075 x 750 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 703 x 750 x 500 mm - mounting with outer chimney
- 833-1163 x 750 x 500 mm - mounting with telescopic chimney
- Energy Efficiency Class: B (at a range of energy efficiency classes from A++ to E)*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 59.5 kWh/year*
Optional accessories
- Recirculating kit
