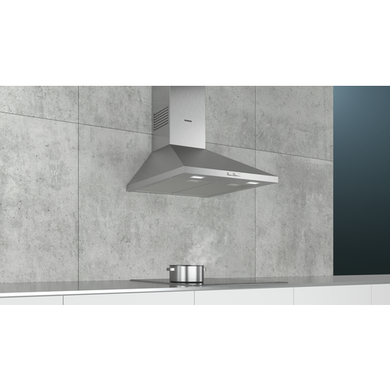

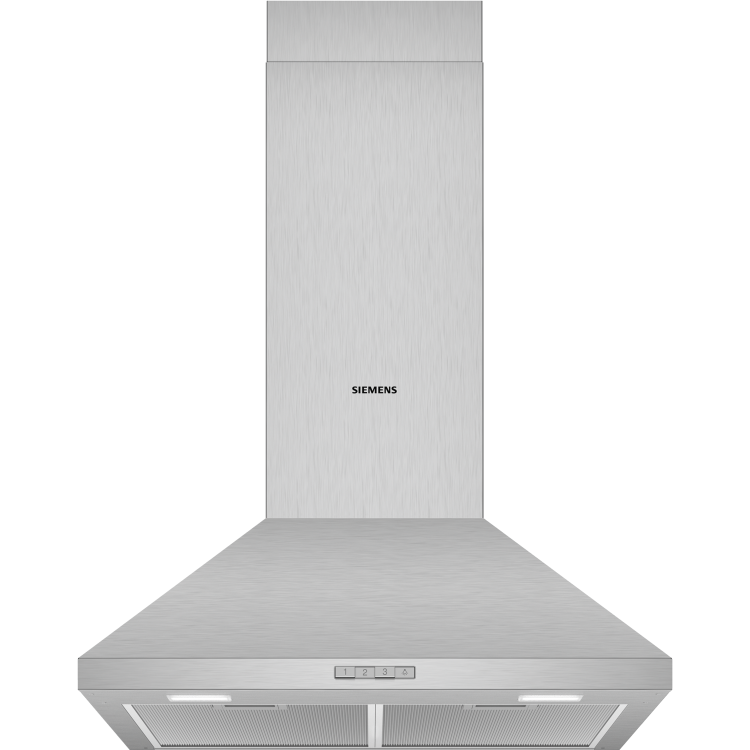

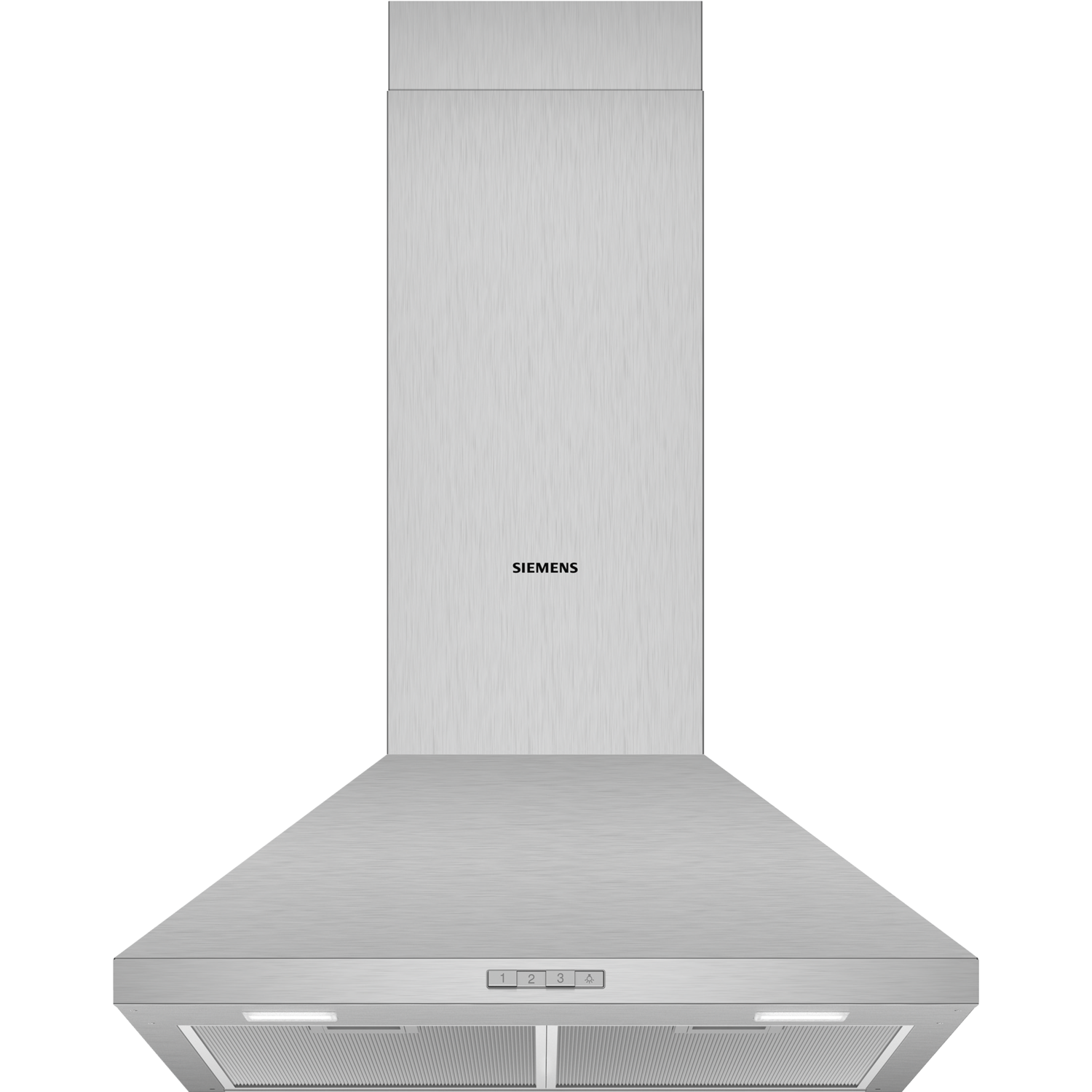

Siemens iQ100 60cm Pyramid Style Chimney Cooker Hood - Stainless Steel

SKU: LC64PBC50B Quickfind Code: 1270210
Energy rating C

This product is no longer available.

Still need help?

For help finding something similar, just give us a call on 01 255 2070*

* Calls cost 13p per min plus your network access charge

Key performance features:
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
  • Max. extraction rate: 360 m3/h
  • Noise max. Normal Level: 66 dB*
Features
  • Push button control for extractor speeds and light
  • 3 x power levels
  • Twin channel high performance fan motor
  • 2 x 1.5W LED
  • Colour Temperature: 3500 K
  • 2 x metal grease filter cassettes

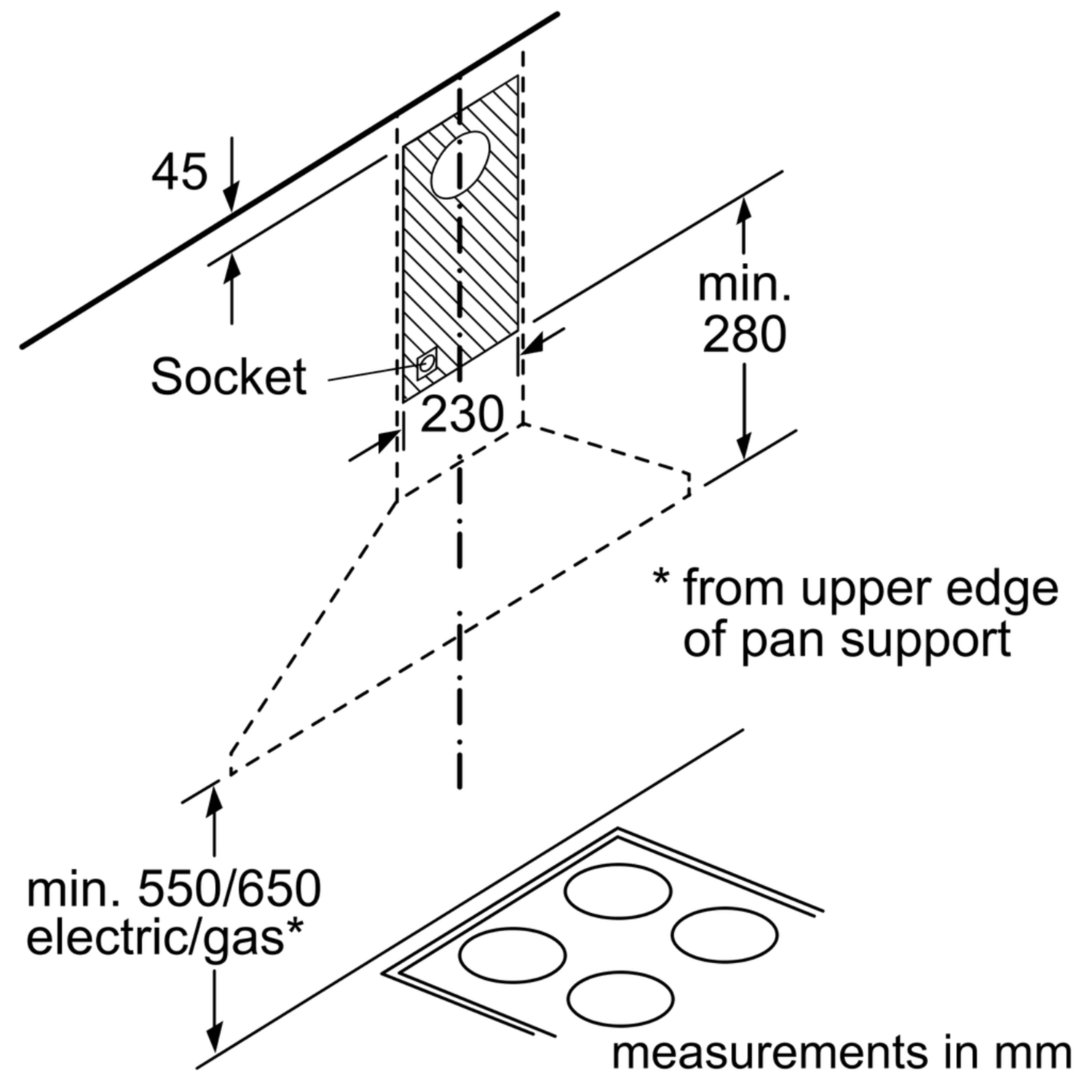

  • For wall mounted installation
Design
  • Pyramid
  • Chimney hood
  • Mechanical
Performance/technical information
  • Suitable for ducted and re-circulating operation
  • For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
  • Max. extraction rate: 360 m3/h
  • Maximum extraction rate exhaust air 360 m³/h according to EN 61591
  • Extraction rate in recirculation mode:
  • Max. normal use: 200 m³/h
  • Noise max. Normal Level: 66 dB*
  • Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 66 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
  • Noise level in recirculation mode:
  • Max. normal use: 67 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
  • Power rating: 100 W
  • Light Intensity: 104 lux
  • Colour Temperature: 3500 K
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 799-975 x 600 x 500 mm
  • Dimensions recirculating, chimney (HxWxD): 799-975 x 600 x 500 mm
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
  • Blower Efficiency Class: E*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
  • Average Energy Consumption: 51.4 kWh/year*
Optional accessories
  • Recirculating kit


General information

Brand Siemens
Range iQ100
Cooker Hood Type Chimney Hoods
Colour Stainless steel
Air Extraction Type Extraction & recirculation
Control Type Push Button Control
Number of lights 2
Type of lamps used LED
Grease filter material Washable aluminium
Warranty 2 year warranty

Performance

Speed Settings
The number of fan speeds that can be set allowing you to control the level of extraction.
3
Minimum Extraction Rate 180m³/h
Maximum Extraction Rate 365m³/h
Maximum Noise Level 66dB
Annual energy consumption 51.4kWh/a

Installation

Installation Type Wall-mounted
Vent Location Top
Plug type supplied with plug
Cable length 130cm
Connected load 100W

Efficiency Information

Fluid dynamic efficiency class E
Grease filtering efficiency class C
Lighting efficiency class A
Energy Rating C

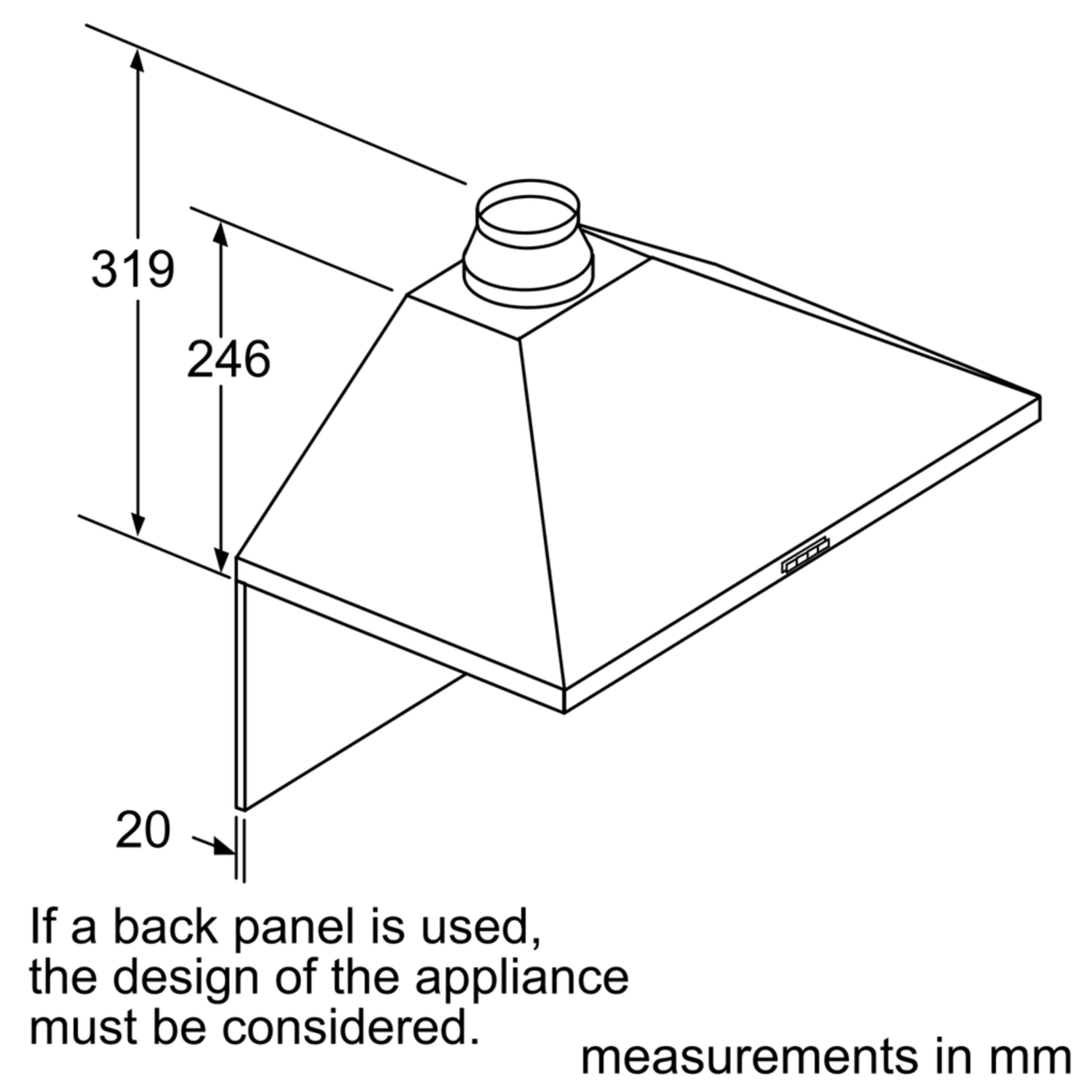

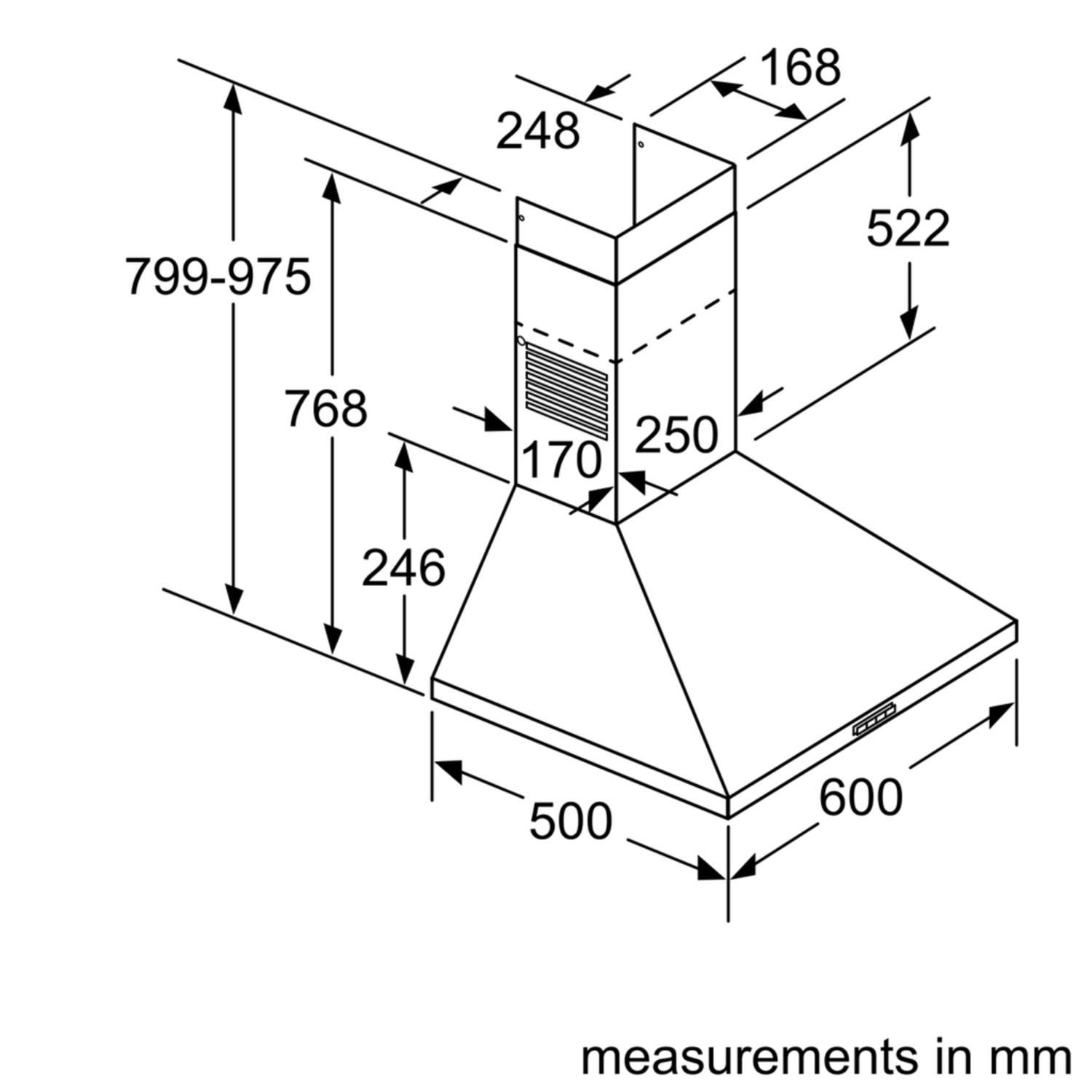

Dimensions & Weight

Maximum height 975mm
Minimum Height 799mm
Height 77cm
Width 60cm
Depth 50cm
Weight 7kg
Diameter of Air Outlet
This is the diameter of the outlet that connects to ducting if extracting to an external vent.
120mm
