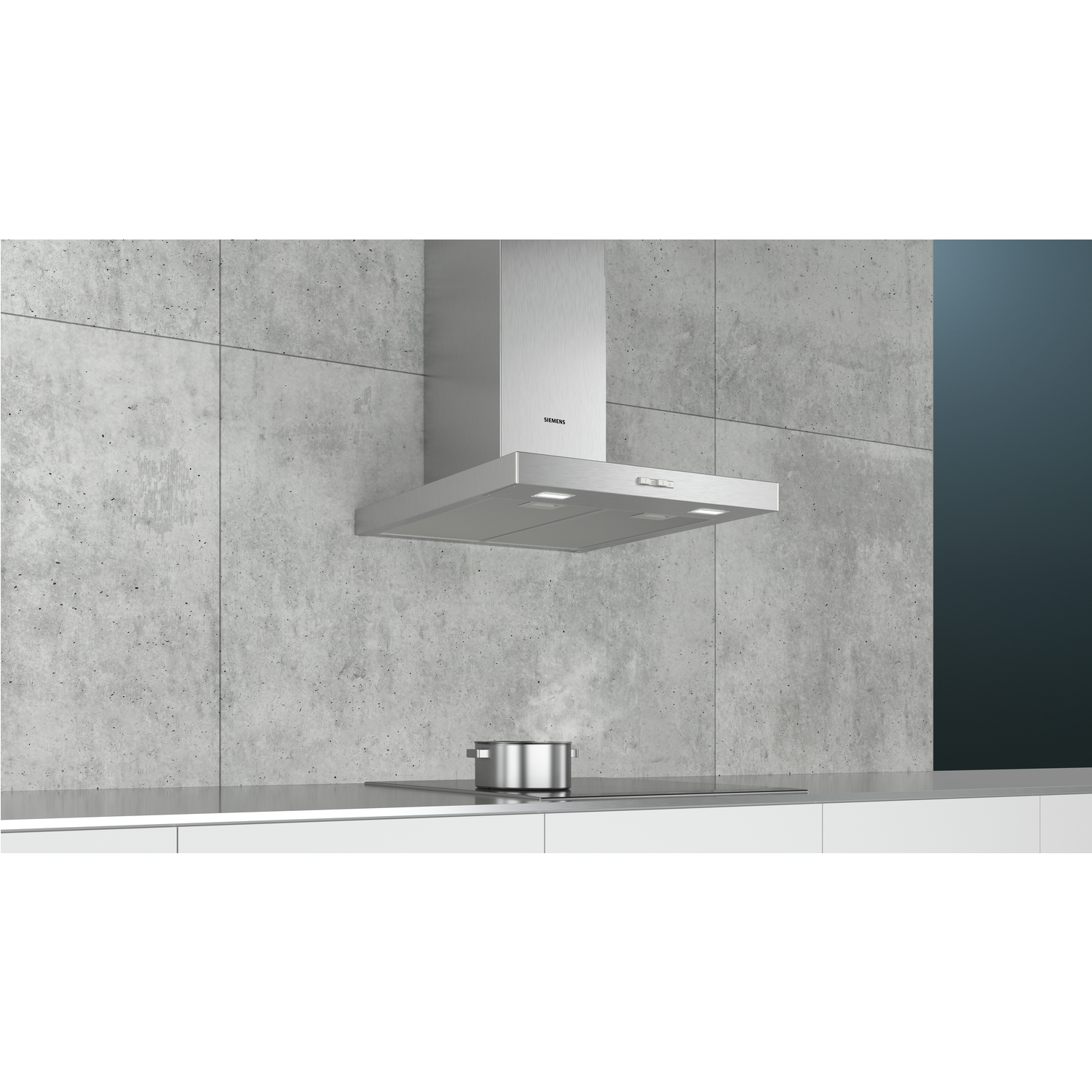

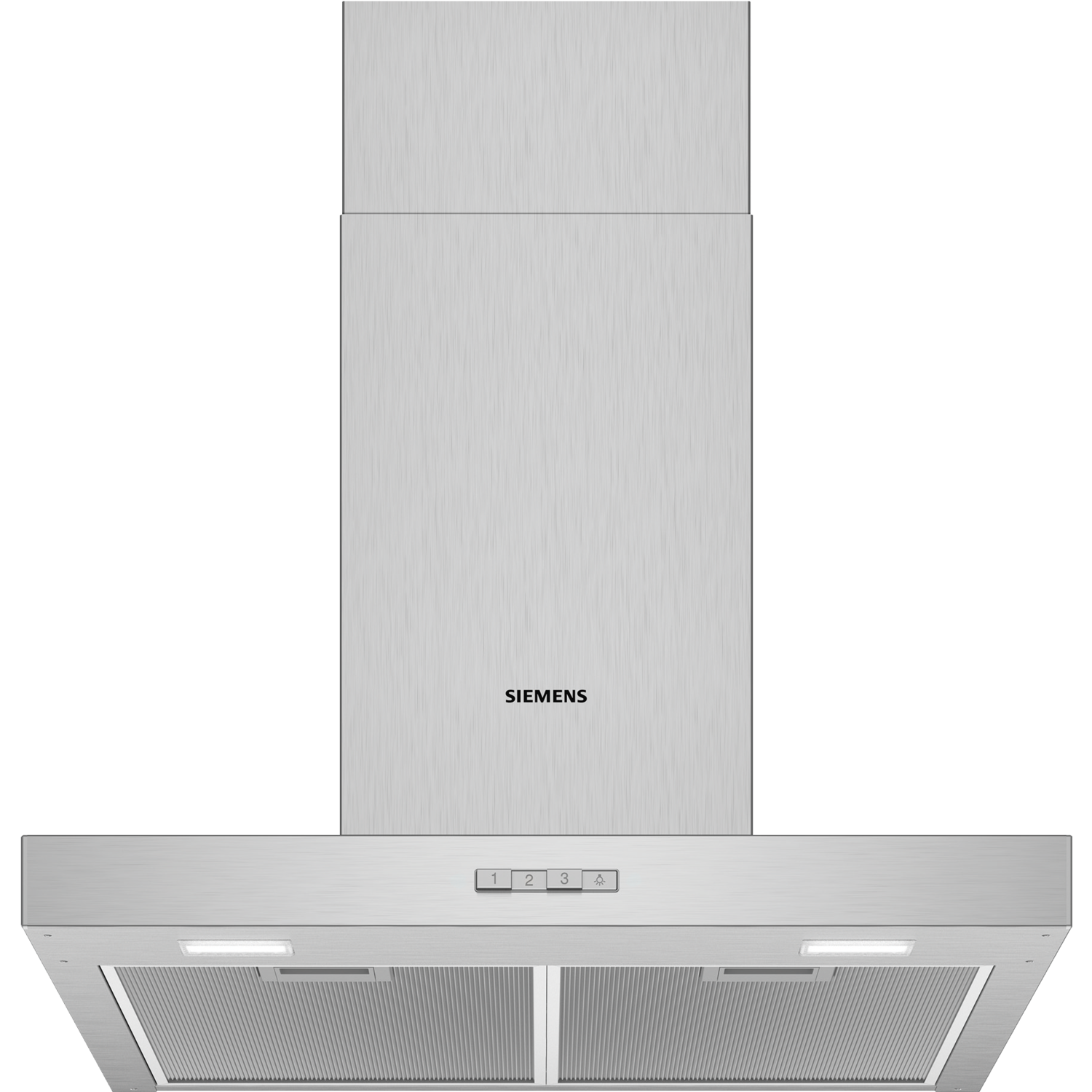

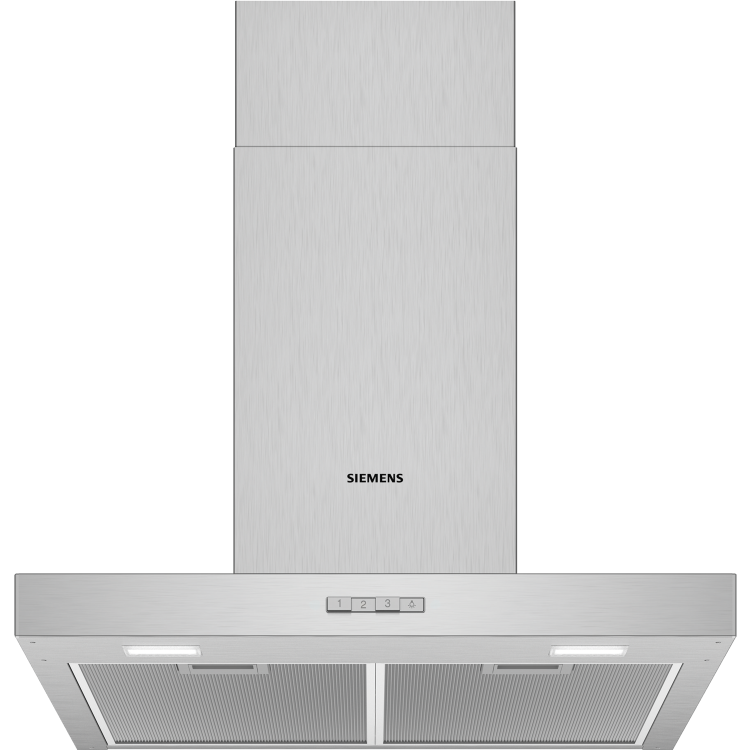

Siemens iQ100 60cm Box Design Chimney Cooker Hood - Stainless Steel
SKU: LC64BBC50B
Code: 1270209
-
Product Information
-
Dimensions & Spec
-
Recommended Accessories
-
Reviews
-
Finance Options
-
Questions & Answers
Key performance features:- Energy Efficiency Class: D (at a range of energy efficiency classes from A++ to E)*
- Max. extraction rate: 340 m3/h
- Noise max. Normal Level: 63 dB*

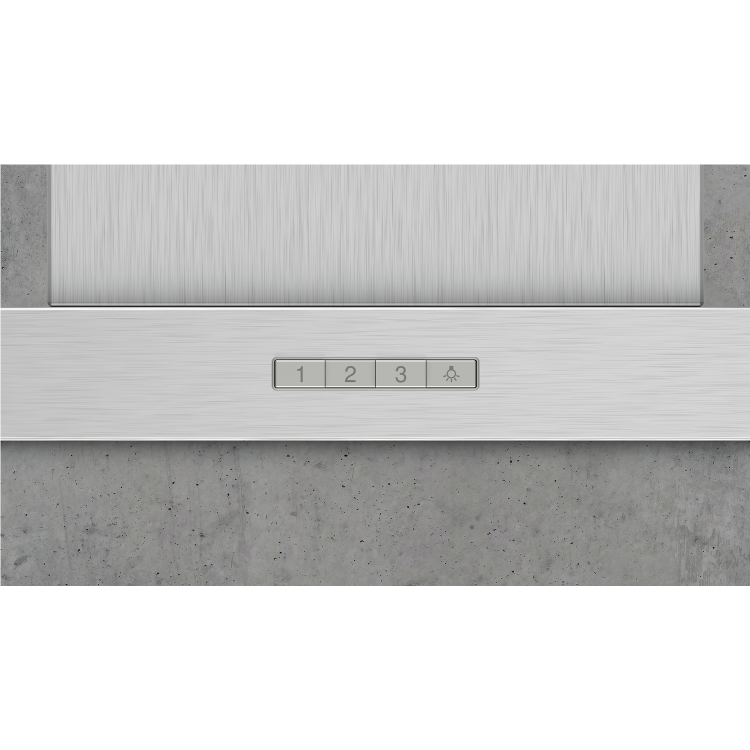

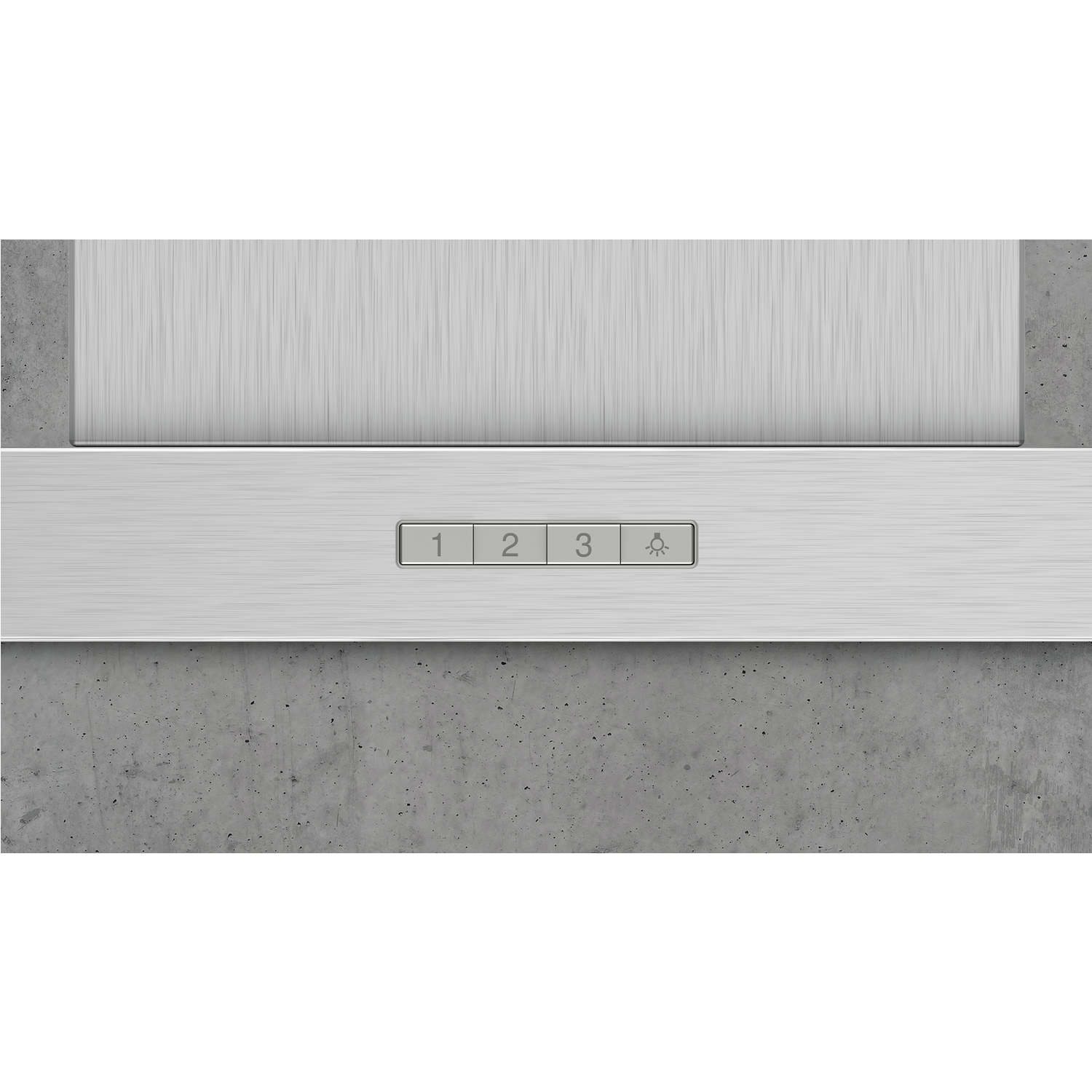

Features- Push button control for extractor speeds and light
- 3 x power levels
- Twin channel high performance fan motor
- 2 x 1.5W LED
- Colour Temperature: 3500 K

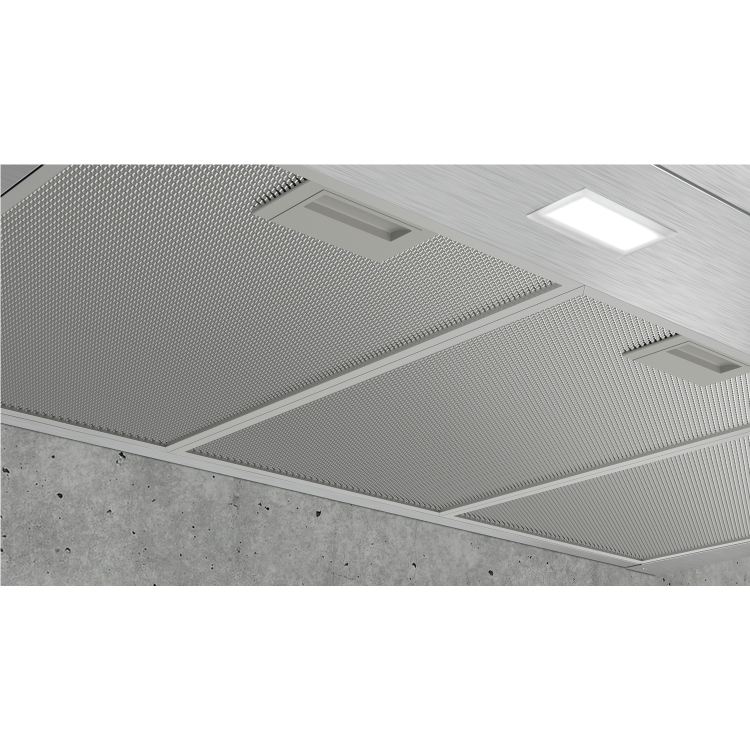

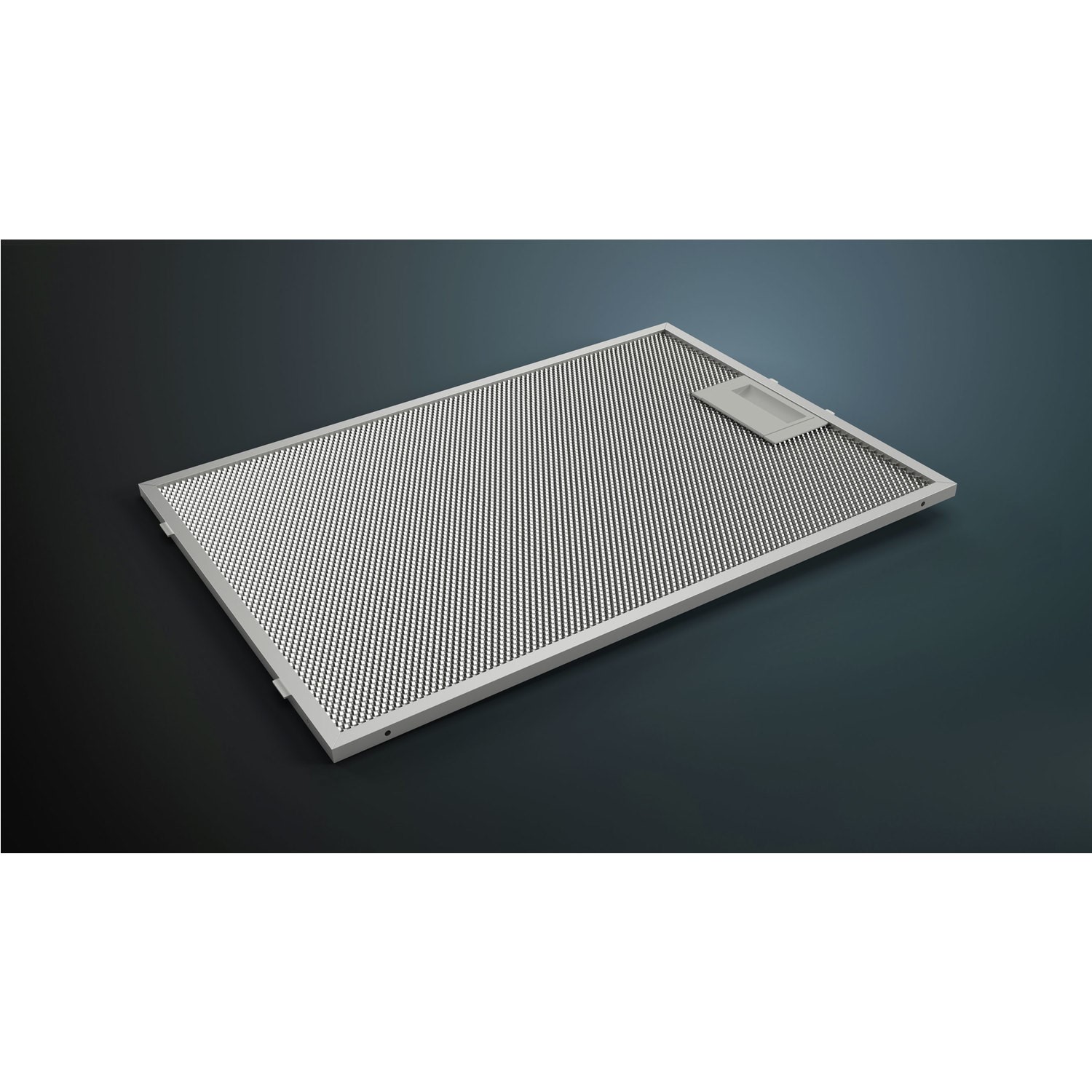

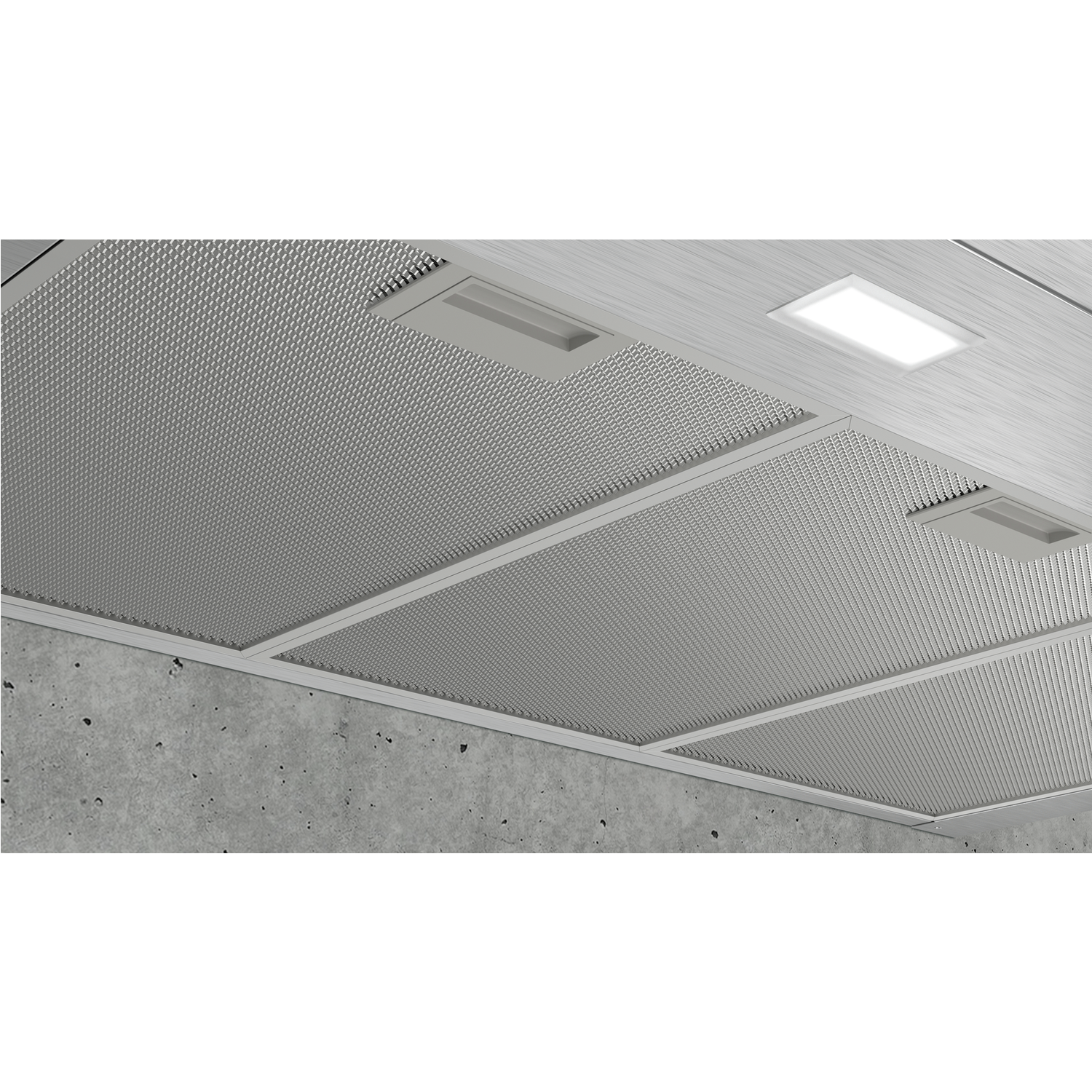

- 2 x metal grease filter cassettes

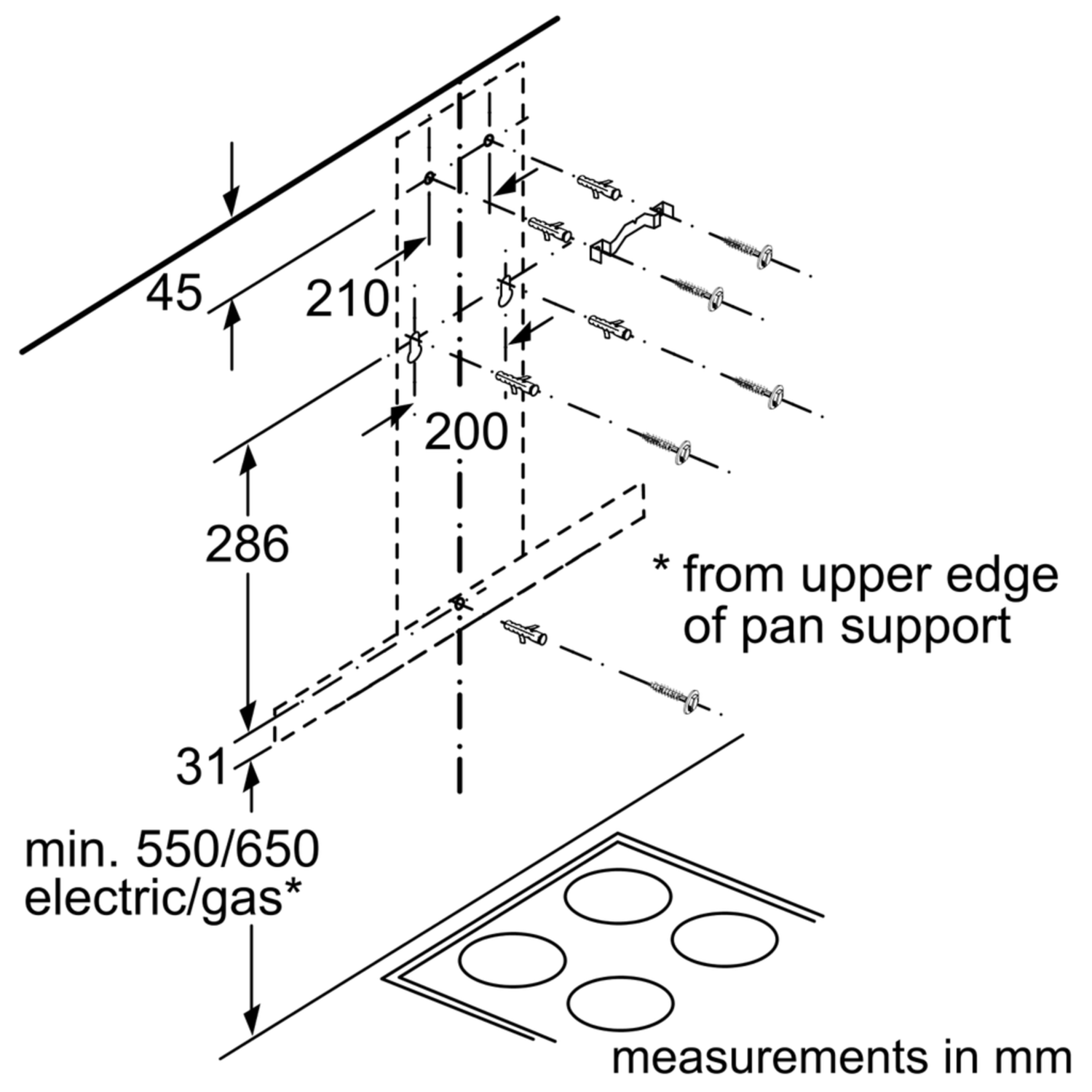

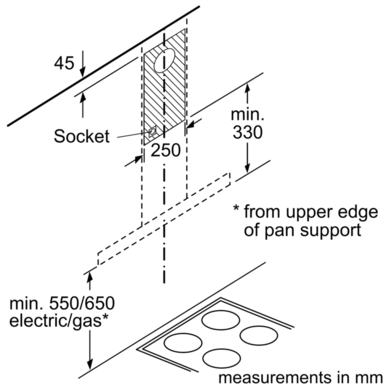

- For wall mounted installation
Design- Box design
- Chimney hood
- Mechanical
Performance/technical information- Suitable for ducted and re-circulating operation
- For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
- Max. extraction rate: 340 m3/h
- Maximum extraction rate exhaust air 340 m³/h according to EN 61591
- Extraction rate in recirculation mode:
- Max. normal use: 190 m³/h
- Noise max. Normal Level: 63 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 63 dB(A) re 1 pW (51 dB(A) re 20 µPa sound pressure)
- Noise level in recirculation mode:
- Max. normal use: 66 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
- Power rating: 100 W
- Light Intensity: 99 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

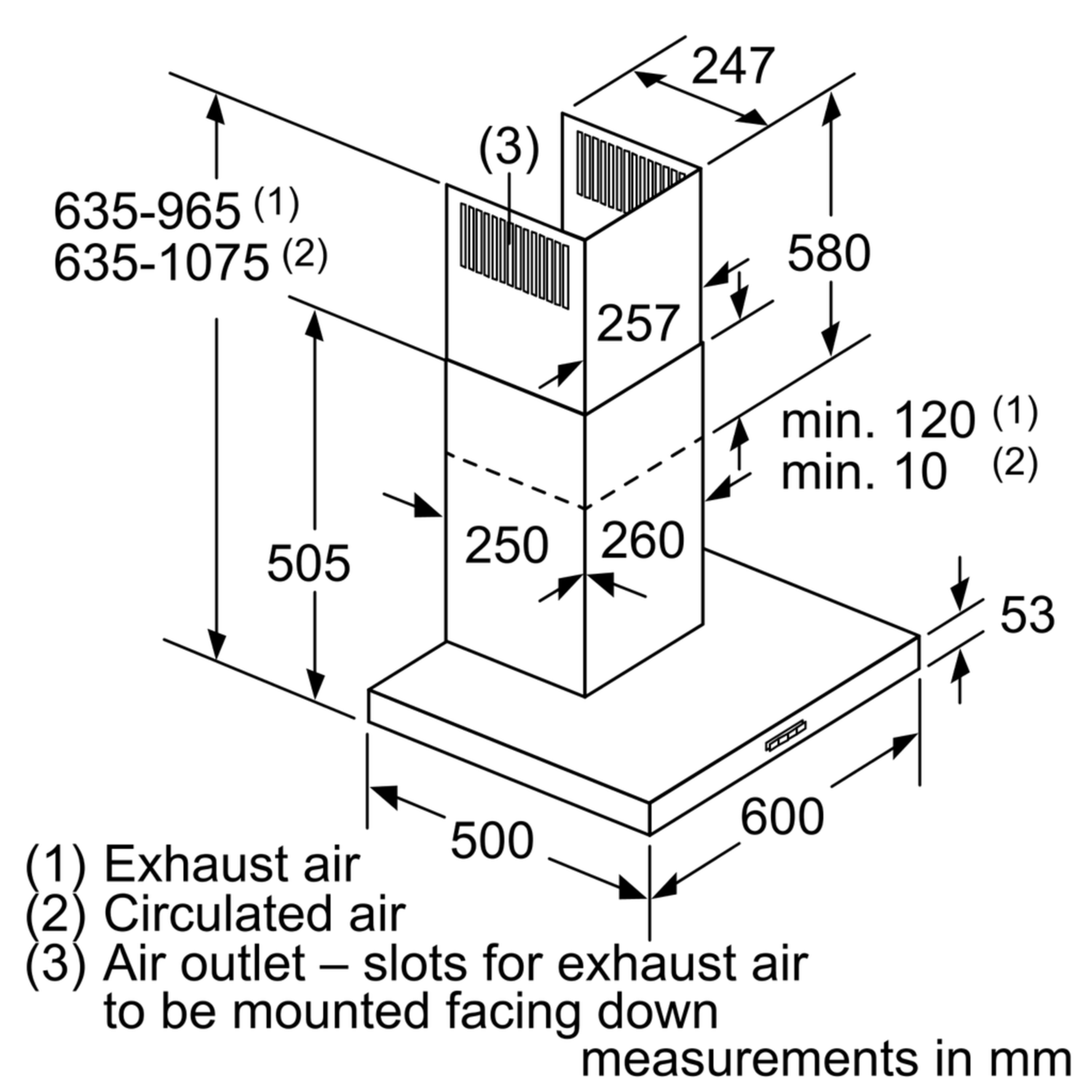

- Dimensions exhaust air (HxWxD): 635-965 x 600 x 500 mm
- Dimensions recirculating, chimney (HxWxD): 635-1075 x 600 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 703 x 600 x 500 mm - mounting with outer chimney
- 833-1163 x 600 x 500 mm - mounting with telescopic chimney
- Energy Efficiency Class: D (at a range of energy efficiency classes from A++ to E)*
- Blower Efficiency Class: E*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 53.2 kWh/year*
