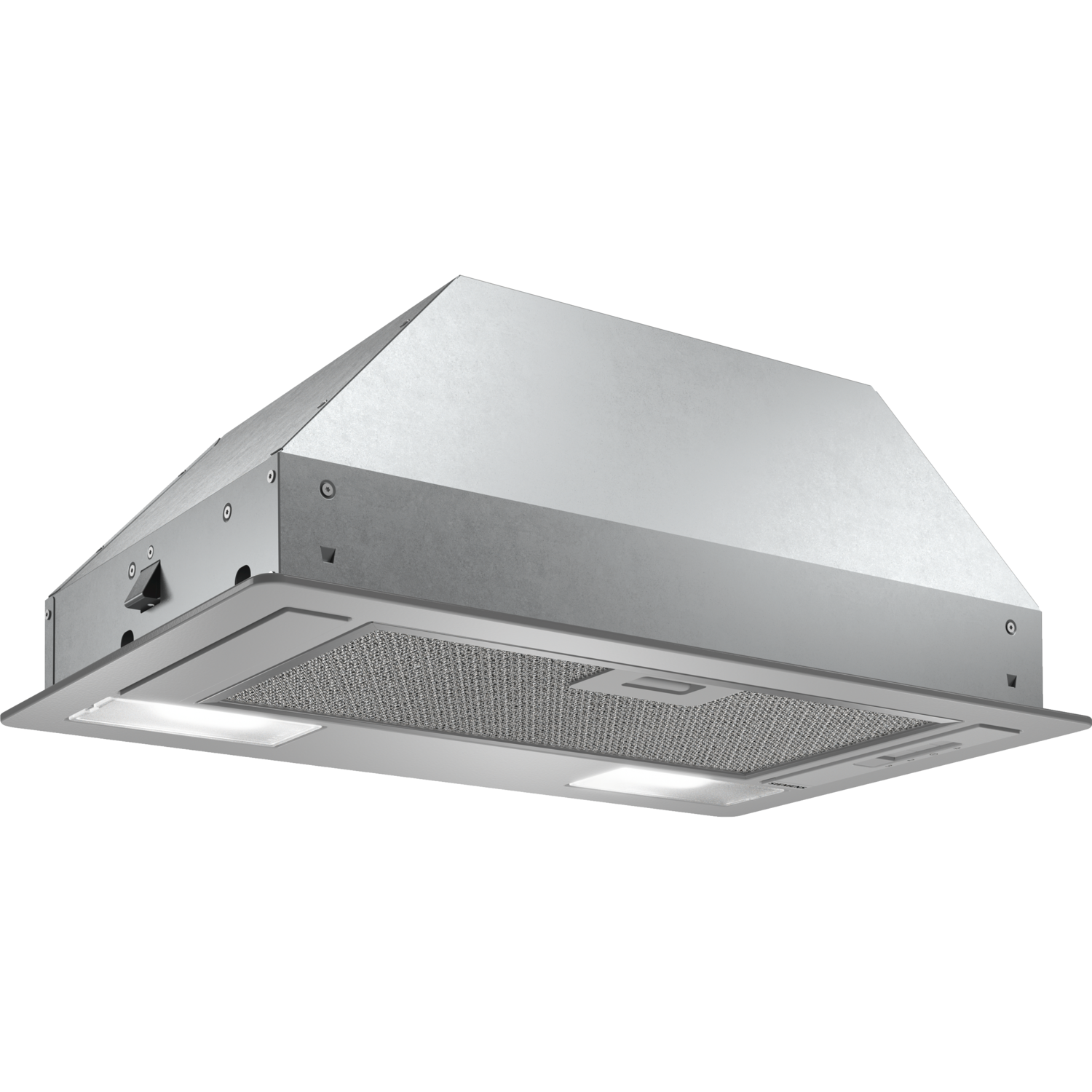

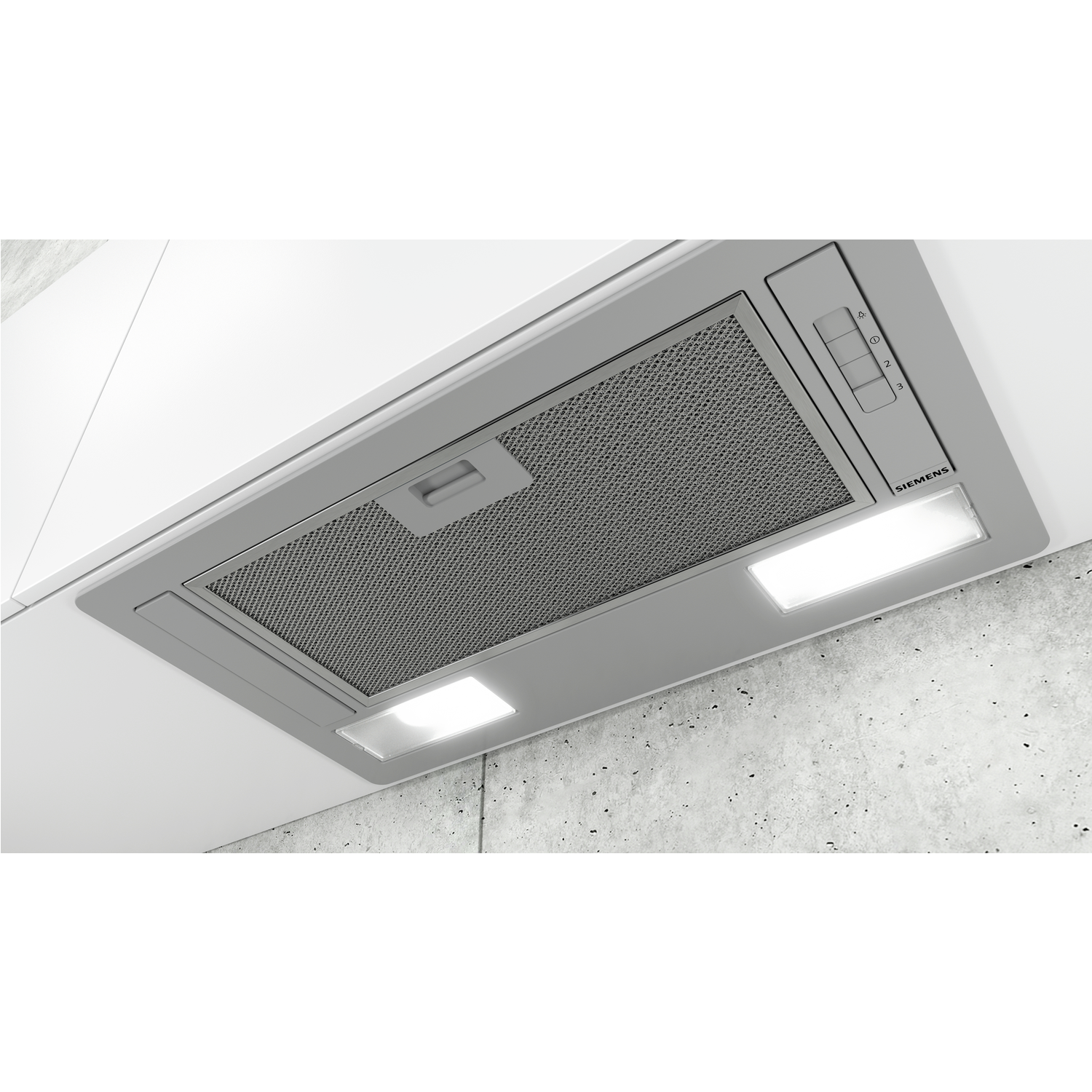

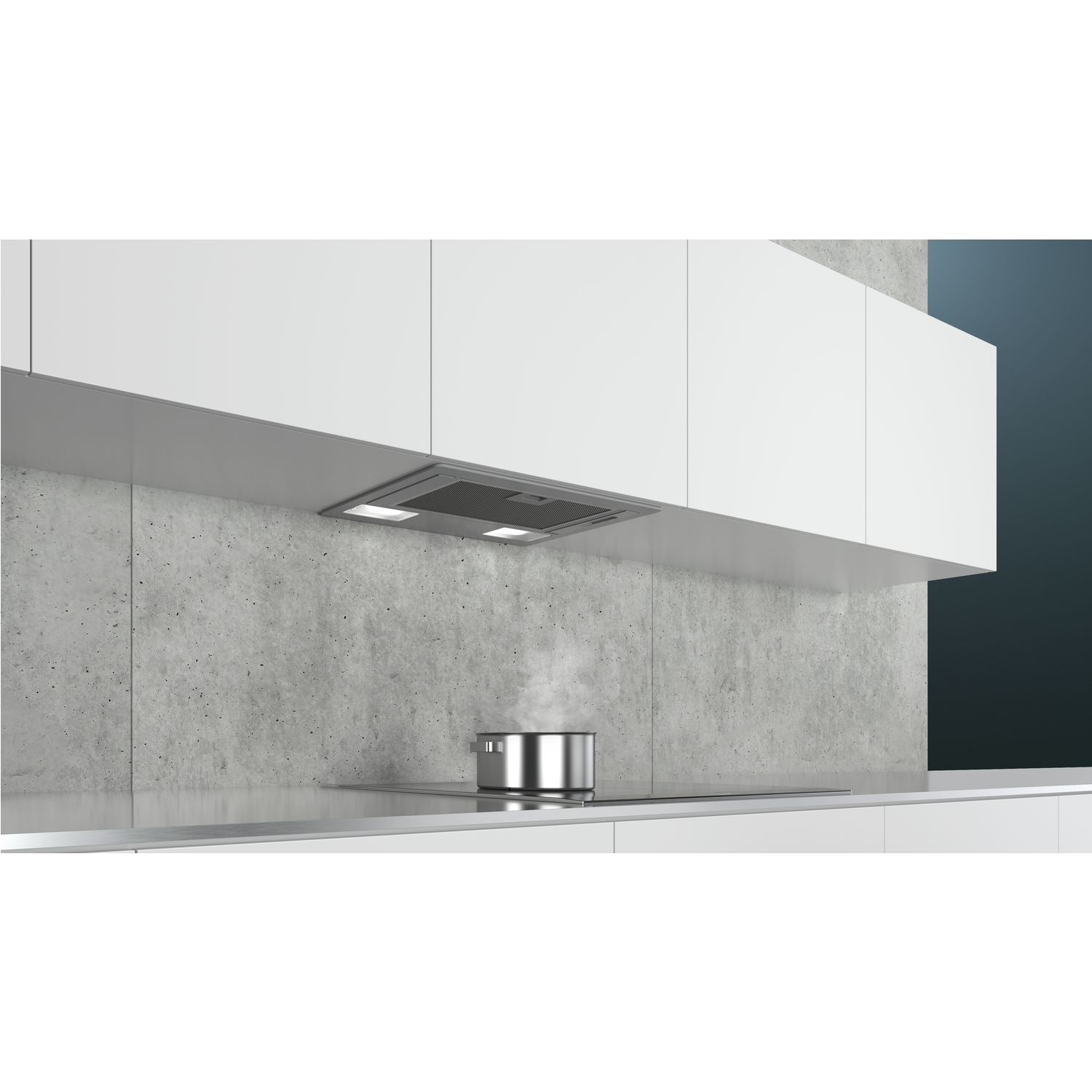

The powerful canopy cooker hood is concealed in a unit above the hob
Extraction Rate
The 300 m³/h extraction rate supplies clean air when cooking.
Key Features:
- The 300 m³/h extraction rate supplies clean air when cooking.
- The energy-saving LED lighting ensures optimal visibility when cooking.
- Max. extraction rate: 300 m³/h
- Noise max. Normal Level: 61 dB*
Additional Features

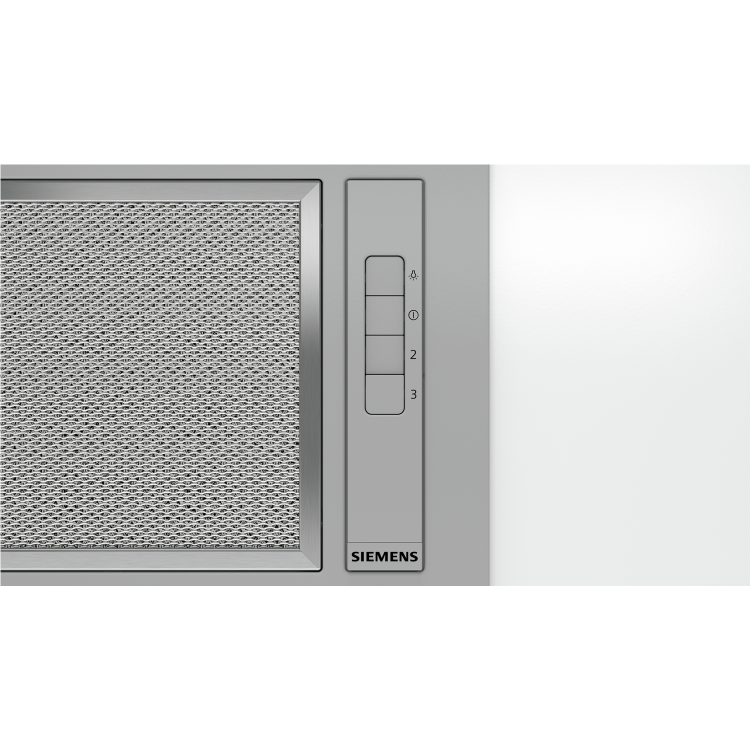

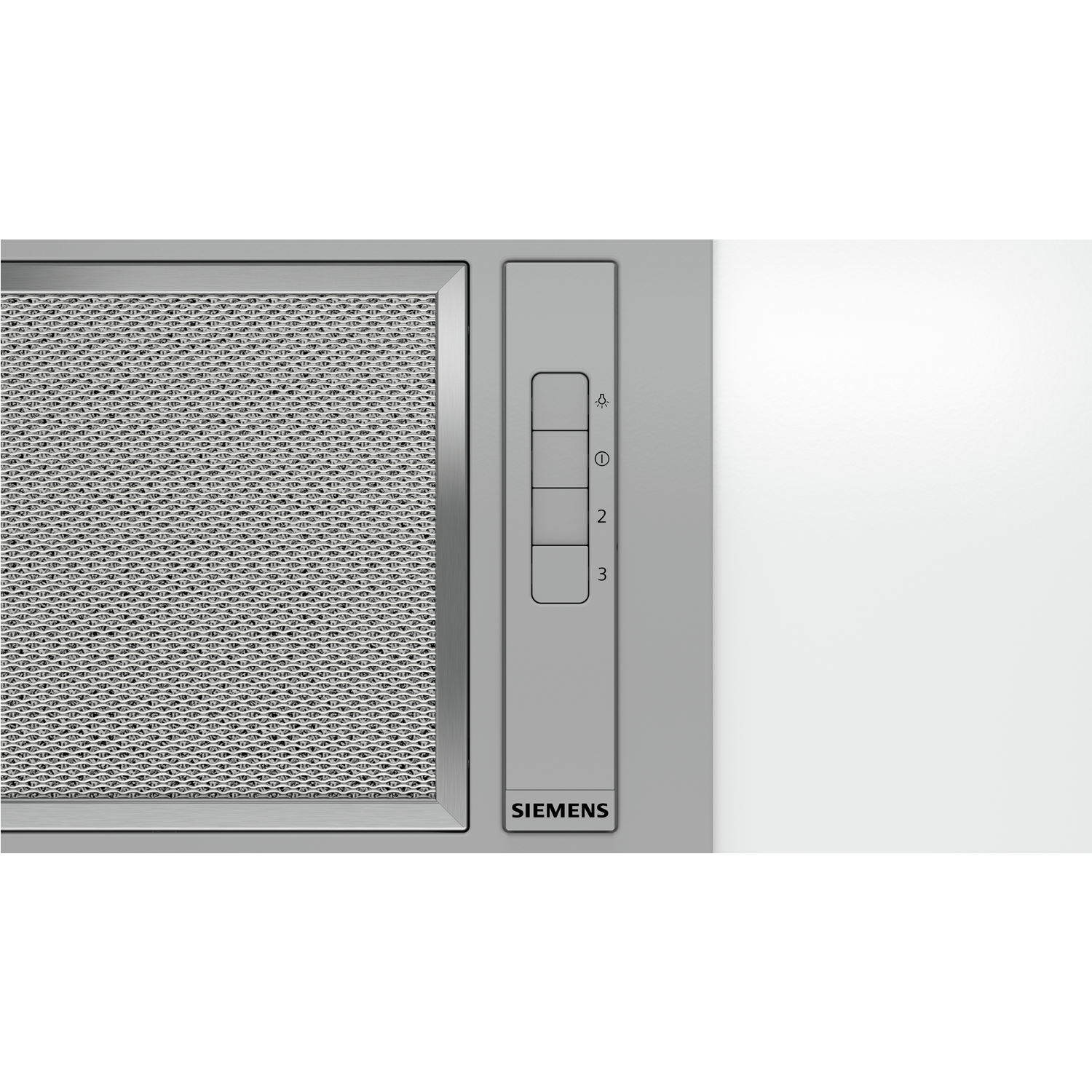

- Push button control for extractor speeds and light
- 3 x power levels
- 2 x 3W LED
- Colour Temperature: 2700 K
- 1 x metal grease filter cassette
- For installation in a kitchen cabinet
Design
- Canopy hood
- Mechanical
Performance/Technical Information
- Suitable for ducted and re-circulating operation
- For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
- Extraction rate according to EN 61591: max. 300 m³/h
- Noise max. Normal Level: 61 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 61 dB(A) re 1 pW (47 dB(A) re 20 µPa sound pressure)
- Power rating: 121 W
- Light Intensity: 78 lux
- Colour Temperature: 2700 K
- Electrical cable length 1.5 m
- Diameter pipe Ø 120 mm (Ø 120 mm enclosed)

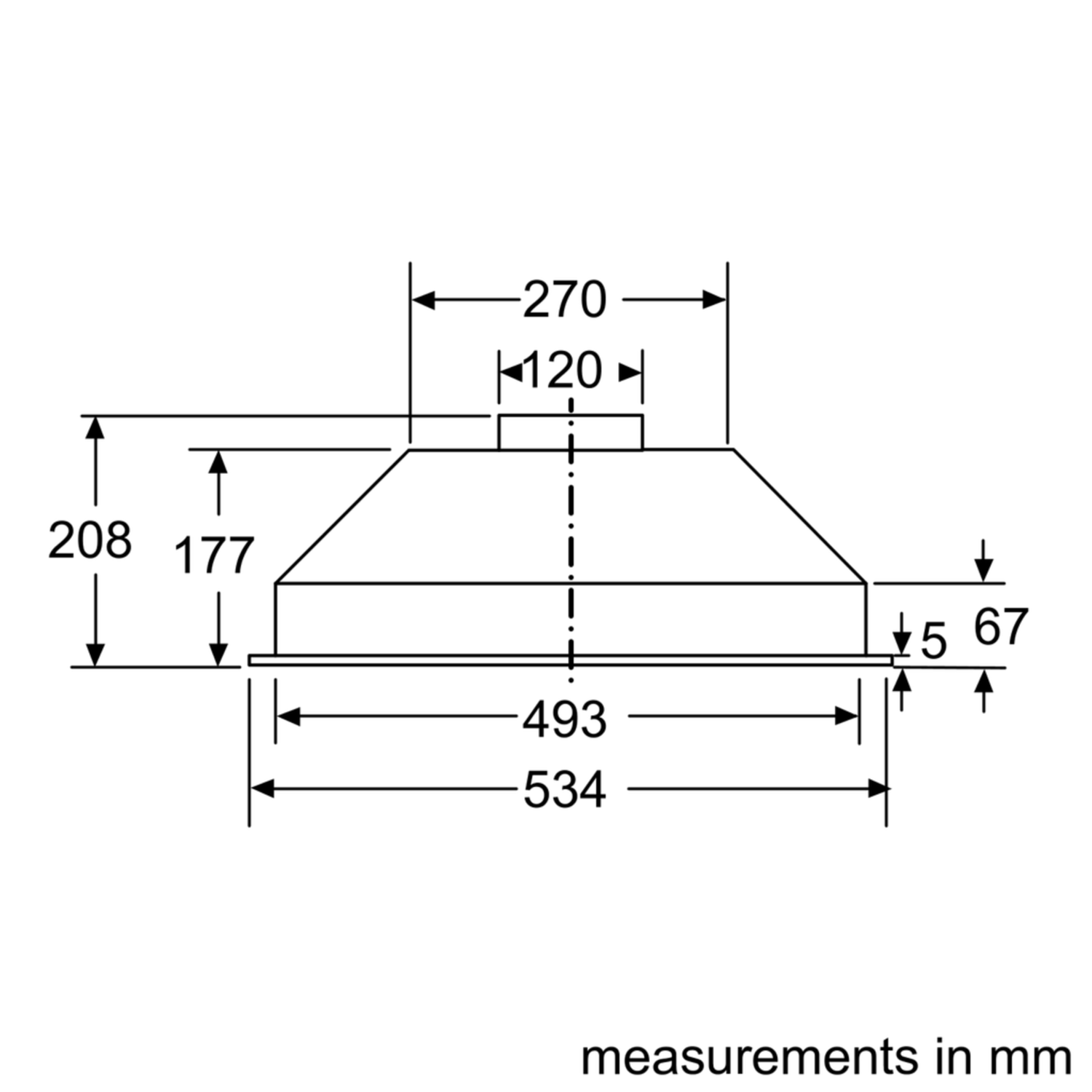

- Dimensions exhaust air (HxWxD): 208-208 x 534 x 300 mm
- Dimensions recirculating, chimney (HxWxD): 208-208 x 534 x 300 mm

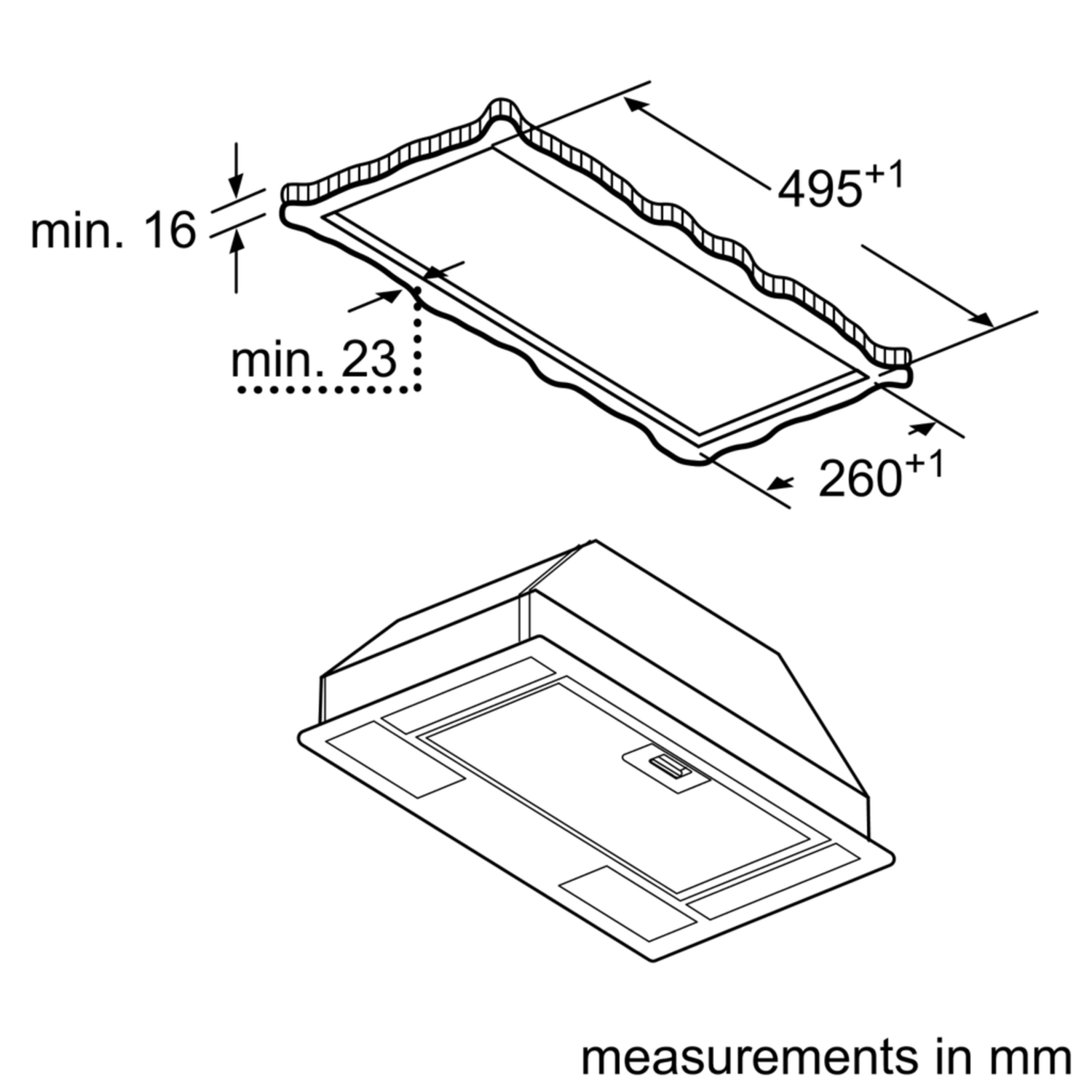

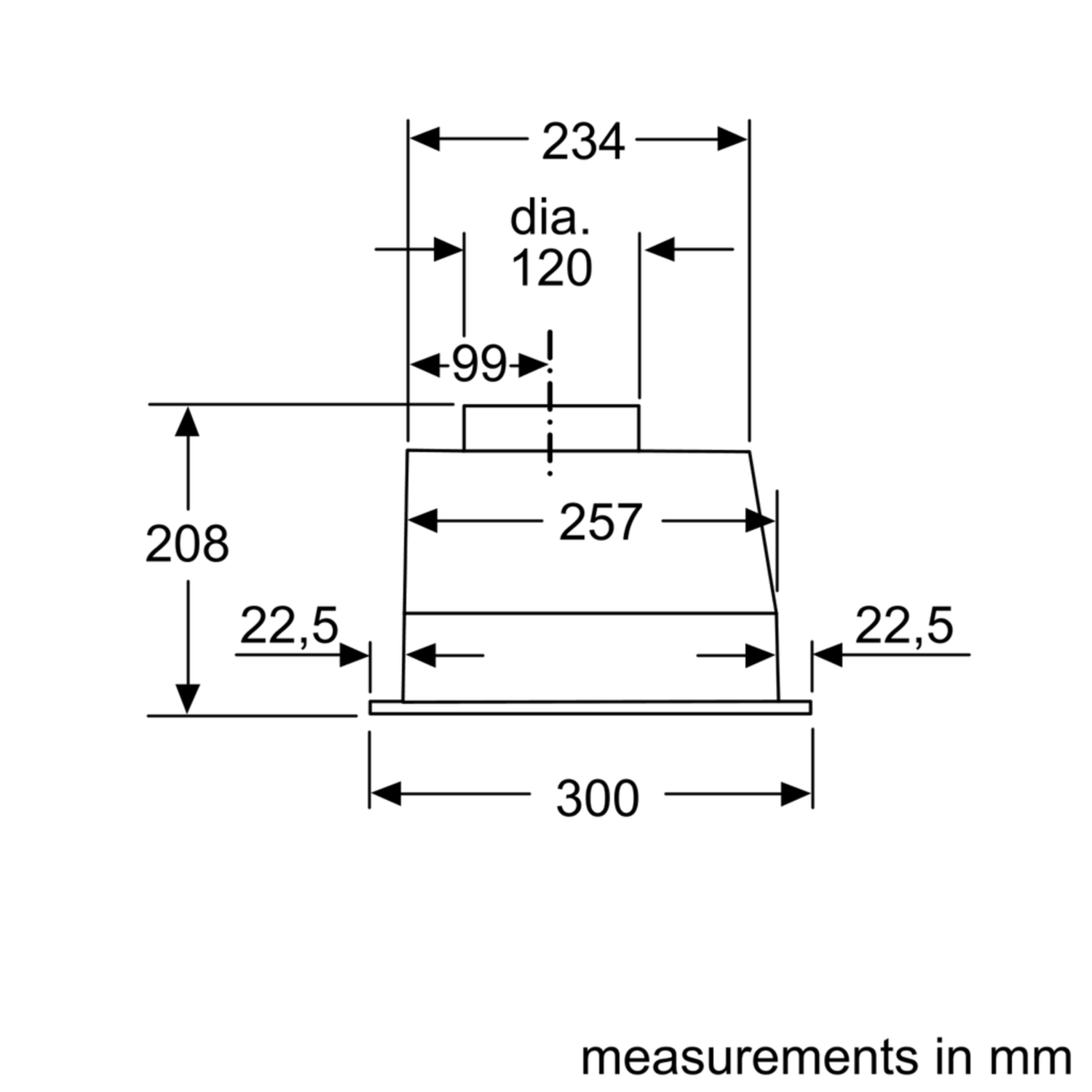

- built-in dimensions (HxWxD): 208 x 493 x 257 mm
- Blower Efficiency Class: E*
- Lighting Efficiency Class: D*
- Grease Filtering Efficiency Class: D*
- Average Energy Consumption: 66.7 kWh/year*
