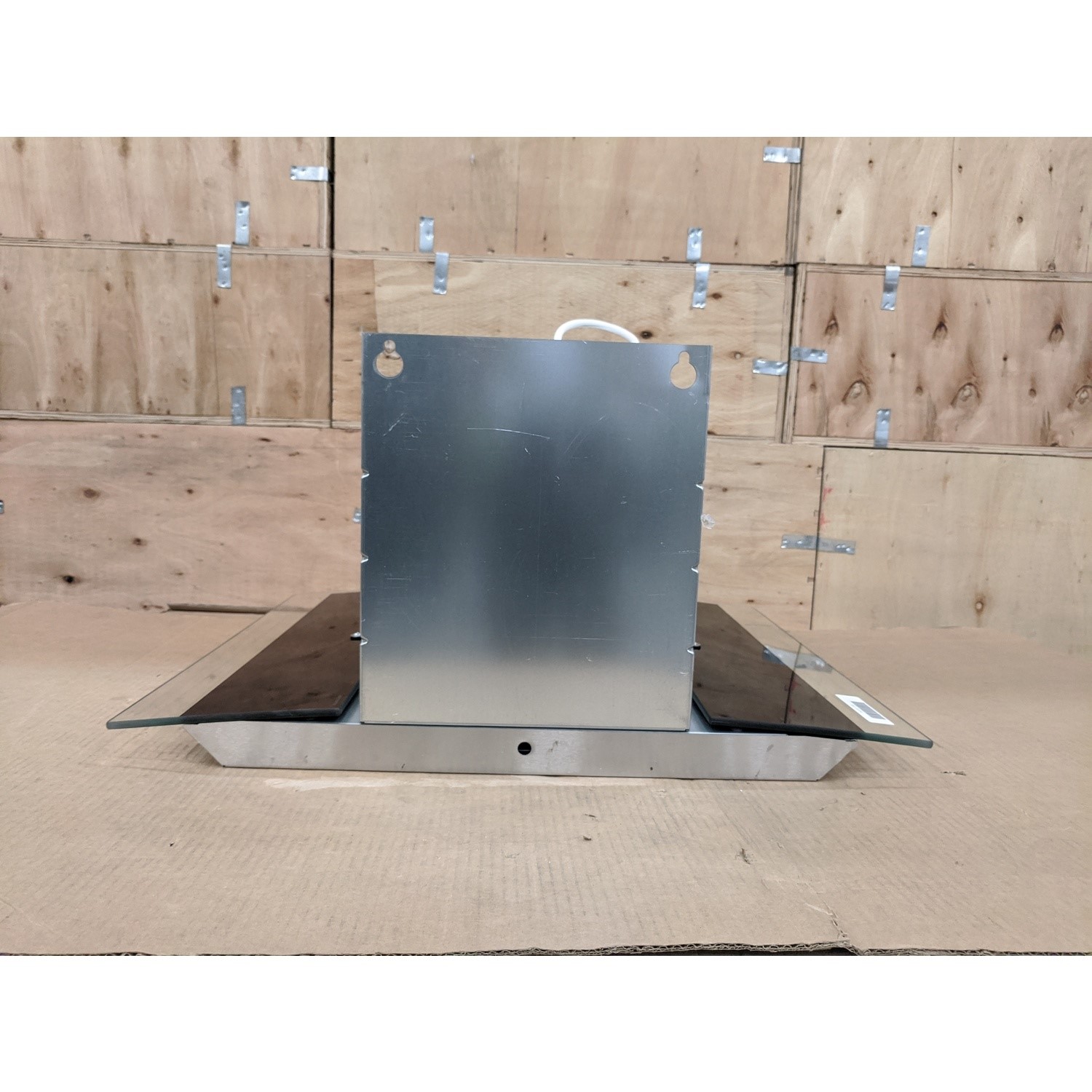

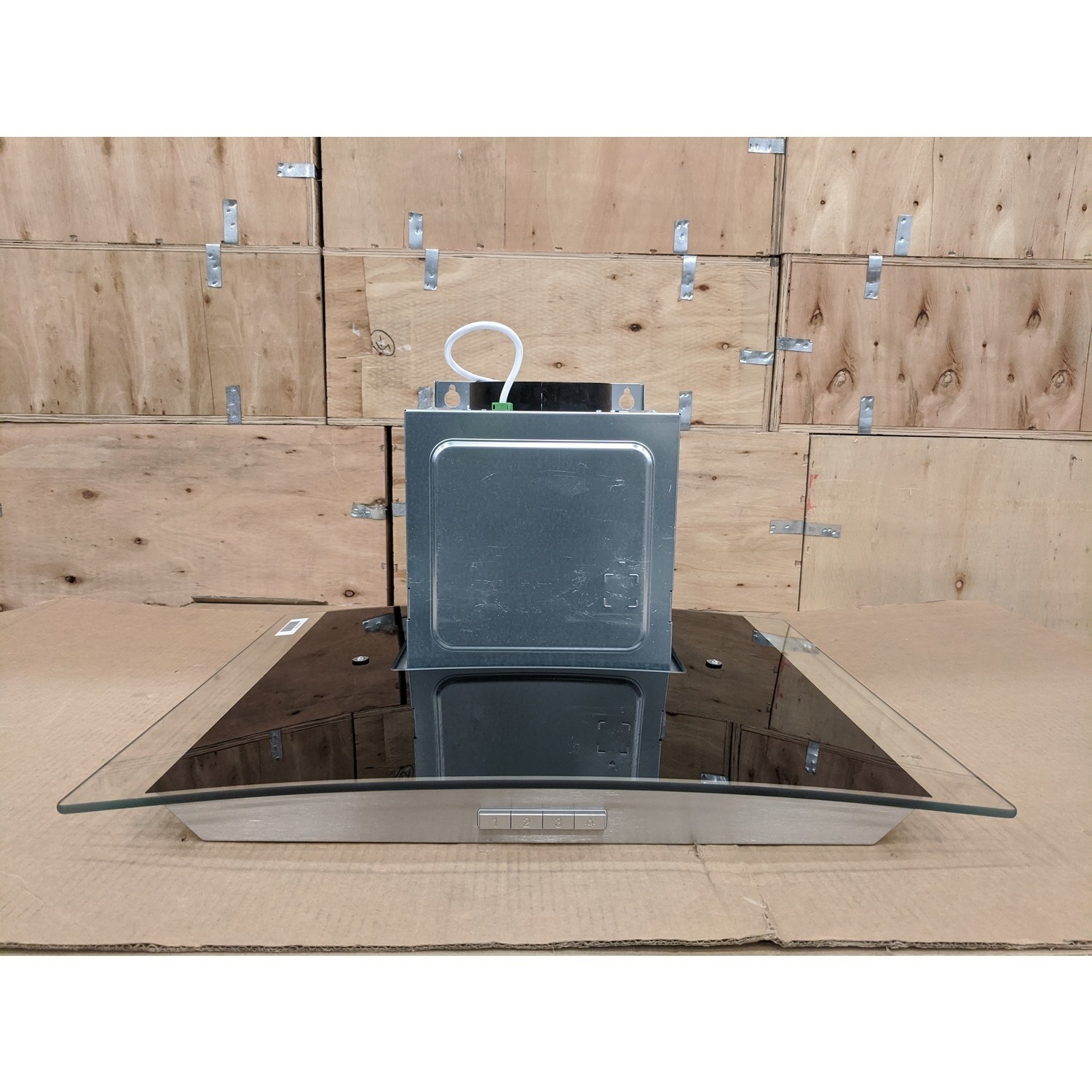

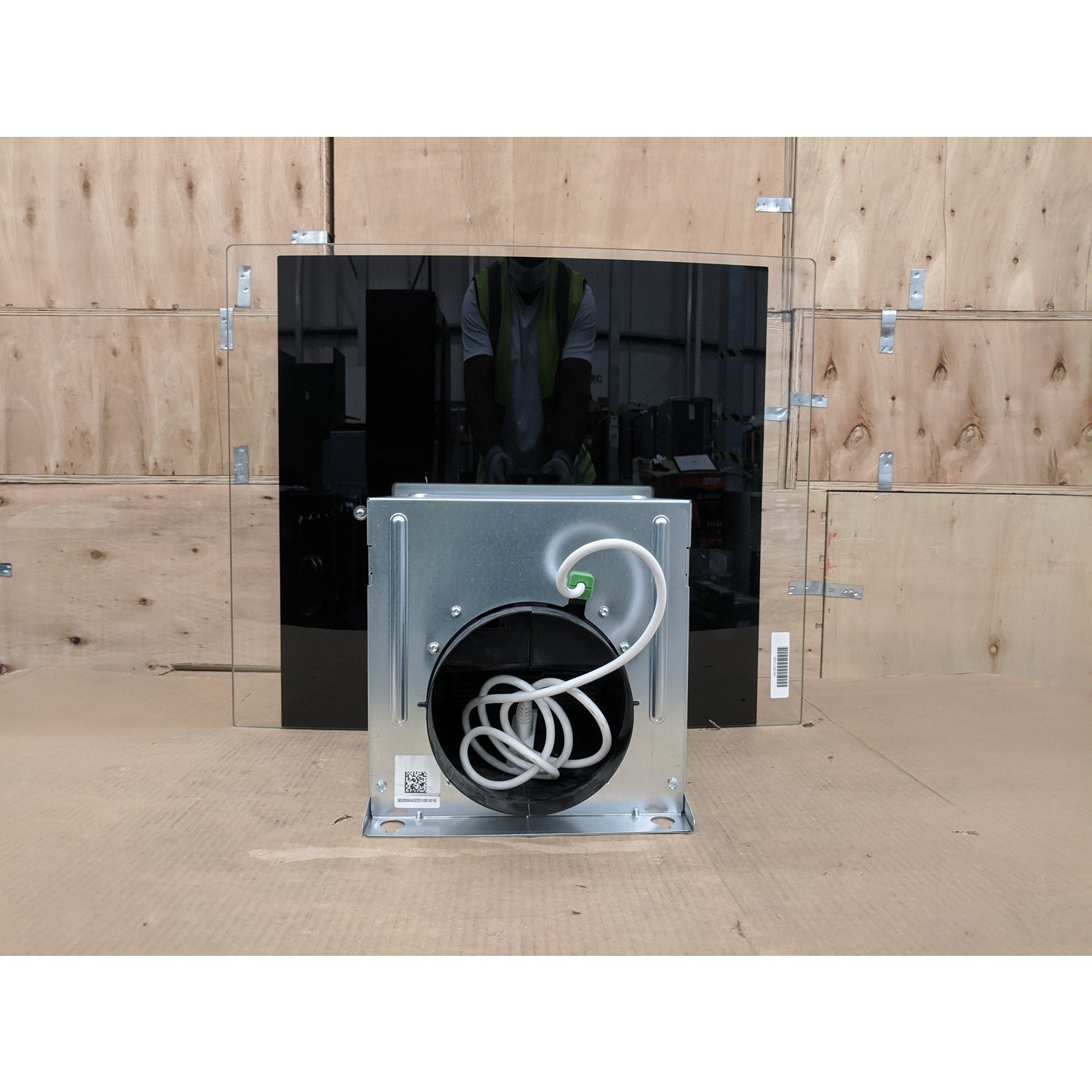

This is a graded product. A3 products have moderate exterior damage . All products are tested and are in good working order.
GRADE A3

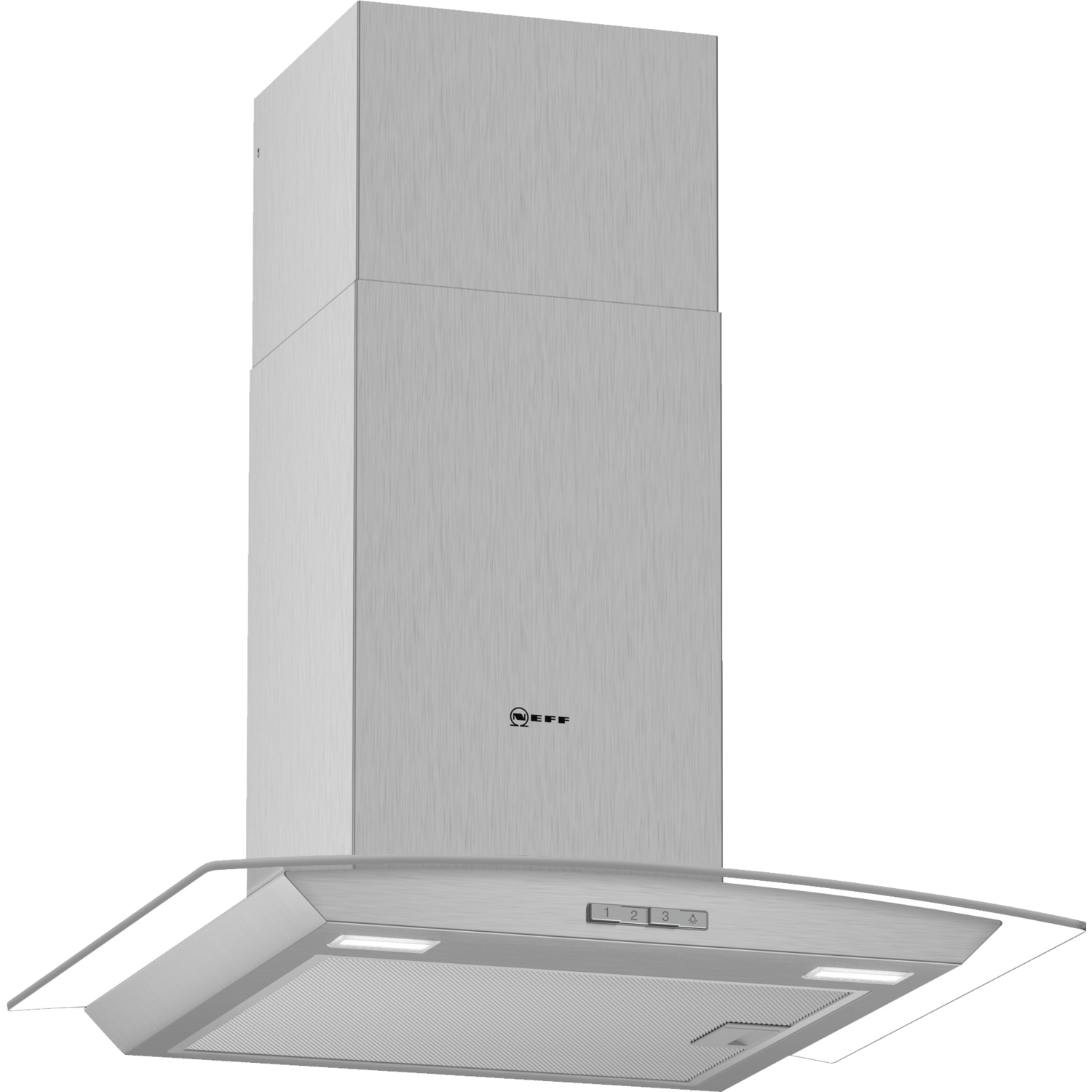

The curved glass canopy hood combines two design styles: transparent glass as well as the classic box hood design.
Key Features
- LED lighting: a clear illumination whilst cooking thanks to the energy-saving LED lights
- CleanAir: nothing but clean air thanks to the premium recirculation filter with high odour reduction (ca. 95%)
- High extraction rate: Ensures a clear view while cooking thanks to efficient motor technology as either a ducted or recirculating solution
Key performance features:
- Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
- Max. extraction rate: 590 m3/h
- Noise max. Normal Level: 68 dB*
Features

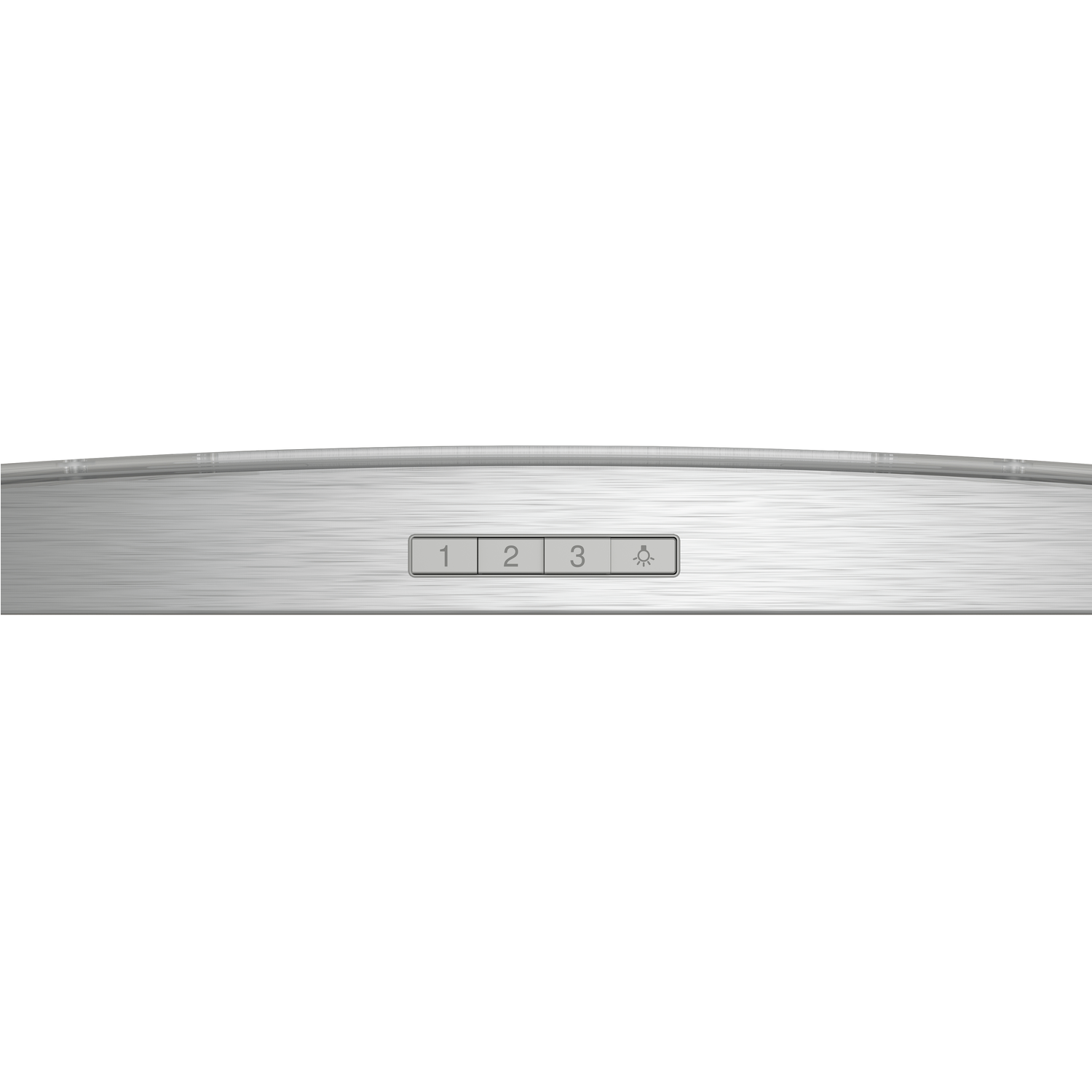

- Push button control operation
- 3 power levels
- 2 x 1.5w LED Light
- Colour Temperature: 3500 K

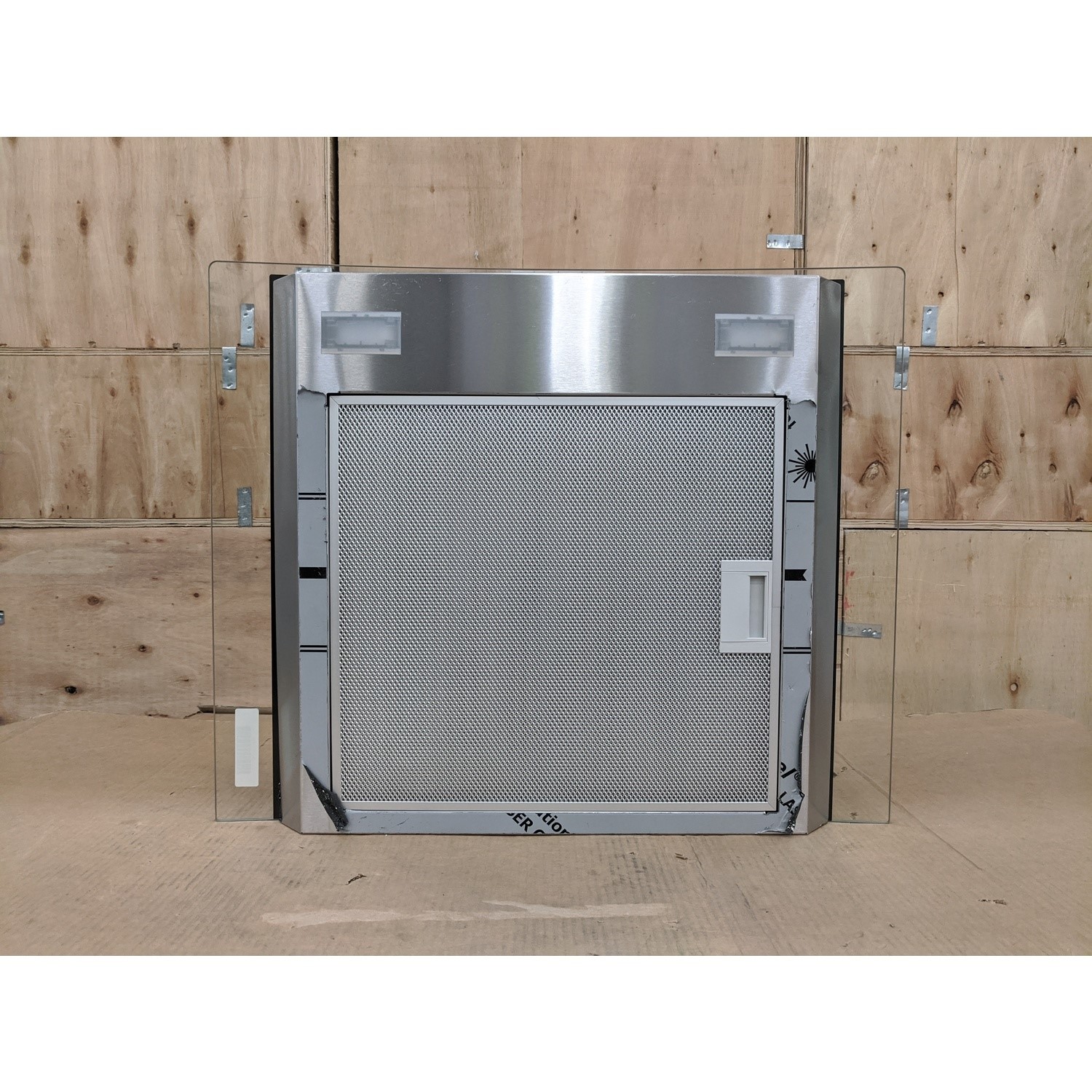

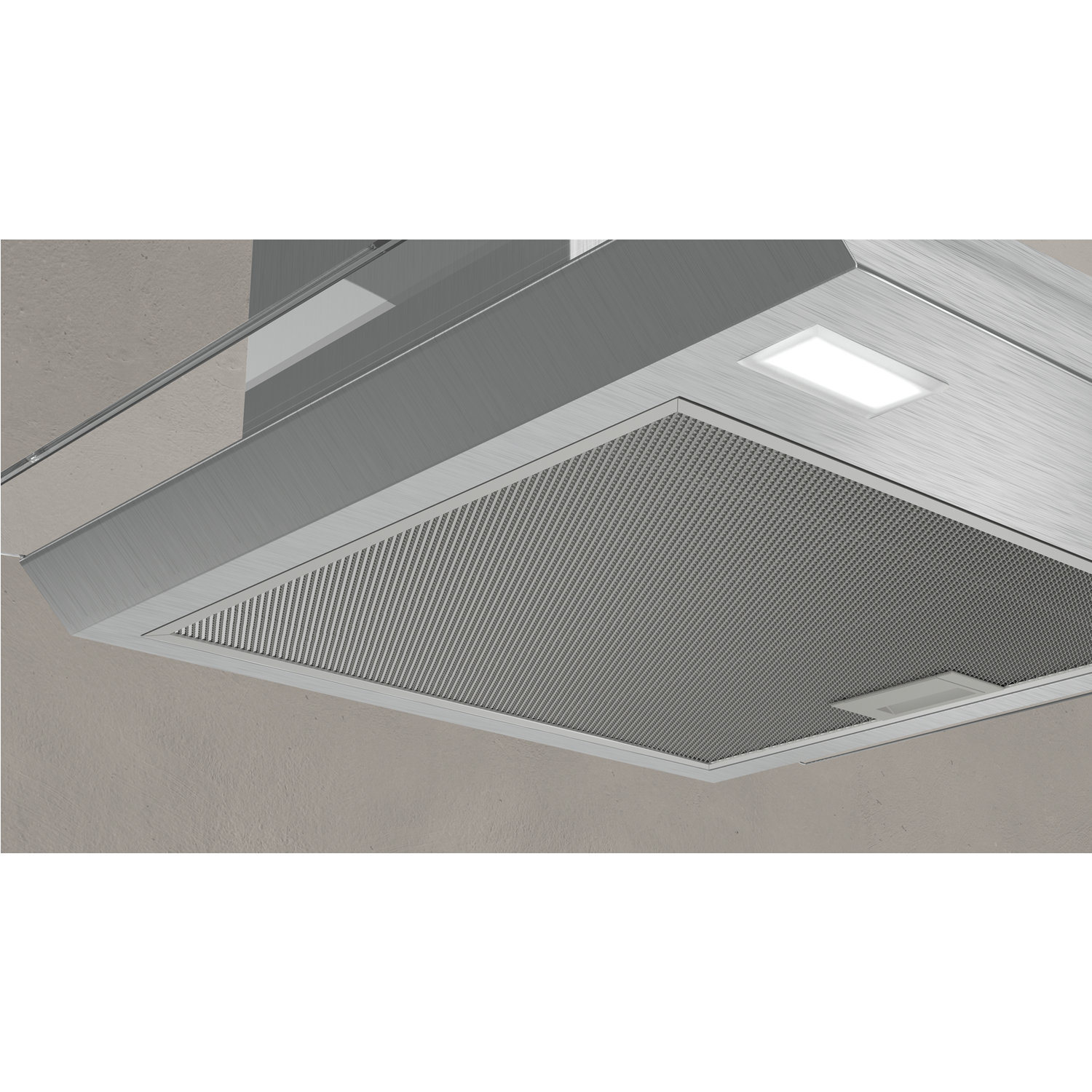

- 1 metal grease filter cassette
- For wall mounted installation
Design
- Stainless steel
- Glass design
- Chimney hood
- Push button control operation
- Mechanical controls
Performance/technical information
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 590 m3/h
- Maximum extraction rate exhaust air 590 m³/h according to EN 61591
- Extraction rate in recirculation mode:
- Max. normal use: 360 m³/h
- Noise max. Normal Level: 68 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 68 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)
- Noise level in recirculation mode:
- Max. normal use: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure)
- Power rating: 220 W
- Light Intensity: 114 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 617-947 x 600 x 488 mm
- Dimensions recirculating (HxWxD): 617-1057 x 600 x 488 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 686 x 600 x 488 mm - mounting with outer chimney
- 815-1145 x 600 x 488 mm - mounting with telescopic chimney
- Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 43 kWh/year*
Optional accessories
- Recirculating kit Z5270X0
