Control the power with the touch of a finger. Sights. Smells. Sounds. All important elements of the cooking experience can directly influence how much time you enjoy spending in your kitchen. With Touch Control you can quickly select and adjust your hood's lights and power settings. And because the control panel is integrated into the flat surface, it can all be done with a simple swipe of a finger. It is an easy way to get direct power and control to make every cooking experience even more enjoyable than the last. Quiet and calm in the kitchen. Our Efficient Drive motor brings harmony to the kitchen. It’s whisper-quiet and powerful too. Now you can focus on your cooking, and your guests, while your extractor keeps your kitchen calm, clean and serene. Dimmer Function The enjoyment of cooking and eating is influenced by all the senses, not just smell and taste. The dimmer lets you set the tone in your kitchen to make sure the atmosphere is just right for the experience you want to create.
Key Features
- High Extraction Rate – ensures a clear view while cooking thanks to efficient motor technology.
- Cooktop-based Hood Control – Adjust your hood´s extraction level and lighting.
- Adjustable LED White Colour Temperature – easily adjust the light to the shade that's right for your kitchen.
- Efficient Drive Motor – Quiet and energy-efficient hood motor for a calmer kitchen.

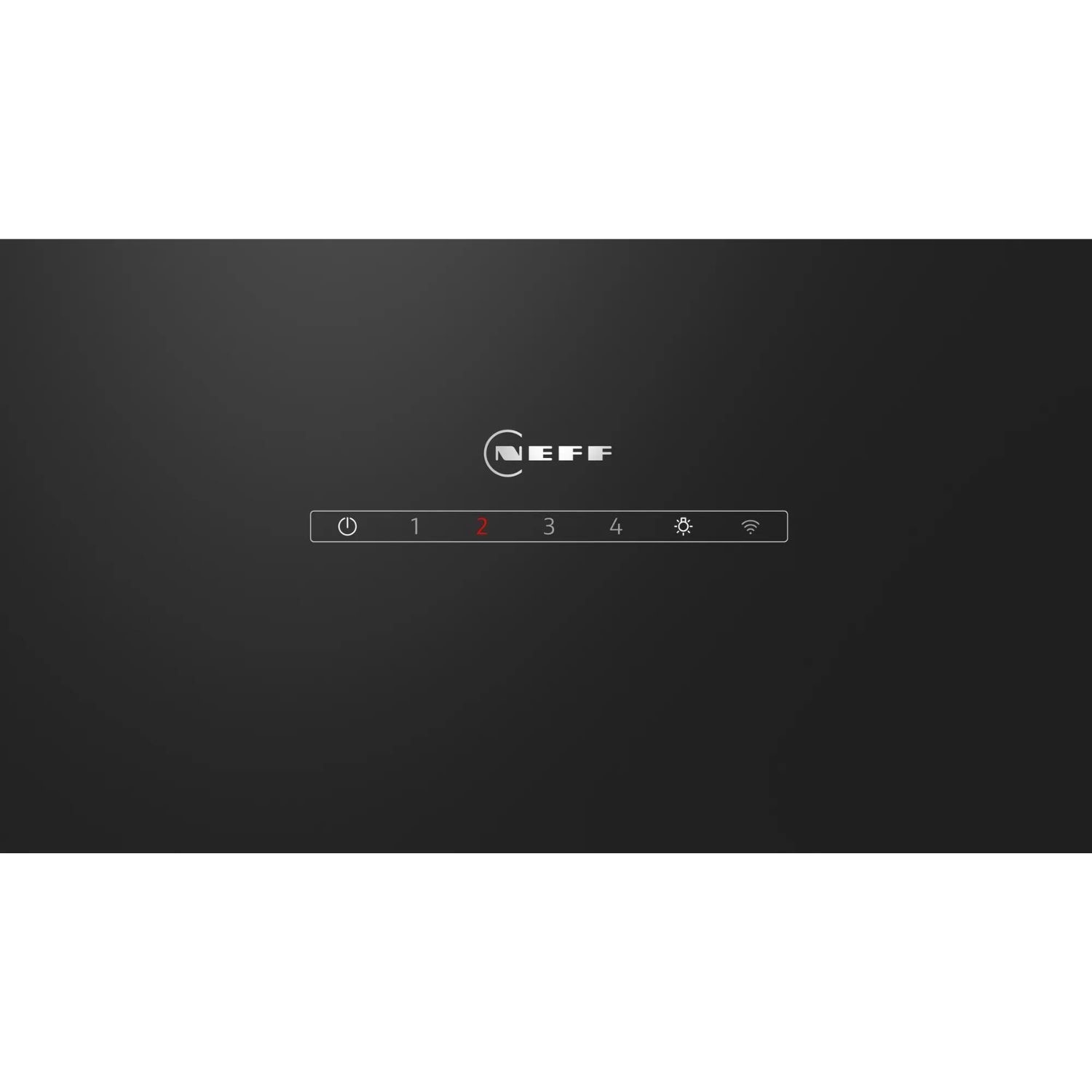

- Touch Control: an integrated flat surface control panel for smooth operation with a finger swipe.

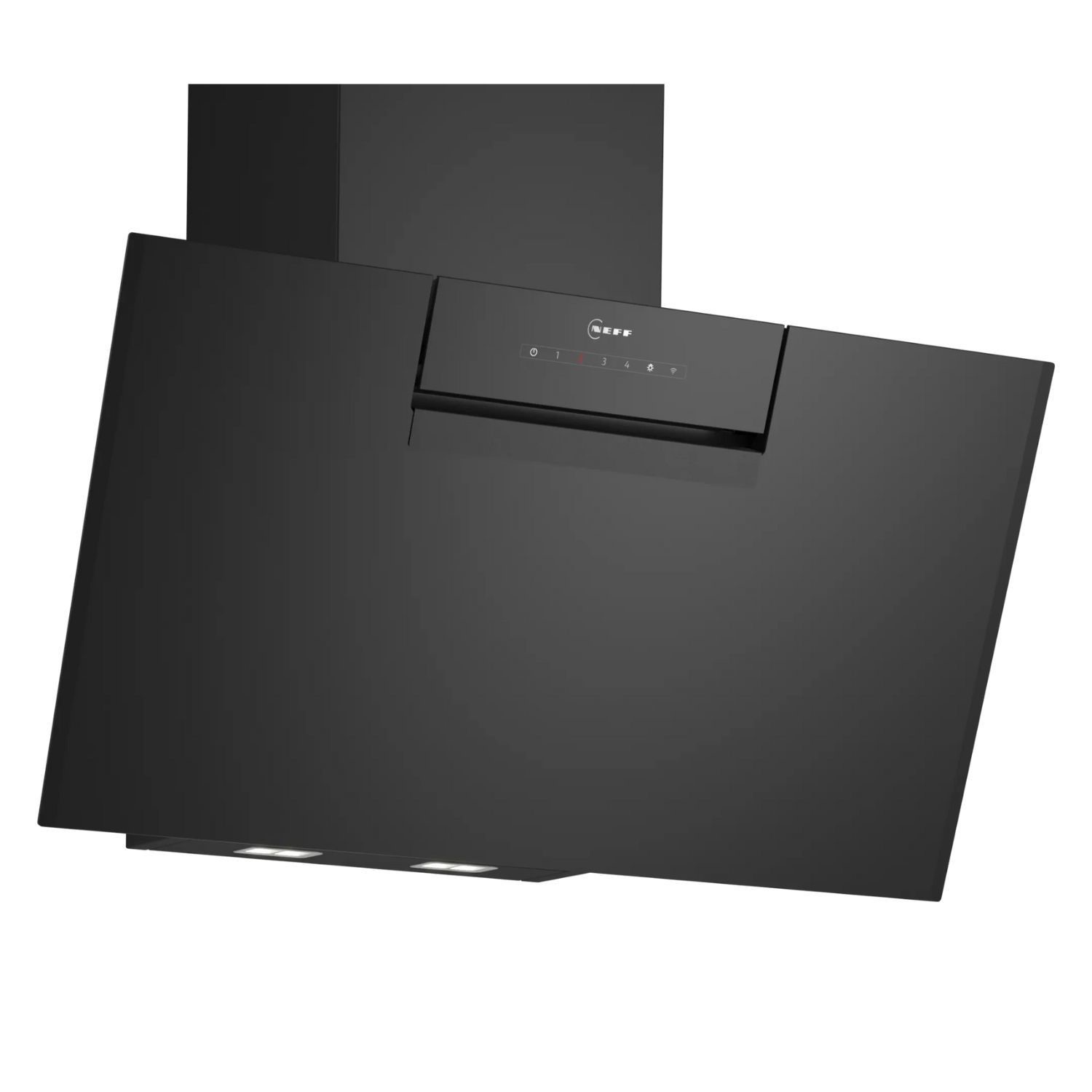

Design:
- Angled glass design
- wall-mounted
- Black glass
- Suitable for ducted extraction and recirculation
- In recirculation, operation can be installed without the chimney section
- For recirculation operation Clean Air Plus recirculation kit (accessory) is needed.
Core Features:
- Efficient BLDC technology

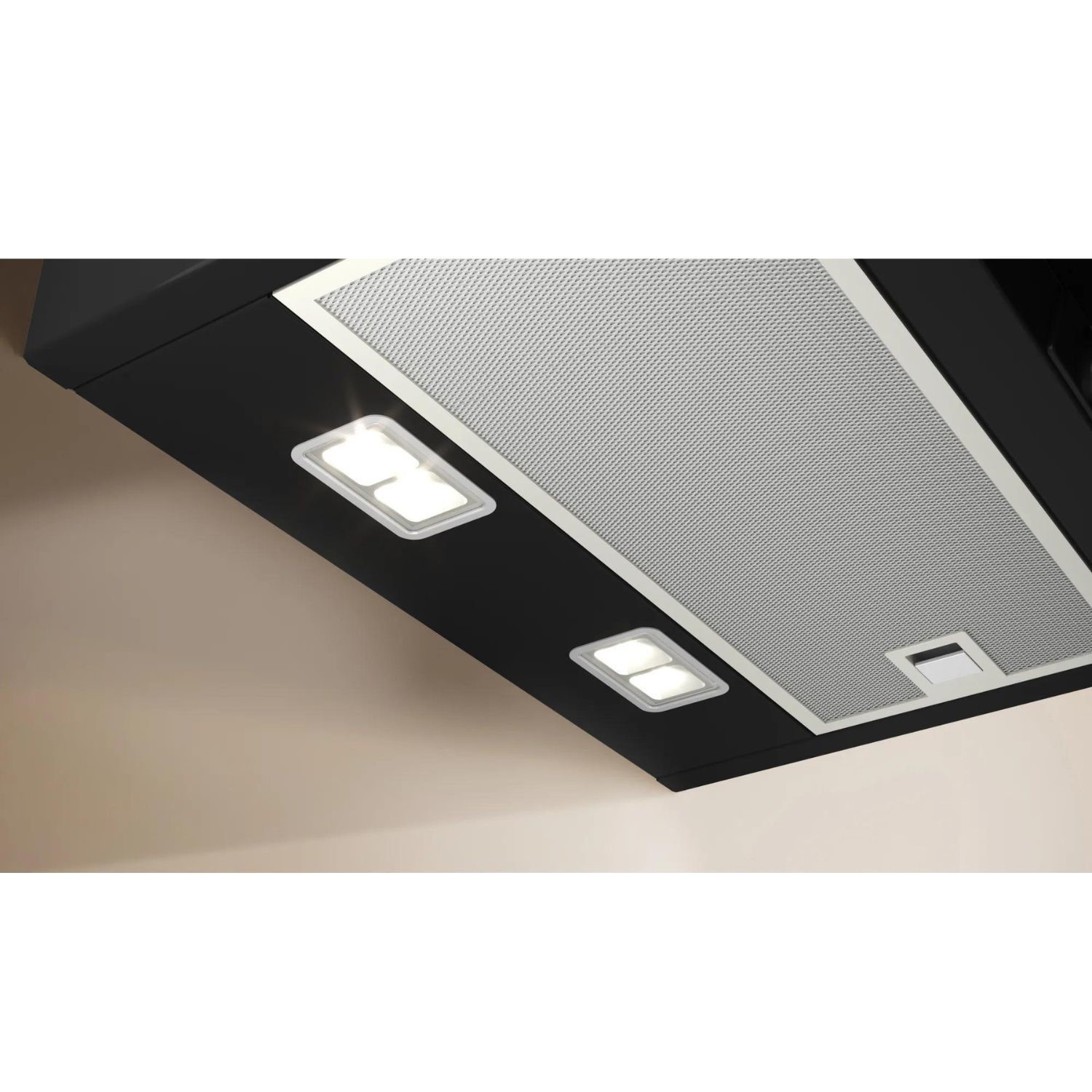

- 2 PC, LED, 3W, with Colour temperature adjustable
- SoftLight with dimmer function: the lighting elements switch on and off smoothly.
- softLight with dimmer function: the brightness of the lighting elements can be adjusted.
- Colour Temperature: 3500 K
- Light Intensity: 502 lux
- 2 capture areas: front side and bottom side
- 2 metal grease filter(s).
Comfort Features:
- 3 speeds plus intensive
- Automatic reset from intensive to normal setting after 6 min.
- Automatic after running (10 minutes)
Digital Features:
- Home Connect: operate, monitor, and set preferences of your hood via smartphone or tablet (only in countries where Home Connect service is available)
- Hob-Hood control (with Wi-Fi enabled hob): automatically activates the hood when cooking, thanks to the WiFi connection of the hood and suitable hob.
- based on hob-hood connection: Hood automatically adapts fan speed thanks to the hob continuously providing cooking data (with matching hob and connected Home Connect account)
- fully automatic hood
- Voice Control enabled via popular voice assistants (only in countries where this service is available)
- Performance Profiles: choose between standard, performance, or silence profiles to increase the extraction rate or reduce the fan noise via Home Connect App
- LED light with adjustable light temperature: Allows you to adapt the light temperature to your personal needs via Home Connect App
- Saturation indicator set and reset function for grease filter and odor filter available via Home Connect app.
- After run function: available via Home Connect App
- Interval function: available via Home Connect App
- The Home Connect functionality can be extended by integrating numerous applications from external cooperation partners (partnerships)
- Updateable appliance (available with connected Home Connect account): keep appliance always up to date with the latest status of software.
Cleaning Comfort:

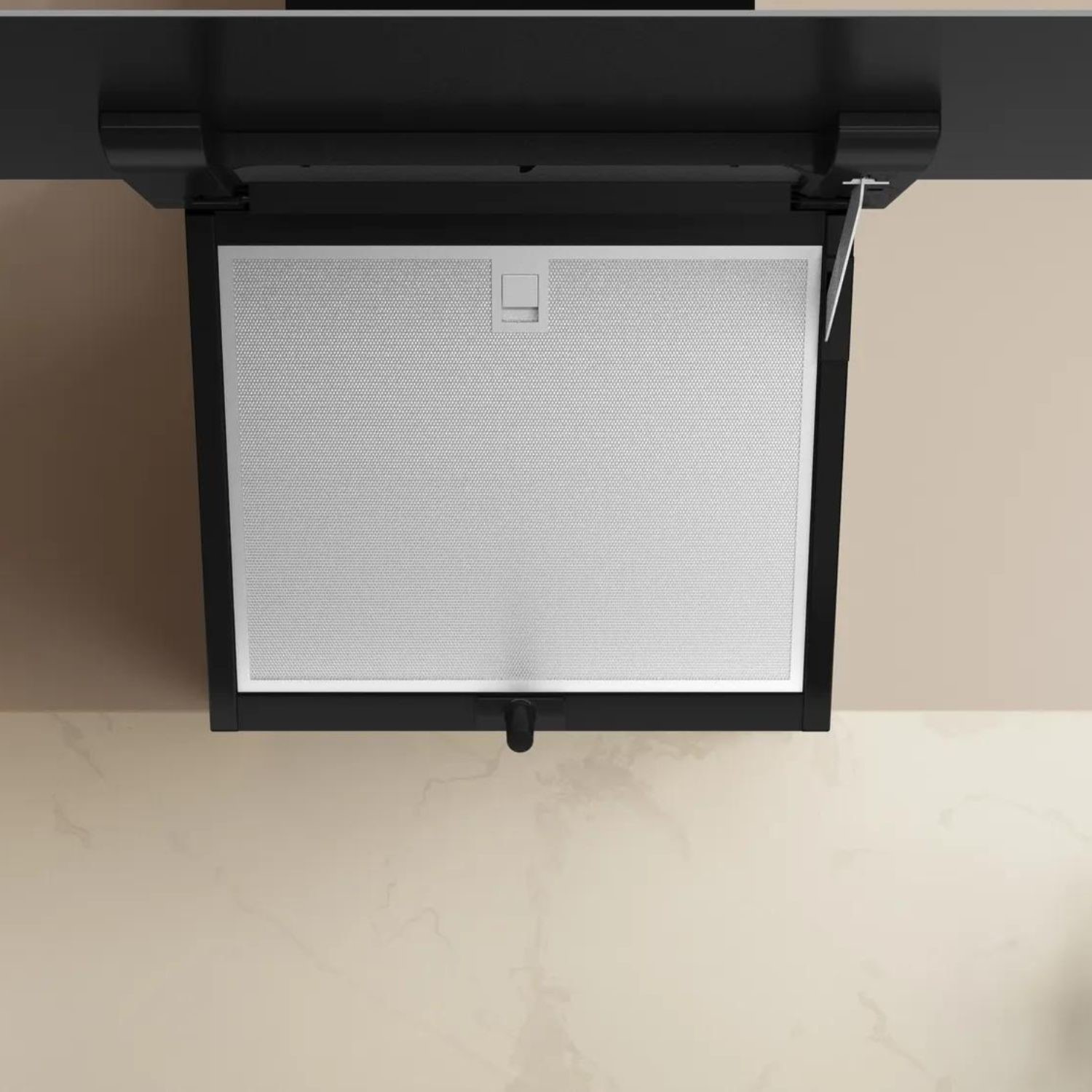

- Large opening angle of the glass plate with a locking function for easy filter accessibility and easy cleaning.
- Easy to clean smooth surfaces and materials.
- metal grease filter dishwasher-safe
Performance Exhaust:
- Can achieve the following values in exhaust mode:
- Speed 1: extraction rate 223 m3/h; noise level 39 dB (A) re1pW
- Speed 2: extraction rate 319 m3/h; noise level 48 dB (A) re1pW
- Speed 3: extraction rate 431 m3/h; noise level 56 dB (A) re1pW
- Intensive 1: extraction rate 768 m3/h; noise level 68 dB (A) re1pW

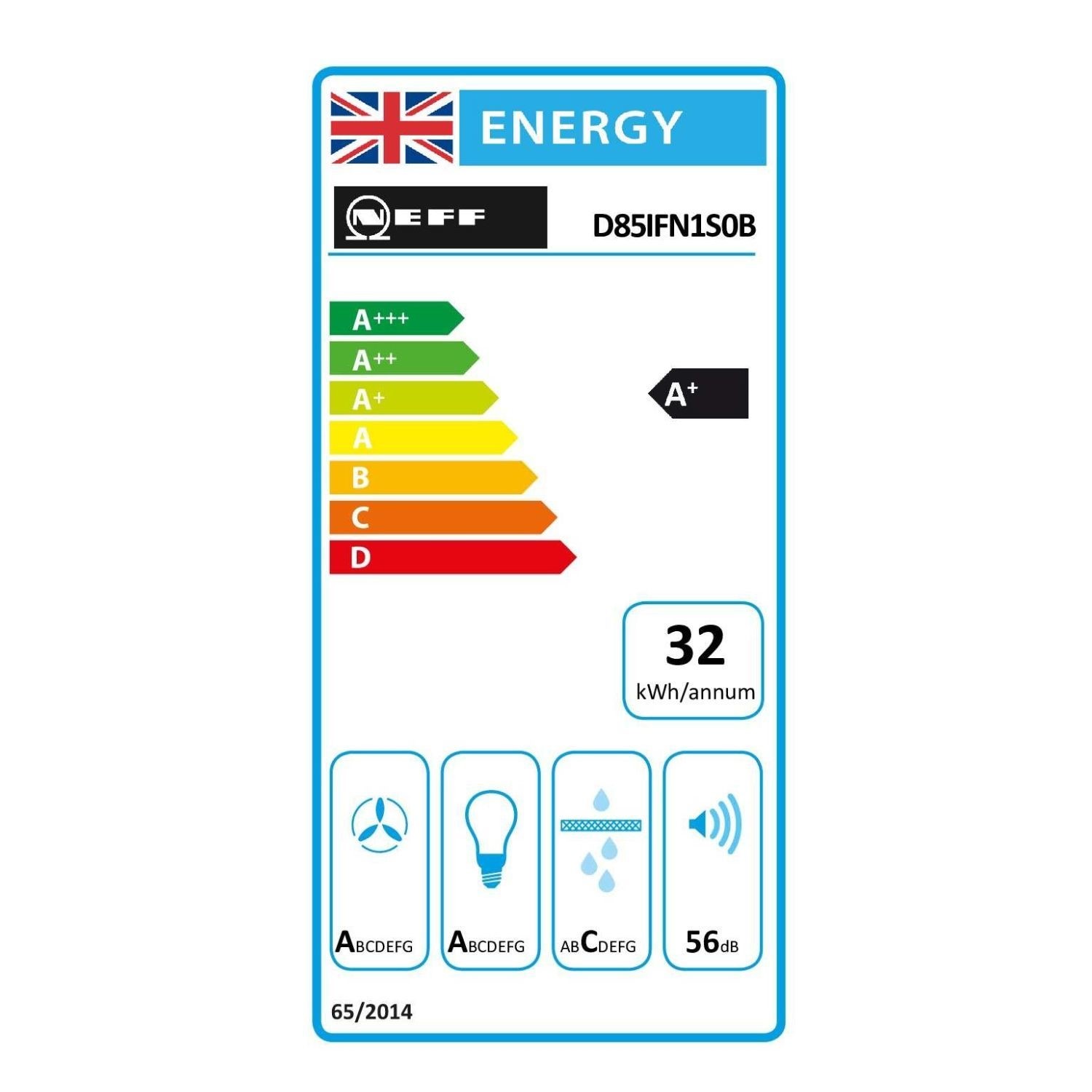

- Energy Efficiency Class: A+
- Average Energy Consumption: 31.7 kWh/year*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
Performance Recirculation:
- Can achieve the following values in recirculation mode with Clean Air plus recirculation kit, for installation with chimney (available as optional accessory):
- Speed 1: extraction rate 208 m3/h; noise level 47 dB (A) re1pW
- Speed 2: extraction rate 309 m3/h; noise level 54dB (A) re1pW)
- Speed 3: extraction rate 429 m3/h; noise level 62 dB (A) re1pW)
- Intensive Speed 1: extraction rate 724 m3/h; noise level 74 dB (A) re1pW)
Technical Information and Sustainability:
- Voltage: Nominal voltage: 220 - 240 V
- Power rating: 140 W
Sustainability:
- Made in Germany: produced at a CO2-neutral production site
- Environmentally friendly packaging
- The most efficient blower technology available on the market
Planning and Installation Information:
- Dimensions exhaust air (HxWxD): 883-1126 x 790 x 433 mm
- Dimensions recirculating (HxWxD): 883-1213 x 790 x 433 mm
- Dimensions recirculating installation, without chimney section (HxWxD): 360 mm x 790 mm x 433 mm
- Diameter pipe Ø 150 mm (Ø 150 mm enclosed)
- Electrical cable length 1.3 m
