Key Features
- Intensive speed setting: increases the extraction rate when the steam gets intense
- LED lighting: a clear illumination whilst cooking thanks to the energy-saving LED lights
Features
- For wall mounted installation

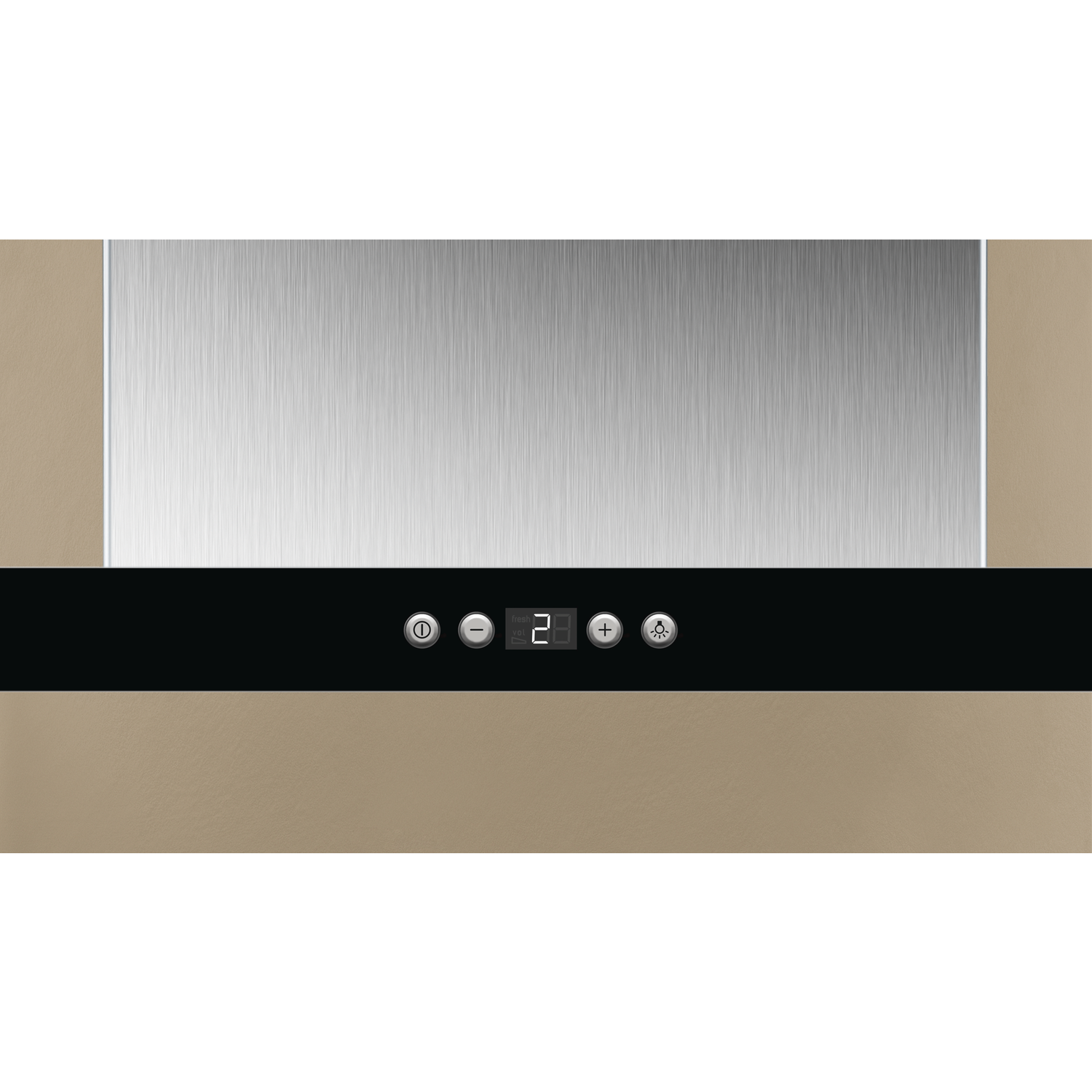

- 7 segment LED display
- 3 x LED lights
- softLight with dimmer function

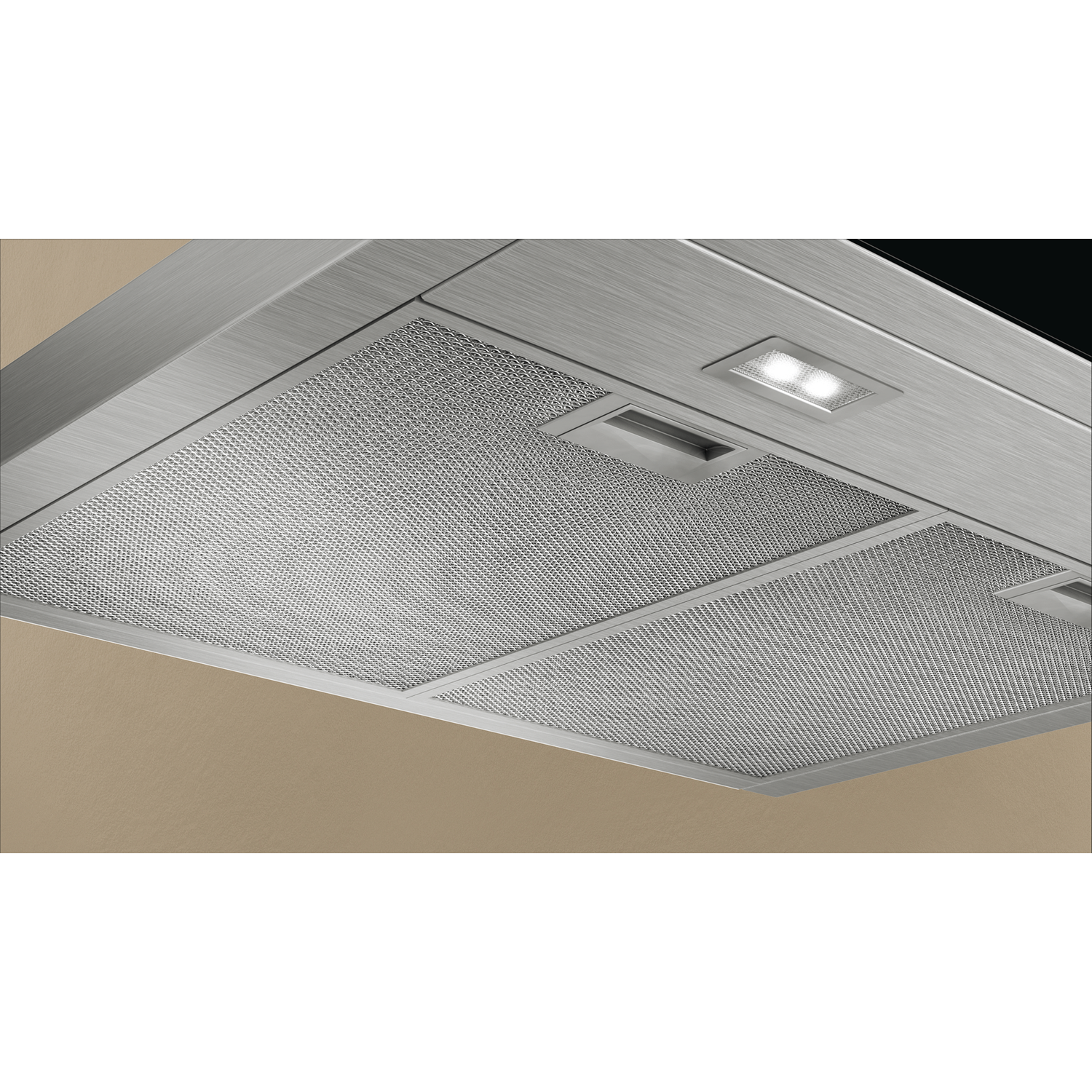

- 3 metal grease filter cassettes
- Saturation indicator for grease filter
- metal grease filter
- Interval operation
- 3 power levels and 2 intensive settings
- (10 minutes)
- Automatic intensive revert (6mins)
- Additional noise insulation
- 700EE
Design
- Stainless steel
- Stainless steel with glass canopy
- 90 cm wide Chimney hood
- Box slimline brand design
- Soft touch control
- Electronic controls
- Light Colour: warm white
Performance/technical information
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Twin channel high performance fan motor
- In recirculation operation chimless use possible
- Easy mounting system
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 460 m³/h
- Intensive 730 m³/h
- Power rating: 139 W
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 55 dB (A) re 1pW
- Noise max. Normal Level: 55 dB*
- Light Intensity: 897 lux
- Colour Temperature: 3500 K
- Electrical cable lenght 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

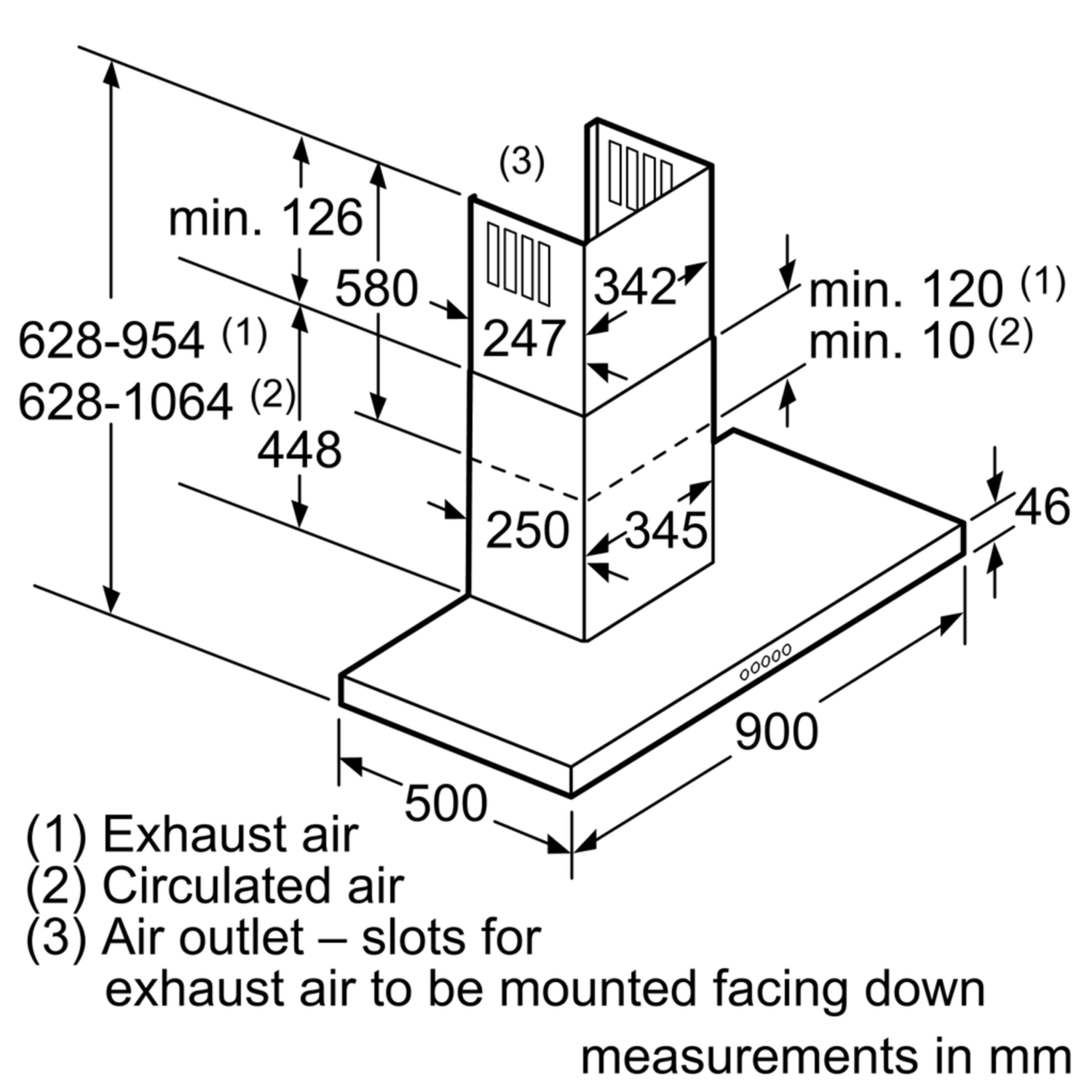

- Dimensions exhaust air (HxWxD): 628-954 x 900 x 500 mm
- Dimensions recirculating (HxWxD): 628-1064 x 900 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 689 x 900 x 500 mm - mounting with outer chimney
- 809-1139 x 900 x 500 mm - mounting with telescopic chimney
- Energy Efficiency Class: A+*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 32.5 kWh/year*
- Optional accessories
- Recirculating kit Z5102X1, Z5102X5, Z5170X1, Z5276X0, Z5906N1, Z5916N1
