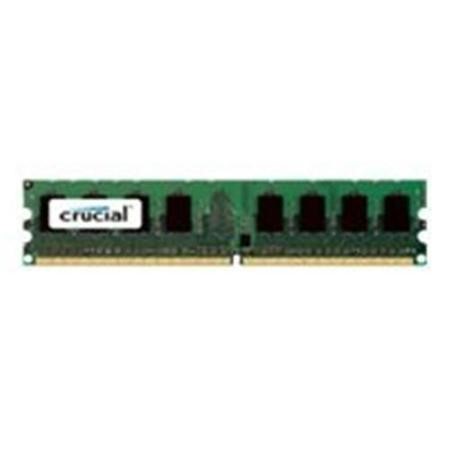

Crucial 4GB DDR3 1600MHz Non-ECC DIMM Destkop Memory CT51264BD160B

Quickfind code: 664332
Was: €47.36     You save: €17.36
€30

See all delivery & collection options
Enter delivery postcode for options and prices:

We want your delivery to be as easy as possible which is why we offer a service to suit you!

click to close
Why buy me
  • Capacity - 4GB
  • Type - DRAM
  • Speed - 1600MHz
  • Form Factor - DIMM 240-pin
More Info » Tech Spec »
click
Valid promotions & discounts
Price match

If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 1520 932 633 and we will try and price match where possible! Terms & Conditions apply.

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options
click

Popular Bundles

Product Information

Desktop modules that operate at speeds up to 1600 MT/s and have a CL11 latency. It is dual voltage and can operate at 1.35V or 1.5V. It is Unbuffered and is non-ECC. It conforms to the industry standard UDIMM layout of 240 pins and is compatible with computers that take DDR3 UDIMM memory.

A dual inline memory module (DIMM) consists of a number of memory components (usually black) that are attached to a printed circuit board (usually green). The gold pins on the bottom of the DIMM provide a connection between the module and a socket on a larger printed circuit board. The pins on the front and back of a DIMM are not connected to each other.

Each 240-pin DIMM provides a 64-bit data path (72-bit for ECC or registered or Fully Buffered modules).

To use DDR3 memory, your system motherboard must have 240-pin DIMM slots and a DDR3-enabled chipset. This is because a DDR3 SDRAM DIMM will not fit into a standard DDR2 DIMM socket or a DDR DIMM socket.

The number of black components on a 240-pin DIMM can vary, but it always has 120 pins on the front and 120 pins on the back, for a total of 240. 240-pin DIMMs are approximately 5.25 inches long and 1.18 inches high, though the heights can vary. While 240-pin DDR3 DIMMS, 240-pin DDR2 DIMMs, 184-pin DDR DIMMs, and 168-pin DIMMs are approximately the same size, 240-pin DIMMs and 184-pin DIMMs have only one notch within the row of pins.



Tech Spec

Key Specification
Brand Crucial
Memory voltage V
Data integrity check Non-ECC
Memory Speed 1600MHz
Capacity 4GB
Memory type DRAM
Other Specification
Registered/Buffered Unbuffered
Form Factor DIMM 240-pin
Details
Product Codes 0649528754110, 119347, 2483232, CT51264BD160B, CTM335V
