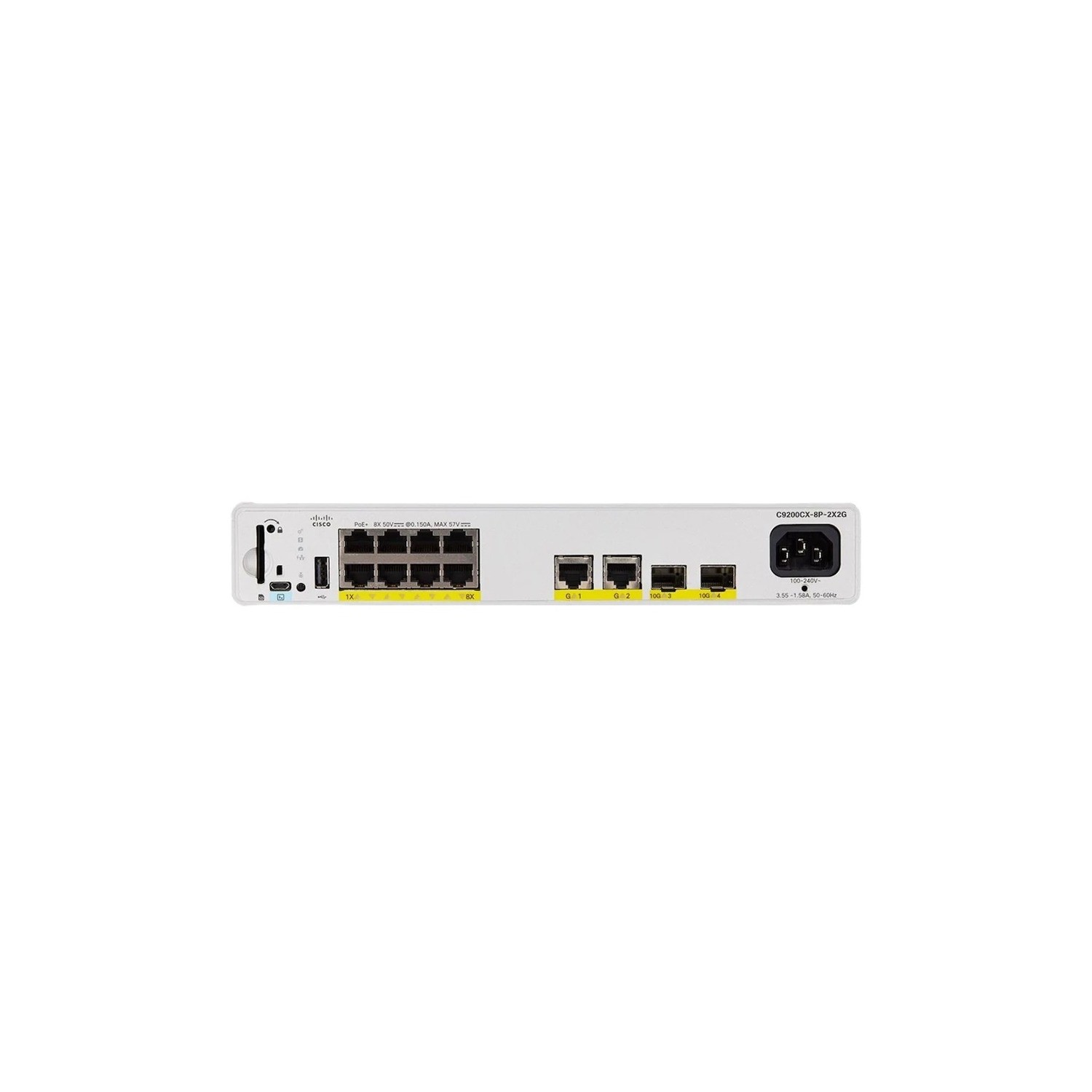

The Cisco Catalyst 9200CX compact switches serve as the cornerstone of Cisco's cutting-edge compact, enterprise-grade access layer solutions. Offering a feature-rich platform similar to other models in the Catalyst 9200 series, these fanless switches are available in diverse configurations, including data-only, Power over Ethernet Plus (PoE+), and 802.3bt Type 3 Class 6 60W UPOE models. Designed to meet the demands of enterprise applications, they boast exceptional table scales (MAC/route/ACL) and buffering capabilities.
Key Features
- Advanced network management capabilities
- Enhanced security features
- High-performance switching
- Power over Ethernet (PoE+) support
- Flexible connectivity options
Ethernet Plus (PoE+)
Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200. Power over Ethernet Plus (PoE+) capability for up to 12 ports, IEEE 802.3bt class 6 and Cisco UPOE capability for up to 8 ports for C9200CX.
Field-Replaceable Units (FRU)
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200 models. C9200CX models are fanless and are powered by internal fixed power supply or optional power adapters, when not powered by upstream IEEE 802.3bt class 6 60W PSE.
Low Voltage DC to High Voltage DC (HVDC)
Flexible power source options from line voltage AC, low voltage DC to High Voltage DC (HVDC) in C9200CX models provide the choices for customers to migrate to efficient DC micro grid powered by renewable energy sources for a sustainable future.
