Product Information
Features
- Ducted/recirculating installation
- 3 speeds + intensive
- Touch control
- Dishwashable aluminium grease filter
- 2 x 20W halogen lamps
- motor
- Glass light diffusers
- Filter saturation warning light
- Clean air function
Technical Specifications
- Required height over gas hob: 650mm
- Required height over electric hob: 450mm
- Outlet diameter: 150 mm
- Noise level: 56 dBA
- Extraction rate: 703 m³/hr
- Rated electrical power: 290W
- Power supply required: 3 amps

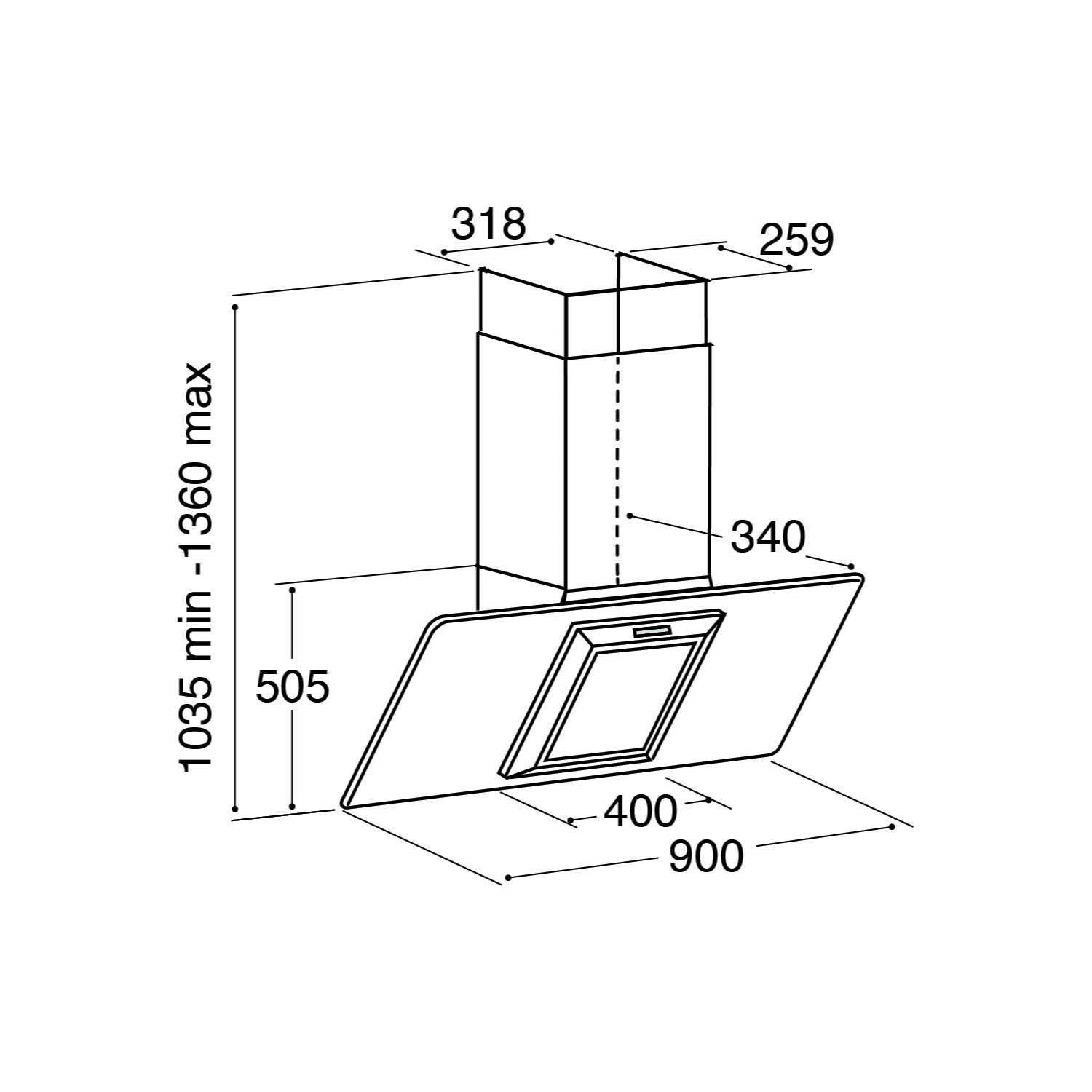

Dimensions (mm)
- Height: 930/1035-1360
- Width: 900
- Depth: 259
Optional Accessories
- Charcoal filter: CHA21 (2 required)
- Ducting kit: AED61, AED63, AED64
Back to top
Question from Steve Morris: Asked on 28/05/2015 what are the chimney dimensions please
Answer from Kellyfox Hi Steve
Dimensions are
Height (min)
1035 MM
Height (max)
1360 mm
Width
900 mm
Thanks
Kelly
