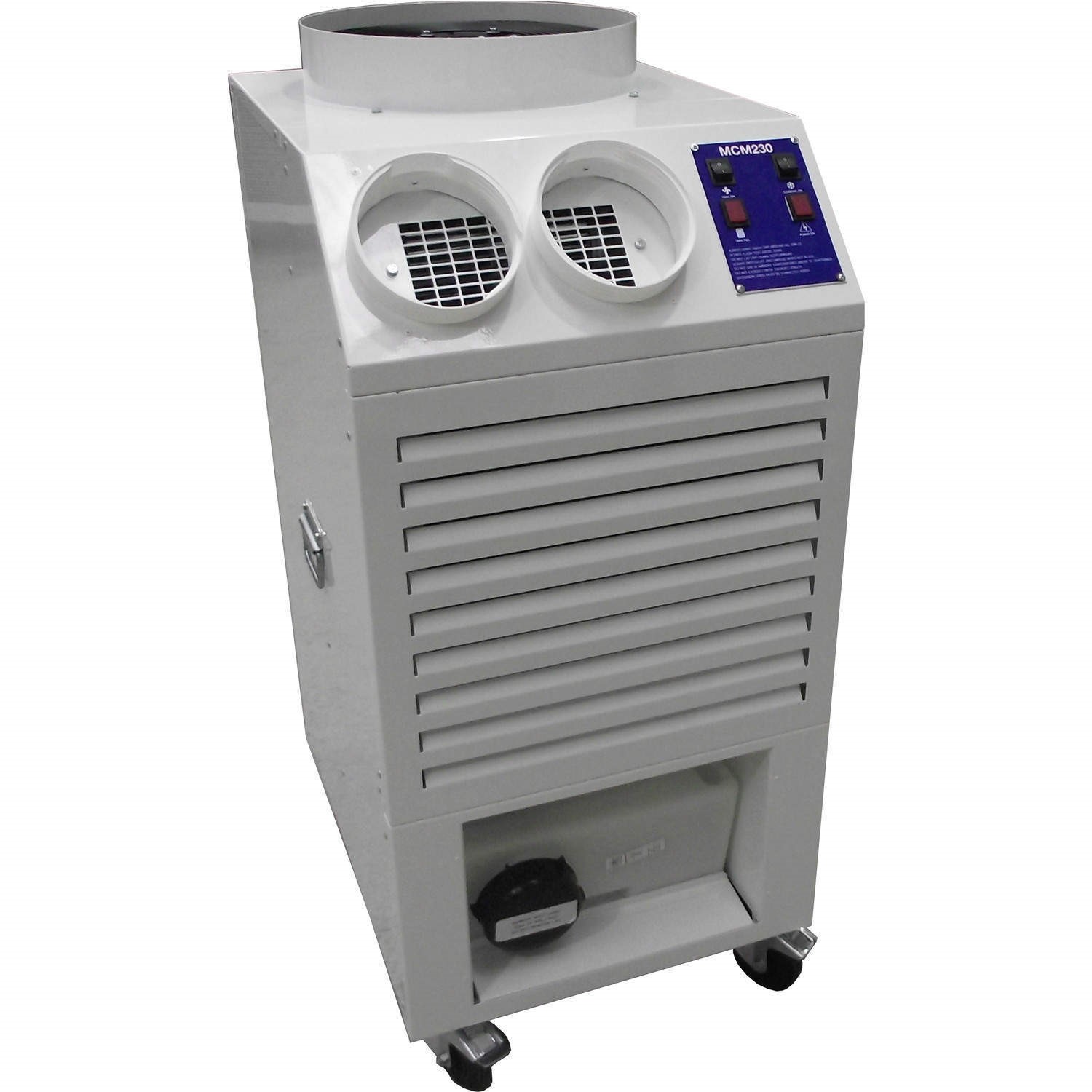

Broughton 23000 BTU Commercial Air Conditioner MCM230

Quickfind code: 494830
Was: €2139.14     You save: €180.17

See all delivery & collection options
Enter delivery postcode for options and prices:

We want your delivery to be as easy as possible which is why we offer a service to suit you!

click to close
Why buy me
  • Manufacturer Broughton
  • Model MCM230
  • Refrigerant Green R422d
  • Rating 6.7Kw, 23,000 BTus
  • Voltage 230
  • Multi Areas Up to Two Areas Simultaneously
  • Thermostat No
  • Portability Fully portable locking castors
More Info » Tech Spec »
Valid promotions & discounts
Price match

If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 1520 932 633 and we will try and price match where possible! Terms & Conditions apply.

Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

Popular Bundles

Product Information

Broughton products are a British brand you can trust, for not only engineering that lasts, but units that deliver

After 30 years experience in the industry Broughton are so confident in its products that they come with a full 2 years warranty.

The mighty cool range of heavy duty air conditioning units offers enormous versatility with rugged design and stylish looks. These easy to use units are built to cope with everything, whilst not looking out of place in the office or boardroom. The massive cooling abilities allows them to be used for spot, comfort or process cooling. If it’s a congestion of people, equipment or both these air-conditioning units quickly help to return the workspace to a comfortable level. The amazing Multi Area cooling facility means you can cool more than 1 area at a time and then vent the air via a single vent up to 20 Meters away.

Take a look at the special features including the innovative pressure control system which help to prevent nuisance freezing up.

  • Manufacturer Broughton
  • Model MCM230
  • Refrigerant Green R422d
  • Rating 6.7Kw, 23,000 BTus
  • Voltage 230
  • Multi Areas Up to Two Areas Simultaneously
  • Thermostat No
  • Portability Fully portable locking castors
  • Air Flow 1170 Cubic Meters per Hours
  • Cooling Ducting 2x150mm
  • Exhaust Ducting 300mm
  • Exhaust pipe length 3m
  • Running Current (Amps) 8.6
  • Noise 66dbA
  • Weight (Kg) 86
  • Dimensions (HxWxD) 1080x530x690 mm
  • Power Supply Standard domestic 13amp
  • Warranty 2 Years

Cooling two locations with one unit, can save on noise disruption and running costs.


Tech Spec

Key Specification
Cooling Power (BTU) 23,000
Cooling Power (kW) 6.7kW
Energy Rating A
Maximum Cooling Area (m2) 60m²
Number of Fan Speeds 3
Power supply 220-240V/50hz
Max. Hose Length 10Metres
Power cord length 1.5Metres
Installation No installation Required
Colour White
Brand Broughton
Warranty 1 year
Dehumidifier function
Auto Restart
Suitable For Cooling
Server Room
Industrial Space
Product Codes 0004948309, MCM230, MCM230-110V

Questions & Answers

Question from J.E.: Asked on 05/05/2012 Is this unit 50 or 60 hz?
Does the unit run on 220 (230v) or 120 (115v)?

Answer from Gavin Hi, the unit is 230v, we have no spec indicating Hz though.


Question from Dee: Asked on 18/10/2011 What's the coolest it gos down too? My rooms in it's 100's as for the size it's 9ft high, 13ft by 12ft.. Would it sort it? Or what one would you recommend? My server room needs to be 25 to 27c for safety....

Answer from mark h Yes we've used one of these in a sever room with slightly larger dimensions when our main units went down. Will cool to around 20 degrees c. Thanks

Question from Alan: Asked on 13/07/2011 Can you tell me the diammeter of the exhaust hose, is it possible to reduce this down if need be. Also is it possible to purchase this using a purchase order ?

Answer from mark h The exhaust and outlet hoses on these are 8 Inches and cant be reduced. We only accept Purchas Orders from Education and Government institutions I'm afraid

Question from emmanuel: Asked on 16/06/2011 I need a specified air condition that is central for a place of worship.This will be used for the toilets,auditirium and every other place within the floor area of 490m2.This must be able to blow both heat and cool air.Please specify the correct type.height is 2.8m

Answer from mark h For this size you would require 25,000BTU's so an MCM280 would be best. These units only will only cool, they don't heat.

Question from Mark: Asked on 11/05/2011 Is the condensate extracted via the vent hose? Being multi area how is the cool air distributed - by extra hose? If it is via hose what is the maximum length of cooling hose? What hoses are included?

Answer from mark h Yes, however there is a also removable tank at the front of the unit that will collect water depending on the humidity levels. This unit has 2 outlets and 1 exhaust. Its comes with 2.5m of outlet and exhaust hose but extra lengths of 15m can be purchased for £89 Inc vat, this can be used for both exhaust and outlet. The maximum lengths for each would be 15m.

Question from Stewart: Asked on 17/06/2010 Please indicate physical dimensions. I'd like to place the unit in a control room to remove 6.5 kW of thermal load where space is at a premium

Answer from mark h Dimensions (HxWxD) 1080x530x690 mm

Question from mike mckay: Asked on 11/06/2010 Can you tell me what the electrical draw is on the Broughton air con unit 23,000 btu unit please when run at maximum output?

Answer from mark h 8.6Amps

Question from Bea: Asked on 24/05/2010 i want a unit that will cool a room 30ft by 30 ft, what unit do you recommend?

Answer from mark h It depends on the height of the room. Please see the right hand side button which unit is right for my room. The calculator will work out the required BTU
