Stand out features

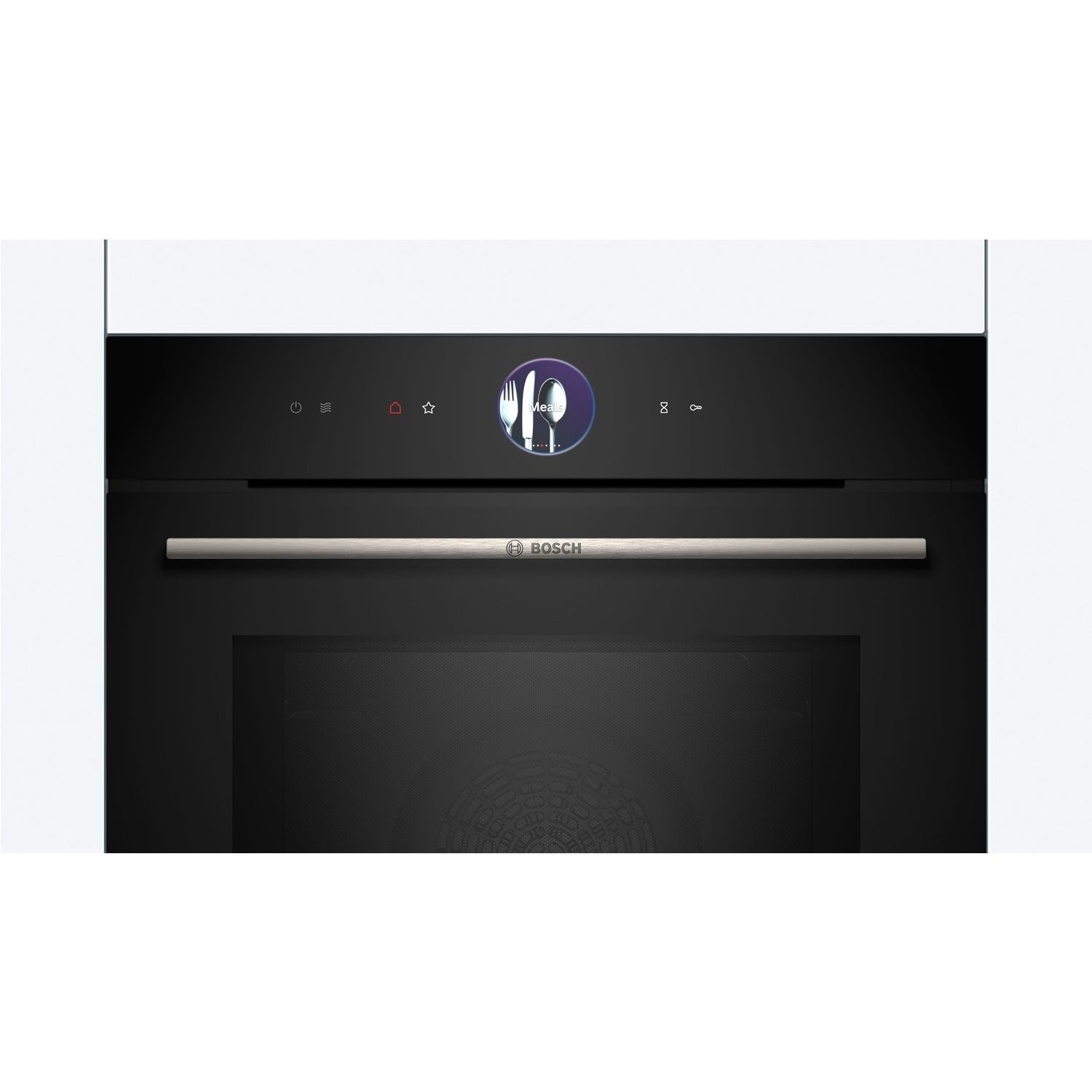

TFT Touchscreen Display and Digital Control Ring
The enlarged TFT touchscreen display cleary shows text and images and can be navigated through the Digital Control Ring.
20 Oven Functions
With 20 cooking functions including fan oven, grill, microwave, and air fry modes this oven can do it all in one.

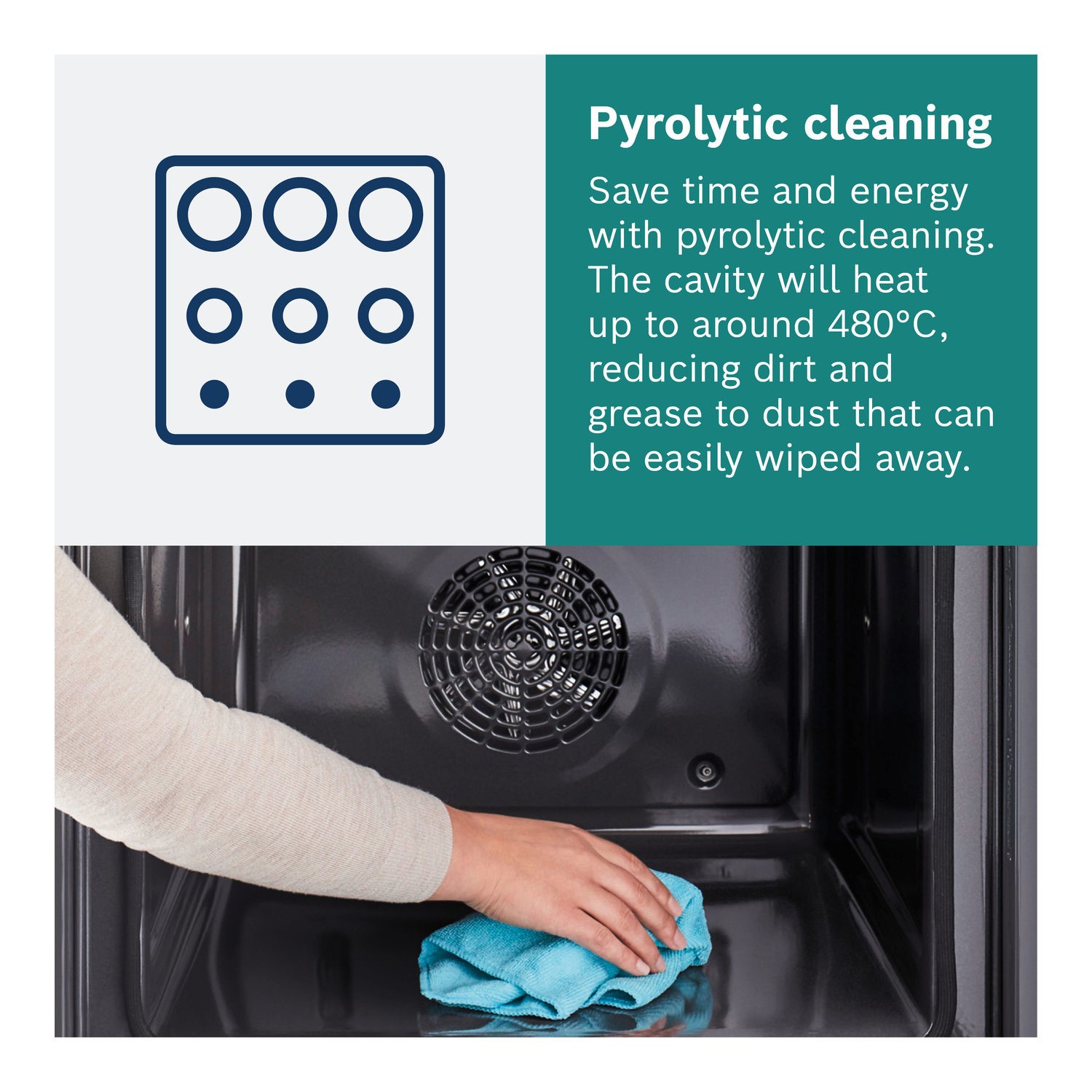

Pyrolytic Cleaning
The pyrolytic cleaning function uses high temperatures to burn away grease inside the oven leaving nothing but ashes that can be swept away leaving the oven spotless.
Home Connect
With Home Connect you can switch on your oven on the way home, control it with your voice, or get access to recipes and cooking tips.

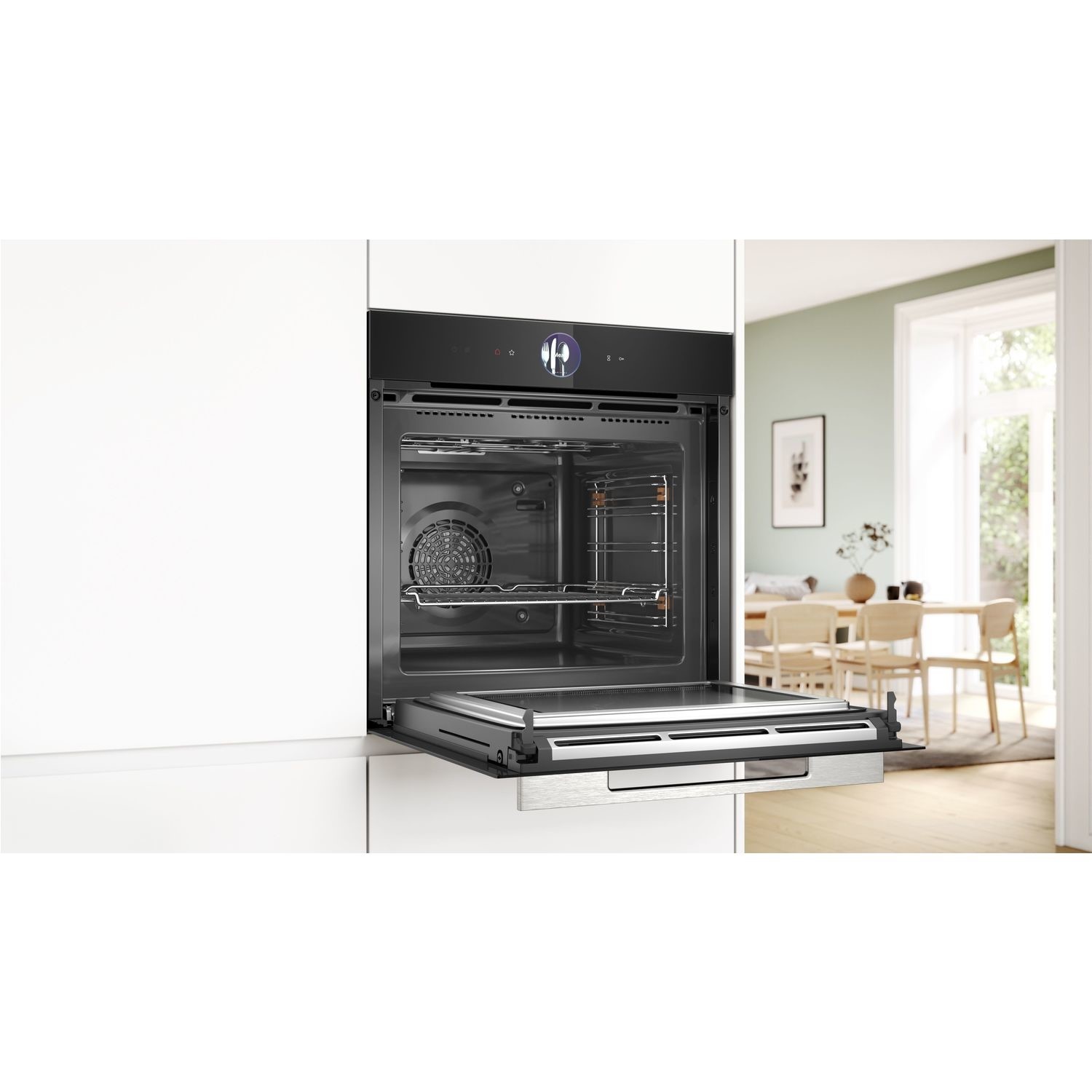

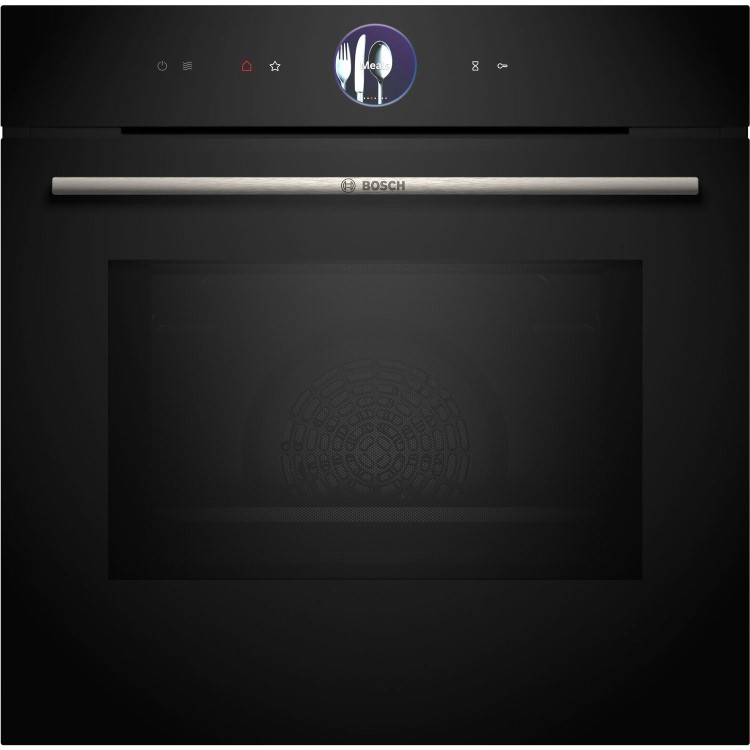

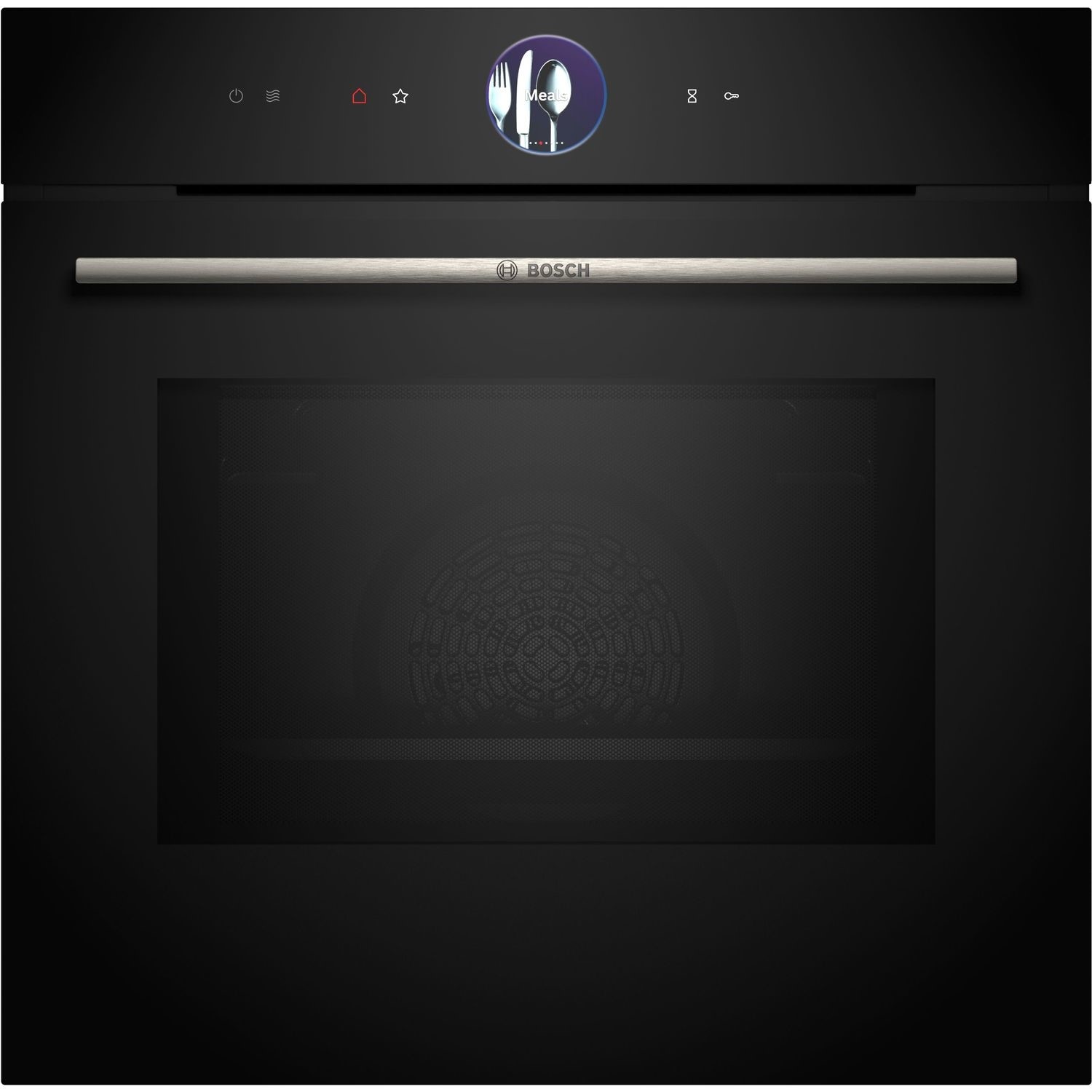

This Bosch Series 8 HMG7764B1B built-in oven features 20 cooking modes including fan oven, air fry, and microwave cooking functions. With a Digital Control Ring and TFT-touch display navigating the menus is easy and the handy Oven Assist function will help to select the right cooking method for a variety of dishes.
Key Features
- TFT Touch Display Plus: easy control thanks to an innovative Digital Control Ring and enlarged TFT touchscreen

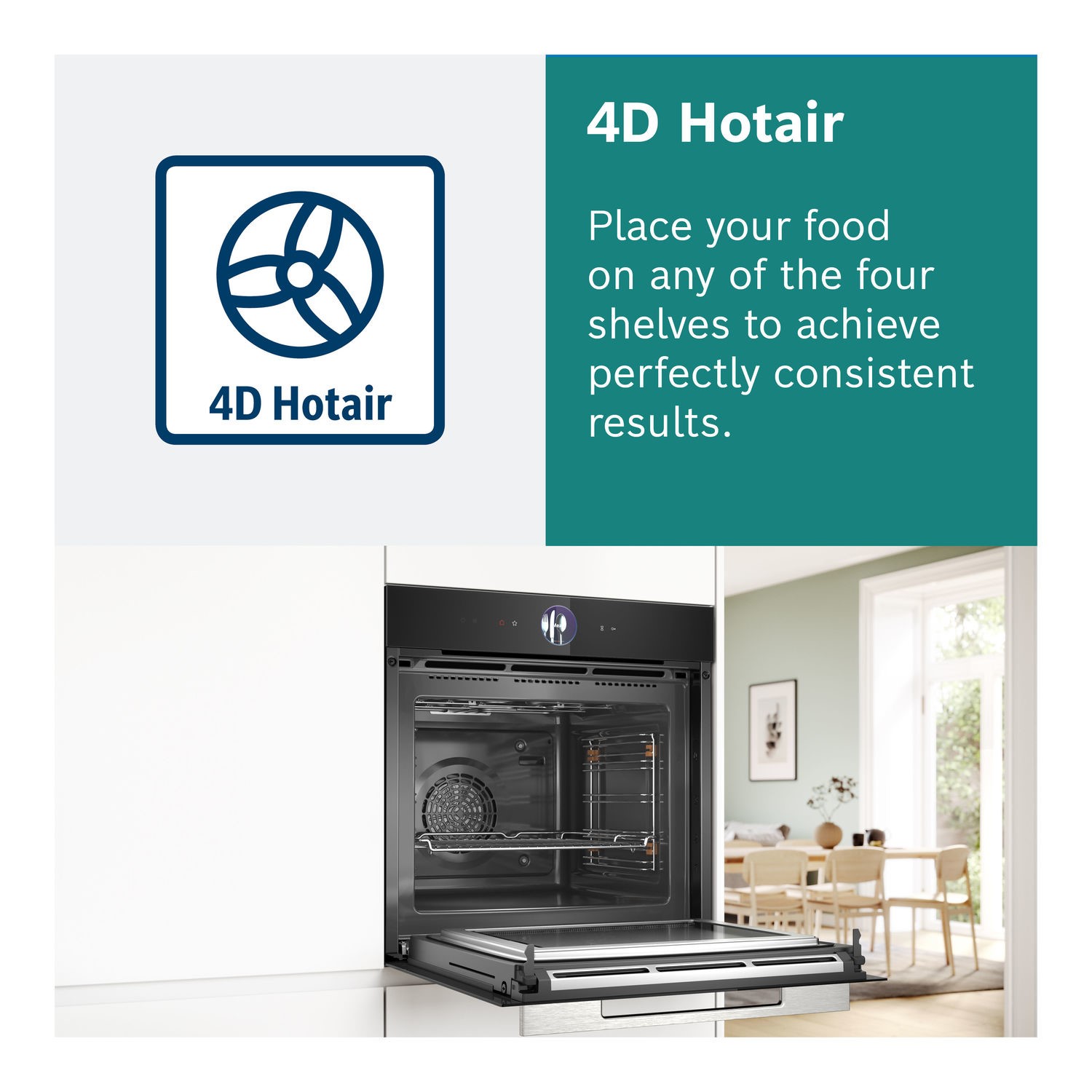

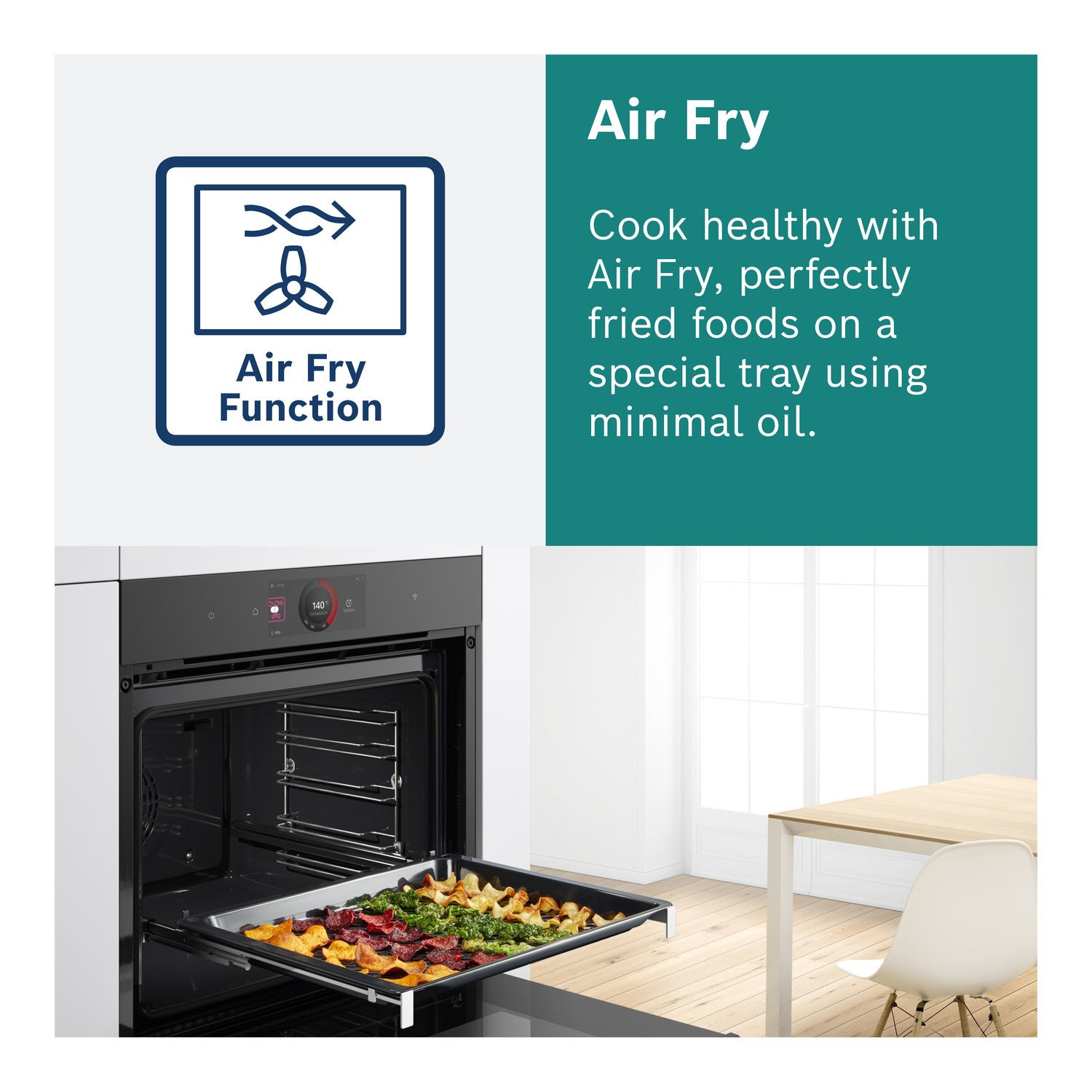

- 20 heating methods, including 4D Hotair, Air fry, microwave and slow cook
- 5 microwave power levels (90W, 180W, 360W, 600W, 800W)
- Crisp Function: ventilates moisture when cooking for an even crispier finish

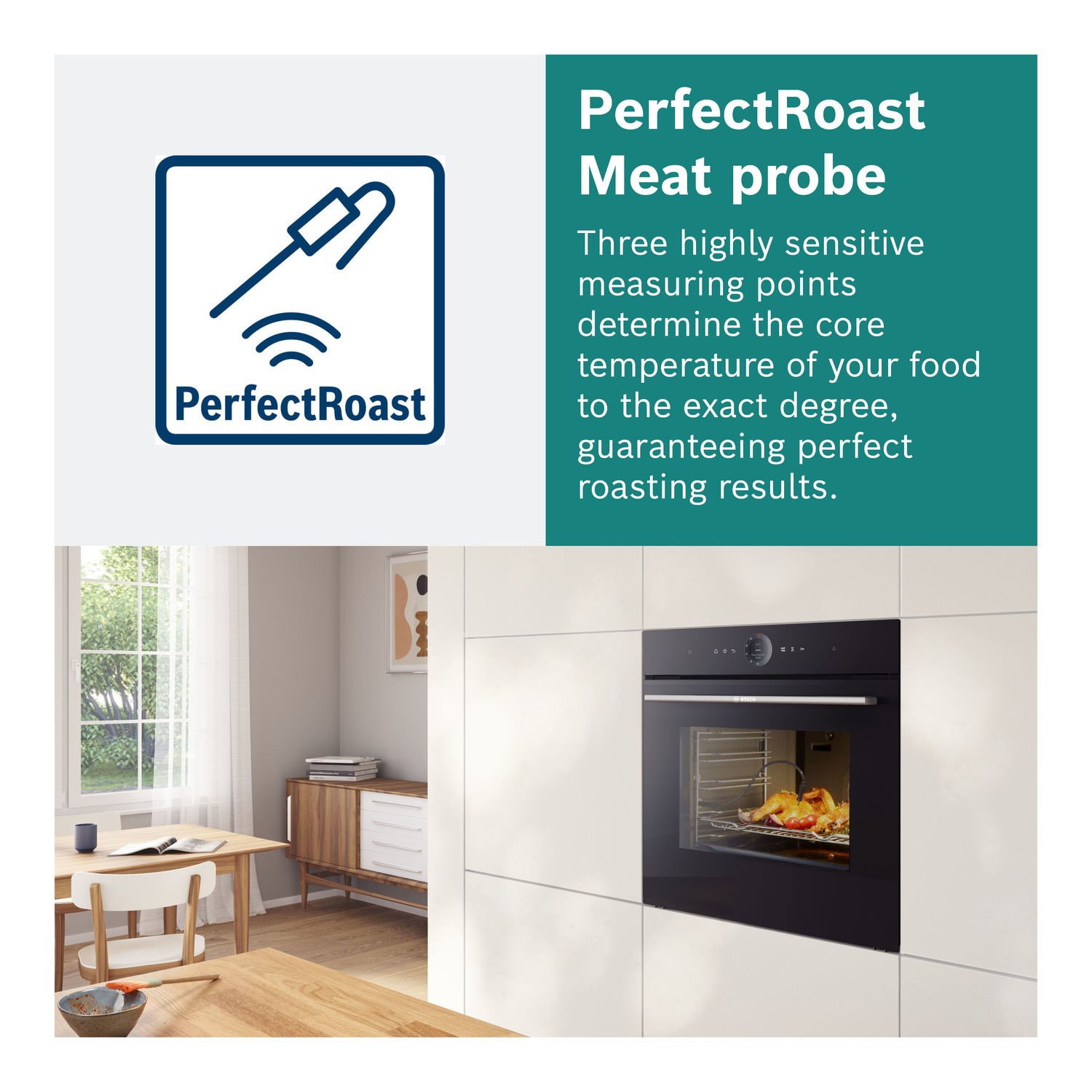

- Meat probe measures core temperatures so you can cook with precision
- Pyrolytic cleaning, cleaning without any effort
- Microwave Boost Function: quick and easy warming
- Intelligent microwave inverter technology
Oven with microwave with 20 heating methods:
- Conventional top and bottom heat
- Full width variable grill
- Half width grill
- Bottom heat
- Low temperature cooking
- Defrost
- Plate warming
- Keep warm
- Conventional heat gentle
- Microwave
- 4D Hot air
- Conventional heat
- Full width grill
- Half width grill
- Hot air grilling

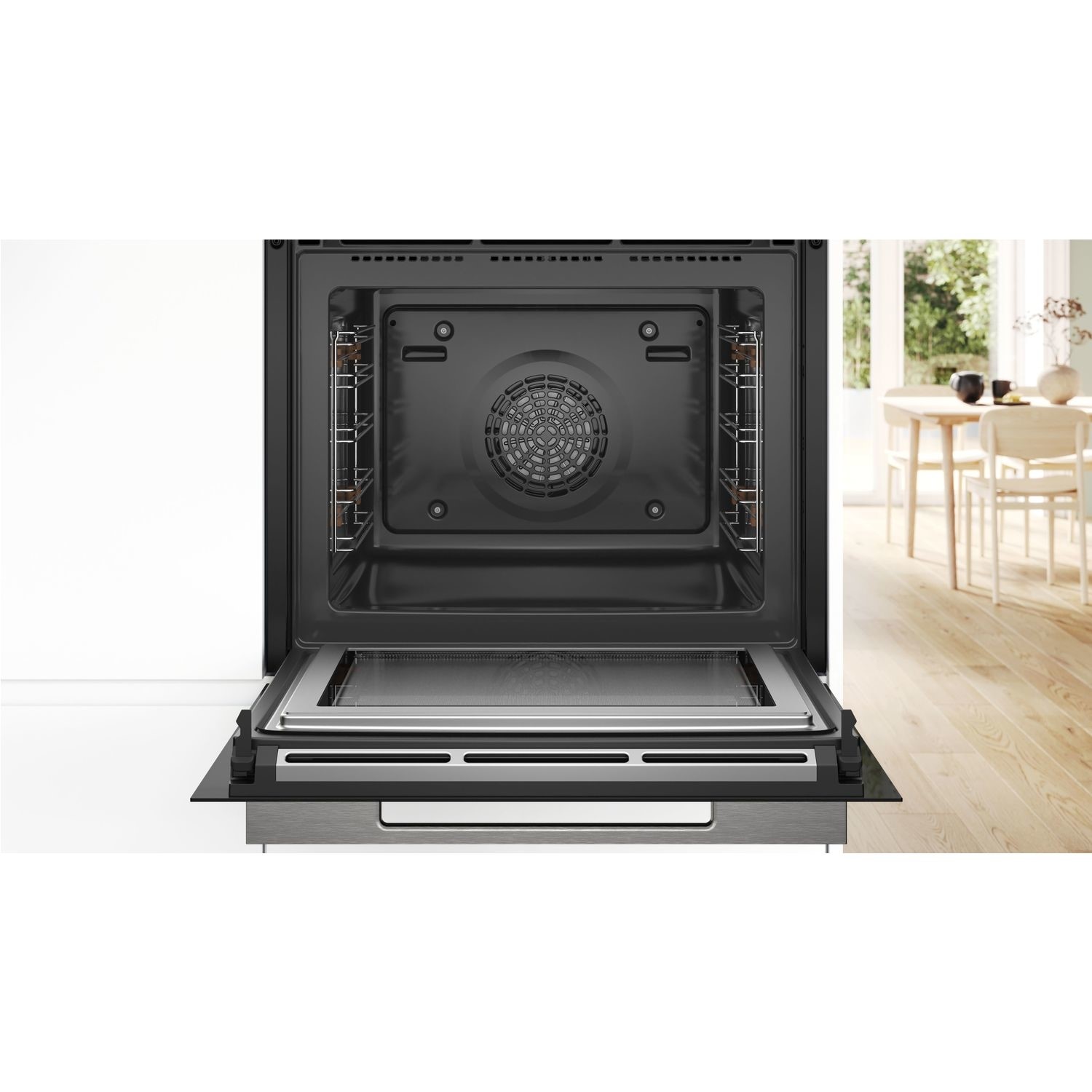

Level independent telescopic rails
- 5 shelf positions
Design
- Touch controls
- Digital Control Ring
- Cavity inner surface: enamel anthracite
Cleaning
- Pyrolytic self-cleaning function
- Hydrolyse program
Programmes/functions
- Oven Assistant with Voice Control
- Electronic clock timer
- Digital temperature display with proposal
- Actual temperature display
- Heating-up indicator
- Temperature probe
- Drop down door, SoftClose, SoftOpen
- Fast pre-heating function
- LED light, Light on/off when oven door opened/closed
- Integral cooling fan
- Home Connect ready

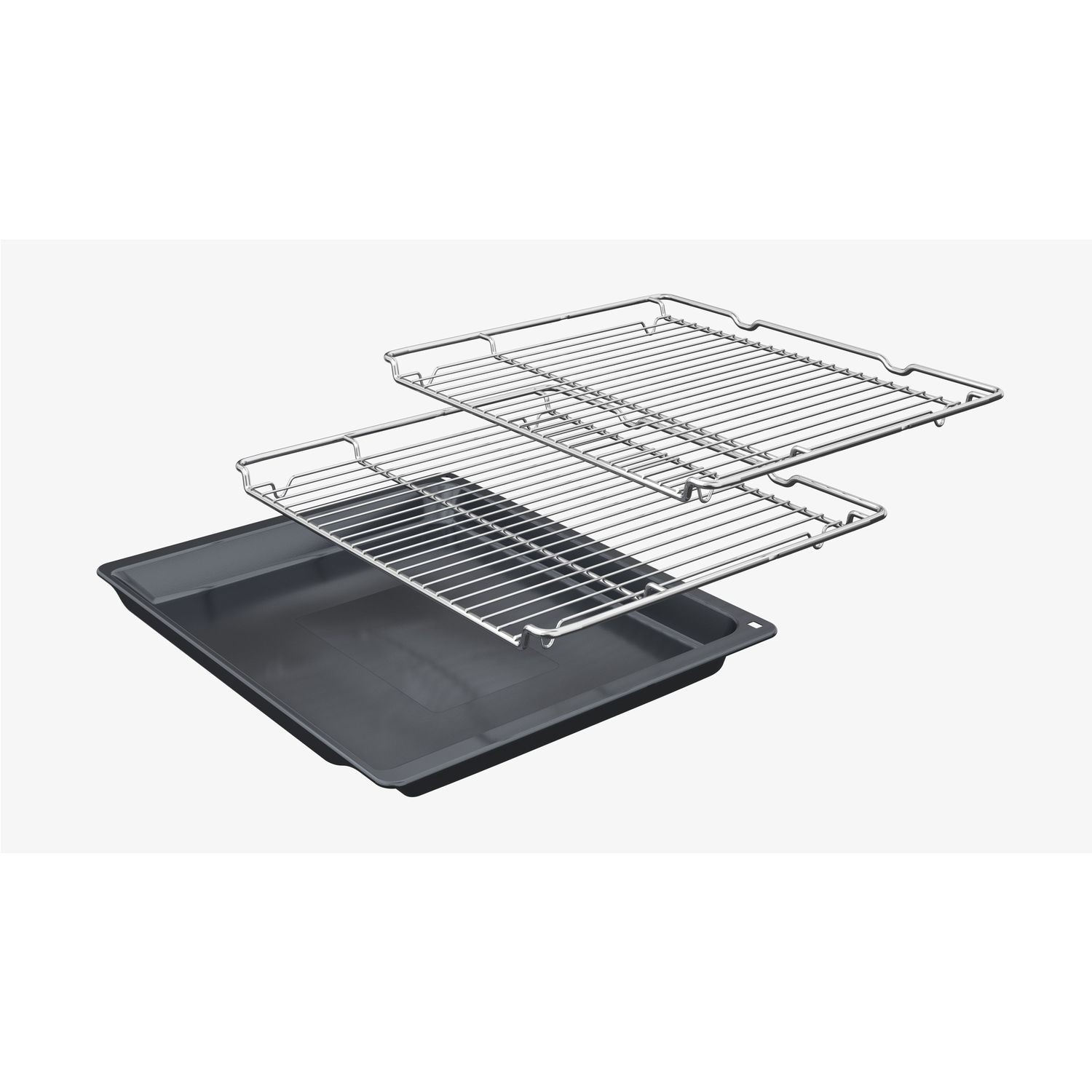

Accessories
- 2 x combination grid
- 1 x universal pan
Features
- Maximum window temperature 30° C
- Quadruple glazed door with heat reflective glass glazed CoolTouch door
- Electronic door lock
- Control panel lock
- Automatic safety switch off
- Residual heat indicator
- Start button
- Door contact switch
Technical information
- Temperature range 30 °C - 275 °C
- Cavity volume: 67 litres
- 120 cm Cable length
- Nominal voltage: 220 - 240 V
- Total connected load electric: 3.6 KW
Performance/technical information

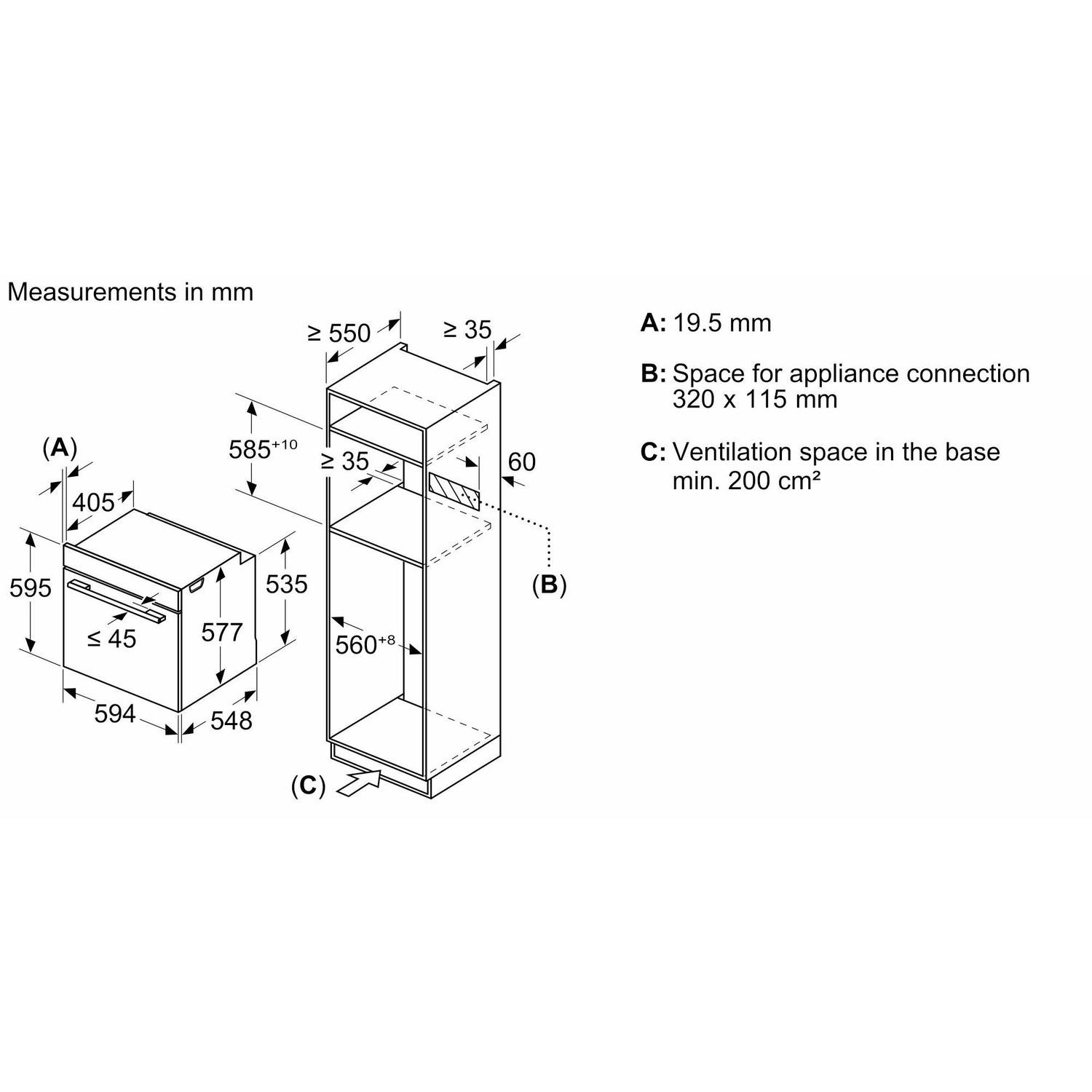

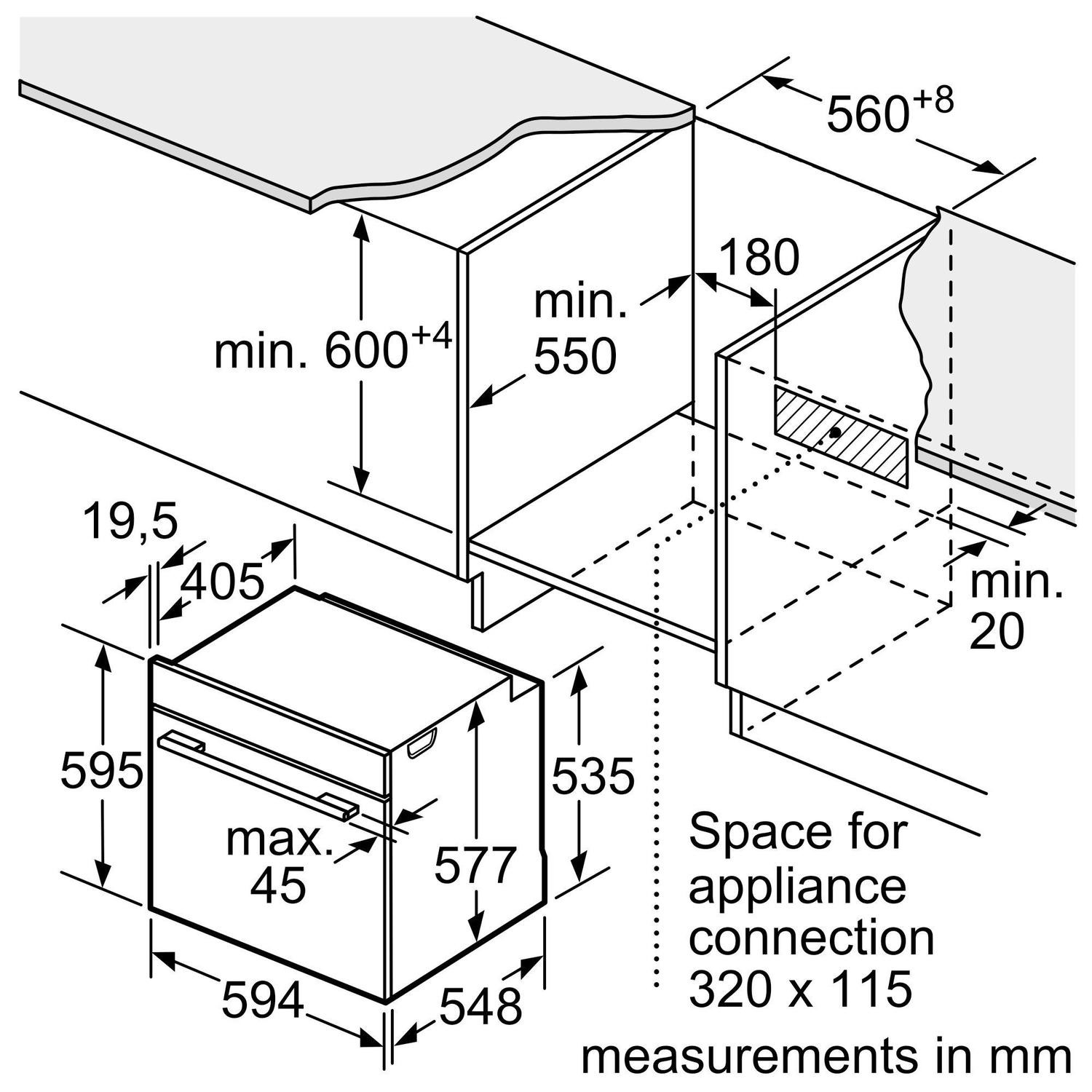

- Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm
- Niche dimension (hxwxd): 585 mm - 595 mm x 560 mm - 568 mm x 550 mm
