- 802 mm

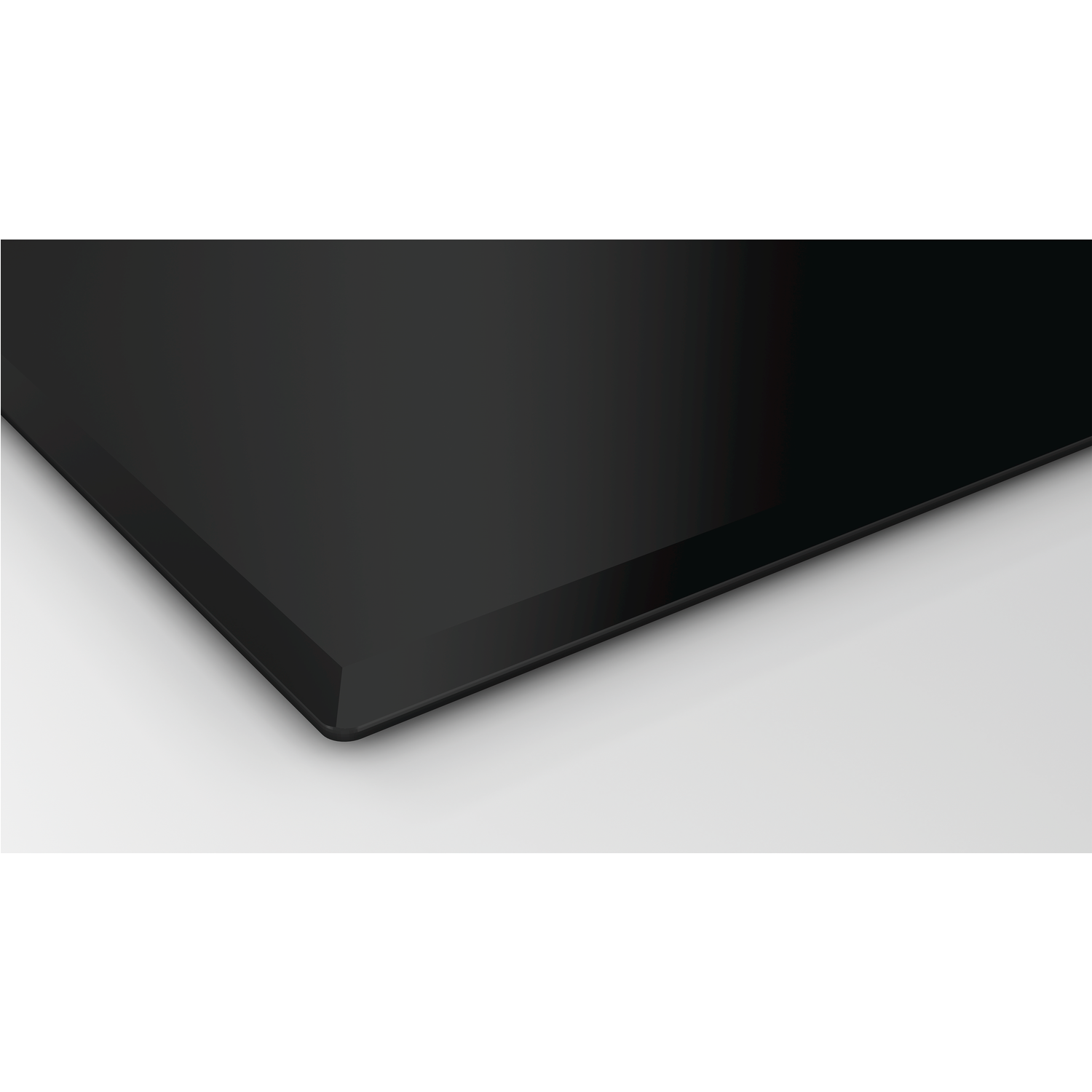

- Three sided bevelled frameless finish
- Frying Sensor:4 frying levels
- DirectSelect
- Digital display
- ReStart function
- QuickStart function
- Timer for all zones
- Timer - shows how long the cooktop is in use
- PowerBoost function for all zones

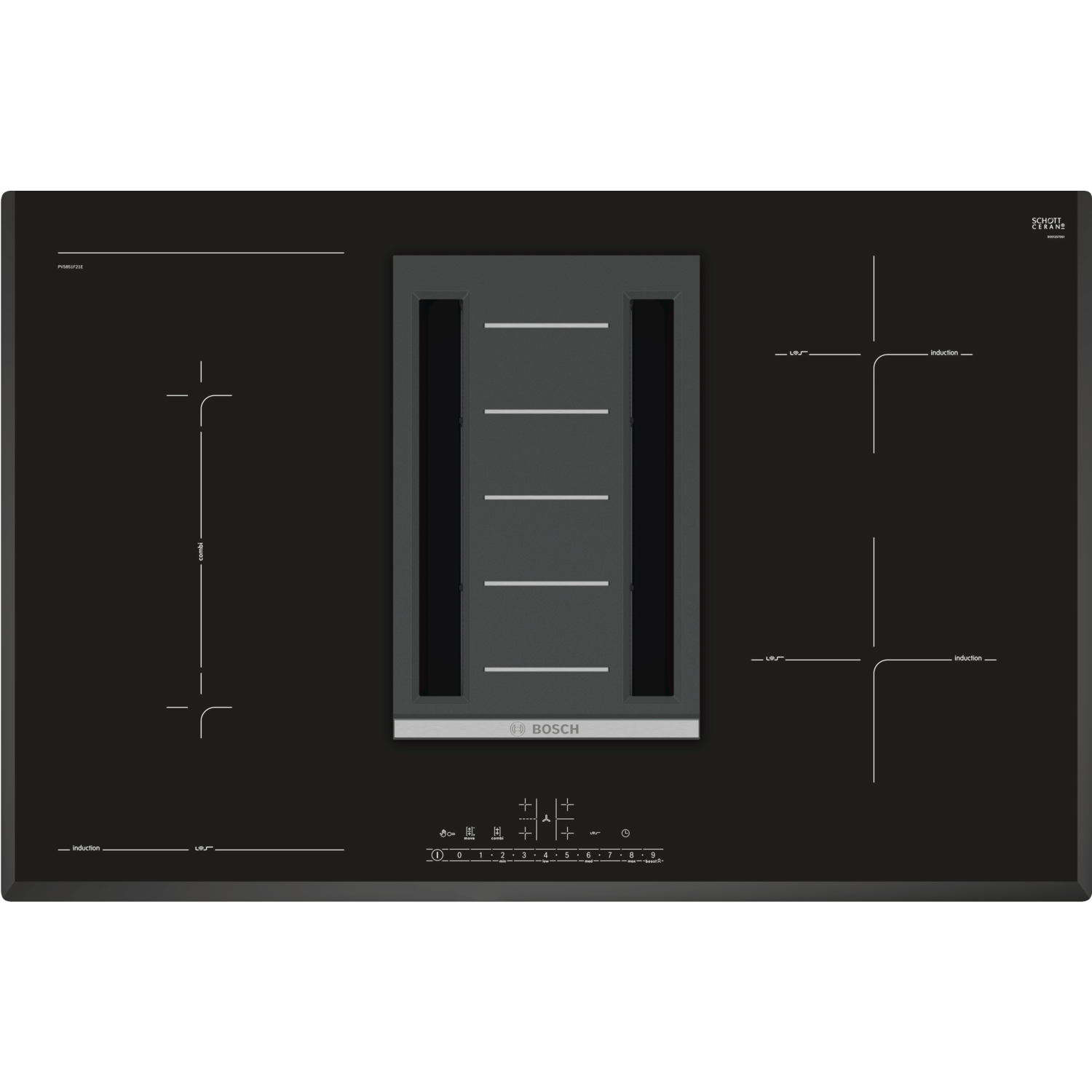

- 4 induction cooking zones
- Combi zone
- Variable 17-stage power settings for each zone
- Cooking zones: 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 145 mm, 1.4 KW (max. Power levels 2.2 KW) Induction;1 x Ø 180 mm, 1.8 KW (max. Power levels 3.1 KW) Induction
- Connected load: 6.9 kW
- Voltage: 220 - 240 V
- Individual energy consumption display
- 2 stage residual heat indicator for each zone
- Automatic pan recognition sensor
- Power management options for 16A, 13A or 10A connection
- Automatic safety shut off
- Control panel lock
- Control panel lock function
- Main on/off switch

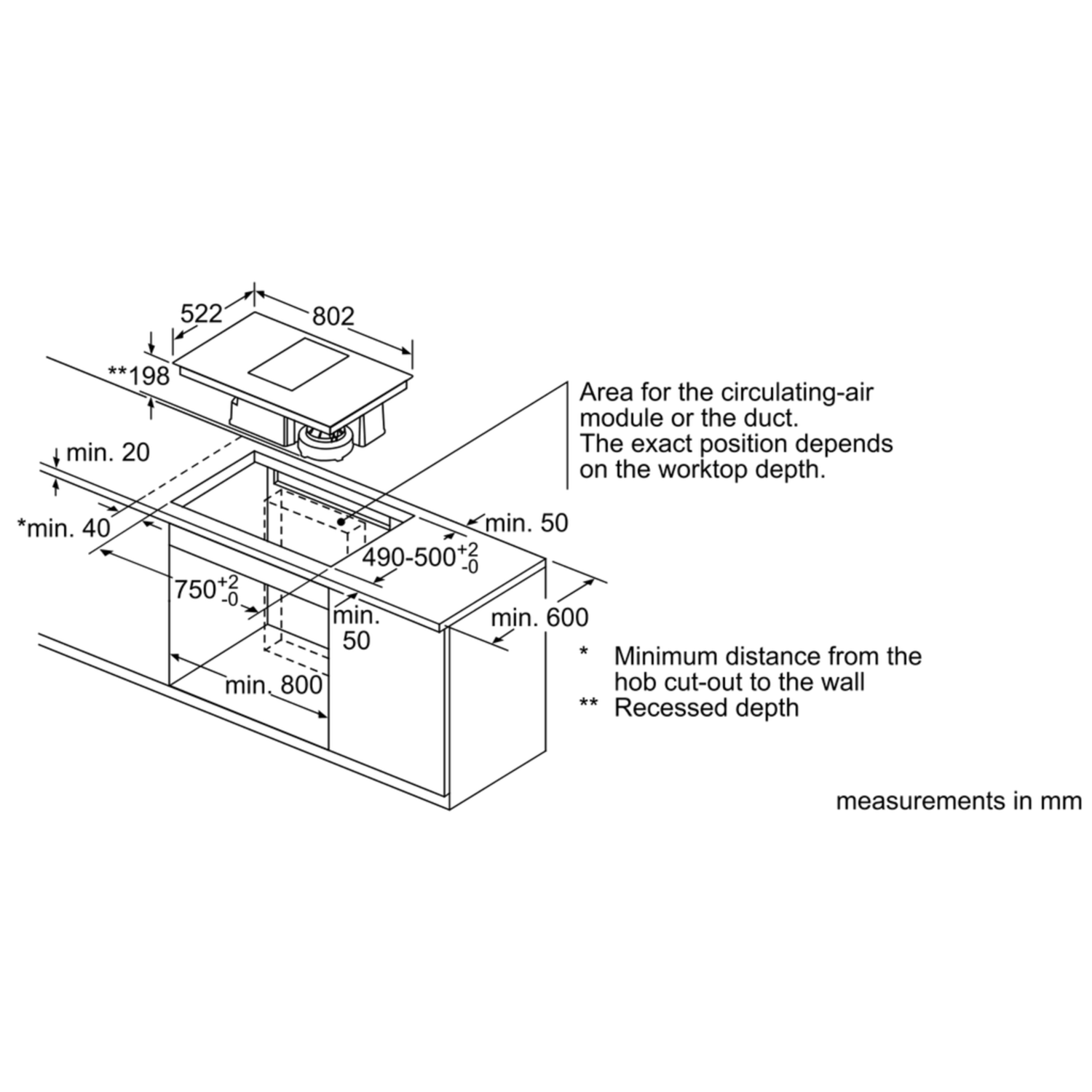

- Min. worktop thickness: 20 mm
- Cable included
- Length wire connection: 110 cm
- Measurement: (H/B/T) 198 x 802 x 522 mm
- Energy Efficiency Class: A
- Average Energy Consumption: 53.5 kWh/year
- Blower Efficiency Class: A
- Grease Filtering Efficiency Class: B
- Noise min./max. Normal Level: 39/69 dB
- Induction cooktop with integrated downdraft extractor
- Suitable for ducted or re-circulated extraction (Accessory is respectively needed)
- For ducted extraction extraction kit (accessory HEZ381400) needed
- For recirculated extraction cleanAir recirculating kit (accessory HEZ381500) needed
- Fully-automatic extraction functionality with climateControl sensor
- Fully-automatic fan speed level control or optionally manual control by user
- 9 speeds plus 1 intensive
- Automatic 30 minutes after running
- Extraction rate according to EN 61591:
- - min. Normal use 150m³/h
- - max. Normal use 550 m³/h
- - Intensive setting 690 m³/h
- Noise level according to EN 60704-3 und EN 60704-2-13 exhaust air:
- - Min. normal use: 39 dB(A) re 1 pW (25 dB(A) re 20 µPa sound pressure)
- - Max. normal use: 69 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
- - Intensive: 76 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
- Performance in re-circulated extraction:
- - min. normal setting 139 m3/h
- - max. normal setting 557 m3/h
- - Boost-/Intensive setting 620 m3/h
- Noise level in re-circulated extraction:
- - min. normal setting 42 dB(A) re 1 pW (31 dB(A) re 20 µPa sound pressure)
- - max. normal setting 73 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
- - Boost-/Intensive setting 75 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
- Grease filter efficiency: 90 %
- Odour reduction rate: 85 %
- Large-scale stainless-steel grease filters with 12 layers for high grease filtration efficiency (up to 90% odour reduction)
- Cast-iron air inlet grid, heat resistant, dishwasher safe
- Removable and detachable grease filter and liquid collector unit, dishwasher safe
- - integrated stainless steel grease filters, dishwasher safe
- - condensate and liquid collector unit; ca. 200ml capacity; dishwasher safe
- Polymer liquid spillover safety tank, ca. 2.000ml capacity, Twist-off lock, dishwasher safe
- Saturation indicator for cleanAir odour filter
- Base cupboard width: min. 80 cm.
- Worktop depth: min. 60 cm (with shortened dra
