Accessory kit for partly ducted recirculation configurations of your cooktop with integrated ventilation module in kitchens with worktop depths of 70 cm or larger.

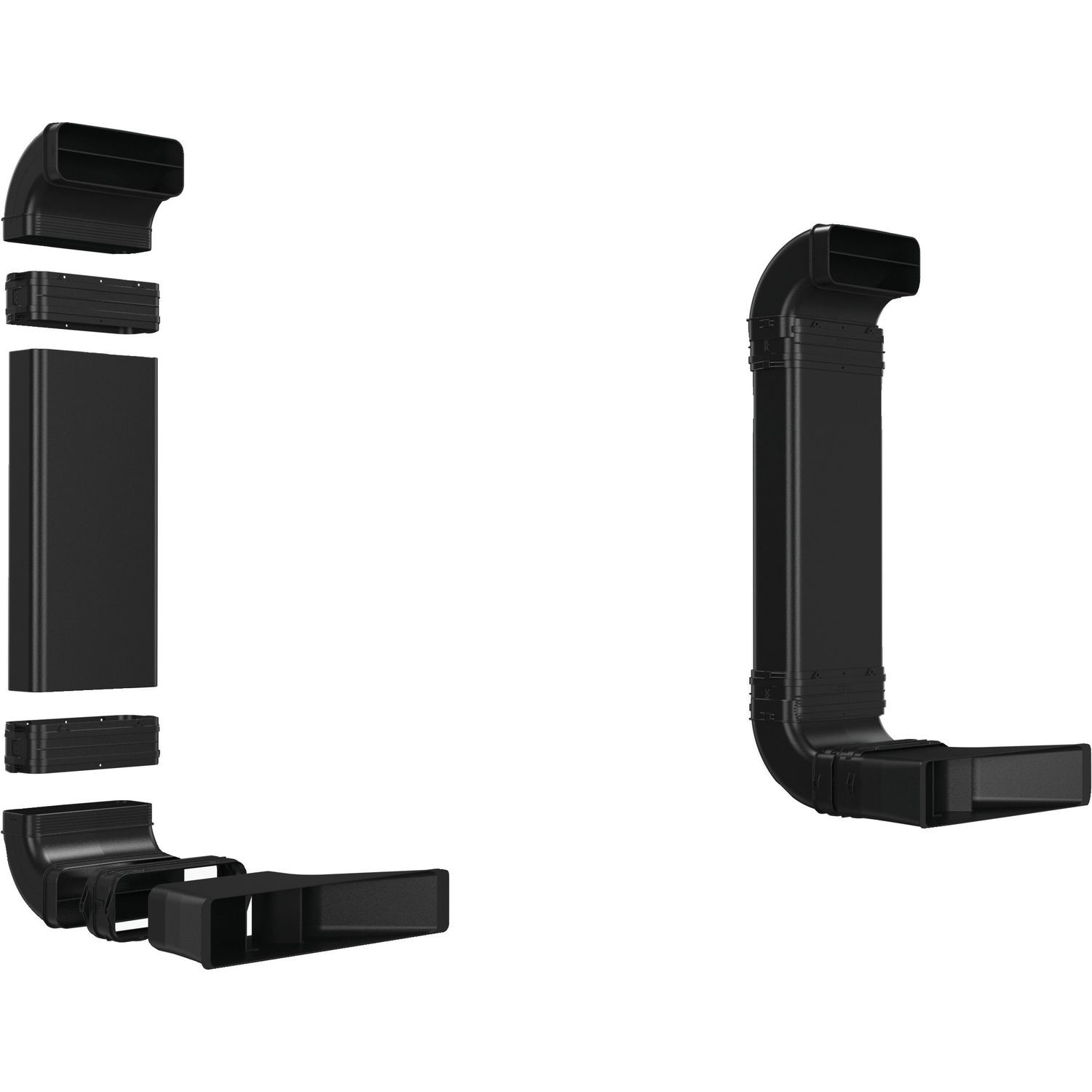

Kit consists of
- 2x Vertical 90° "L" bow flat duct element (male)
- 3x Connector sleeve (female) to combine male flat duct elements
- Straight tube element (male, 500 mm)
- Diffusor element that can be directly connected to the flat duct elements and that spreads the outflowing air in the plinth area for partly ducted recirculation configurations.

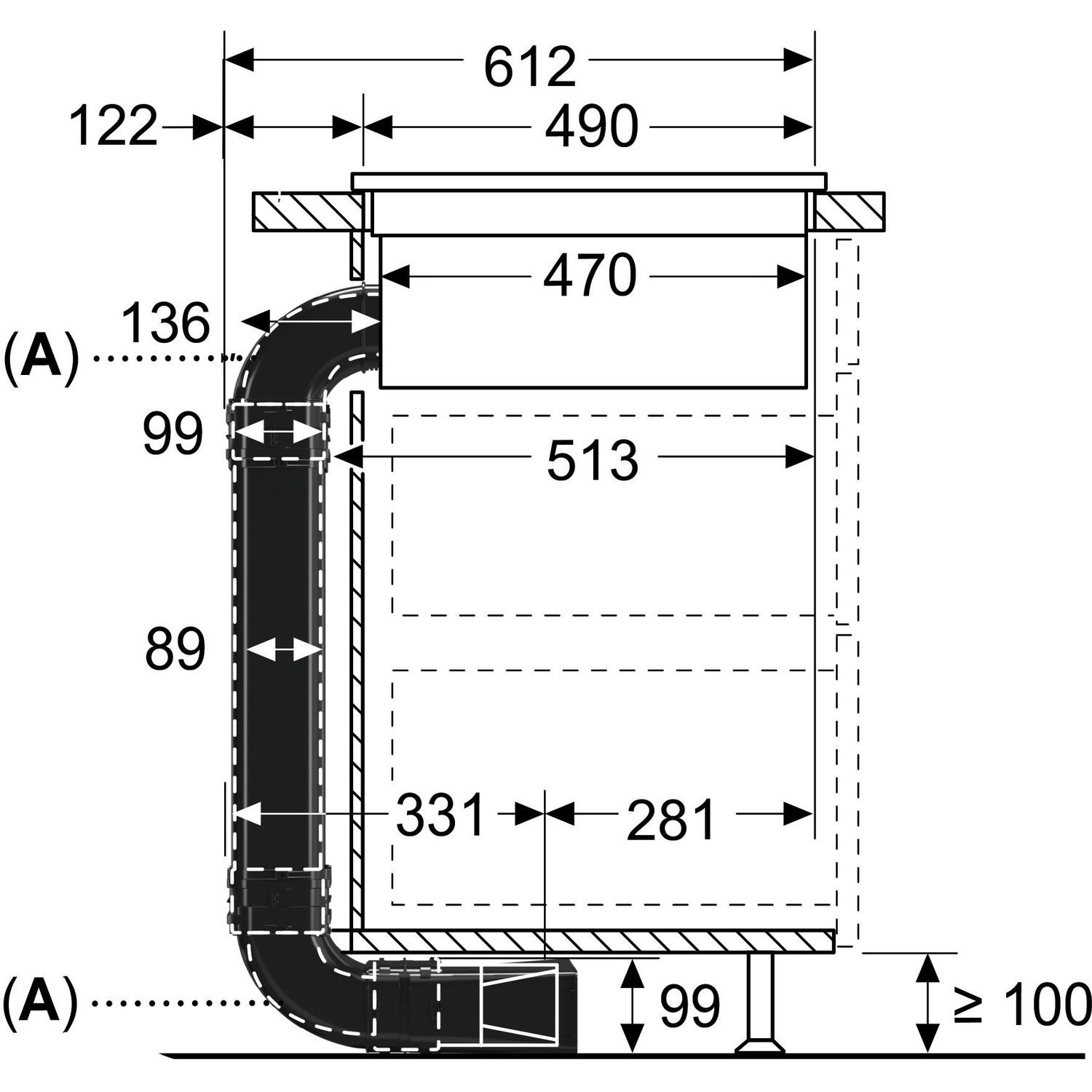

The elements enable installations in worktop heights up to 960mm. To ensure adequate air flow, a vent in the kickplate greater than 400cm² should be made (return-flow aperture of ≥ 400cm²).
