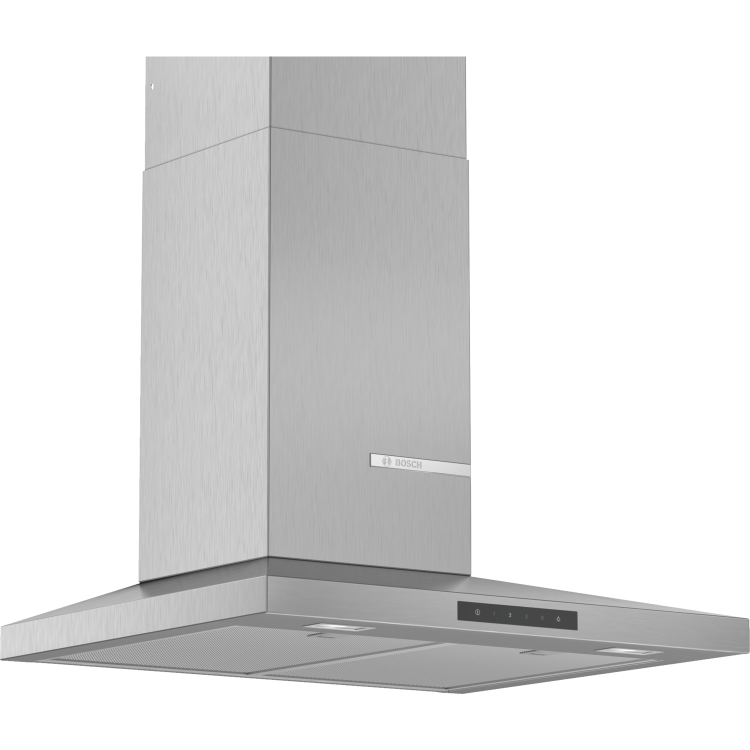

Bosch Series 4 60cm Slimline Chimney Cooker Hood - Stainless Steel

SKU: DWQ66DM50B Quickfind Code: 1270173
SAVE 6%
Was: €659.04     You save: €40.07
€618.97
Why buy me
  • Silent: maximum extractor performance with minimal noise.
  • Grease filtration level: filters out over 85% of the grease from kitchen air.
  • TouchSelect control: quick touch-control selection of desired settings and light.
  • LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.
  • Intensive speed setting: removes strong kitchen odours quickly and effectively.
  • Energy Efficiency Class: A
  • Extraction rate: Normal use 400 m³/h
  • Extraction rate: Intensive 610 m³/h
click

Key features:

  • Silent: maximum extractor performance with minimal noise.
  • Grease filtration level: filters out over 85% of the grease from kitchen air.

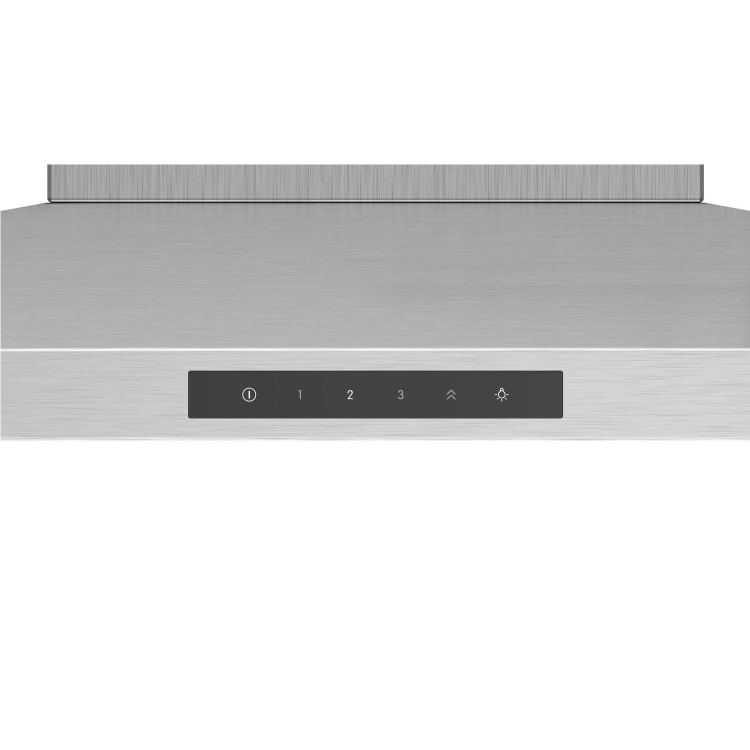

  • TouchSelect control: quick touch-control selection of desired settings and light.
  • LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.
  • Intensive speed setting: removes strong kitchen odours quickly and effectively.
  • Energy Efficiency Class: A
  • Extraction rate: Normal use 400 m³/h
  • Extraction rate: Intensive 610 m³/h
  • Noise max. Normal Level: 62 dB*

Features

  • TouchControl with Electronic display
  • Electronic display
  • 3 power levels & intensive setting
  • 2 x 1.5W LED light
  • Colour Temperature: 3500 K
  • Automatic intensive revert (6mins)

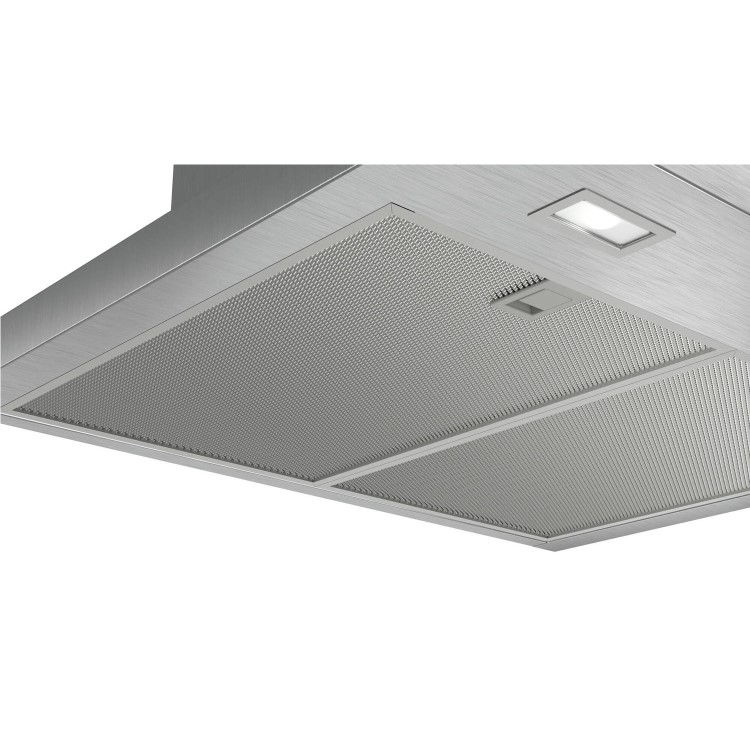

  • 2 removable metal grease filter cassettes
  • Designed for wall mounted installation

Design

  • Brushed steel
  • Slim Pyramid
  • Chimney extractor hood
  • TouchControl
  • Electronic control

Performance/technical information

  • Suitable for ducted or recirculating operation
  • For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
  • Max. extraction rate: 610 m3/h
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use 400 m³/h
  • Intensive 610 m³/h
  • Extraction rate in recirculation mode:
  • Max. normal use: 300 m³/h
  • Intensive: 360 m³/h
  • Noise max. Normal Level: 62 dB*
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use: 62 dB(A) re 1 pW (50 dB(A) re 20 µPa sound pressure)
  • Intensive: 70 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
  • Noise levels in recirculation mode:
  • Max. normal use: 72 dB(A) re 1 pW (60 dB(A) re 20 µPa sound pressure)
  • Intensive: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure)
  • Power rating: 220 W
  • Light Intensity: 250 lux
  • Colour Temperature: 3500 K
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

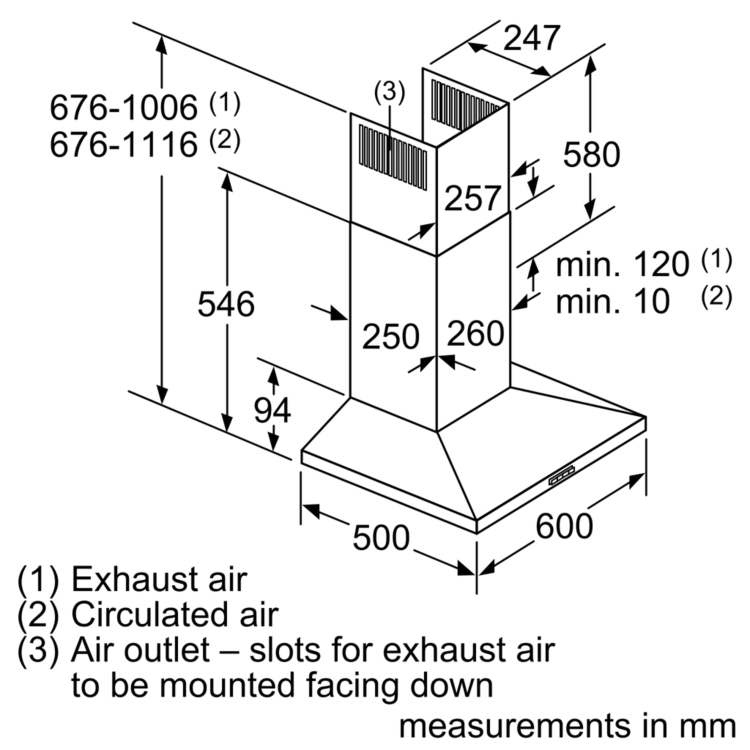

  • Dimensions exhaust air (HxWxD): 676-1006 x 600 x 500 mm
  • Dimensions recirculating (HxWxD): 676-1116 x 600 x 500 mm
  • Dimensions recirculating with CleanAir module (HxWxD):
  • 744 x 600 x 500 mm - mounting with outer chimney
  • 874-1204 x 600 x 500 mm - mounting with telescopic chimney
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
  • Average Energy Consumption: 38.3 kWh/year*

Optional accessories

  • Recirculating kit

General information
Brand Bosch
Cooker Hood Type Chimney Hoods
Colour Stainless steel
Air Extraction Type Extraction & recirculation
Control Type Touch
Type Of Light Used LED
Warranty 2 year warranty
Performance
Speed Settings
Multiple speed settings give ultimate versatility for a range of foods, the higher the setting, the finer the ingredients. Variable speeds give you even more control.
3 + Intensive
Minimum Extraction Rate 250m³/h
Maximum Extraction Rate 411m³/h
Boost Extraction Rate 644m³/h
Maximum Noise Level 62dB
Annual energy consumption 38.3kWh/a
Dimensions & Weight
Height 68cm
Width 60cm
Depth 50cm
Weight 11kg
Minimum Height 676mm
Maximum height 1116mm
Diameter of Air Outlet 150mm
Efficiency Information
Energy Rating A
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class C
Installation
Vent Location Top
Plug type supplied with plug
Cable length 130cm
Connected load 220W
Product Detail
Approval certificates CE, VDE
EAN code 4242005051212
