Key performance features:
- Energy Efficiency Class: D (at a range of energy efficiency classes from A++ to E)
- Max. extraction rate: 340 m3/h
- Noise max. Normal Level: 64 dB
Features

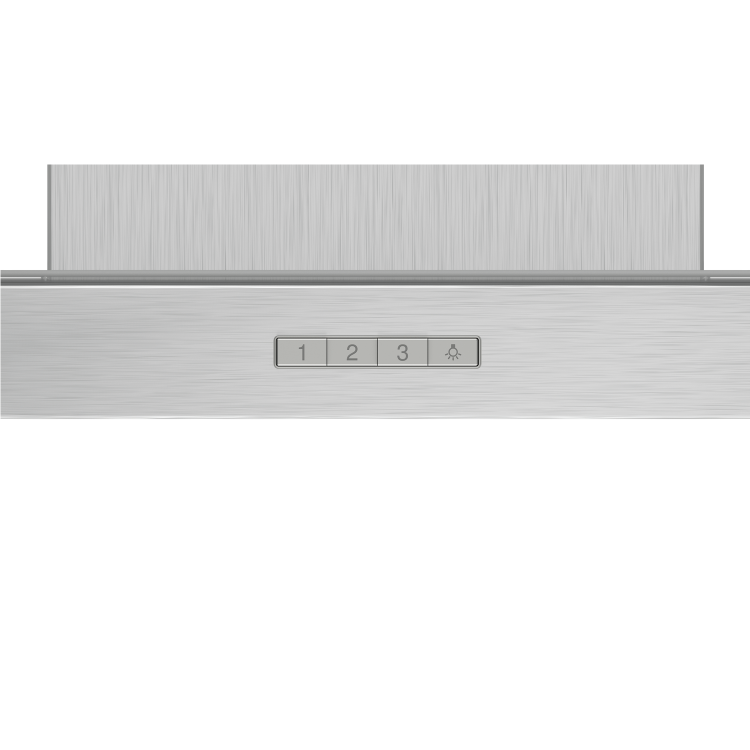

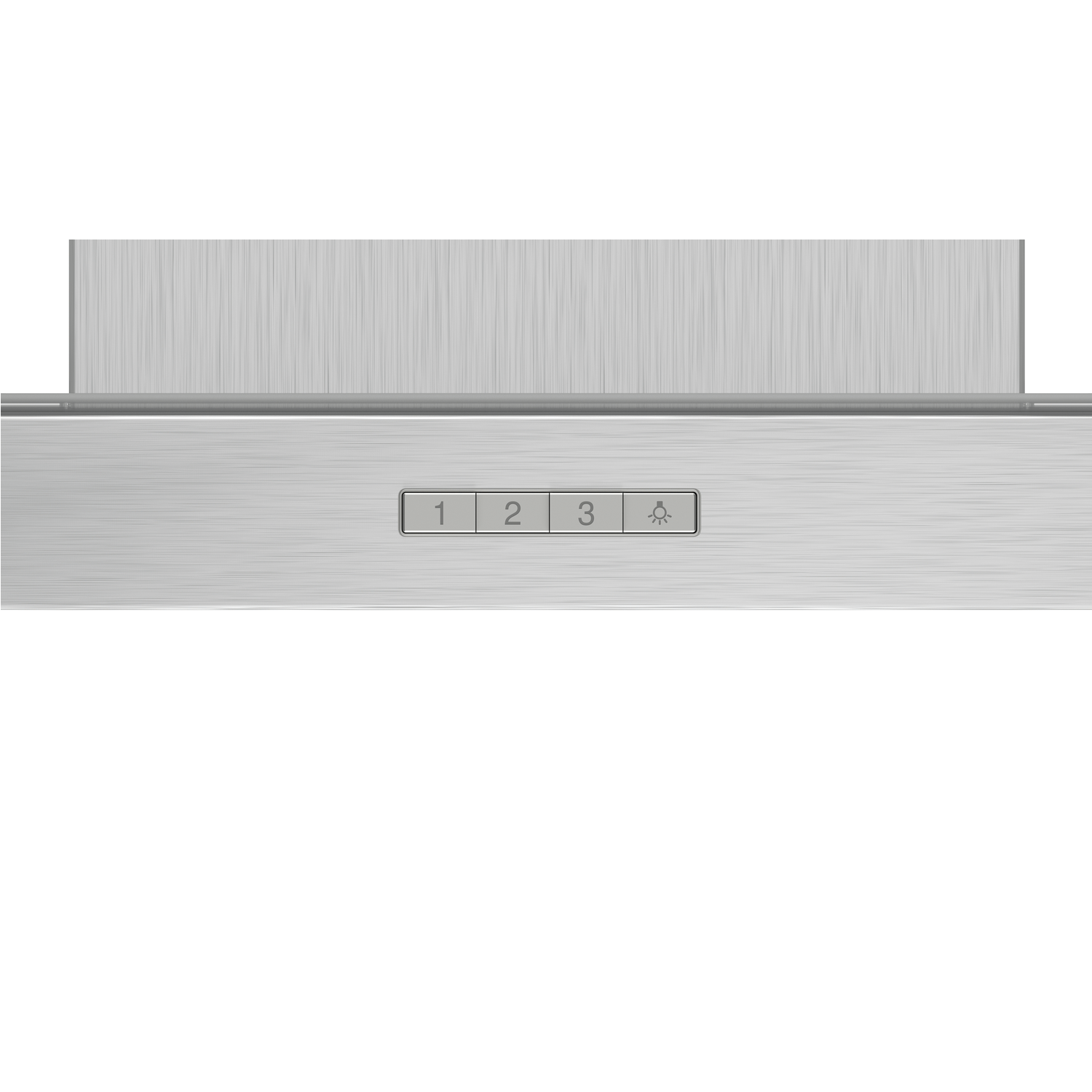

- Push button control
- 3 power levels
- 2 x 1.5W LED light
- Colour Temperature: 3500 K

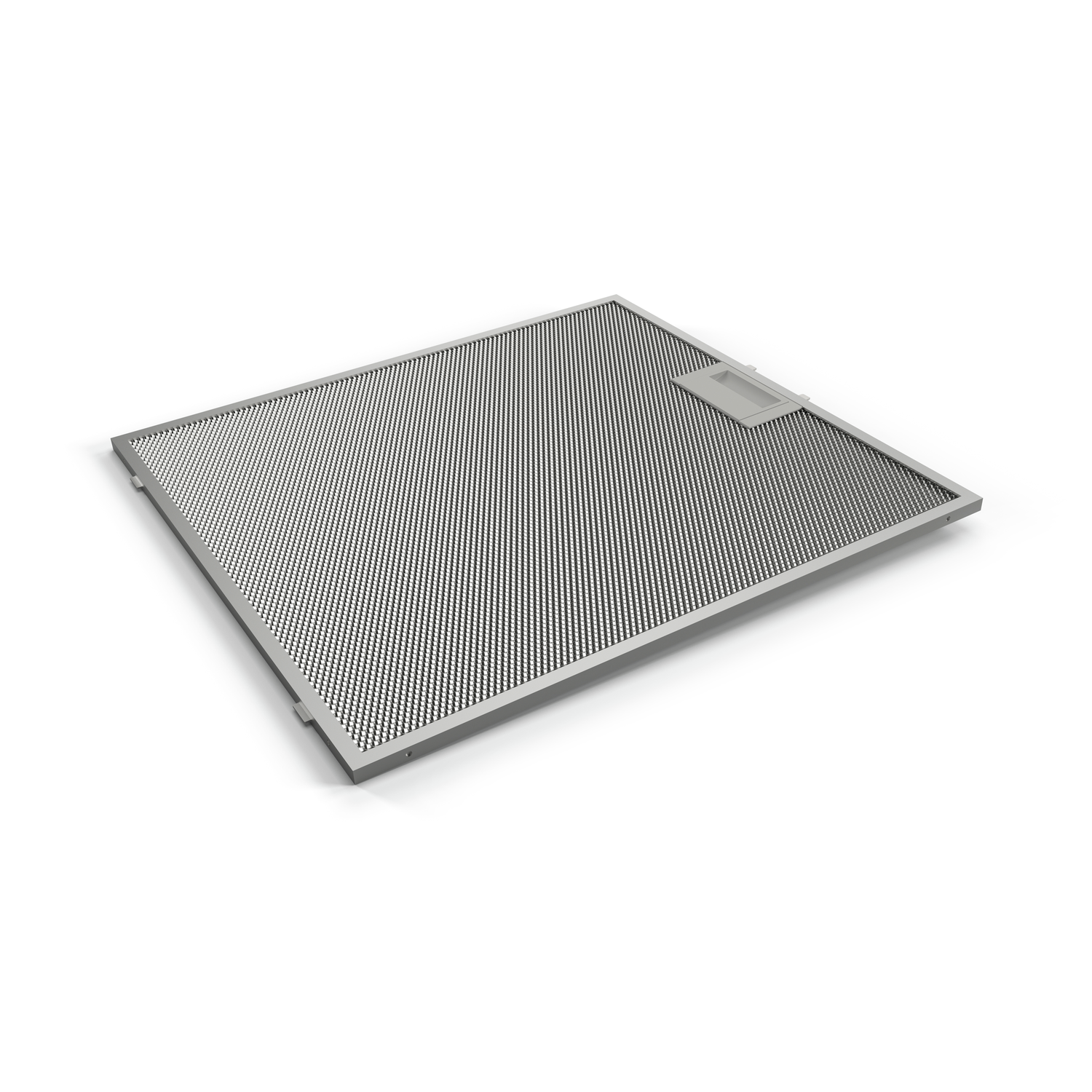

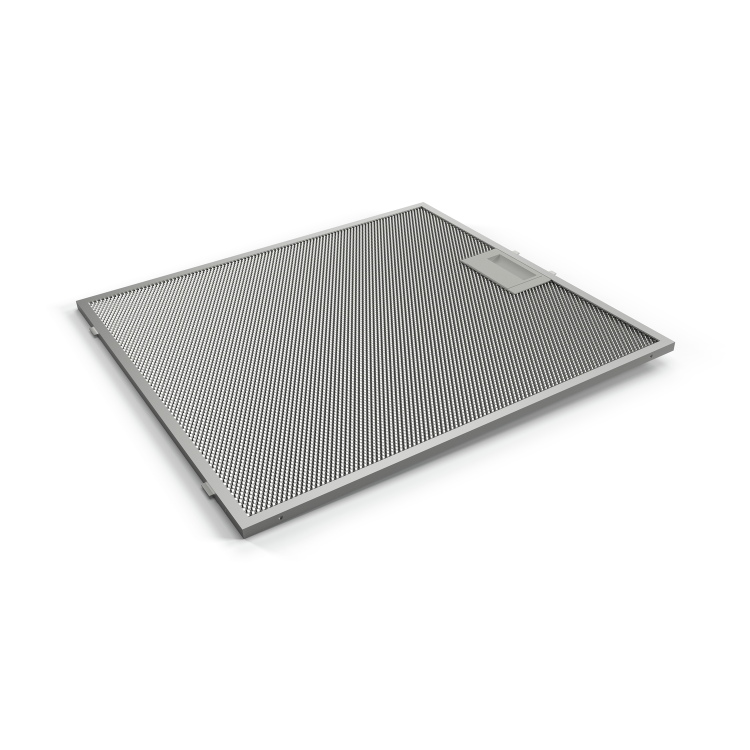

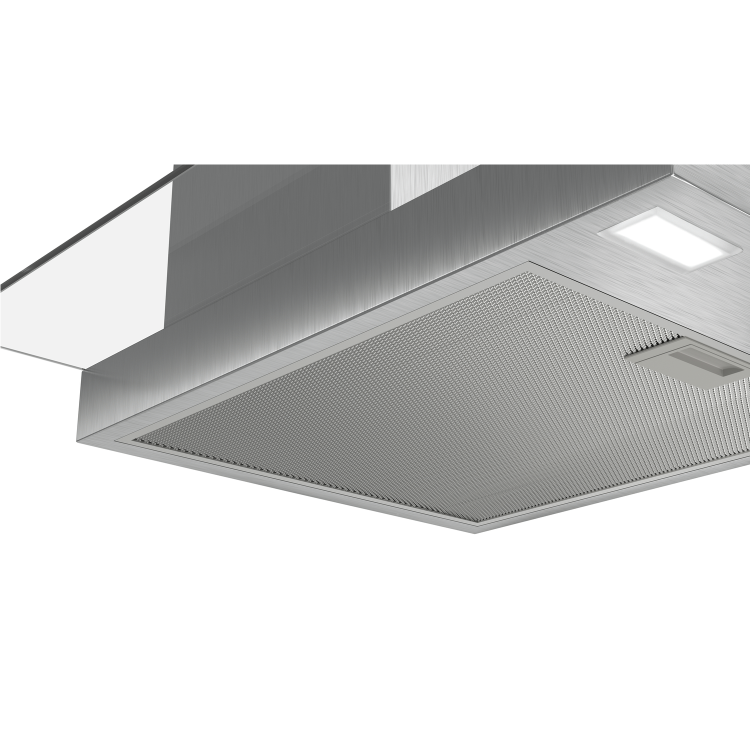

- 1 removable metal grease filter cassette

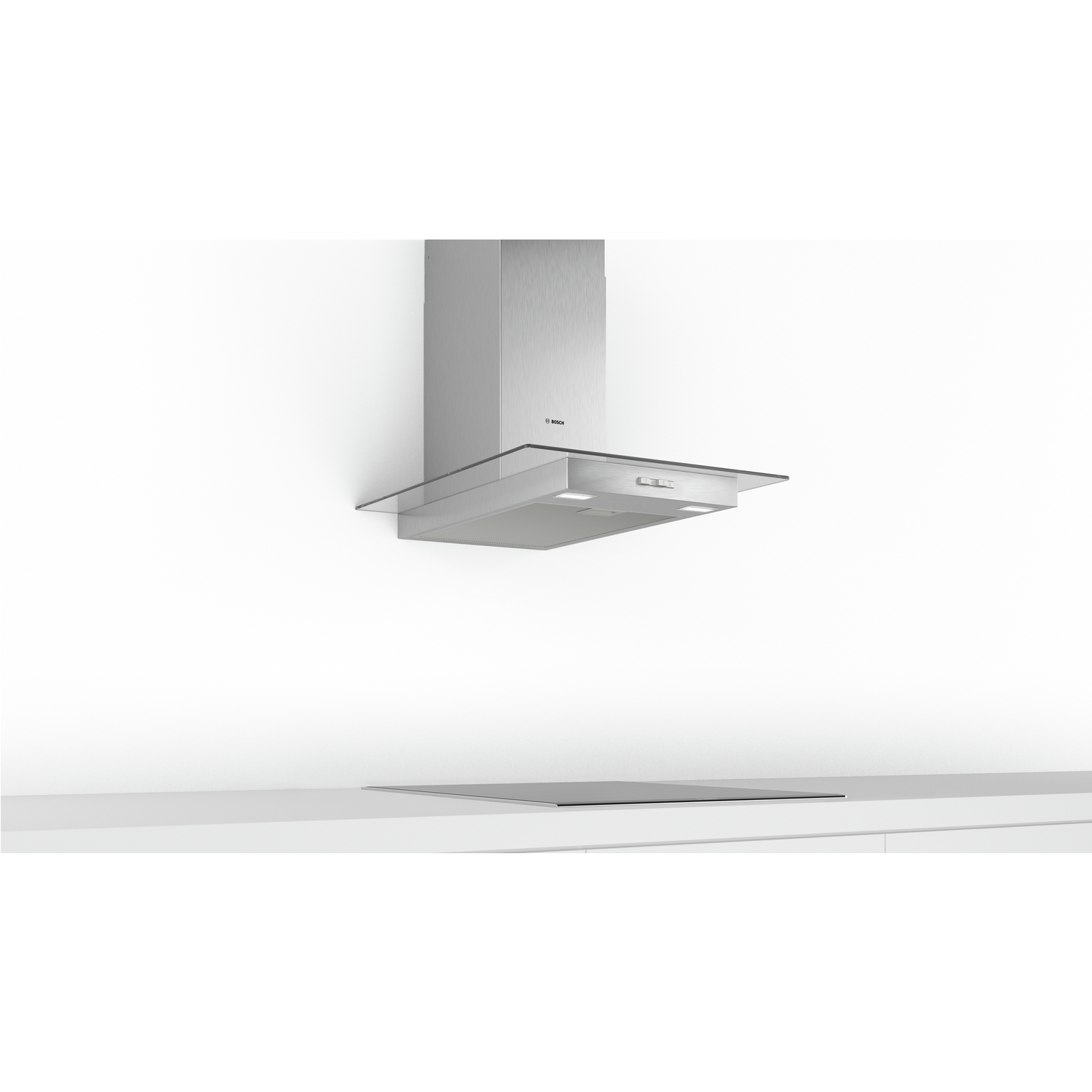

- Designed for wall mounted installation
Design
- Brushed steel
- Glass design

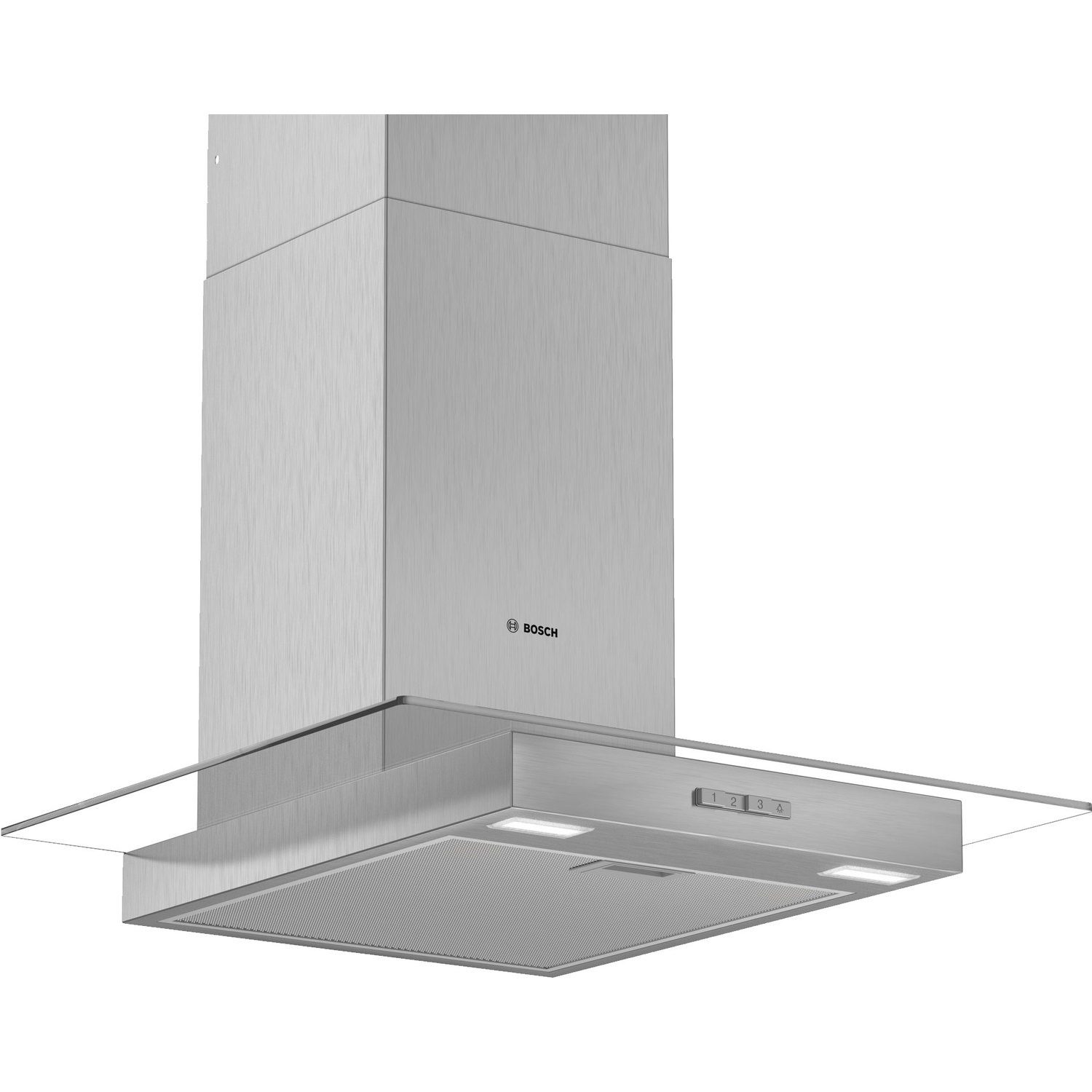

- Chimney extractor hood
- Mechanical
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 340 m3/h
- Maximum extraction rate exhaust air 340 m³/h according to EN 61591
- Extraction rate in recirculation mode:
- Max. normal use: 180 m³/h
- Noise max. Normal Level: 64 dB
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 64 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure)
- Noise level in recirculation mode:
- Max. normal use: 66 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
- Power rating: 100 W
- Light Intensity: 110 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

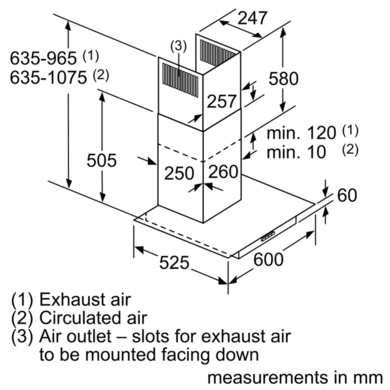

- Dimensions exhaust air (HxWxD): 635-965 x 600 x 525 mm
- Dimensions recirculating (HxWxD): 635-1075 x 600 x 525 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 703 x 600 x 525 mm - mounting with outer chimney
- 833-1163 x 600 x 525 mm - mounting with telescopic chimney
- Energy Efficiency Class: D (at a range of energy efficiency classes from A++ to E)
- Blower Efficiency Class: E
- Lighting Efficiency Class: A
- Grease Filtering Efficiency Class: C
- Average Energy Consumption: 54 kWh/year
Optional accessories
- Recirculating kit
