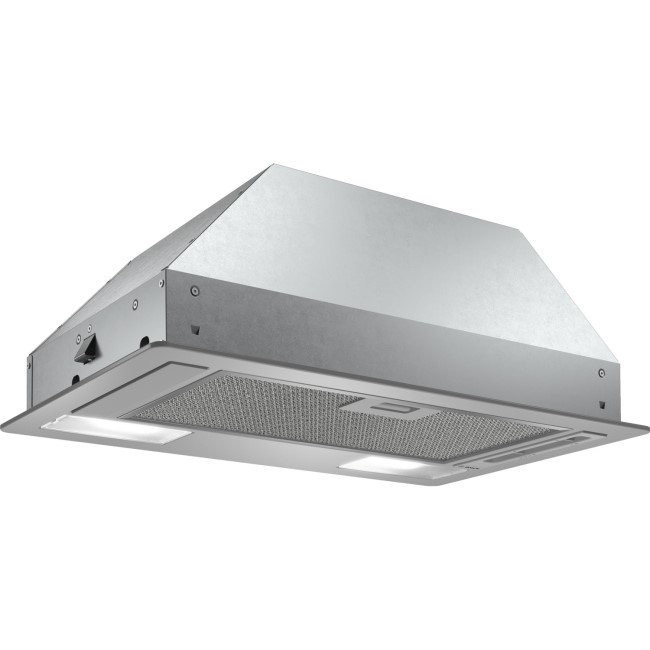

Designed to fit neatly under an overhead unit or cabinet this canopy cooker hood is a discreet and effective extractor that will clear your kitchen without taking up valuable space.
Reduced Noise
The low-noise motor provides powerful extraction with reduced noise.
LED Lights
The energy-saving lighting provides bright and clear lighting for the hob area.
Key Features
- Suitable for ducted extraction and recirculation
- Energy Efficiency Class: D
- Max. extraction rate: 302m³/h
- Maximum Noise Level: 62dB
- 3 power levels
- 2 x 3W LED
- 2 year warranty for peace of mind

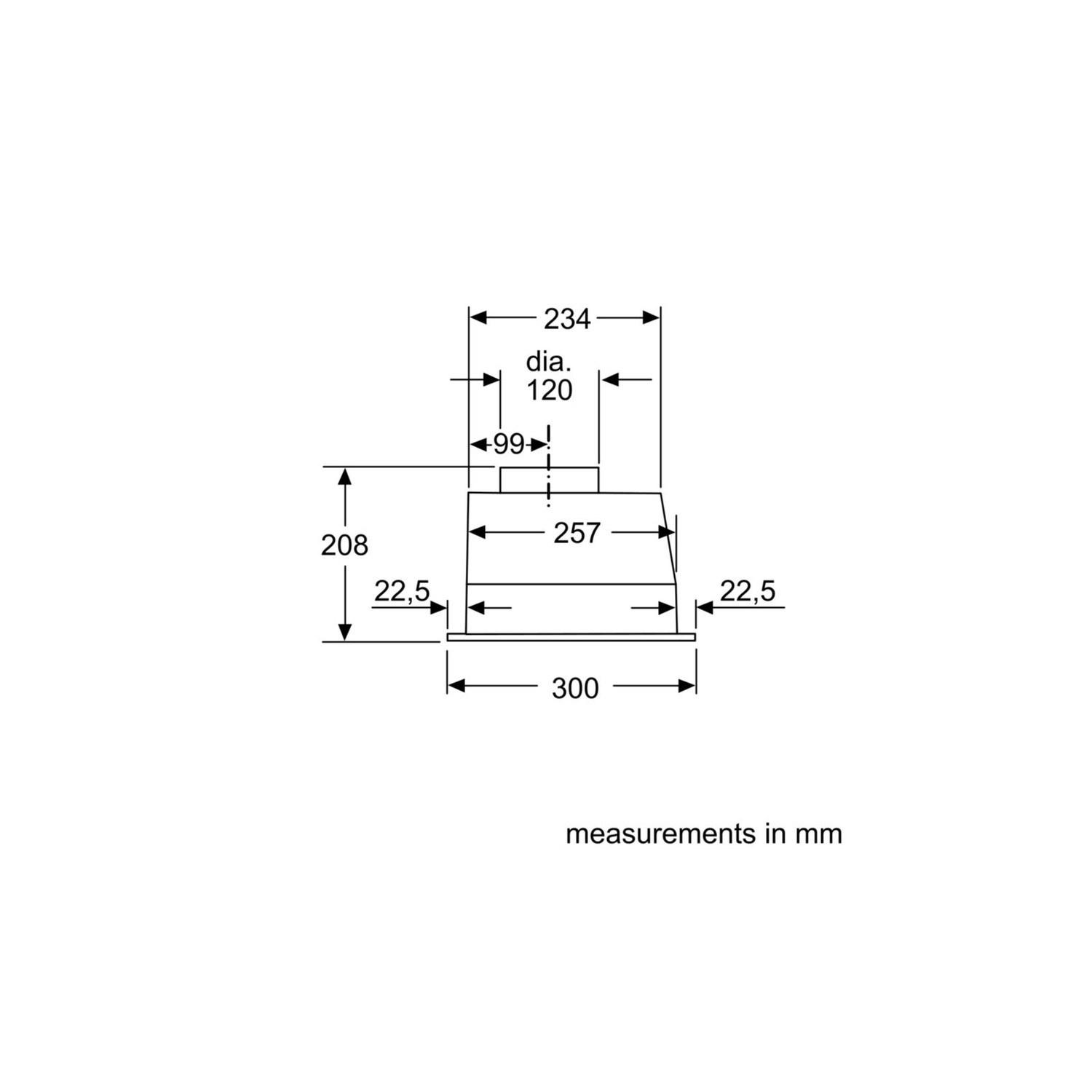

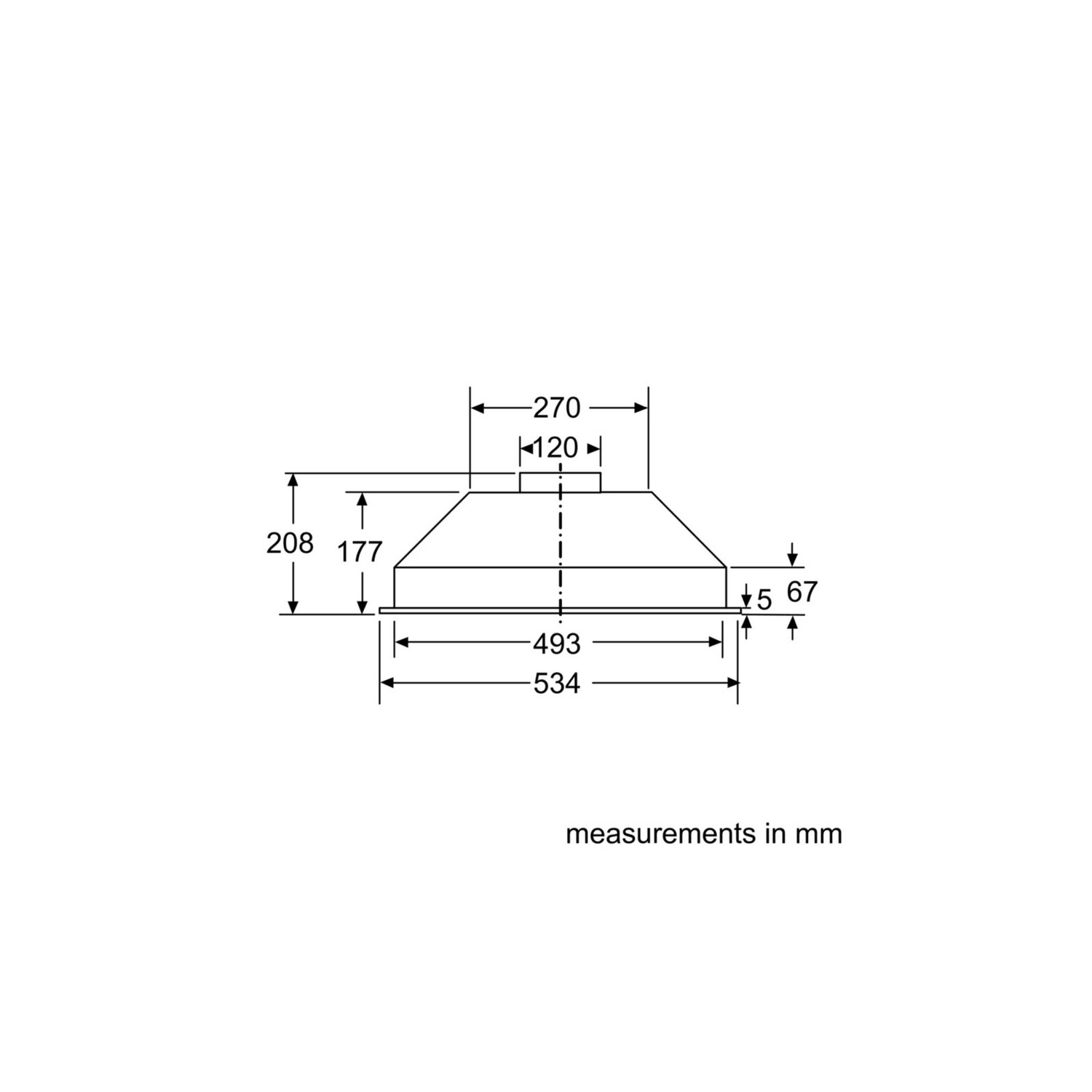

- Dimensions (mm): H208 x W534 x D300
Design
- Integrated canopy hood
- Mechanical slide controls
- Washable aluminium grease filter
Performance/technical information
- Power rating: 121 W
- Total power of the motors: 115 W
- Total power of the lamps: 6 W
- Light Intensity: 78 lux
- Electrical cable length 1.5 m
- Diameter pipe Ø 120 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 208-208 x 534 x 300 mm
- Dimensions recirculating (HxWxD): 208-208 x 534 x 300 mm

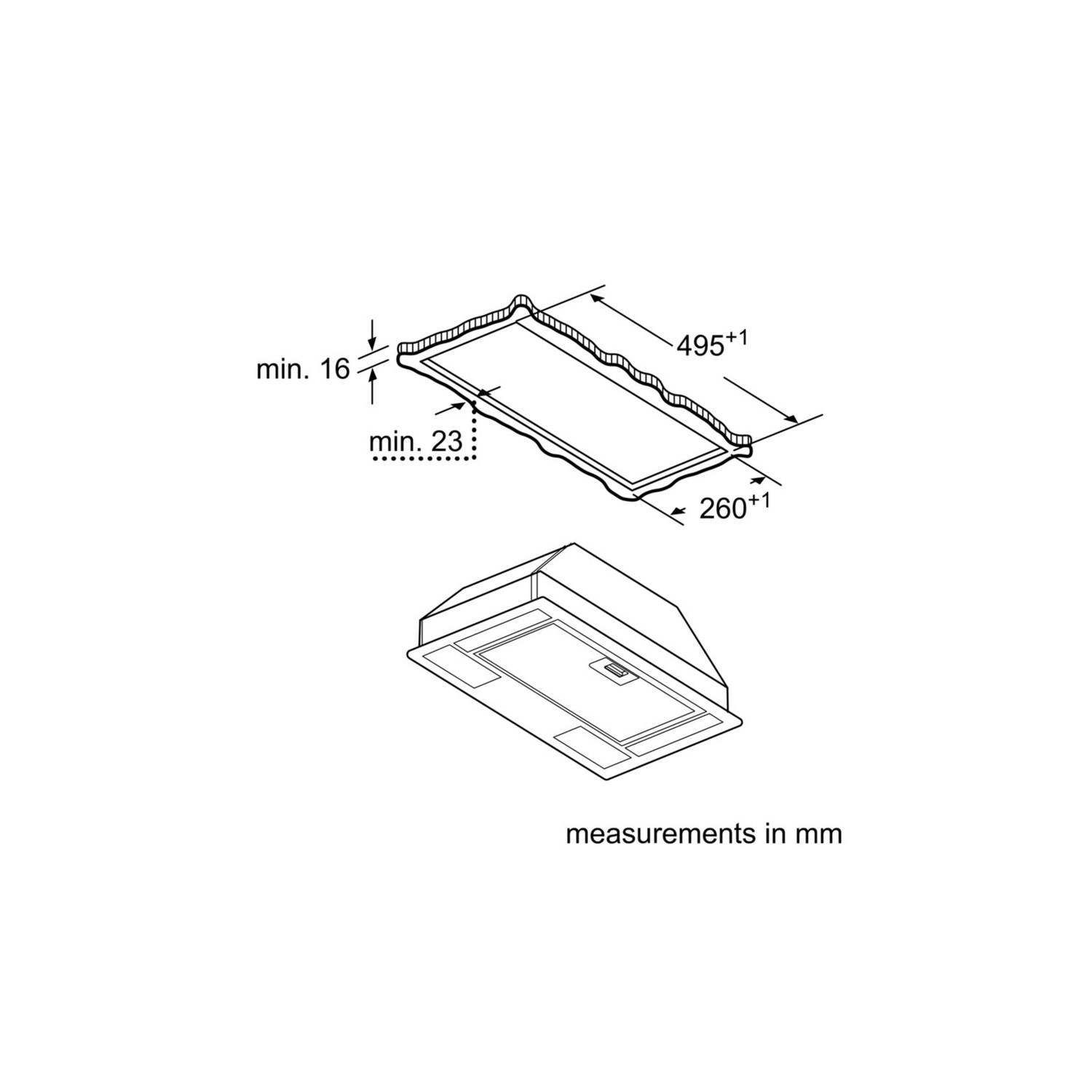

- Mounting dimensions: width: 49 cm, depth: 26 cm
- Blower Efficiency Class: E
- Lighting Efficiency Class: D
- Grease Filtering Efficiency Class: D
- Average Energy Consumption: 67.7 kWh/year
Optional accessories
- Recirculating kit DWZ0IN0A0
Question from Gary: Asked on 15/01/2026 Hi, when this is used with a charcoal filter on recirculation mode, where does the clean air come back out? Ie does it still need an extract pipe through the cupboard or does it push the filtered air back down below?
Hi, When used in recirculation mode with a charcoal filter, this Bosch hood does not need an external duct; it filters the air and returns the cleaned air back into the kitchen.
Thank you.
Question from Charlie: Asked on 30/11/2025 Is the extract top or rear mounted?
Hi Charlie,The Bosch Series 2 54cm Canopy Cooker Hood (DLN53AA70B) features a rear-mounted extraction system, which directs air and smoke away from the cooking area through a duct to the outside. It is designed for integration into cabinetry, with only the front panel visible.Thanks!
Question from Sheila Hill: Asked on 25/09/2025 Will the Bosch 2 54cm canopy cooker hood support a 5m duvting pipe ?
Hi Sheila,The Bosch DLN53AA70B canopy cooker hood requires a 120 mm ducting diameter for external extraction, but no maximum length is specified. For optimal performance, however, the ducting should be kept as short and straight as possible; if a 5-metre run is necessary, use smooth-walled ducting and minimize bends to maintain efficiency.Thanks!
Question from Marilyn: Asked on 21/09/2025 Do I need a filter with this extractor? It didn't come with one. Part of a fitted kitchen
Hi Marilyn,The Bosch DLN53AA70B canopy hood includes a washable aluminium grease filter; a separate charcoal filter is only required for odour removal when the unit is set to recirculation mode, but is not needed if the hood is ducted to vent air outside.Thanks!
