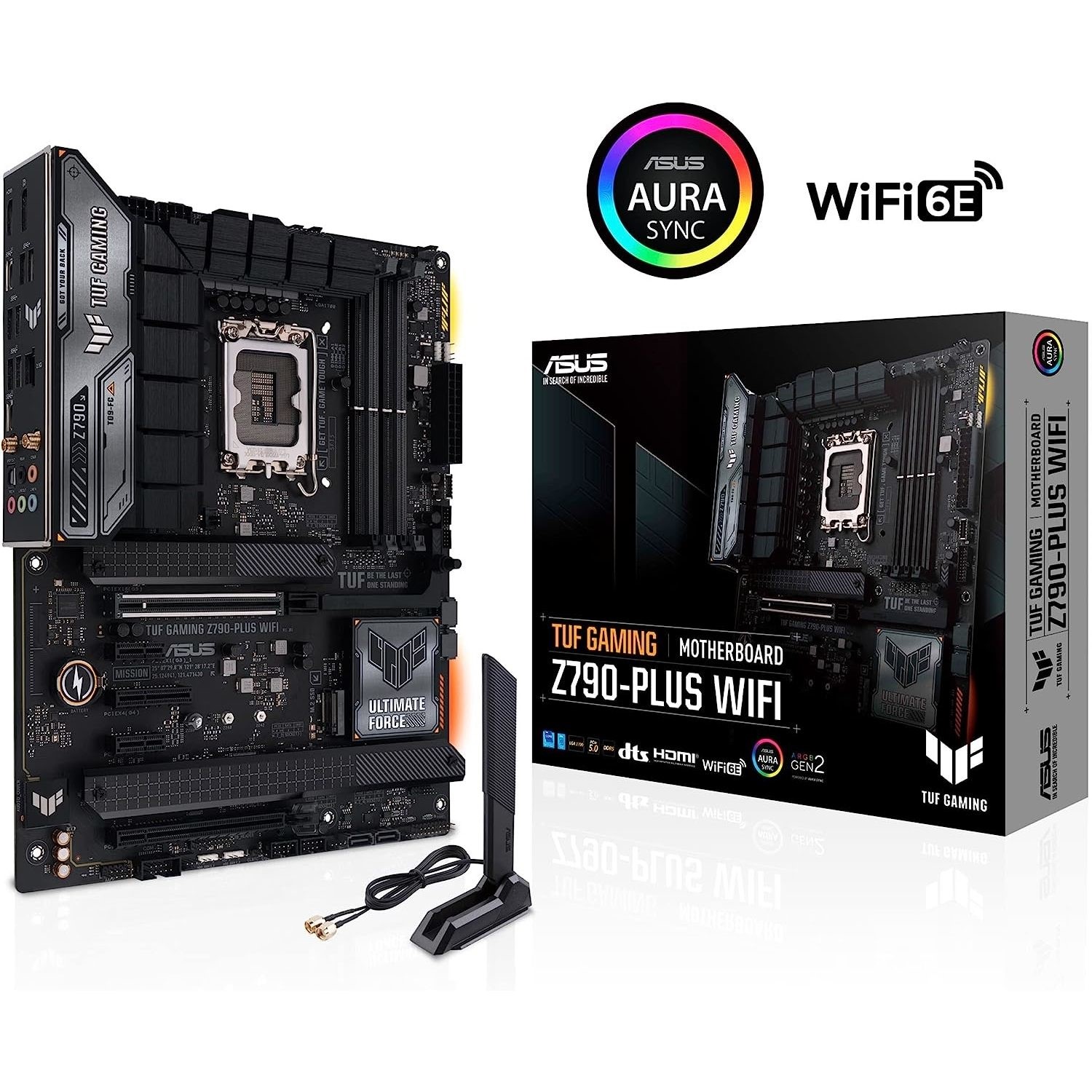

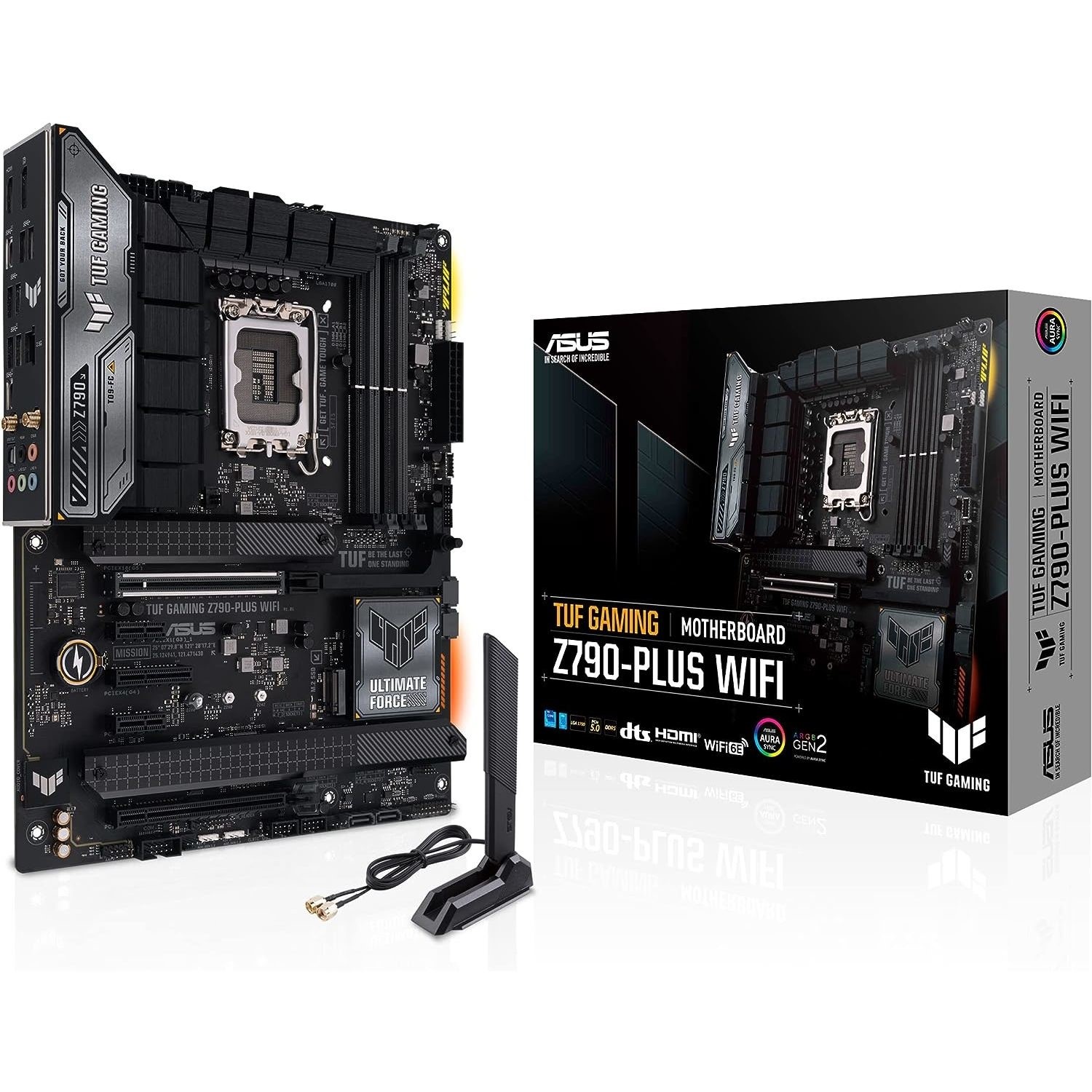

Asus TUF Gaming Z790-PLUS Intel Z790 LGA 1700 DDR5 ATX Motherboard

SKU: TUF GAMING Z790-PLUS WIFI Quickfind Code: 1826260
Was: €476.59     You save: €83.62
€392.97
Why buy me
  • Form Factor: ATX
  • Socket: 1700
  • Chipset Type: Intel Z790
  • Memory type: DDR5
click

TUF GAMING Z790-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

PUSH THE LIMITS
The TUF GAMING Z790 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.

AI COOLING II
Balance the thermals and acoustics of any build with a single click. An ASUS-exclusive algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

DRMOS POWER STAGES

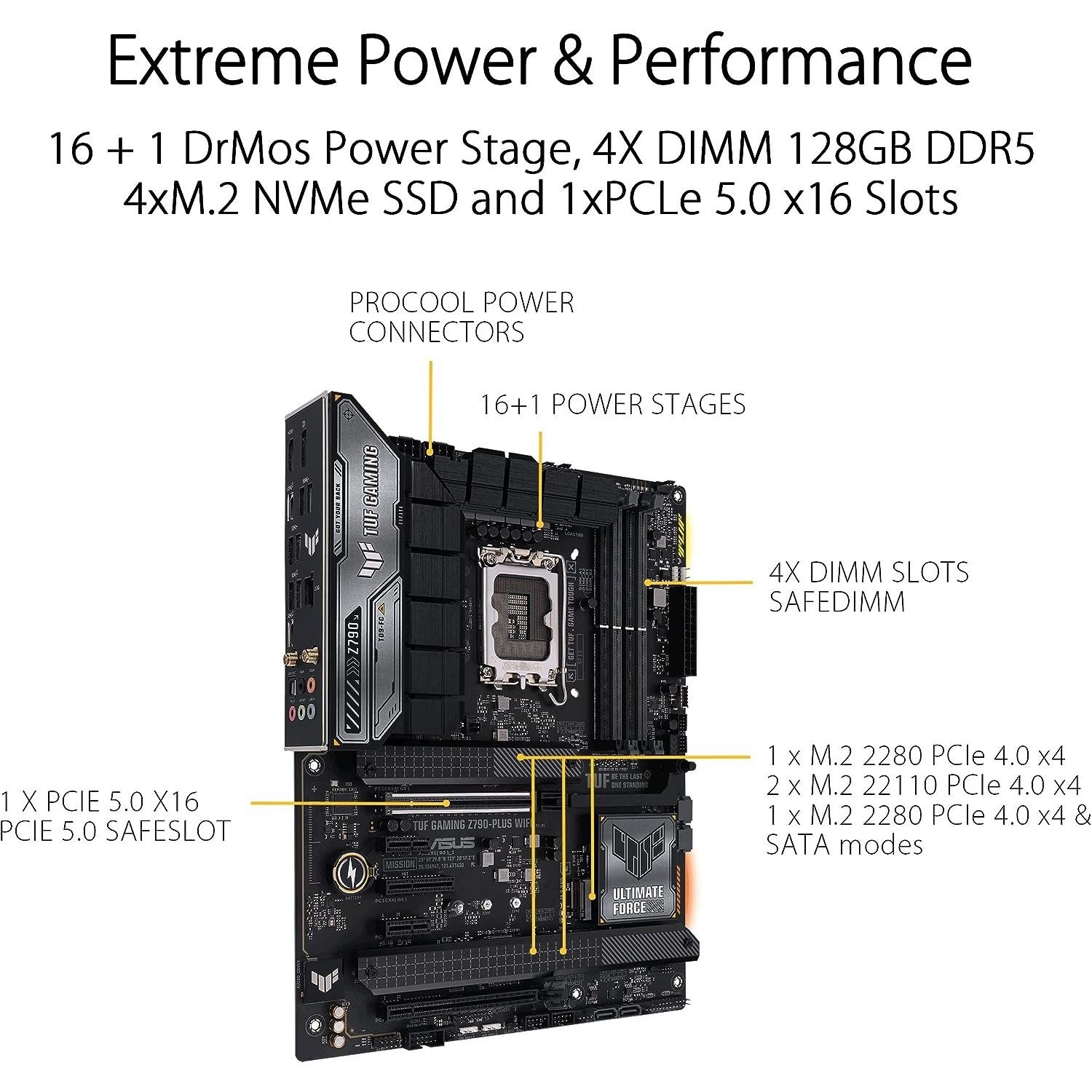

16+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

8+4 PIN PROCOOL POWER CONNECTORS
Compared to most power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF COMPONENTS
Incredibly durable military-grade components including chokes and capacitors which offer fantastic stability and long life.

DIGI+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimised for ultra-smooth and ultra-clean power delivery to the CPU at all times.

PCIE 4.0 READY
The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

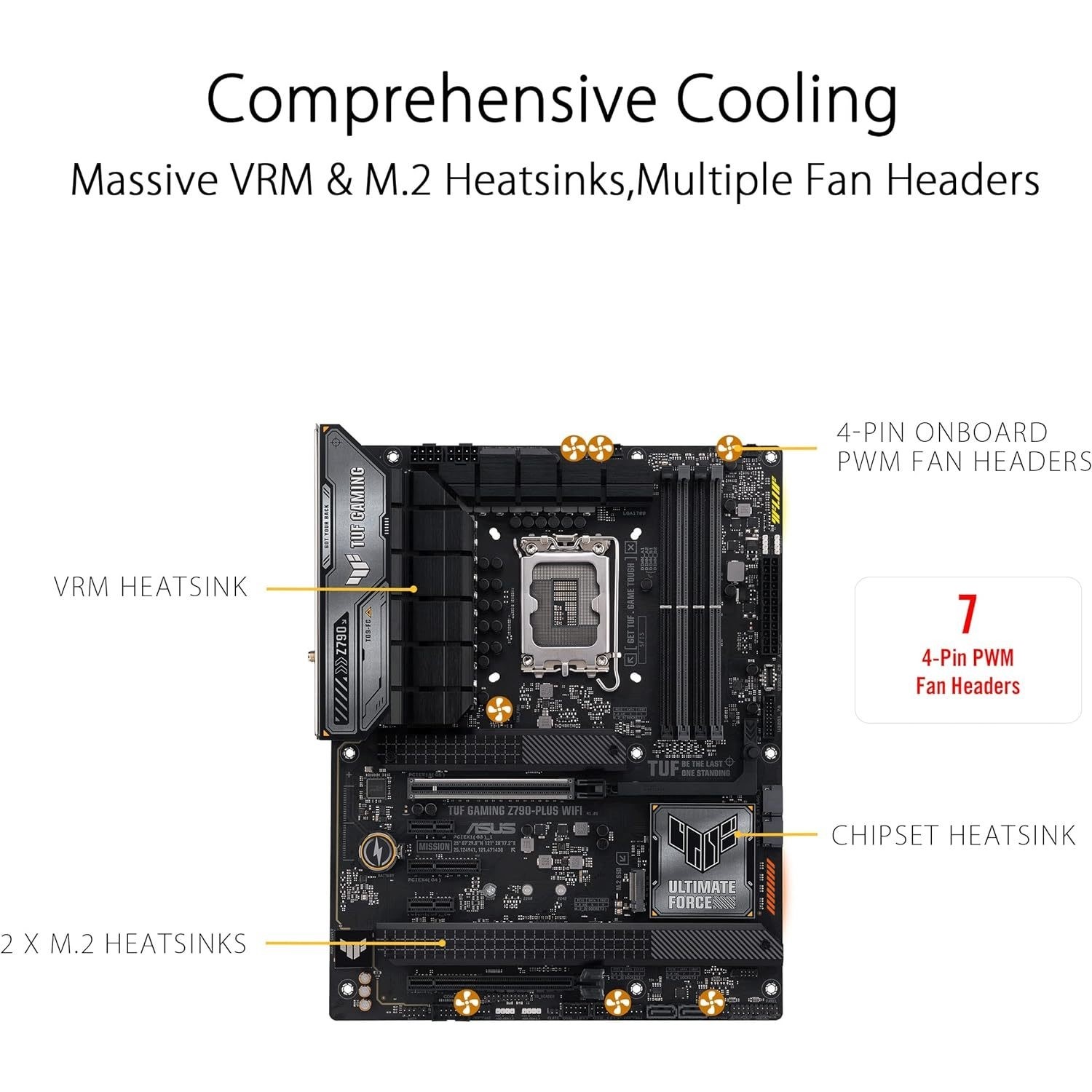

M.2 HEATSINK DESIGN
Three of the four M.2 slots have dedicated heatsinks to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.

COMPREHENSIVE FAN CONTROLS
TUF GAMING Z790 motherboards feature comprehensive fan controls that can be configured via Fan Xpert 4 utility in Armoury Crate or the award-winning ASUS UEFI BIOS.

MULTIPLE TEMPERATURE SOURCES
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.

AIO WATER-COOLING
An integrated AiO system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups.

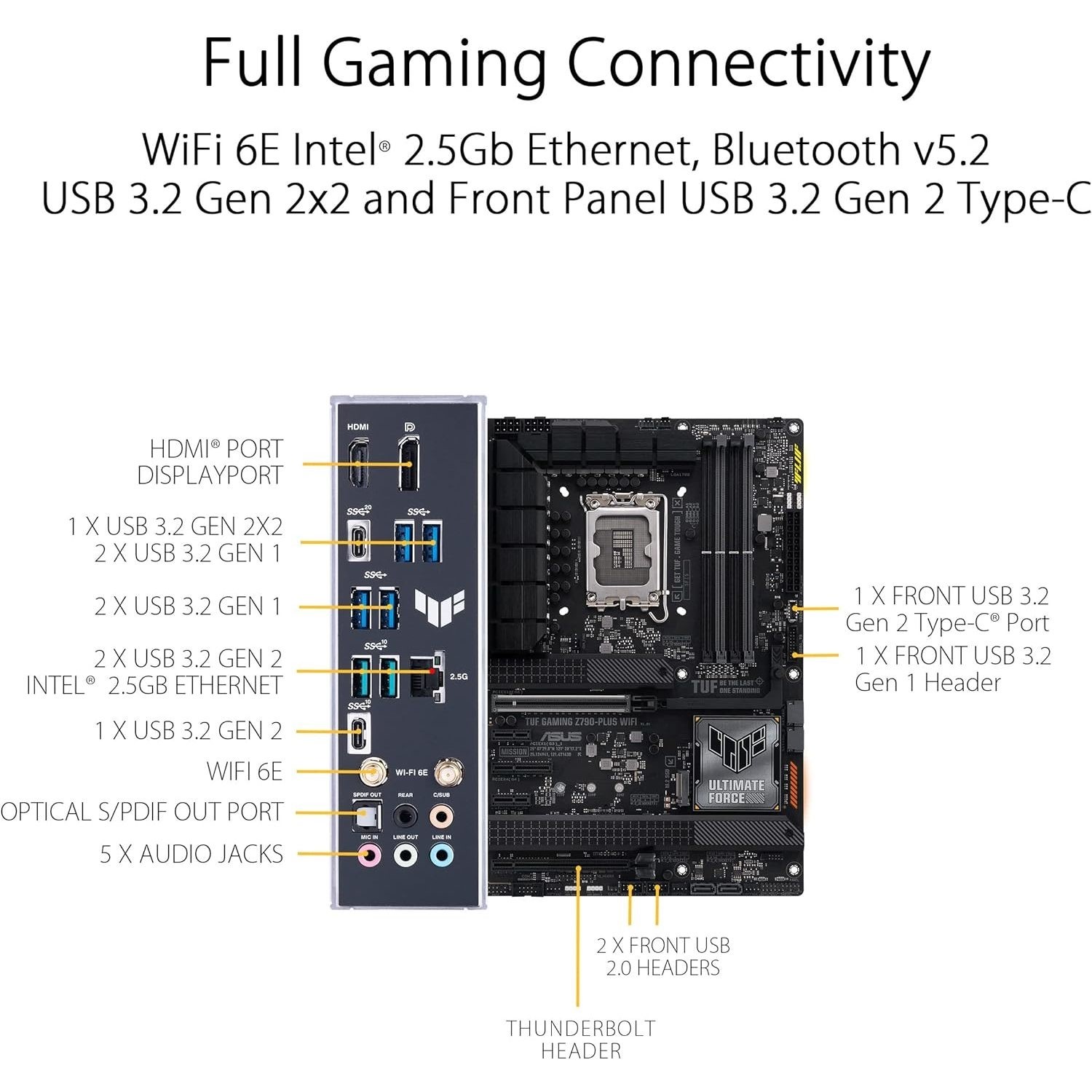

WIFI 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity, as well as better performance in dense wireless environments.*

2.5G LAN
On-board 2.5 Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.


Key Specification
Brand ASUS
CPU Compatibility Intel
Form Factor ATX
Processor socket 1700
Chipset Type Intel Z790
Memory type DDR5
Maximum Memory Capacity 128GB
Other Specification
Storage Interfaces Serial ATA-600 (RAID) M.2
USB Ports USB 3.2, Gen 1 Type-A 4 x USB 3.2 Gen1 Type-A 2 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 1 x USB 3.2 Gen2x2 Type-C
