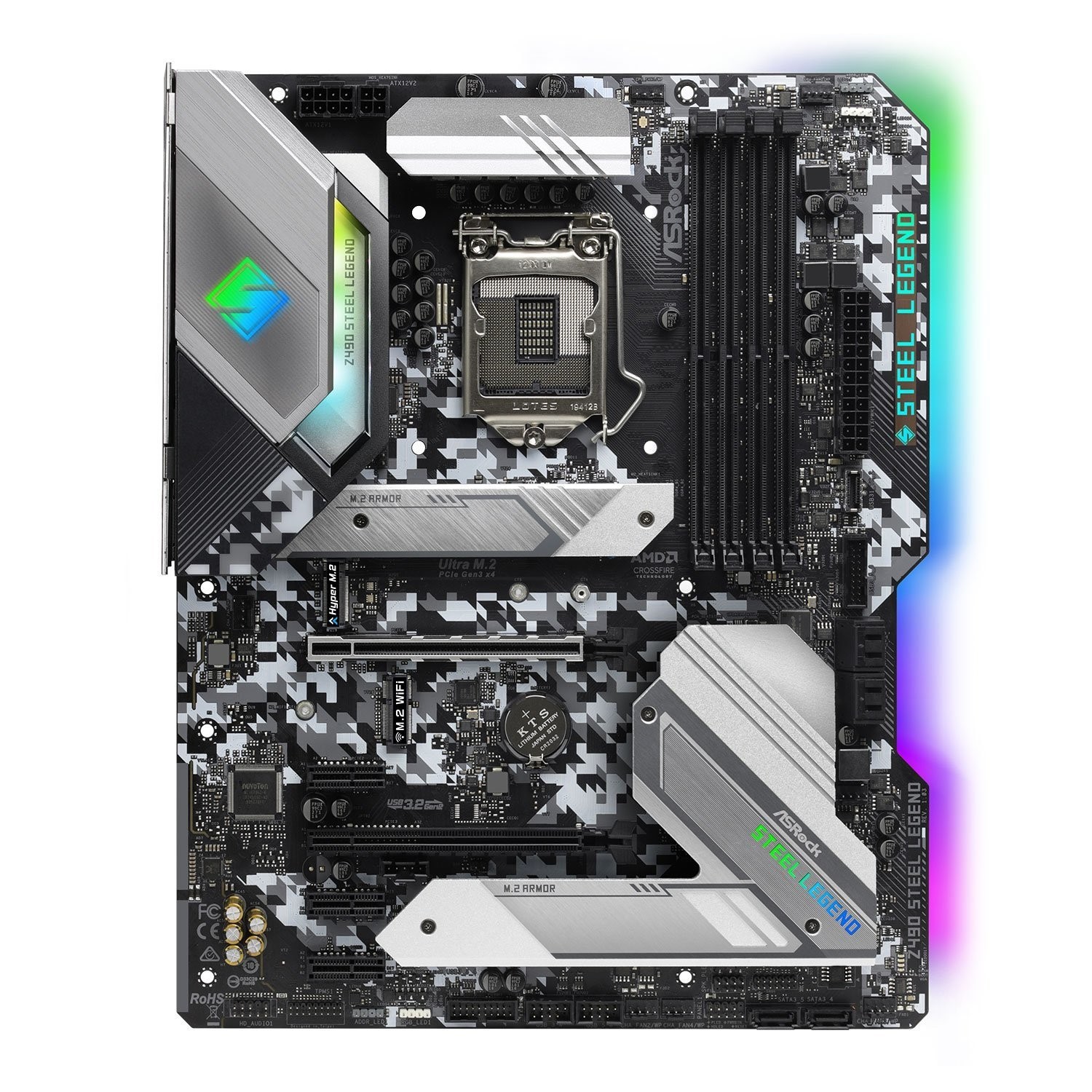

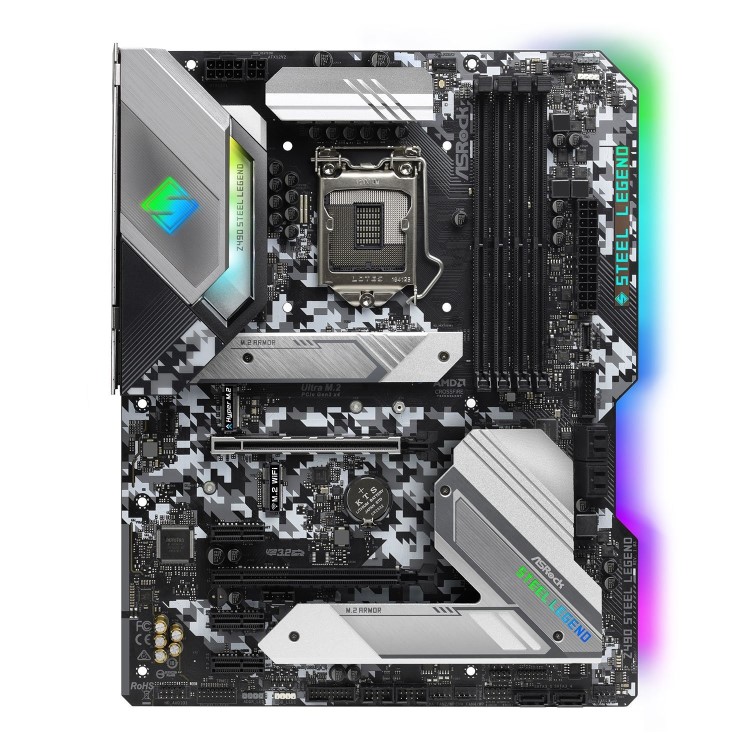

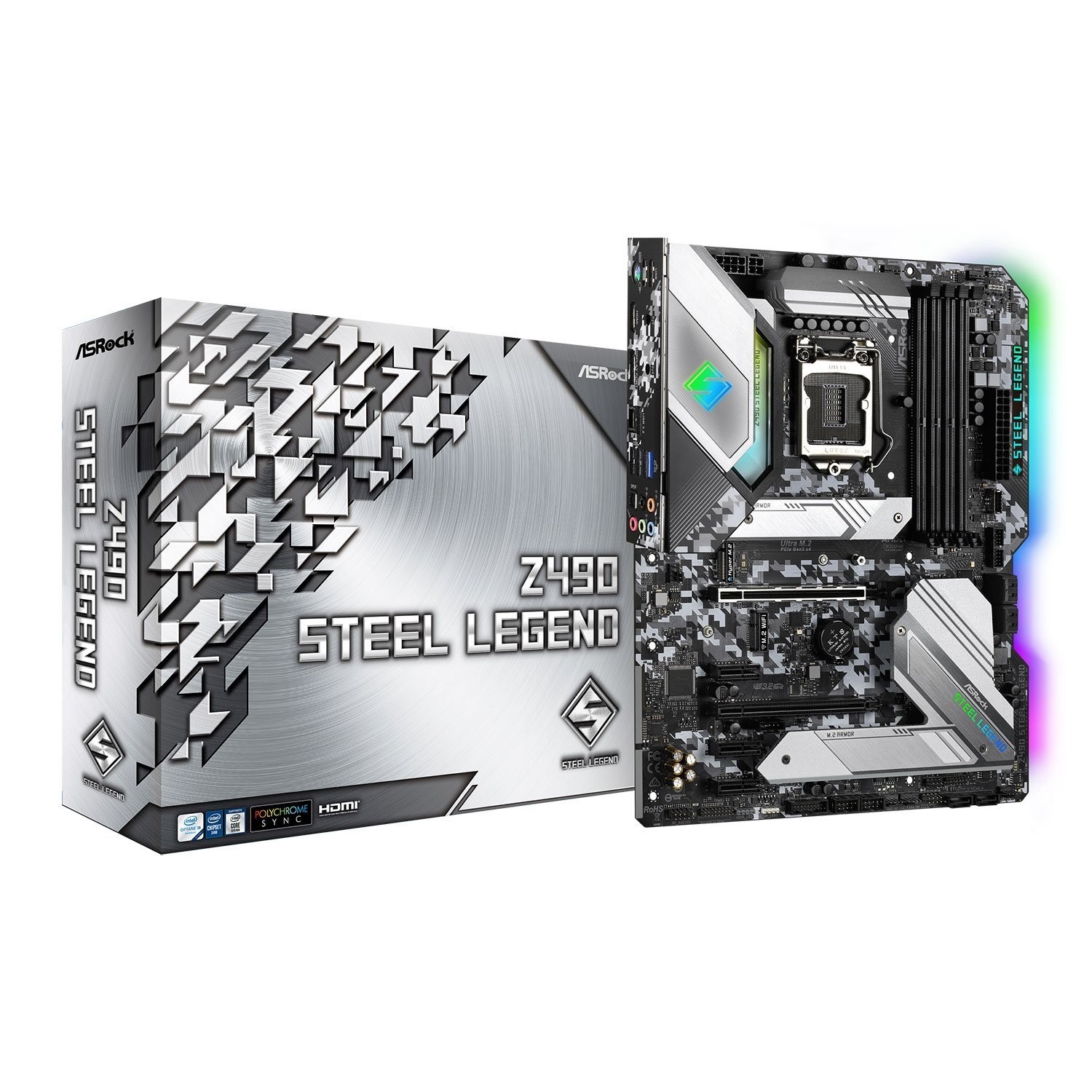

ASRock Intel Z490 Steel Legend ATX Motherboard

ASRock Z490 Steel Legend Intel 10th Gen ATX Motherboard

Introducing the ASRock Intel Z490 Steel Legend ATX motherboard, which supports 10th Gen and future generation Intel Core Processors. The Z490 Steel Legend boasts rapid transfer speed with Dual Ultra M.2 sockets which supports PCIe M.2 SSDs while the full coverage heatsink ensures the SSDs are working at their best. Improve your networking capabilities with LAN up to 2.5X the bandwidth and besides the onboard LAN port, users can choose wireless connections by an M.2 (Key E) slot. The flexible I/O shield features Dual USB 3.2 Gen2 and various connectivity ports and if you look on the Z490 Steel Legend ATX motherboard you'll find a Front USB Type-C header which is a reversible USB design. Whoever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power? Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock's 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately. Enjoy stunning customization with Polychrome RGB Sync lighting, plus incredible Nahimic 3D audio has been optimized to satisfy gamers, movie goers, or anyone who is looking for an outstanding sound experience in high definition.

Z490 Steel Legend Key Features

• Supports 10th Gen and future generation Intel Core Processors (Socket 1200)
• 10 Phase Dr.MOS Power Design
• Supports DDR4 4266MHz+ (OC)
• 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2(Key E) For WiFi
• AMD CrossFireX
• Graphics Output Options: HDMI, DisplayPort
• 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
• 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)

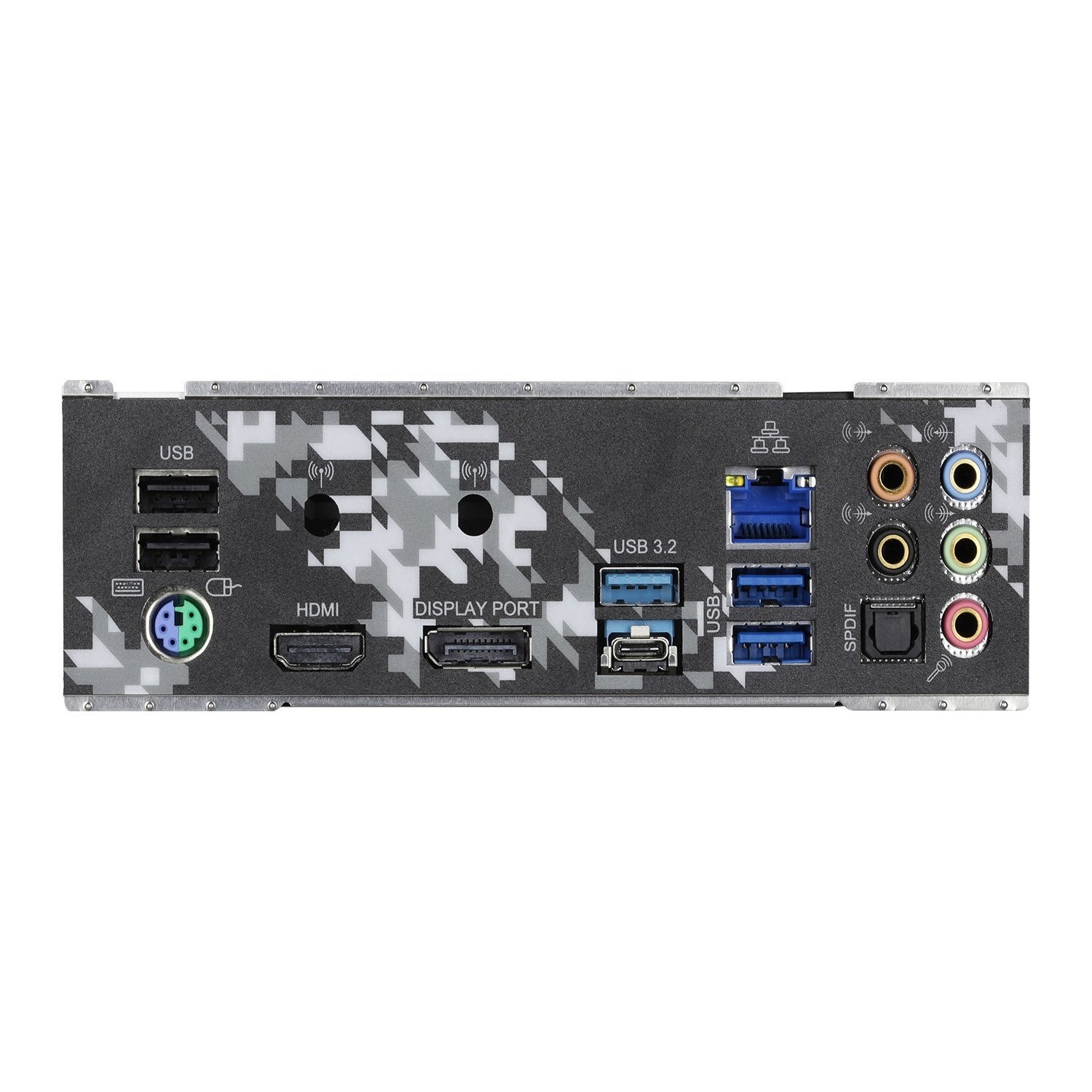

• 2 USB 3.2 Gen2 (Rear Type-A+C),
• 7 USB 3.2 Gen1 (4Front, 2 Rear, 1 Front Type-C)
• Dragon 2.5 Gigabit LAN
• ASRock Polychrome SYNC
