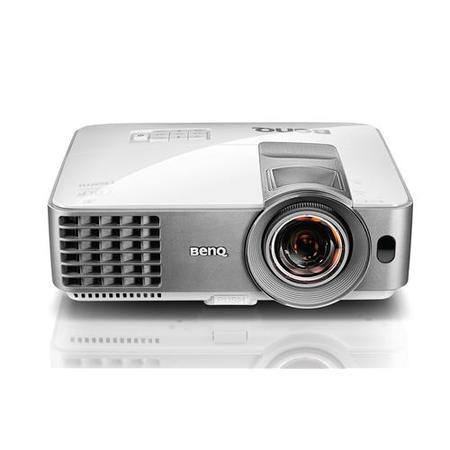

The BenQ MW632ST offers the highest display flexibility- giving you a 64" big picture in a mere projection distance of 1 meter! Featuring 3,200 ANSI lumens high brightness and 13000:1 high contrast ratio and DLP Link 3D technology, this WXGA projector is the perfect match for small-sized business and education settings!
Key Product Info
Product Features
What's in the box?
|
Design |
|
| Colour of product | White |
| Form Factor | Desktop |
|
Display |
|
| Built-in display | |
| Display number of colours | 1070 M |
|
Lamps |
|
| Bulb power | 196 W |
| Service life of lamp (economic mode) | 6000 h |
|
Lens System |
|
| Aperture range (F-F) | 2.6 - 2.78 |
| Focal length range (f-f) | 10.2 - 12.24 mm |
| Offset | 105 % |
| Throw ratio | 0.72 - 0.87:1 |
| Vertical lens shift range | -30 - 30 % |
|
Multimedia |
|
| Built-in speaker(s) | |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
|
Networking |
|
| Bluetooth | |
| Ethernet LAN | |
| Wi-Fi | |
|
Performance |
|
| HDCP | |
| Horizontal scan range | 15 - 102 kHz |
| Noise level | 33 dB |
| Noise level (economic mode) | 28 dB |
| On Screen Display (OSD) | |
| On Screen Display (OSD) languages | ARA,DUT,NOR,BUL,ENG,IND,ITA,POL,SWE,JPN,POR,THA,FIN,RUM,TUR,CRO,FRE,KOR,RUS,CZE,GRE,DAN,HUN |
| Vertical scan range | 24 - 120 Hz |
|
Ports & interfaces |
|
| Audio (L,R) in | 1 |
| Audio (L,R) out | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| Composite video out | 0 |
|
DVI port
DVI stands for Digital Visual Interface. It is commonly used to connect PCs and monitors and transmits full HD video without audio.
|
|
| Ethernet LAN (RJ-45) ports | 0 |
| HDMI connector type | - |
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| Microphone in | |
| PC Audio in | |
| PC in (D-Sub) | |
| RS-232 ports | 1 |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB connector type | USB Type-A,Mini-USB B |
|
VGA (D-Sub) ports quantity
VGA stands for Video Graphics Array. This is an older port that is used to connect monitors and TVs, but cannot transmit HD video or audio. In recent years, it has been replaced by HDMI, DisplayPort and DVI.
|
2 |
|
Power |
|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 220 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 305 W |
| Power source | AC |
|
Projector |
|
| Contrast ratio (typical) | 13000:1 |
| Horizontal synchronization (max) | 102 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -30 - 30 ° |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 m |
| Projection distance | - M |
| Projection technology | DLP |
| Projector brightness | 3200 ANSI lumens |
| Projector native resolution | WXGA (1280x800) |
| Screen size compatibility | 60 - 300 " |
| Supported aspect ratios | - |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 24 kHz |
| Zoom ratio | 1.2:1 |
|
Storage |
|
| Card reader integrated | |
|
Video |
|
| 3D | |
| Analog signal format system | SECAM,NTSC,PAL |
| Full HD | |
| Supported 3D formats | Frame Sequential,Top and bottom |
| Supported graphics resolutions | 640 x 480 (VGA),1920 x 1200 (WUXGA) |
| Supported video modes | 576i,480i,576p,1080i,480p,1080p,720p |
|
Certificates |
|
| Energy Star certified | |
|
Technical details |
|
| Operating time | 4000 h |
|
Weight & dimensions |
|
| Depth | 232.6 mm |
| Height | 114.4 mm |
| Weight | 2600 g |
| Width | 287.3 mm |
